Walk-Through Guillotine Sheep Gate

The Walk-Through Guillotine Sheep Gate is a specialized livestock race gate designed to provide both vertical animal-flow control and convenient operator access within goat-farming-equipment/" target="_blank" class="keylink">sheep handling systems. The lift-up gate controls sheep movement through the race, while the hinged gate frame allows the operator to enter or leave the raceway without dismantling adjacent panels.

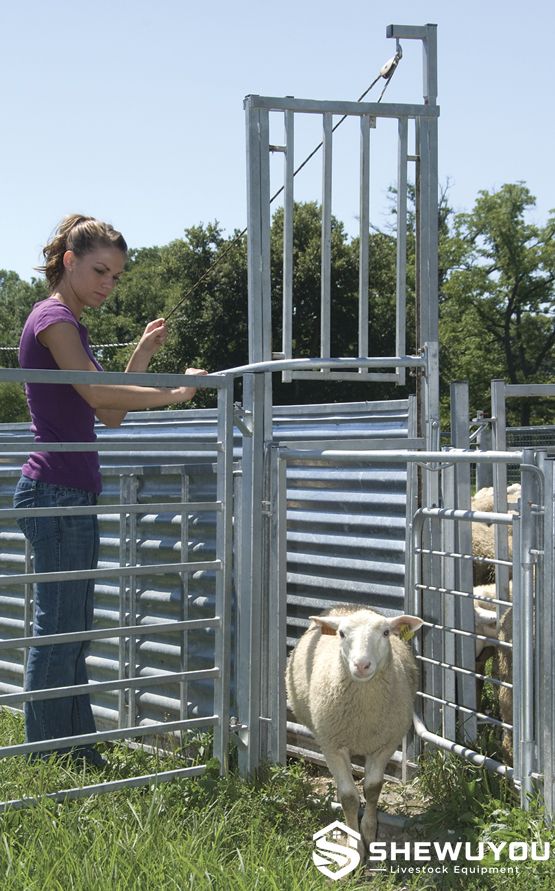

A rope-operated lifting mechanism allows the gate to be raised or lowered from a convenient working position. This makes the unit particularly useful at the entrance or intermediate control point of a sheep race where one operator may need to manage animal flow while working elsewhere along the handling system.

Multiple connection positions can be incorporated into the frame to accommodate tapered race layouts. This allows the race width to narrow progressively toward weighing, drafting, treatment or restraint equipment.

The galvanized steel structure is suitable for commercial sheep farms, breeding operations, livestock contractors and complete agricultural handling projects where durability, efficient stock flow and operator accessibility are important.

• Walk-Through Frame: The gate assembly can hinge open to provide convenient operator access to and from the sheep race.
• Vertical Guillotine Operation: The livestock gate lifts vertically, minimizing the floor space required for opening and closing.
• Remote Rope Control: Supplied or configured with a rope system so the gate can be operated from a practical position along the race.
• Fast Livestock Flow Control: Enables the operator to quickly start or stop sheep moving through the handling race.
• Tapered Race Compatibility: Multiple fixing positions can allow the side panels to be installed at different widths.
• Galvanized Steel Construction: Provides corrosion resistance for demanding indoor and outdoor livestock environments.
• Compact Operating Footprint: Vertical gate movement avoids the clearance requirements associated with conventional swing gates.
• Modular Installation: Can be connected with sheeted hurdles, open sheep panels, drafting gates and other race equipment.
• Operator-Friendly Design: Walk-through access reduces the need to climb over hurdles or walk around the complete handling system.
• Custom Farm Integration: Gate dimensions, connection points and race layout can be configured according to project requirements.

• Galvanized outer gate frame
• Vertical lift guillotine gate
• Hinged walk-through frame assembly
• Upper pulley or rope guide
• Manual operating rope
• Gate lifting and guide mechanism
• Multiple race-panel connection positions
• Hinge and pivot components
• Connection lugs and joining pins
• Optional rope tensioning and remote-control accessories

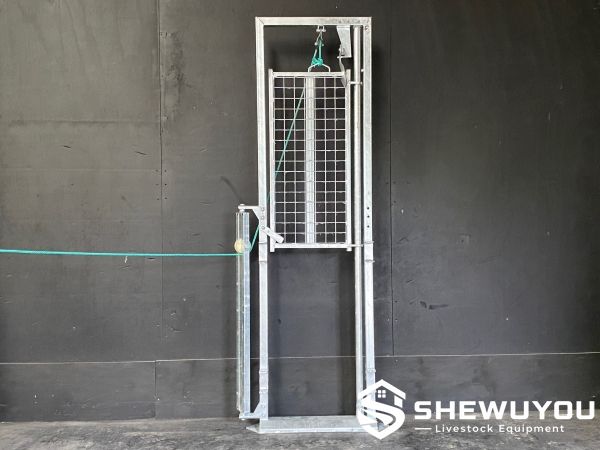

During normal livestock handling, the guillotine panel moves vertically inside the supporting frame. Pulling the operating rope raises the gate and opens the race, allowing sheep to move forward. Releasing or operating the control mechanism lowers the gate to stop the next animal or group.

Because the livestock gate moves vertically rather than swinging into the race, valuable working space is preserved and interference with animals inside the passage is reduced.

When the handler needs to enter or leave the race, the walk-through frame can be hinged open according to the gate configuration. This dual-function arrangement provides both stock control and operator access in a single compact component.

• Commercial sheep handling races
• Sheep drafting and sorting yards
• Forcing and holding pen exits
• Livestock weighing stations
• EID identification systems
• Vaccination and treatment races
• Drenching and flock health management
• Sheep restraint and handling equipment
• Portable sheep handling systems
• Permanent livestock yards
• Agricultural contractor equipment
• Complete livestock farm and steel structure building projects

• Gate width: Customizable
• Frame height: According to project requirements
• Steel section specification: Available upon request
• Race connection positions: Customizable
• Straight or tapered race configuration: According to project requirements
• Operating rope length: Customizable
• Remote rope-control arrangement: Available upon request
• Surface treatment: Hot-dip galvanized or customized coating
• Connection to sheeted or open sheep panels: Available upon request
• Complete sheep handling layouts can be designed according to local climate and farm conditions.

Install the gate at the required control point within the sheep race and connect it securely to compatible side panels or support posts. The frame should remain vertical and aligned with the livestock passage to ensure smooth gate movement.

Where a tapered race is required, the side panels can be attached at suitable connection positions so the passage gradually narrows toward the handling point.

Route the operating rope so the handler can raise and lower the gate safely without standing directly in the animal pathway. The rope and pulley should move freely and should not interfere with adjacent gates or equipment.

Regularly inspect the rope, pulley, hinges, guide components, joining pins and galvanized frame. Remove manure, wool and dirt from moving parts and replace worn operating components when required.

A typical installation positions the walk-through guillotine gate between the forcing pen and the main handling race. The operator can control sheep entering the race remotely while remaining behind the flock.

When access to the raceway is required for inspection, cleaning or livestock treatment, the hinged walk-through function provides a convenient entry point without removing the complete gate assembly.

For larger commercial projects, the gate can be integrated with sheeted race panels, electronic weighing equipment, EID readers, drafting gates and multiple exit pens to create a complete flock-management system.

Q: What is the advantage of a walk-through guillotine gate?

A: It combines livestock flow control with convenient handler access, eliminating the need to climb over race panels or walk around the complete handling system.

Q: Can the gate be operated remotely?

A: Yes. Rope-operated configurations allow the gate to be raised or lowered from another position along the sheep race.

Q: Can it be used in a tapered sheep race?

A: Yes. Compatible designs provide multiple connection positions to support different race widths and tapered layouts.

Q: Is it suitable for portable handling systems?

A: Yes. The gate can be incorporated into modular portable sheep handling systems using compatible joining pins and panels.

Q: Can the gate connect with weighing or drafting equipment?

A: Yes. It can be positioned before compatible weighing crates, livestock handlers, treatment stations or drafting gates.

Q: Can SHEWUYOU customize the gate?

A: Yes. Gate dimensions, frame configuration, connection positions and rope-control arrangements can be customized according to project requirements.
