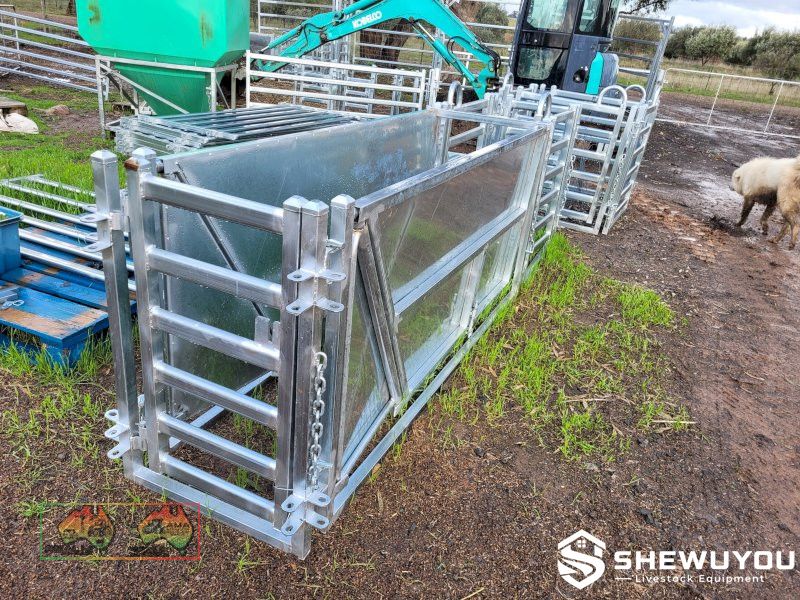

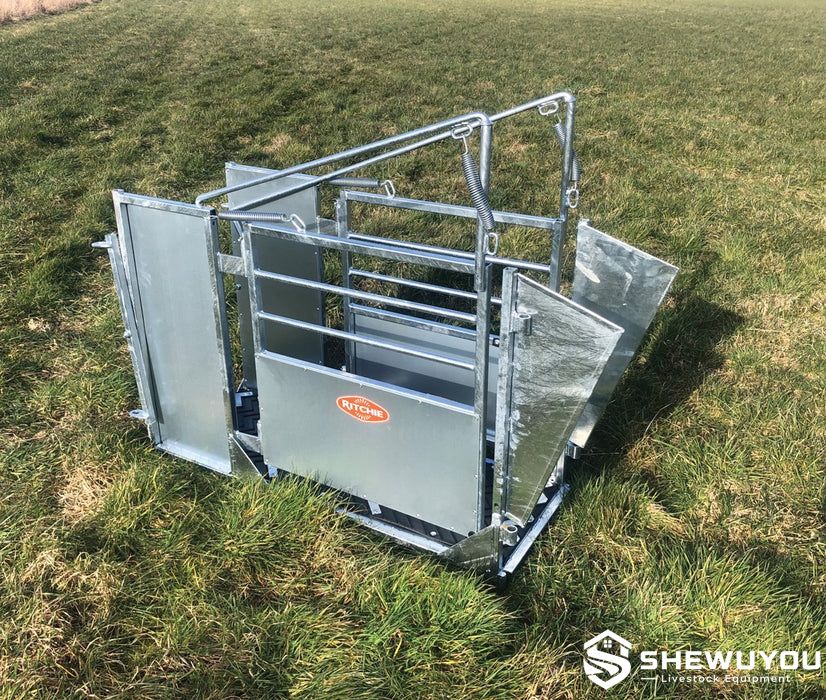

3-Way Sheep Sorting Gate

The 3-Way Sheep Sorting Gate is a professional livestock drafting component designed to direct goat-farming-equipment/" target="_blank" class="keylink">sheep into three separate routes: left, right or straight ahead. Installed at the exit of a sheep race or handling crate, it enables rapid classification of individual animals during routine flock management.

The gate is suitable for sorting sheep according to live weight, age, sex, breeding group, health status, treatment requirements or market classification. Its three-position design allows operators to create a continuous drafting workflow without repeatedly catching or manually moving animals.

Heavy-duty galvanized steel construction provides durability for intensive livestock environments and outdoor sheep yards. The compact gate structure can be connected with handling races, weighing crates, EID systems, holding pens and modular livestock panels.

For commercial sheep farms, agricultural contractors and complete livestock engineering projects, gate dimensions, operating position and connection arrangements can be customized according to project requirements.

• Three-Way Drafting: Allows sheep to be directed left, right or straight through according to flock-management requirements.
• High-Efficiency Sorting: Supports rapid separation of animals without interrupting the handling workflow.
• Hot-Dip Galvanized Construction: Provides corrosion resistance and long service life in demanding agricultural environments.
• Compact Race Integration: Designed for installation at the discharge end of a sheep handling race or livestock handler.
• Flexible Operating Position: Gate controls can be arranged for convenient access from the operator's working position.
• Controlled Livestock Flow: Directional panels guide animals smoothly into the selected exit route.
• Compatible with Weighing Systems: Can be positioned after a livestock weighing crate for immediate weight-based drafting.
• EID System Integration: Suitable for use with electronic identification and data-based flock management systems.
• Modular Yard Connection: Compatible with race panels, hurdles and collection pens.
• Custom Project Configuration: Dimensions and connection methods can be adapted according to farm layout requirements.

• Galvanized steel supporting frame
• Three-position drafting gate assembly
• Left-hand exit panel
• Right-hand exit panel
• Straight-through passage
• Pivot and hinge assemblies
• Manual operating handle
• Gate stop and locking components
• Race connection lugs
• Joining pins or fixing hardware
• Optional floor and remote-control components

Sheep enter the drafting point from a single-file handling race. The operator positions the gate according to the required destination before the animal reaches the exit.

For the first sorting route, the gate directs the animal to one side. Reversing the gate position directs the next animal to the opposite side, while the central position allows a straight run-through. This three-position principle provides three independent livestock destinations from one race.

The system can be combined with weighing or EID equipment so drafting decisions are made immediately after identification, weighing or inspection, improving labour efficiency in commercial flock management.

• Commercial sheep handling yards
• Three-group flock drafting
• Weight-based sheep sorting
• Breeding stock selection
• Ewe and lamb management
• Replacement ewe classification
• Market-weight livestock separation
• Veterinary treatment grouping
• Shearing preparation
• EID identification and flock recording
• Livestock weighing systems
• Portable sheep handling systems
• Complete livestock farm and steel structure building projects

• Gate width and height: Customizable
• Passage width: According to project requirements
• Steel frame specification: Available upon request
• Sheeted or open-rail gate design: Customizable
• Manual operating handle position: According to yard layout
• Remote-control linkage: Available upon request
• Non-slip flooring: Available upon request
• Race connection system: Customizable
• Three exit-pen layout: According to project requirements
• Weighing and EID integration: Available upon request
• Complete sheep handling layouts can be designed according to local climate and farm conditions.

The 3-way sorting gate is normally positioned at the discharge end of a straight handling race, weighing crate or sheep handler. Three collection routes should be arranged so livestock can leave the drafting point without sharp turns or unnecessary obstruction.

Connect the gate frame securely to compatible race panels using joining pins, brackets or engineered fixing components. The base should remain level to ensure smooth gate movement and reliable alignment with each exit passage.

Before operation, confirm that the gate moves freely between all three positions and that locking or stop components engage correctly. The operator handle should remain accessible without requiring personnel to enter the livestock movement zone.

Regular maintenance includes removing manure and debris from hinges, pivot points and floor areas, checking joining pins and fasteners, and inspecting galvanized surfaces for mechanical damage.

A typical three-way drafting layout consists of a forcing pen, single-file race and 3-way sorting gate connected to three collection pens. One group can continue straight ahead while two additional groups are directed to the left and right.

For breeding farms, the system can separate replacement females, breeding animals and cull groups during a single handling session. Finishing operations can use the same layout to classify livestock according to target live weight.

The gate can also be installed after an electronic weighing or EID station to support data-based drafting in larger commercial sheep operations.

Q: What does a 3-way sheep sorting gate do?

A: It allows sheep leaving a handling race to be directed left, right or straight ahead into three separate livestock groups.

Q: What can sheep be sorted by?

A: Common drafting criteria include weight, age, sex, breeding status, health condition, treatment group and market classification.

Q: Can the gate connect to a livestock weighing crate?

A: Yes. The gate can be positioned after compatible weighing equipment so animals are drafted immediately after weighing.

Q: Can it work with an EID system?

A: Yes. Suitable race layouts can combine the sorting gate with electronic identification and livestock data-recording equipment.

Q: Is the gate suitable for outdoor installation?

A: Yes. Hot-dip galvanized steel construction provides corrosion protection for normal outdoor livestock handling environments.

Q: Can a non-slip floor be supplied?

A: Non-slip or rubberized flooring options can be supplied according to project requirements.

Q: Can SHEWUYOU customize the complete drafting system?

A: Yes. Gate dimensions, race connections, collection pens, weighing equipment and EID integration can be configured according to farm requirements.
