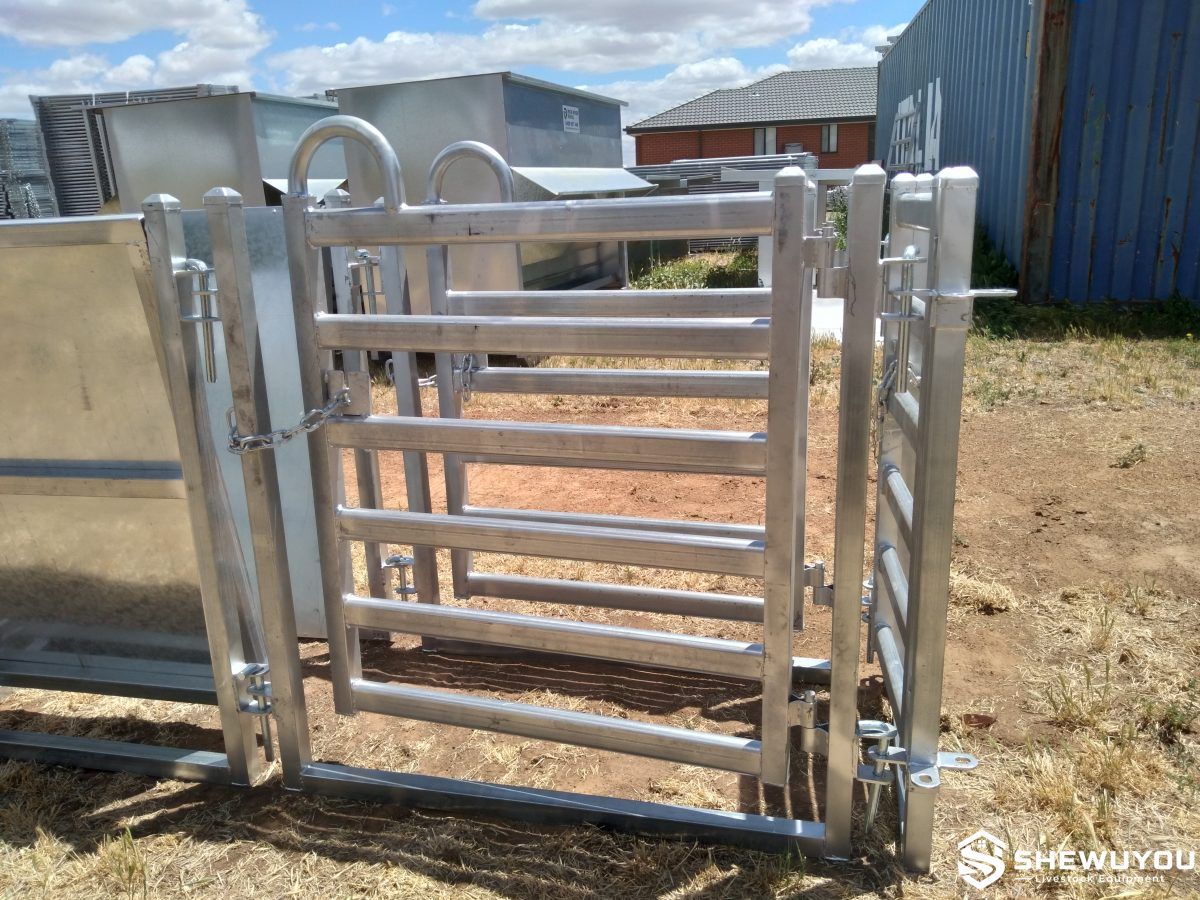

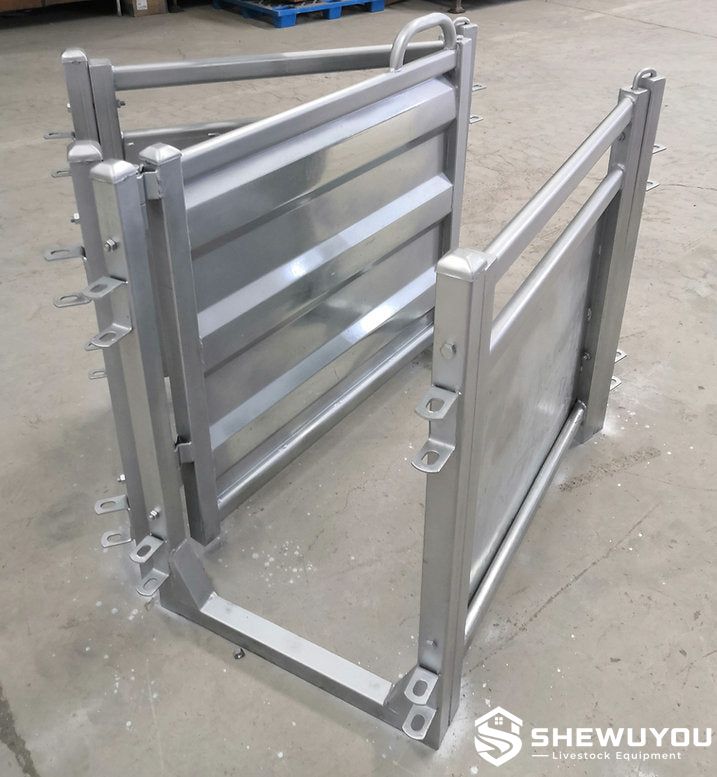

2-Way Sheep Sorting Gate

The 2-Way Sheep Sorting Gate is a professional livestock handling component designed to direct individual goat-farming-equipment/" target="_blank" class="keylink">sheep from a race into either of two separate collection pens. It provides a simple and efficient solution for flock drafting, classification and routine animal management.

Installed at the discharge end of a sheep handling race, the gate allows the operator to select the required exit direction using a manual control mechanism. Sheep can therefore be separated according to weight, age, sex, breeding group, health status, treatment requirement or other farm management criteria.

The galvanized steel structure provides durability for repeated use in commercial livestock environments. Smooth gate movement and a compact operating footprint make the unit suitable for permanent sheep yards, portable handling systems and agricultural contractor applications.

The sorting gate can be integrated with sheeted races, guillotine gates, weighing crates, EID equipment and modular sheep panels to create a complete livestock handling system according to project requirements.

• Two-Way Drafting: Allows sheep to be directed into either of two separate sorting pens.
• Fast Manual Operation: Simple mechanical control enables rapid drafting during high-throughput flock handling.
• Galvanized Steel Construction: Provides corrosion resistance and long service life in demanding farm environments.
• Smooth Animal Flow: Properly positioned gate panels help guide sheep through the sorting point without unnecessary obstruction.
• Compact Installation: Designed for installation at the end of a sheep race without requiring excessive operating space.
• Reversible or Remote Operation Options: Compatible designs can support left-side, right-side or offset operation according to handling layout.
• Modular Connection: Can connect with sheep hurdles, race panels, stop gates and weighing equipment.
• Livestock-Friendly Design: Smooth steel surfaces and controlled gate movement help reduce impact during drafting.
• Low Maintenance: Simple mechanical construction minimizes routine service requirements.
• Custom Farm Integration: Dimensions and connection arrangements can be configured according to project requirements.

• Galvanized steel supporting frame
• Two directional sorting gate panels
• Pivot or hinge assemblies
• Manual operating handle
• Gate locking mechanism
• Lower guide or stabilizing frame
• Connection lugs
• Panel connection pins
• Optional remote operating handle
• Optional race and dispersal pen connection components

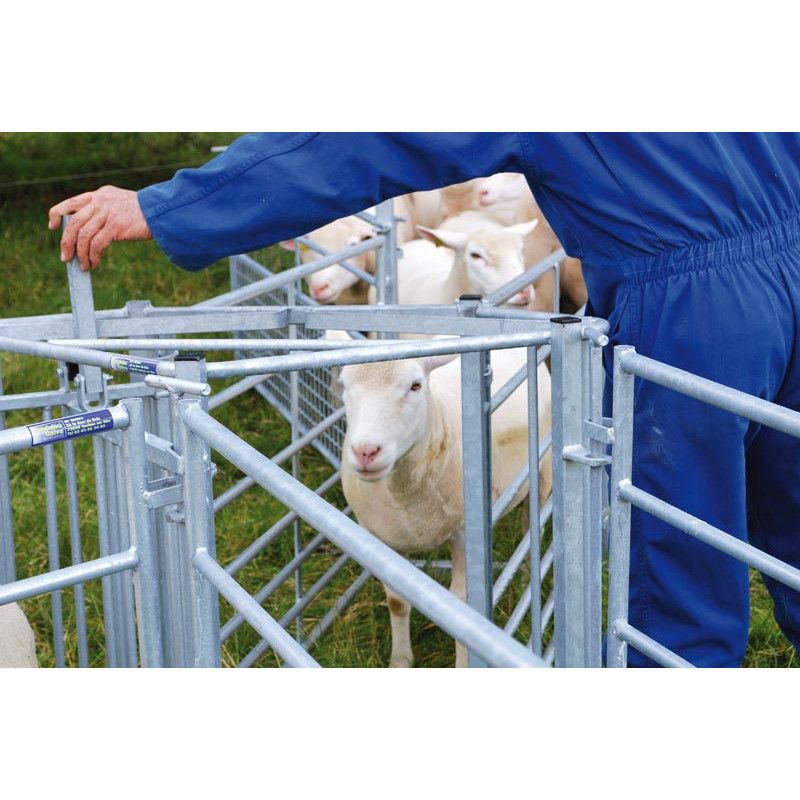

Sheep move through the handling race toward the sorting gate in single file. The operator positions the drafting gate to open one exit route while closing the alternative route.

When the animal passes through the selected opening, it enters the corresponding collection pen. The operator then changes the gate position for the next animal when a different sorting category is required.

This simple mechanical process allows continuous drafting without repeatedly catching or manually moving individual sheep, improving labour efficiency and reducing unnecessary animal handling.

• Commercial sheep handling yards
• Ewe and lamb separation
• Weight-based livestock sorting
• Breeding flock selection
• Replacement ewe selection
• Veterinary treatment grouping
• Market and sale-group preparation
• Shearing preparation areas
• Livestock weighing systems
• EID identification and management systems
• Portable sheep handling yards
• Complete livestock farm and steel structure building projects

• Gate height and width: Customizable
• Passage width: According to project requirements
• Frame steel specification: Available upon request
• Sheeted or open gate design: Customizable
• Operating handle position: Left or right according to yard layout
• Remote operating handle: Available upon request
• Race connection system: Customizable
• Dispersal pen arrangement: According to project requirements
• Surface finish: Galvanized or customized coating
• Complete sheep handling layouts can be designed according to local climate and farm conditions.

The sorting gate is normally installed at the discharge end of a sheep race where two dispersal pens are positioned on either side of the drafting point. The gate should be aligned with the race to provide an unobstructed livestock pathway.

Connection lugs and pins allow the unit to integrate with compatible sheep hurdles and race panels. For permanent installations, additional fixing or support components can be provided according to the site layout.

Before operation, check that both gate panels move freely and that locking or stop mechanisms engage correctly. The operating handle should remain within convenient reach of the handler without obstructing livestock flow.

Regular maintenance should include cleaning manure and debris from hinges, pivots and lower guides. Connection pins, welds and galvanized surfaces should be inspected periodically for wear or mechanical damage.

A typical two-way drafting installation consists of a forcing pen, single-file sheep race and sorting gate positioned between two exit pens. Animals move through the race one at a time and are directed into the required group by the operator.

For larger commercial sheep farms, the sorting gate can be positioned after weighing or EID equipment so individual animals can be classified immediately after identification, weighing or inspection.

Q: What is a 2-way sheep sorting gate used for?

A: It allows individual sheep leaving a handling race to be directed into either of two separate collection pens.

Q: What criteria can be used to sort sheep?

A: Animals can be separated according to weight, age, sex, breeding status, treatment requirements, market group or other farm management criteria.

Q: Can the sorting gate connect directly to a sheep race?

A: Yes. Compatible gate designs can connect directly to sheep race panels, stop gates, guillotine gates or weighing equipment.

Q: Can the gate be operated from either side?

A: Handle configuration can be selected according to the required yard layout, and remote operating options are available for suitable designs.

Q: Is the gate suitable for outdoor use?

A: Yes. Galvanized steel construction provides corrosion protection for normal outdoor livestock handling environments.

Q: Can SHEWUYOU customize the gate dimensions?

A: Yes. Gate dimensions, passage width, frame specification and connection arrangements can be customized according to project requirements.
