Guillotine Sheep Sorting Gate

The Guillotine Sheep Sorting Gate is a vertically operated livestock control gate designed for installation at the entrance, intermediate control point or discharge section of a goat-farming-equipment/" target="_blank" class="keylink">sheep handling race. It provides fast control of animal movement without requiring the swing clearance of a conventional hinged gate.

The gate leaf moves vertically inside a reinforced steel frame, allowing the operator to open the race for forward movement or close it rapidly to hold animals in a selected section. This operating principle is particularly useful in narrow raceways where efficient space utilization and quick stock control are important.

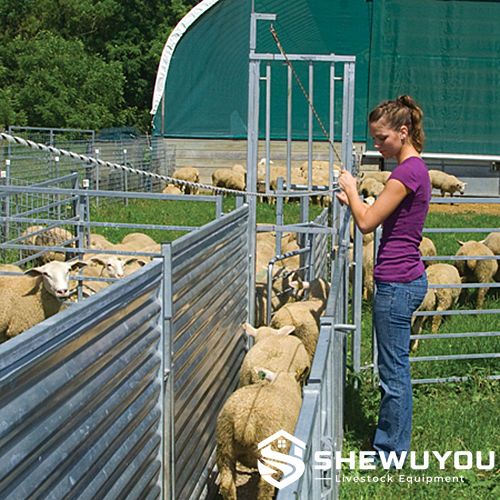

A galvanized steel structure provides durability for intensive livestock environments, while compatible rope, lever or remote-control arrangements allow the gate to be operated from a convenient position beside or behind the race.

The gate can be integrated with sheeted hurdles, adjustable-width races, weighing equipment, drafting gates and holding pens to form a complete commercial sheep handling system.

• Vertical Guillotine Operation: Gate lifts upward instead of swinging into the livestock passage or operator working area.
• Efficient Race Control: Allows rapid opening and closing to regulate individual sheep or small groups moving through the race.
• Space-Saving Structure: Well suited to narrow sheep races and compact livestock handling yards.
• Remote Operating Capability: Compatible designs can be operated by rope or remote lever from a convenient handling position.
• Galvanized Steel Construction: Provides corrosion resistance for demanding indoor and outdoor agricultural environments.
• Livestock-Friendly Design: Smooth gate movement and correctly formed steel components help reduce unnecessary animal contact.
• Modular Integration: Suitable for connection with sheep races, sheeted hurdles, drafting systems and weighing stations.
• Simple Mechanical Principle: Low-complexity construction supports reliable operation and straightforward maintenance.
• Portable or Permanent Use: Can be incorporated into mobile handling systems or fixed commercial sheep yards.
• Custom Manufacturing: Gate width, height, frame arrangement and control configuration can be supplied according to project requirements.

• Galvanized vertical support frame
• Sliding guillotine gate leaf
• Vertical guide channels
• Upper cross member
• Gate lifting mechanism
• Operating rope or lever system
• Gate stop and retaining components
• Race connection lugs
• Joining pins or fixing hardware
• Optional remote-control operating components

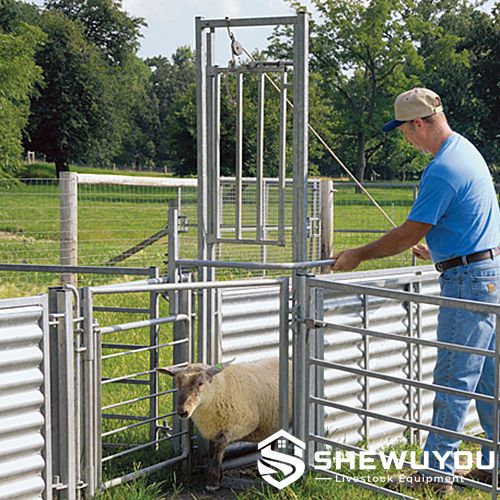

The gate leaf travels vertically within guide channels fitted to the supporting frame. Pulling the operating rope or activating the lever raises the gate and opens the livestock passage.

When the gate is lowered, the passage is closed and sheep are held within the selected race section. Because the gate moves vertically, no lateral swing area is required and nearby panels or operators are not obstructed.

The gate can therefore be positioned between a forcing pen and race, ahead of weighing equipment or at other control points where operators need to regulate stock flow quickly.

• Sheep race entrance control
• Commercial sheep handling yards
• Livestock drafting systems
• Sheep weighing stations
• EID identification areas
• Vaccination and treatment races
• Drenching operations
• Foot-treatment systems
• Breeding and flock selection areas
• Portable sheep handling systems
• Livestock contractor equipment
• Complete sheep farm and steel structure livestock projects

• Gate width: Customizable
• Gate height: According to project requirements
• Steel frame specification: Available upon request
• Operating rope configuration: Customizable
• Remote operating lever: Available upon request
• Left-side or right-side control position: Customizable
• Race connection arrangement: According to project requirements
• Surface treatment: Galvanized or customized coating
• Permanent fixing accessories: Available upon request
• Complete sheep handling layouts can be designed according to local climate and farm conditions.

The guillotine gate should be installed vertically and aligned accurately with the sheep race so the gate leaf can move freely without binding against the guide channels.

For race entrance applications, the gate should be positioned where the operator has clear visibility of approaching livestock. Remote rope or lever operation can be arranged where the handler needs to work farther along the race.

Portable systems can use compatible joining pins and race components, while permanent installations should be securely anchored according to the farm layout and structural requirements.

Regularly inspect the lifting mechanism, operating rope, guide channels, connection pins and structural welds. Remove manure, wool and other debris from the guide area to maintain smooth vertical gate movement.

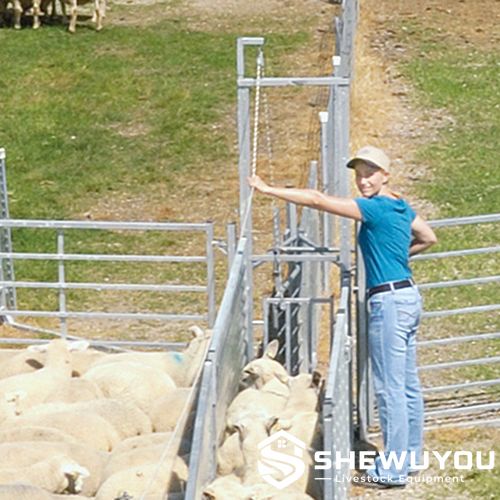

In a typical portable sheep race, the guillotine gate is installed at the entrance before a series of sheeted race panels. The gate controls animals entering the single-file race, while a stop or drafting gate at the opposite end controls discharge.

For larger commercial handling facilities, additional guillotine gates can be positioned around weighing, treatment or identification stations to divide the race into controlled working sections and improve operator efficiency.

Q: What is a guillotine sheep gate?

A: It is a vertically lifting gate used to open or close a narrow sheep race without requiring the lateral clearance needed by a swing gate.

Q: Where is the gate normally installed?

A: It is commonly installed at the entrance to a sheep race or at intermediate points where livestock flow needs to be controlled.

Q: Can the gate be operated remotely?

A: Yes. Rope or remote-lever arrangements can be supplied for suitable handling layouts.

Q: What is the advantage over a swing gate?

A: Vertical operation saves floor space and avoids a swinging gate leaf entering the race or operator working area.

Q: Is it suitable for portable sheep races?

A: Yes. Guillotine gates are commonly integrated into modular portable sheep handling systems.

Q: Can SHEWUYOU customize the gate?

A: Yes. Gate dimensions, frame specifications, control arrangements and connection methods can be configured according to project requirements.
