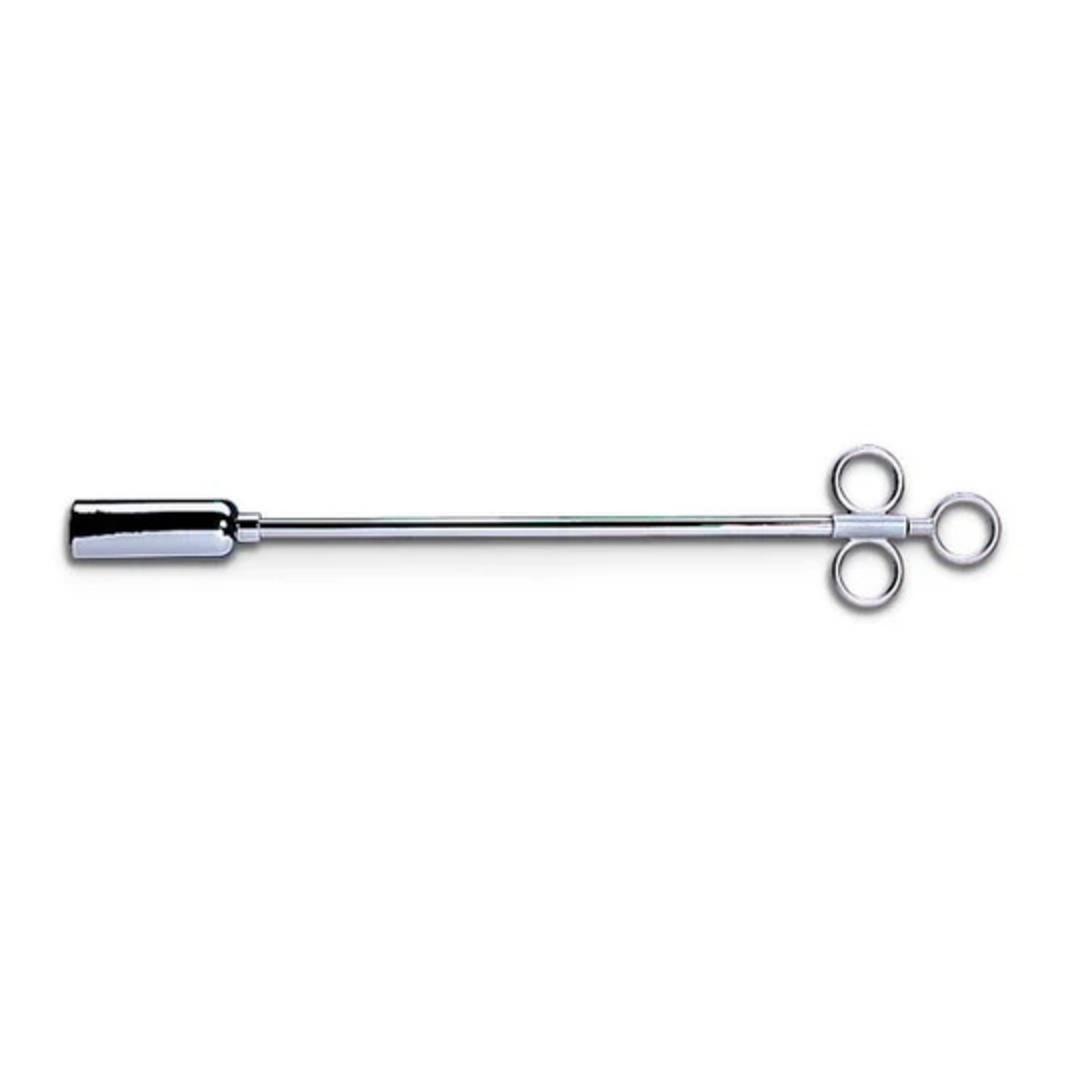

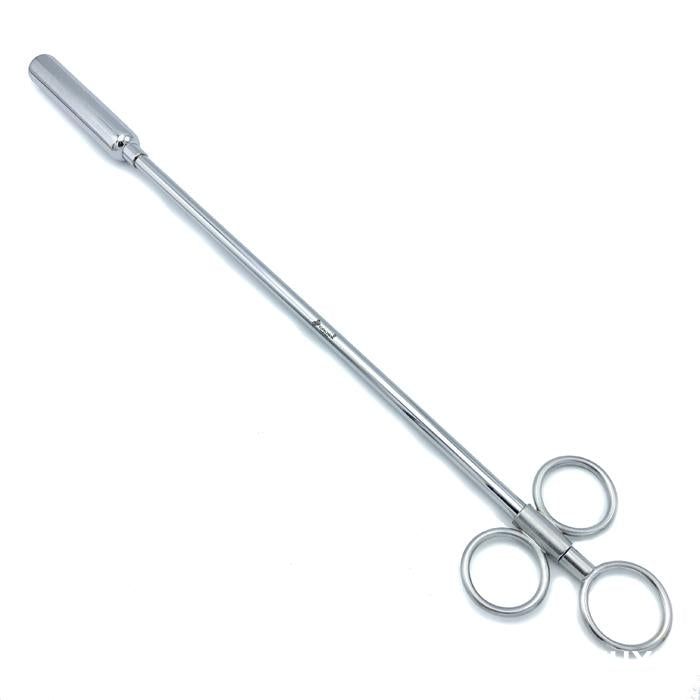

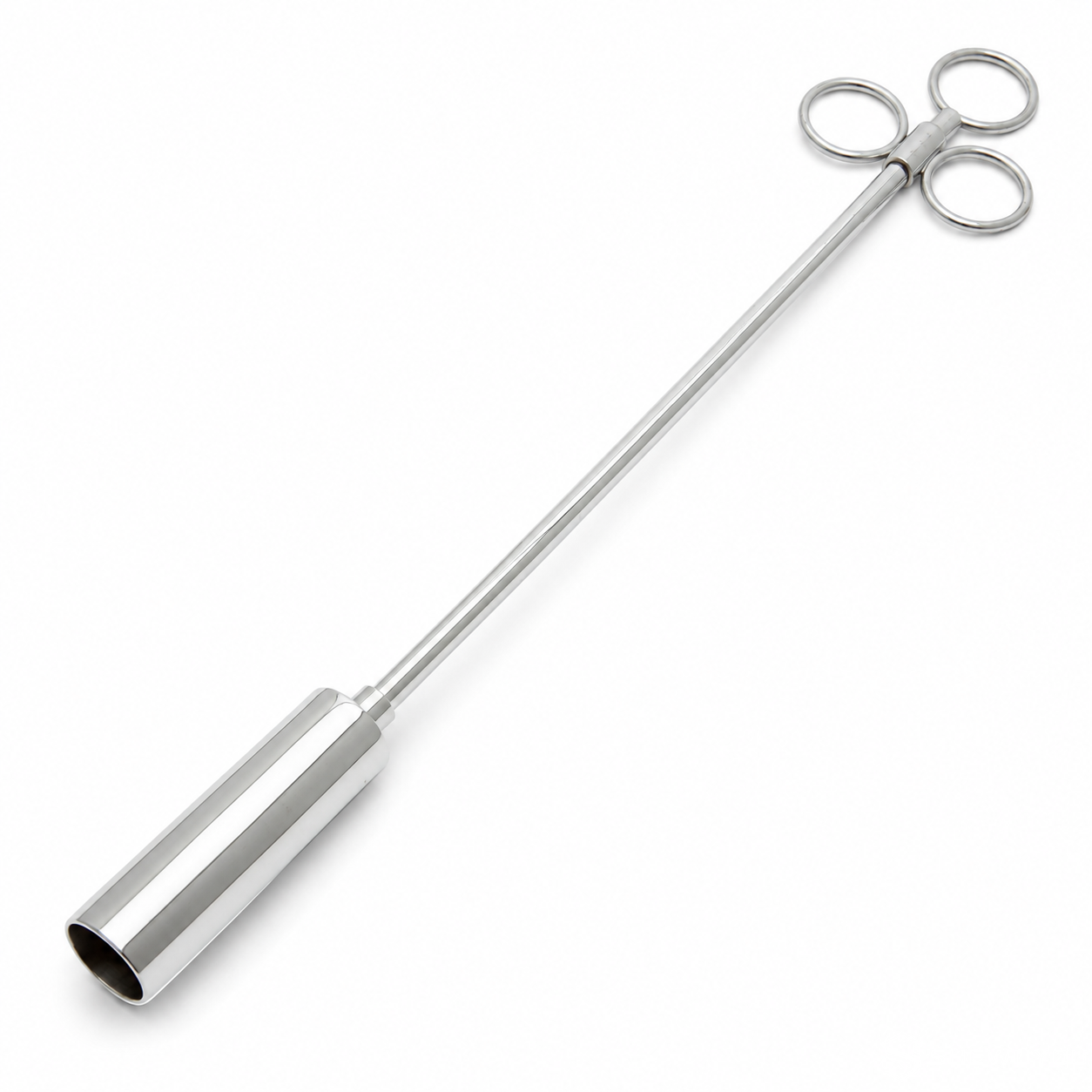

Straight Sheep Bolus Applicator

The Straight Sheep Bolus Applicator is a manual veterinary dosing instrument designed for controlled oral administration of compatible boluses to goat-farming-equipment/" target="_blank" class="keylink">sheep and goats. Its straight delivery shaft provides a simple, direct insertion path for routine mineral, nutritional and veterinary bolus programs.

The JorVet J1523 reference model is specifically listed as a straight bolus or balling gun for sheep and goats. Commercial specifications for this model describe a spring-loaded rubber tip that accepts multiple bolus sizes, a 13-inch overall length, chrome-plated construction and an approximate weight of 16 oz.

The applicator is suitable for commercial sheep farms, goat farms, veterinary livestock operations, handling races and agricultural equipment supply programs where durable, reusable oral dosing tools are required.

• Straight Delivery Design: Provides a direct shaft configuration for controlled oral bolus placement.
• Sheep and Goat Application: The JorVet reference model is specifically designed for small-ruminant bolus administration.
• Spring-Loaded Rubber Tip: Helps retain compatible boluses before release and accepts multiple bolus sizes.
• Chrome-Plated Construction: Provides a durable, smooth surface suitable for repeated livestock use and routine cleaning.
• Ring-Handle Operation: Finger-ring configuration provides positive manual control during loading, insertion and bolus release.
• Reusable Veterinary Tool: Designed for repeated flock-processing and supplementation programs when cleaned and maintained correctly.
• Simple Mechanical Structure: No electrical or pneumatic supply is required.
• Commercial Farm Use: Suitable for flock health programs, livestock handling facilities and veterinary field work.

A compatible bolus is loaded into the spring-loaded retaining tip. The animal is then restrained appropriately and the straight applicator is introduced carefully through the mouth according to the bolus manufacturer's administration instructions.

After correct positioning is achieved, the operator advances the rear plunger. The internal push rod moves forward and releases the bolus from the rubber tip so that the animal can swallow it.

The applicator is then withdrawn carefully and the animal should be observed to confirm normal swallowing.

Important: Bolus dimensions, animal size and dosing procedure must always comply with the instructions for the specific veterinary or nutritional product being administered. The applicator should never be forced.

• Sheep mineral bolus administration
• Goat nutritional bolus administration
• Trace-element supplementation programs
• Veterinary oral medication delivery where compatible bolus products are prescribed
• Commercial sheep breeding farms
• Sheep finishing and flock-management operations
• Veterinary livestock treatment facilities
• Sheep handling races and processing areas
• Livestock equipment distributor programs
• Integrated sheep farm and livestock housing projects

• Applicator length according to project requirements
• Bolus retaining-head dimensions available upon request
• Straight or curved delivery configuration
• Metal surface-finish options according to project requirements
• Replacement retaining tips and push-rod components
• Individual or bulk export packaging
• OEM and private-label packaging available upon request
• Complete sheep dosing and livestock handling tool packages

Preparation and Use:

1. Confirm that the selected bolus is approved for the animal and compatible with the applicator.
2. Inspect the shaft, rubber tip, plunger and finger rings before use.
3. Load the bolus securely into the spring-loaded retaining tip.
4. Restrain the sheep or goat calmly using appropriate livestock handling equipment.
5. Introduce the applicator carefully through the mouth following the bolus manufacturer's instructions.
6. Never force the shaft if resistance is encountered.
7. Advance the plunger only after correct positioning has been achieved.
8. Withdraw the applicator carefully and observe the animal for normal swallowing.

Cleaning and Maintenance:

• Wash the applicator immediately after use to remove saliva and product residue.
• Clean and disinfect the delivery shaft and retaining tip according to livestock hygiene procedures.
• Inspect the rubber tip for cracking, hardening or deformation.
• Check the chrome-plated shaft for sharp edges, corrosion or physical damage.
• Verify that the push rod moves freely before each dosing session.
• Replace damaged components before further use.
• Store the applicator clean and dry between flock-processing sessions.

Q1: Is this applicator specifically designed for sheep and goats?

Yes. JorVet lists model J1523 specifically as a straight bolus or balling gun for sheep and goats.

Q2: How long is the reference applicator?

The JorVet J1523 reference model is approximately 13 inches long.

Q3: What is the purpose of the spring-loaded rubber tip?

It helps retain compatible boluses before administration and can accommodate multiple bolus sizes within the applicator's intended range.

Q4: What material is the applicator made from?

The JorVet reference model is described as chrome plated. Comparable straight balling guns are also commonly manufactured from stainless steel or plated metal.

Q5: What is the difference between straight and curved applicators?

The straight model uses a direct delivery shaft, while curved models incorporate an angled section to suit different operator preferences or dosing procedures.

Q6: Can any bolus be used with this gun?

No. Bolus dimensions, animal size and product instructions must be compatible with the applicator before use.

Q7: Is it reusable?

Yes. The applicator is designed as a reusable livestock instrument and should be cleaned, inspected and dried after each dosing session.

Q8: Is the tool suitable for commercial flock processing?

Yes. Its simple mechanical structure and reusable construction make it suitable for routine sheep and goat supplementation programs.

Q9: Are replacement parts available?

Replacement retaining tips, push rods and related components can be supplied according to the selected configuration.

Q10: Can SHEWUYOU supply customized applicators?

Yes. Length, retaining-head configuration, surface finish, packaging and related livestock dosing tools can be supplied according to project requirements.
