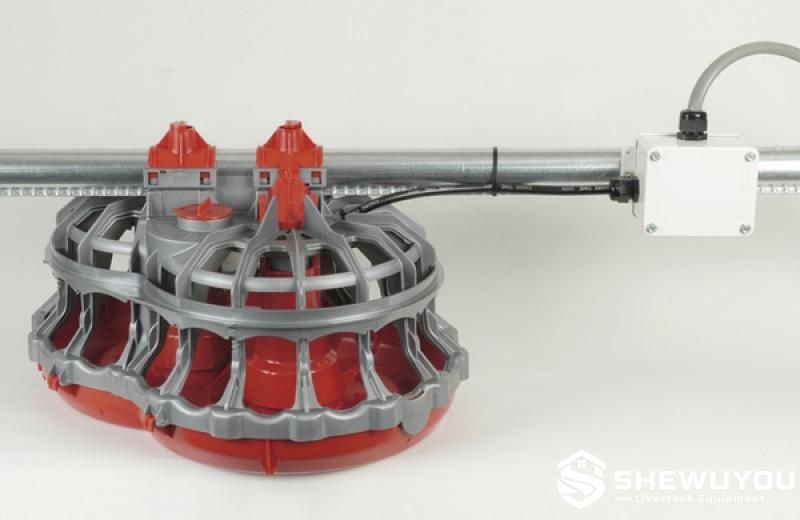

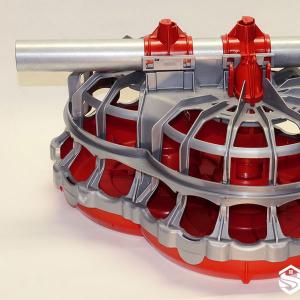

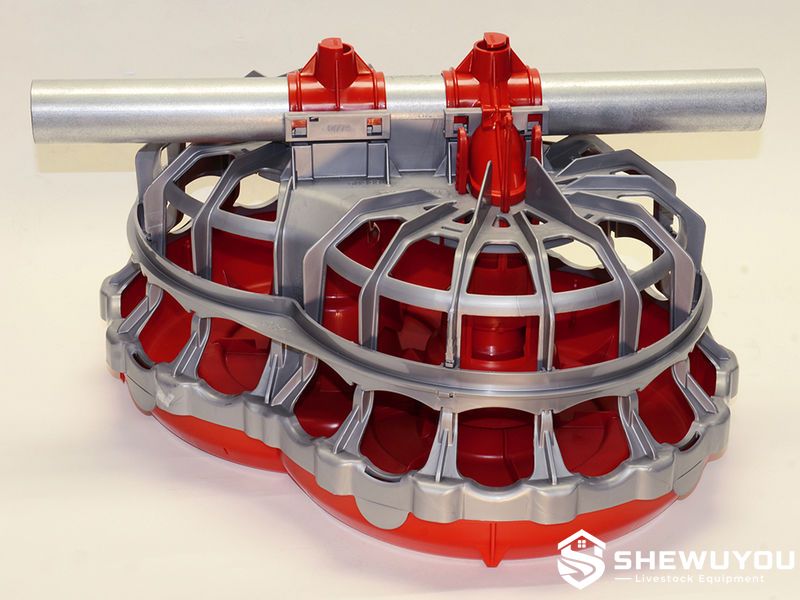

Breeder Controlled Feeding Pan

The Breeder Controlled Feeding Pan is designed for precise ration management in broiler breeder rearing and production houses. Its multi-position grill provides organized feeding spaces around the complete pan circumference, helping birds receive feed simultaneously while supporting flock uniformity.

The pan can be integrated with automatic auger or high-capacity chain feeding systems. During controlled or restricted feeding, rapid feed distribution is especially important because all birds should have access to the ration at approximately the same time.

Female-only grill configurations, adjustable feeding-window width and height, feed-level control and integrated volume-reduction options can be supplied according to breeder strain and farm management requirements.

• Controlled Ration Feeding: Designed for breeder programs where feed quantity and feeding time require precise management.
• Simultaneous Feed Access: Multiple feeding positions allow birds to gather evenly around each pan.
• Female-Only Feeding Option: Adjustable grill dimensions can help restrict larger males from the female ration.
• Adjustable Window Width: Feeding openings can be matched to breeder body size and strain.
• Adjustable Window Height: Height settings can be changed as birds develop through the production cycle.
• Integrated Volume Reducer: Allows small ration quantities while supporting fast filling of all pans.
• Feed-Level Adjustment: Feed depth can be changed according to age and management program.
• Feed-Saving Pan Geometry: Smooth raised edges and sectional pan design help reduce scratching and feed loss.
• Individual Shut-Off: Optional slide mechanism allows selected pans to be closed when required.
• Easy Cleaning: Hinged or removable pan-bottom configurations simplify washing and sanitation between flocks.

• Heavy-duty breeder feeder bottom pan
• Outer feeder grill
• Adjustable inner restriction grill
• Feeding-window adjustment mechanism
• Central feed cone
• Integrated feed-volume reducer
• Feed-level adjustment collar
• Feed inlet / drop tube
• Feed pipe adapter
• Individual slide shut-off
• Pan locking mechanism
• Feed-saving rim
• Optional anti-rotation device
• Suspension and anti-roost components

Feed is conveyed through the breeder feeding line and discharged through the central inlet into each pan. The internal cone and sectional pan structure distribute the ration around the complete feeding circumference.

For restricted breeder feeding, the conveying system is designed to deliver feed rapidly throughout the line so individual pans become available at approximately the same time. This helps reduce excessive competition and supports consistent feed intake across the flock.

The volume reducer limits the quantity stored in each pan, while the feed-level adjustment controls the depth of feed presented to the birds. Adjustable female-only openings can further separate female and male feeding programs.

• Broiler breeder production houses
• Broiler breeder rearing houses
• Female breeder feeding systems
• Restricted feeding programs
• Separate-sex breeder feeding
• Commercial hatching-egg farms
• Floor-reared breeder houses
• Environmentally controlled poultry buildings
• Steel structure poultry houses
• Automatic poultry farm projects

The controlled feeding pan is particularly suited to breeder operations where flock uniformity depends on rapid and equal access to limited feed quantities.

For complete poultry projects, feeder pans can be integrated with silos, feed weighing equipment, auger or chain conveyors, nipple drinking systems, breeder nests, lighting, ventilation and environmental controls.

• Pan diameter and geometry
• Number of feeding positions
• Female-only grill configuration
• Feeding-window width range
• Feeding-window height range
• Feed-level adjustment
• Integrated volume reducer
• Feed-saving lip design
• Individual slide shut-off
• Central feed cone
• Auger pipe adapter
• Chain-system adapter
• Pan spacing
• Suspension and lifting system
• OEM configuration available upon request

The complete breeder feeding system can be configured according to breeder strain, flock size, house layout, ration program and project requirements.

Feeder Layout: Calculate pan quantity and spacing according to breeder population, available feeding positions and poultry house dimensions.

Feed Line Assembly: Install the auger pipe or chain conveyor and connect each breeder pan using compatible adapters.

Grill Adjustment: Set the feeding-window width and height according to breeder body size and separate-sex feeding requirements.

Feed Level Setting: Adjust the feed cone and volume-control components according to the allocated ration.

Line Height: Set the suspended line at a comfortable feeding height while maintaining clear bird movement beneath the equipment when raised.

Distribution Test: Operate the system and confirm that all pans fill quickly and consistently before placing birds into production.

Routine Cleaning: Open or remove the pan bottom and thoroughly wash feed-contact surfaces between flocks.

Regular Inspection: Check grills, adjustment mechanisms, feed reducers, pan locks, adapters and suspension components for wear.

Breeder controlled feeding pans are suitable for commercial parent-stock farms where uniform body development and controlled daily rationing are central management objectives.

Female-only pan systems can be combined with separate male feeding lines, allowing hens and roosters to receive different feed quantities or formulations within the same breeder house.

For large steel structure poultry projects, pan quantity, conveying capacity, suspension layout, feed storage and automatic controls can be planned as one integrated feeding system.

Q1: What is a breeder controlled feeding pan?
It is an automatic poultry feeder designed to deliver controlled feed quantities to broiler breeders while providing organized feeding access around each pan.

Q2: Why is rapid feed distribution important?
Restricted breeder feeding requires feed to reach the flock quickly so birds have comparable access to the daily ration.

Q3: Can males be prevented from using the female feeder?
Yes. Female-only grill configurations can restrict larger males by controlling feeding-window width and height.

Q4: How many birds can feed around one pan?
Comparable professional female breeder pans commonly provide 16 dedicated feeding positions.

Q5: Can the feeding windows be adjusted?
Yes. Comparable systems provide multiple width and height settings to accommodate different breeds and production stages.

Q6: What is the purpose of the volume reducer?
It reduces the amount of feed held in each pan so small rations can be distributed rapidly and more uniformly throughout the system.

Q7: Can individual feeder pans be closed?
Yes. Sliding shut-off configurations can isolate individual pans when required.

Q8: Can the feeder work with an auger system?
Yes. Compatible adapters allow installation on automatic auger feed pipes.

Q9: Can it be used with chain feeding?
Yes. Suitable breeder pan systems can also be integrated with high-capacity chain conveying systems.

Q10: Can the feeding pan be customized?
Yes. Pan size, grill configuration, feeding-window dimensions, feed level, adapters and suspension components can be supplied according to project requirements.
