Male Broiler Breeder Feeder Pan

The Male Broiler Breeder Feeder Pan is a specialized automatic poultry feeder designed for rooster feeding in commercial broiler breeder and parent-stock houses. Its pan and grill structure provides comfortable feed access while supporting controlled ration management for male breeder flocks.

The feeder can be incorporated into an automatic feed line and configured for either elevated filling or floor-level feeding. Feed quantity, feeder height and system arrangement can be adapted according to bird age, poultry house design and breeder management requirements.

• Male-Specific Feeding: Designed for controlled feeding of broiler breeder roosters.
• Open Feeding Access: Wide grill openings provide comfortable access for mature male birds.
• Scalloped Pan Edge: Smooth pan geometry improves access around the feeder perimeter.
• Adjustable Feed Volume: Feed quantity can be adjusted according to bird development and breeder management programs.
• Centralized Adjustment: Compatible configurations can allow multiple feeder pans to be adjusted together.
• Flexible Feeding Height: Suitable for systems filled in an elevated position and lowered at feeding time, or for floor-level operation.
• Reduced Manual Labor: Automatic feed delivery supports efficient operation in large breeder houses.
• Commercial Farm Durability: Designed for repeated use in intensive poultry production environments.

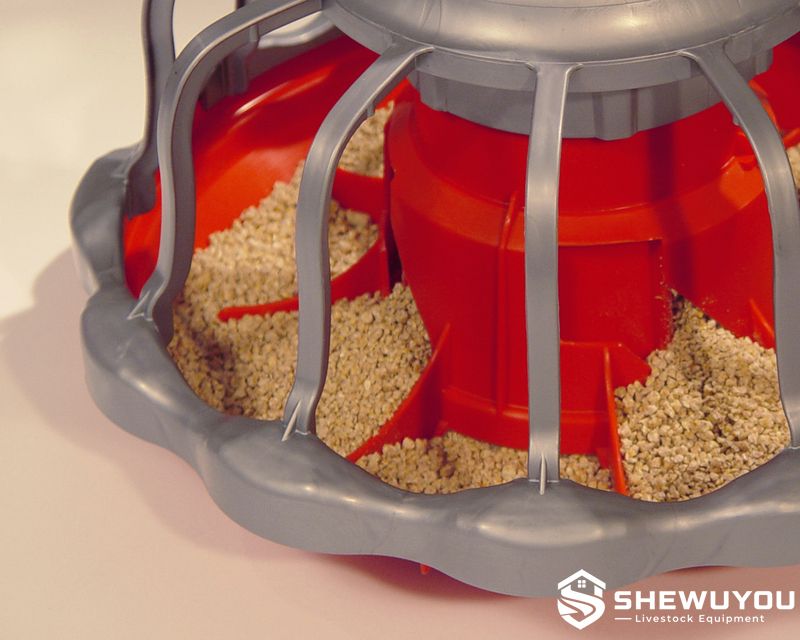

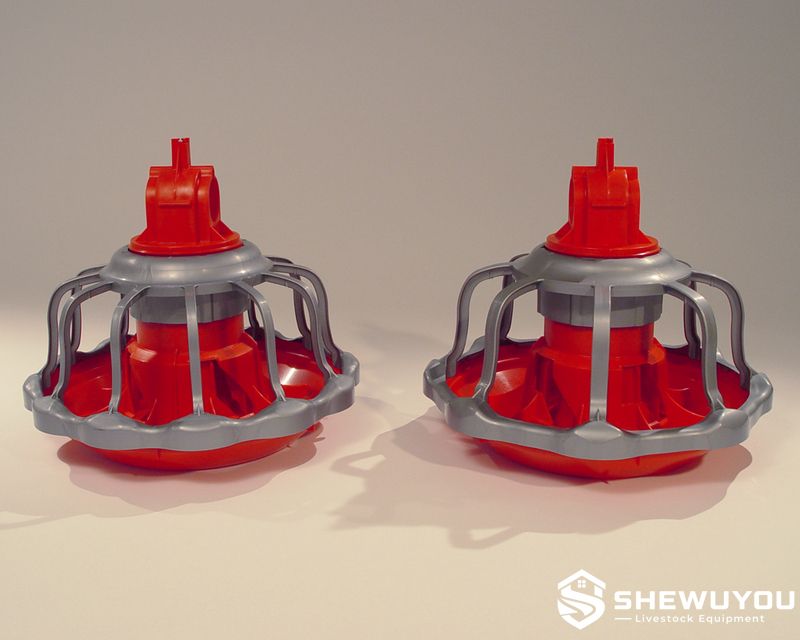

• Feeder Pan: Circular feeding area designed for easy rooster access.
• Eight-Spoke Grill: Separates feeding positions while maintaining open access for male breeders.
• Feed Cone: Directs feed into the pan and supports even distribution around the feeding area.

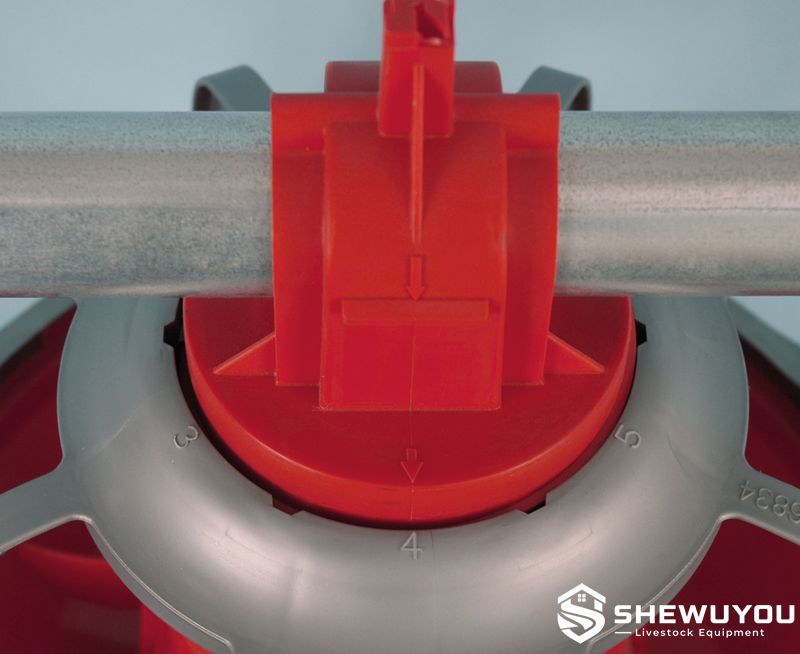

• Feed Level Mechanism: Controls the amount of feed entering the pan.
• Rotary Gate: Available for centralized feed-volume adjustment in compatible configurations.
• Feeder Tube Connection: Connects each pan to the automatic poultry feeding line.
• Suspension Assembly: Allows feeding-line height adjustment according to management requirements.
• Drive and Control Components: Selected according to feeding-line length and project requirements.

Feed is conveyed through the automatic feed tube and discharged into each male breeder feeder pan. The internal feed-control structure regulates the quantity of feed entering the pan so that the required ration is available around the feeding perimeter.

Depending on the selected system configuration, feeder pans can be filled while elevated and then lowered to rooster feeding height, or they can be filled and operated at floor level. This allows the system to be adapted to different commercial breeder management programs.

• Commercial broiler breeder farms
• Parent-stock poultry houses
• Separate male breeder feeding lines
• Automatic poultry feeding projects
• New steel structure poultry houses
• Existing breeder house equipment upgrades
• Integrated livestock equipment projects

• Feeder pan quantity and spacing
• Feed-line length and house layout
• Feed level adjustment configuration
• Suspension and lifting arrangement
• Feed hopper and conveying configuration
• Drive and automatic control system
• Electrical specifications according to destination market
• Complete layout designed according to local climate and farm conditions

Installation: Feeder pans are mounted beneath the automatic feed tube at planned intervals. Feed-line height, suspension points and drive arrangement should be coordinated with the poultry house layout and breeder management program.

Maintenance: Regularly inspect pan connections, grill assemblies, adjustment mechanisms, suspension equipment and feed-line operation. Remove residual feed and clean feeder components between flocks according to the farm biosecurity program.

Q: Is this feeder designed specifically for male broiler breeders?

A: Yes. The pan configuration is intended for rooster feeding in commercial breeder houses.

Q: Can feed quantity be adjusted as the males grow?

A: Yes. Compatible configurations allow feed volume to be adjusted according to bird age and breeder management requirements.

Q: Can the feeder line be filled while raised?

A: Yes. Elevated filling and subsequent lowering to feeding height can be incorporated into the system design.

Q: Can the system also operate at floor level?

A: Yes. Floor-level filling configurations are also available according to project requirements.

Q: Can SHEWUYOU customize a complete male feeding line?

A: Yes. Feeder quantity, line length, suspension system, hopper arrangement and controls can be configured according to the poultry house design.
