Product Name	Beef Cattle Loin Eye Area and Muscle Depth Scanner
Product Image
Product Overview	The Beef Cattle Loin Eye Area and Muscle Depth Scanner is a professional veterinary ultrasound system designed for non-invasive assessment of carcass-related traits in live beef cattle. When configured with a compatible beef carcass transducer and suitable measurement software, the system can be used to visualize and evaluate loin muscle depth, loin eye area, backfat thickness and related body composition characteristics. The equipment is suitable for beef cattle breeding farms, genetic improvement programs, performance testing stations, commercial feedlots, agricultural universities, research institutes and livestock service organizations. Portable ultrasound technology allows valuable carcass-related information to be collected while the animal remains alive, helping breeding and production teams perform repeated measurements and maintain individual animal records.
Key Features	Live-Animal Loin Eye Assessment: Supports ultrasound visualization of the longissimus muscle for loin eye area and related muscle evaluation. Muscle Depth Measurement: Allows trained operators to identify tissue boundaries and measure loin muscle depth at selected anatomical locations. Backfat Evaluation: Compatible carcass probes can also be used to assess subcutaneous fat thickness in beef cattle. Real-Time Ultrasound Imaging: Provides immediate B-mode visualization of hide, fat and muscle structures during scanning. Veterinary Measurement Functions: Measurement and reporting tools can be configured for livestock and large-animal applications. Portable Farm Operation: Suitable for use in breeding barns, cattle handling facilities, feedlots, research stations and mobile livestock services. Flexible Probe Configuration: Different veterinary transducers can be selected according to the examination and project requirements.
Structural Components	Ultrasound Main Unit: Processes returning ultrasound echoes and displays real-time tissue images for measurement and analysis. Touchscreen Display: Provides image adjustment, measurement, annotation and data management functions. Beef Carcass Transducer: A compatible linear or dedicated carcass probe is used for imaging backfat, loin eye and muscle structures in beef cattle. Standoff Pad: A compatible acoustic standoff may be used with the carcass transducer to improve probe contact and facilitate transverse imaging of the loin region. Probe Ports: Multiple transducer connections allow different veterinary probes to be used with the same ultrasound platform according to configuration. Battery and Power System: Supports portable operation in livestock facilities and field environments.
Working Principle	During measurement, the operator identifies the required anatomical scanning location and applies a suitable ultrasound coupling medium between the transducer and the animal's skin. The probe emits high-frequency sound waves through the hide, subcutaneous fat and underlying muscle. Reflections from different tissue interfaces are received by the transducer and processed into a real-time B-mode image. The operator then identifies the boundaries of the loin muscle and surrounding tissues. Depending on the selected software and scanning method, measurement tools can be used to determine muscle depth, loin eye dimensions or area, and backfat thickness. A suitable standoff pad can help maintain acoustic contact and improve visualization when performing transverse loin eye examinations.
Technical Specifications	Product Type Veterinary ultrasound system for beef cattle muscle and carcass trait evaluation Primary Animal Beef cattle Primary Measurements Loin eye area, muscle depth and backfat thickness according to selected configuration Imaging Modes B, B&M, 2B, 4B, B+Color, B+Power and PW according to system configuration Display 15-inch high-resolution touchscreen Transducer Ports Three active transducer connectors Supported Transducers Linear, convex, endocavity and dedicated livestock transducers according to configuration Transducer Frequency Range 2–12 MHz depending on selected probe Scanning Depth Up to approximately 351 mm depending on probe and imaging conditions Image Storage Available with veterinary patient and image management functions Connectivity USB, Wi-Fi and other interfaces according to system configuration Power Supply AC power with rechargeable battery support Customization Customizable according to project requirements
Applications	Beef Cattle Breeding Selection: Provides objective muscle and fat measurements for performance recording and genetic improvement programs. Loin Eye Area Evaluation: Suitable for assessing the cross-sectional area and development of the longissimus muscle in live cattle. Muscle Depth Measurement: Supports quantitative evaluation of muscle development during growth and finishing. Backfat Monitoring: Can be used to evaluate subcutaneous fat deposition as part of body composition assessment. Feedlot Management: Repeated measurements can help monitor changes in muscle and fat deposition during the finishing period. Carcass Trait Research: Suitable for universities, livestock research institutes and breeding organizations studying live-animal carcass characteristics. Livestock Testing Stations: Can support standardized performance testing programs for bulls, heifers and other breeding candidates.
Customization Options	Equipment configuration can be selected according to cattle breed, measurement objectives, farm operating conditions and research requirements. Available options may include: • Dedicated beef carcass ultrasound probe • Linear-array livestock transducer • Bovine loin eye standoff pad • Backfat and muscle measurement software • Veterinary reporting and data management functions • Portable carrying case • Mobile trolley configuration • Rechargeable battery package • OEM and distributor configurations Final probe selection and software functions are available according to project requirements.

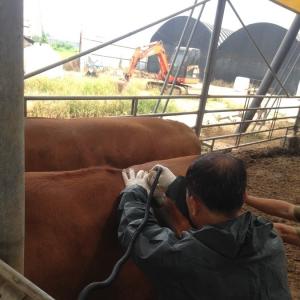

Installation & Maintenance	Before use, connect the selected beef carcass or linear transducer securely to the ultrasound system and choose the appropriate veterinary examination preset. Restrain the animal safely in a suitable cattle handling chute. Identify the required anatomical scanning site according to the breeding, carcass evaluation or research protocol. Clean the scanning area and prepare the hair when required. Apply sufficient ultrasound coupling gel or another suitable acoustic medium to eliminate air between the transducer and skin. Position the probe steadily over the loin region and adjust imaging depth, gain and focal settings until the hide, backfat and muscle boundaries are clearly visible. For transverse loin eye imaging, a suitable standoff pad may be installed on the transducer. After scanning, remove coupling material and clean the probe using methods compatible with the transducer material. Avoid dropping the probe, sharply bending the cable or allowing moisture to enter electrical connectors.
Project Cases	Beef cattle loin eye and muscle depth ultrasound systems can be integrated into breeding farms, bull testing stations, genetic improvement programs, feedlots and agricultural research projects. For commercial cattle operations, ultrasound measurements can be incorporated into individual animal records to support breeding selection, feeding evaluation and production performance analysis. Project configurations can include the ultrasound main unit, dedicated beef carcass probe, standoff accessories, measurement software and transport equipment according to customer requirements.
Product FAQ	Q: What does this beef cattle ultrasound scanner measure? A: Depending on the selected transducer and software configuration, it can support measurement of loin eye area, muscle depth, backfat thickness and related body composition characteristics. Q: Can loin eye area be measured on live cattle? A: Yes. Veterinary ultrasound can be used to visualize the longissimus muscle in live cattle and perform cross-sectional loin eye measurements using an appropriate carcass probe and scanning technique. Q: Is a special probe required? A: A dedicated beef carcass or suitable linear-array transducer is recommended for loin eye, backfat and muscle measurements. Q: What is the purpose of the standoff pad? A: The standoff helps improve probe-to-body contact and provides a suitable acoustic interface for obtaining a complete transverse image of the loin muscle. Q: Can the system also measure backfat? A: Yes. Compatible beef carcass transducers can be used for backfat evaluation as well as muscle and loin eye measurements. Q: Is the system suitable for cattle breeding programs? A: Yes. Live-animal ultrasound measurements can provide objective performance data for breeding selection and genetic evaluation. Q: Can the equipment configuration be customized? A: Yes. Probe type, measurement software, accessories, carrying equipment and system configuration can be supplied according to project requirements.
