Veterinary Mini Centrifuge

Published: 2026-09-18 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Name Veterinary Mini Centrifuge
Product Image veterinary mini centrifuge
Product Overview The Veterinary Mini Centrifuge is a compact benchtop sample-processing unit designed for routine veterinary laboratory applications. Its space-efficient construction makes it suitable for animal clinics, farm laboratories, livestock diagnostic centers and decentralized testing areas where bench space is limited.

The centrifuge can support processing of blood, urine, fecal and microhematocrit samples through dedicated holders, adapters and rotor configurations. A compact fixed-angle design provides a practical solution for routine sample separation while allowing different tube formats to be accommodated within the applicable configuration.

For commercial livestock projects, the equipment can be integrated into veterinary laboratory workflows supporting herd health monitoring, sample preparation and routine diagnostic testing. Configuration, electrical specification and accessories can be supplied According to project requirements.
Key Features
  • Compact benchtop construction for space-efficient veterinary laboratories.
  • Designed for blood, urine, fecal and microhematocrit sample processing.
  • Fixed-angle rotor design supports consistent sample positioning during centrifugation.
  • Multiple tube holders and adapters can accommodate different veterinary sample formats.
  • Clear safety lid allows visual monitoring while supporting controlled operation.
  • Reinforced rotor chamber construction is designed for durability in routine laboratory use.
  • Preset operating cycles simplify commonly used veterinary sample-processing procedures.
  • Digital or simple control interfaces are available according to the selected configuration.
  • Suitable for animal health laboratories located within commercial livestock facilities.
  • Project-specific configuration and accessory requirements are Customizable.
Structural Components The veterinary centrifuge consists of a compact outer housing, centrifuge chamber, fixed-angle rotor, tube carriers or adapters, safety lid and control interface. The rotor and sample holders are selected according to the required tube dimensions and veterinary application.

Typical component configuration may include:
  • Compact benchtop housing
  • Fixed-angle rotor assembly
  • Sample tube carriers and adapters
  • Microhematocrit tube adapters
  • Transparent safety lid
  • Reinforced guard bowl or rotor chamber
  • Control panel and timer interface
  • Power supply and electrical protection components
Exact rotor configuration, holder quantity and accessory package are Customizable and Available upon request.
Working Principle / Structural Principle The Veterinary Mini Centrifuge separates components of liquid or prepared biological samples by centrifugal force. Sample tubes are positioned symmetrically in the rotor using compatible carriers or adapters. When the rotor reaches the selected operating speed, centrifugal force causes components with different densities to separate.

For veterinary blood samples, centrifugation can be used to assist serum or plasma preparation. Urine samples can be concentrated for sediment examination, while fecal preparations can be processed for applicable flotation or concentration procedures. Microhematocrit tubes can be centrifuged for packed cell volume assessment.

The fixed-angle rotor maintains the sample tubes at a defined angle during operation. Correct balancing, compatible tube loading and appropriate speed/time settings should always follow the applicable laboratory procedure and equipment instructions.
Technical Specifications
Equipment Type Veterinary benchtop mini centrifuge
Rotor Type Fixed-angle rotor; configuration according to selected model
Maximum Speed Up to 3,900 RPM for the referenced TrueBond configuration
Maximum RCF Up to 1,850 × g for the referenced TrueBond configuration
Sample Capacity Up to 6 samples to 15 mL and 8 microhematocrit tubes to 75 mm for the referenced configuration
Compatible Tube Sizes Up to 16 × 100 mm or 10 mL; up to 16 × 125 mm or 15 mL; microhematocrit tubes up to 75 mm
Timer Range 1 to 30 minutes for the referenced configuration
Power Supply 100–240 VAC ±10%, 50/60 Hz for the referenced configuration
Dimensions Approximately 12 × 14 × 9 in; exact configuration Available upon request
Weight Approximately 12 lb for the referenced configuration
Electrical Frequency 50/60 Hz
Project Configuration Customizable / According to project requirements / Available upon request
Applications
  • Veterinary blood chemistry sample preparation
  • Serum and plasma sample separation
  • Urine sediment preparation and examination
  • Fecal sample concentration and parasite screening workflows
  • Microhematocrit and packed cell volume testing
  • Animal health diagnostic laboratories
  • Commercial pig farm laboratories and herd health centers
  • Livestock breeding and production facilities
  • Veterinary clinics and animal health service centers
  • Centralized diagnostic laboratories serving multiple livestock sites
For large commercial livestock operations, the centrifuge can form part of an on-site or centralized veterinary laboratory equipment package supporting routine sample preparation and animal health monitoring.
Customization Options For international B2B procurement, the Veterinary Mini Centrifuge can be specified around the laboratory workflow, sample types, tube formats, electrical supply and project volume.

Possible configuration considerations include rotor type, tube capacity, microhematocrit adapters, sample carriers, control interface, preset programs, voltage requirements, packaging and accessory combinations.

For livestock engineering projects and commercial pig farm laboratory construction, equipment specifications can be coordinated with laboratory bench layout, electrical infrastructure, sample-processing zones and biosecurity requirements.

Configuration is Customizable, According to project requirements, and Available upon request.
Installation & Maintenance The Veterinary Mini Centrifuge is designed for straightforward benchtop installation. Position the unit on a stable, level laboratory work surface with sufficient clearance around the equipment for ventilation, loading and routine cleaning.

Before operation, verify that the rotor and tube holders are correctly installed and that sample tubes are balanced according to the applicable operating procedure. Do not exceed the rated rotor speed, tube dimensions or capacity.

Routine maintenance should include inspection of the rotor, tube carriers, adapters, safety lid and chamber. Remove spills promptly and clean the chamber and external surfaces using cleaning agents approved for the specific equipment.

For the referenced TrueBond configuration, the manufacturer recommends centrifuge calibration every two years. Cleaning and disinfection should follow the manufacturer's approved procedures and chemical compatibility requirements.
Project Cases The Veterinary Mini Centrifuge is suitable for international procurement programs involving commercial pig farms, livestock breeding groups, veterinary clinics, animal health laboratories, diagnostic service providers and agricultural project contractors.

For centralized livestock diagnostic facilities, compact centrifuges can be installed at sample preparation stations alongside pipetting equipment, analyzers and other veterinary laboratory instruments. Their small footprint is particularly useful where laboratory bench space must be efficiently allocated.

For new livestock facility construction and farm engineering projects, equipment specifications can be planned together with laboratory layout, electrical services, work benches, sample flow and biosecurity zoning. Bulk procurement and project-specific equipment schedules are Available upon request.
Product FAQ

Q: What samples can a veterinary mini centrifuge process?
A: Typical veterinary applications include blood, urine, fecal and microhematocrit samples, subject to the rotor, tube holders and validated operating procedure.

Q: Is the centrifuge suitable for commercial pig farms?
A: Yes. It can be used in veterinary laboratories and herd health facilities associated with commercial pig production, breeding operations and centralized livestock diagnostic programs.

Q: What is the maximum speed of the referenced configuration?
A: The referenced TrueBond configuration reaches up to 3,900 RPM and up to 1,850 × g.

Q: What tube sizes are supported?
A: The referenced configuration accommodates tubes up to 16 × 100 mm or 10 mL, tubes up to 16 × 125 mm or 15 mL, and microhematocrit tubes up to 75 mm.

Q: Does the centrifuge require special installation?
A: No permanent installation is normally required. It is designed for stable benchtop placement with an appropriate electrical supply and sufficient operating clearance.

Q: How should the centrifuge be maintained?
A: Routine maintenance includes cleaning, inspection of the rotor and adapters, checking the safety lid and following the manufacturer's calibration and chemical compatibility recommendations.

Q: Can the centrifuge be configured for a specific agricultural project?
A: Yes. Rotor configuration, sample capacity, electrical requirements, accessories, packaging and other project specifications are Customizable and can be supplied According to project requirements.
Product Gallery

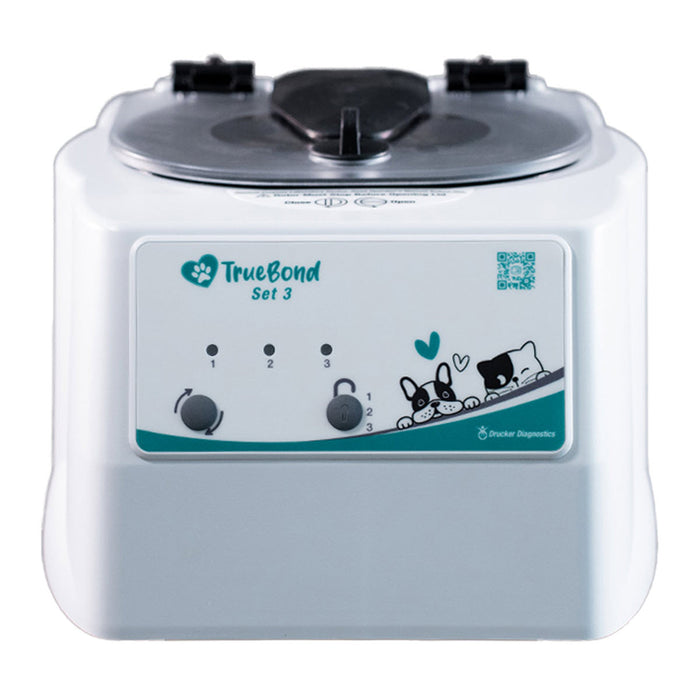

veterinary mini centrifuge product view

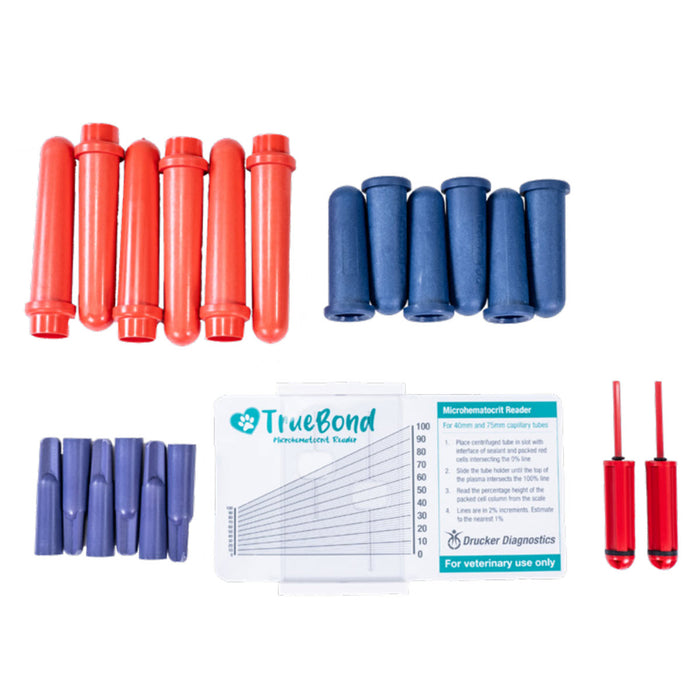

veterinary centrifuge accessories and tube holders

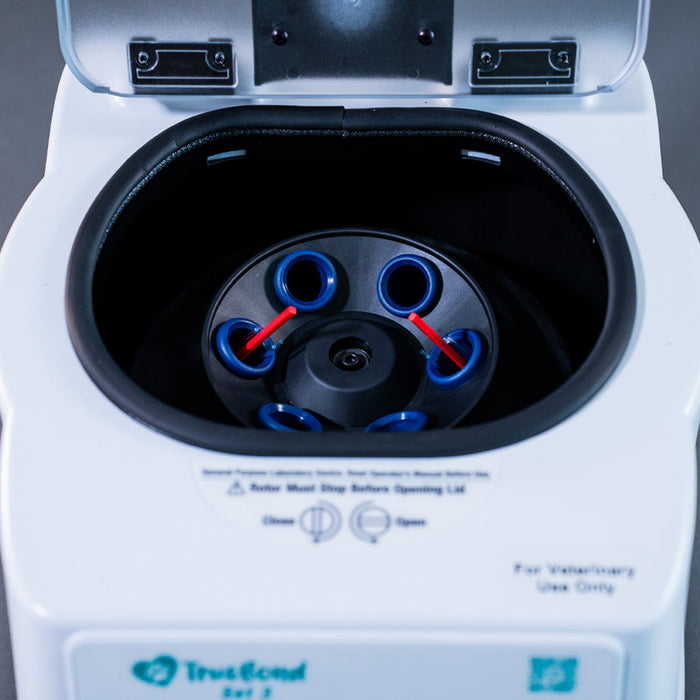

veterinary centrifuge rotor and sample holders

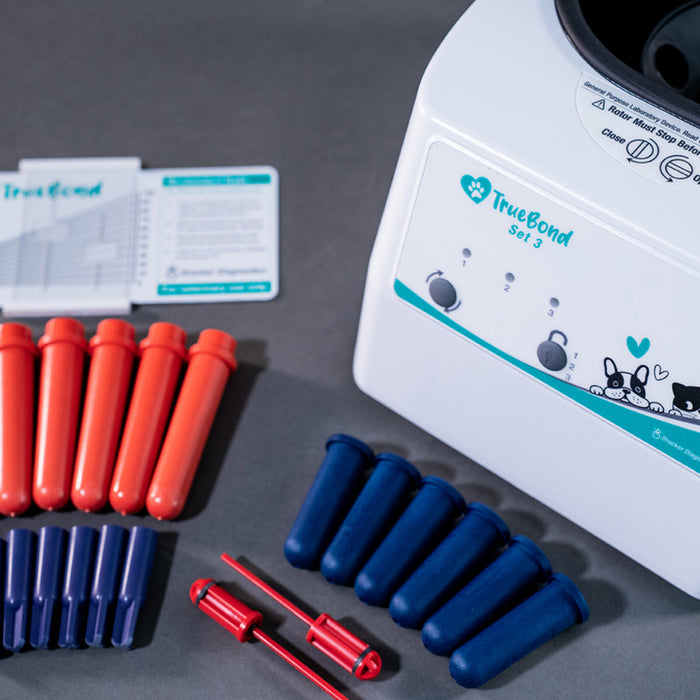

compact veterinary laboratory centrifuge
