Floor-Mounted Cross Manure Belt Conveyor

Published: 2026-09-27 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Floor-Mounted Cross Manure Belt Conveyor
Product Image floor-mounted cross manure belt conveyor with inclined discharge
Product Overview The Floor-Mounted Cross Manure Belt Conveyor receives manure discharged from longitudinal collection belts and moves it across the end of a livestock house to an outdoor transfer point. Its low-profile horizontal section is positioned on the finished floor, making it suitable for projects where a conventional cross-house manure pit is undesirable. The discharge arrangement can be coordinated with an inclined conveyor, collection container, storage area or further manure-processing equipment. Each system should be configured around the building layout, upstream belt outlets and the characteristics of the material being conveyed.
Key Features
  • Above-floor cross transfer can reduce or eliminate the need for a dedicated manure cross pit, subject to the project layout.
  • Low-profile collection section fits behind compatible manure belt outlets.
  • Accessible floor-level installation helps operators inspect and clean the surrounding area.
  • Discharge direction and elevation can be matched to the downstream handling system.
  • Layout can be adapted for new livestock buildings or suitable retrofit projects.
Structural Components A project-specific assembly typically includes a horizontal cross-conveyor belt, drive and return assemblies, belt tracking and tensioning provisions, manure receiving points, discharge transition, support or fixing components, and appropriate electrical controls. An inclined or separate elevating conveyor may be specified when the required discharge height exceeds that of the horizontal section. Component materials, guarding and corrosion protection are selected according to farm conditions.
Working Principle Upstream manure belts deliver collected material onto the floor-mounted cross conveyor. The moving belt carries it toward the building outlet, where it transfers to the specified elevating conveyor or external collection system. Conveyor operation should be coordinated with upstream belts and downstream equipment to prevent material buildup at transfer points.
Technical Specifications
  • Conveyor length and belt width: According to project requirements
  • Discharge height and direction: Customizable
  • Drive and electrical configuration: Available upon request
  • Materials and corrosion protection: Designed according to local climate and farm conditions
  • Installation arrangement: Based on floor level, belt outlets, building opening and downstream equipment
Applications Designed primarily for poultry houses and other compatible livestock facilities that use manure collection belts. It can serve breeder, layer and other commercial farm layouts requiring cross-house transfer of collected manure. For pig farm projects, suitability depends on manure consistency, bedding content, moisture load and the upstream collection method; these conditions should be reviewed before equipment selection.
Customization Options SHEWUYOU can review conveyor routing, belt width, receiving positions, outlet location, discharge elevation, control interface and connection to an external manure handling line. For steel structure livestock buildings, the design should also account for column positions, wall penetrations, service access and floor drainage.
Installation & Maintenance Confirm finished-floor levels, transfer clearances, power supply and the location of building openings before installation. Align the receiving section with upstream belt discharge points and check belt tracking during commissioning. Routine maintenance includes removing accumulated manure, inspecting the belt and transfer points, and checking the drive, tensioning components and guards in accordance with the supplied equipment instructions.
Product FAQ

Does the system require a manure pit?
An above-floor layout may avoid a dedicated cross-house pit. The final civil design depends on the receiving and discharge arrangement.

Can it be installed in an existing building?
A retrofit may be possible where floor space, belt outlet positions, wall openings and maintenance access permit.

Can it convey liquid slurry?
This belt conveyor is intended for compatible collected manure. Liquid slurry or unusually wet material requires a separate engineering assessment and may call for another handling method.
Product Gallery

cross manure conveyor horizontal receiving section

floor-mounted manure belt conveyor discharge arrangement

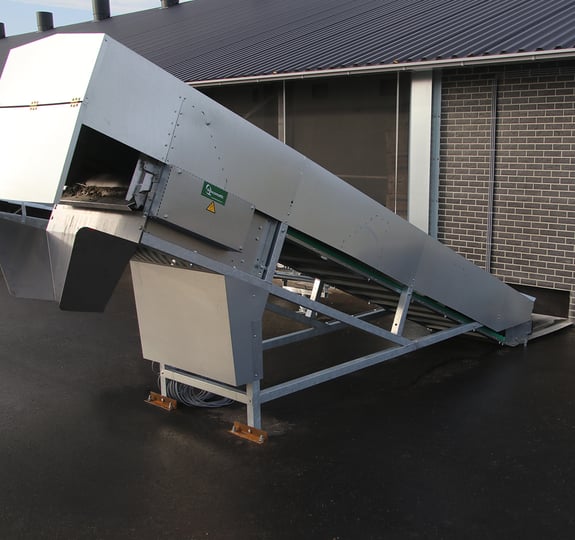

poultry house cross manure belt conveyor installation
