Continuous Manure Belt System Under Slatted Floors

Published: 2026-09-27 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Continuous Manure Belt System Under Slatted Floors
Product Image

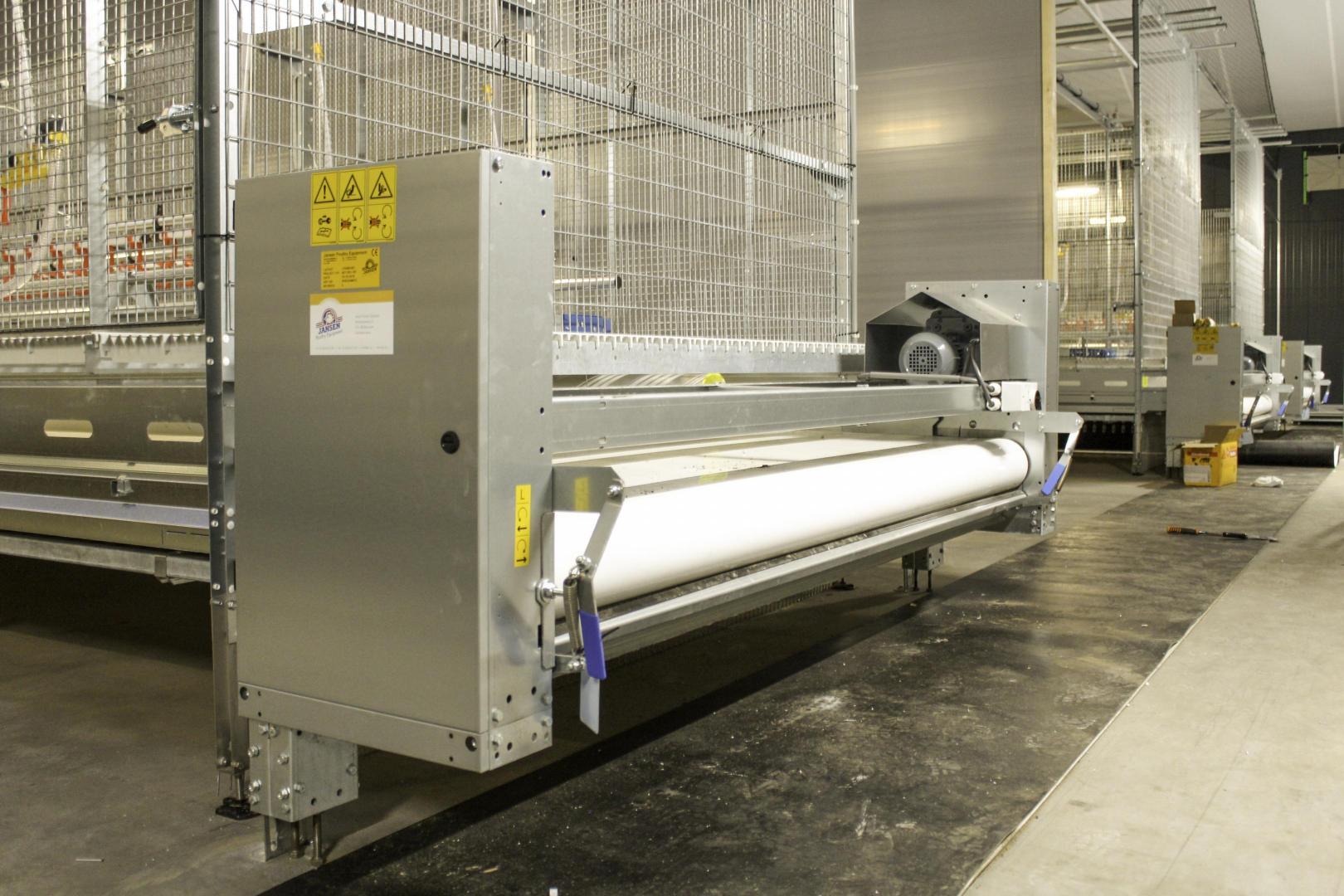

continuous manure belt system under slatted floors

Reference image illustrating a continuous manure belt installation.
Product Overview This system places an endless conveyor belt below a slatted floor to collect manure as it falls through the openings. At scheduled intervals, the belt carries the collected material to a discharge point for transfer to a cross conveyor or downstream manure handling equipment. The arrangement can be incorporated into the manure removal plan for a new livestock building or assessed for a suitable renovation project. For pig houses, belt loading, liquid management, floor geometry and access for cleaning require project-specific engineering.
Key Features
  • Continuous loop design supports regular manure removal beneath slatted flooring.
  • Concealed installation keeps the manure collection equipment below the animal area.
  • Scraper and discharge arrangements can connect the belt to a wider farm waste handling system.
  • Belt layout and support structure can be coordinated with the building frame, floor system and service access.
  • Frequent removal can help limit manure accumulation when the complete system is correctly designed and operated.
Structural Components A typical configuration comprises the endless belt, drive and return rollers, belt support frame, tensioning and tracking provisions, scraper assembly, discharge interface, drive unit and controls. Material selection, corrosion protection and guarding are specified according to the manure characteristics and farm environment.
Working Principle Manure passes through the slatted floor and lands on the upper run of the belt. When the drive operates, the loaded belt travels toward the discharge end. A scraper removes material from the belt surface, while the return run travels back beneath the collection area. The operating schedule and downstream transfer method are selected for the housing layout and manure volume.
Technical Specifications
  • Belt width and system length: Customizable according to floor coverage and building dimensions.
  • Belt material and support configuration: Available upon request.
  • Drive power and operating speed: Determined by belt length, loading and duty cycle.
  • Discharge direction and conveyor connection: According to project requirements.
  • Corrosion protection and electrical configuration: Designed according to local climate and farm conditions.
Applications Suitable for livestock buildings with compatible slatted-floor layouts, particularly poultry housing. Use beneath pig pens should be evaluated against slurry volume, wash water, solids loading, animal-house hygiene procedures and the selected manure treatment route before equipment is specified.
Customization Options Project options may include belt coverage, frame interfaces, discharge location, control integration and connection to cross conveyors or external collection equipment. Share the building drawings, slat layout, animal type and manure handling plan to establish a suitable configuration.
Installation & Maintenance Coordinate mounting points, clearances, power supply, drainage and discharge access during the building design stage. After installation, check belt tracking and tension, inspect the drive and rollers, clear scraper buildup and follow the approved cleaning procedure. Provide safe access to moving parts for inspection and service.
Product FAQ

Can this system be used in a pig house?
Potential applications require a review of solids and liquid loading, slat arrangement, cleaning practice and discharge equipment. A poultry-house design should not be transferred to a pig house without that review.

Is the belt removed for cleaning?
This is a continuous-loop design. Cleaning access and maintenance provisions should be planned around the installed belt and support structure.
Product Gallery

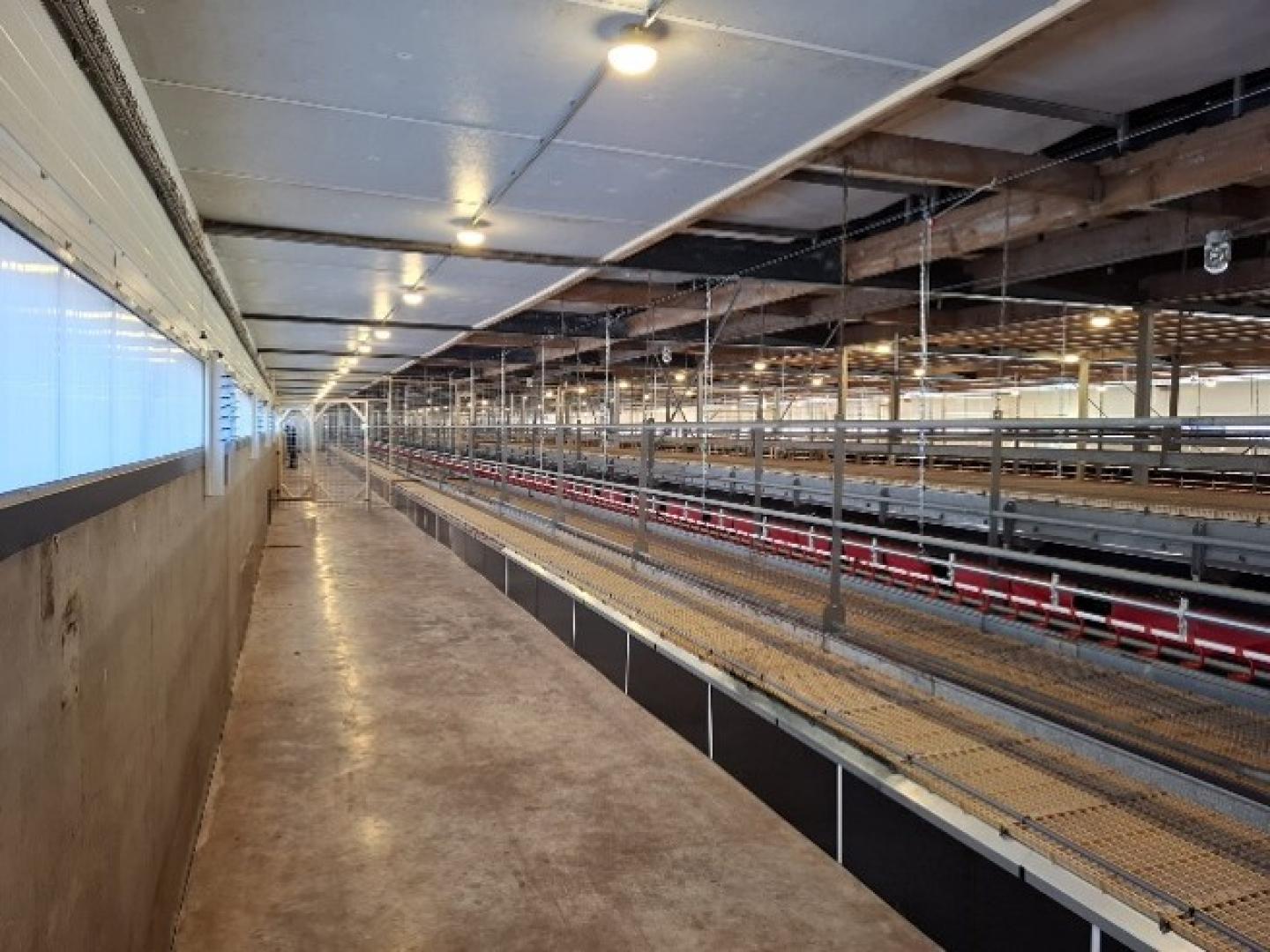

manure belt system installed beneath slatted livestock flooring

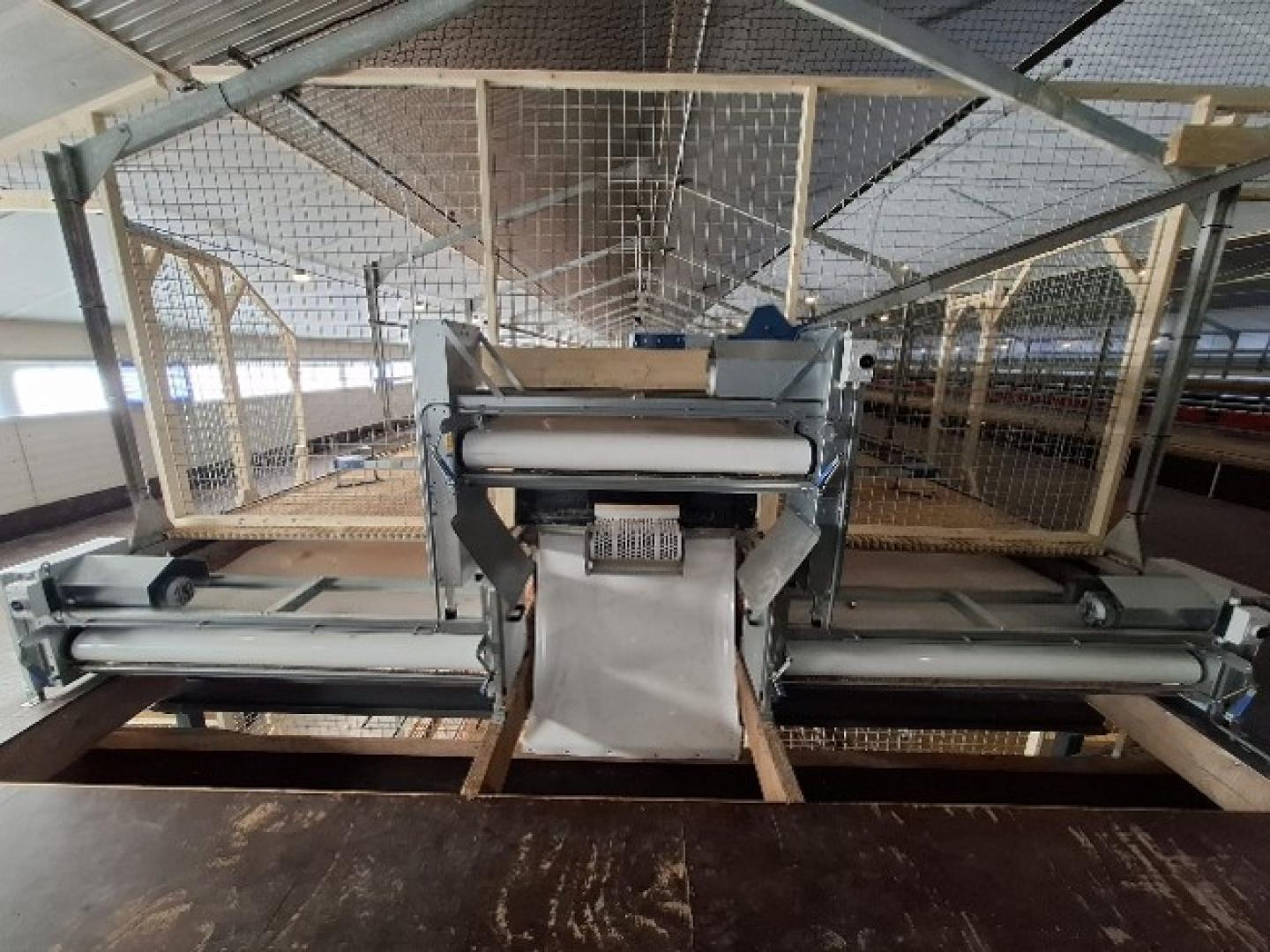

continuous manure belt discharge and conveyor installation

Reference installation images; final equipment configuration depends on the project.
