| Product Showcase | Content |
|---|---|

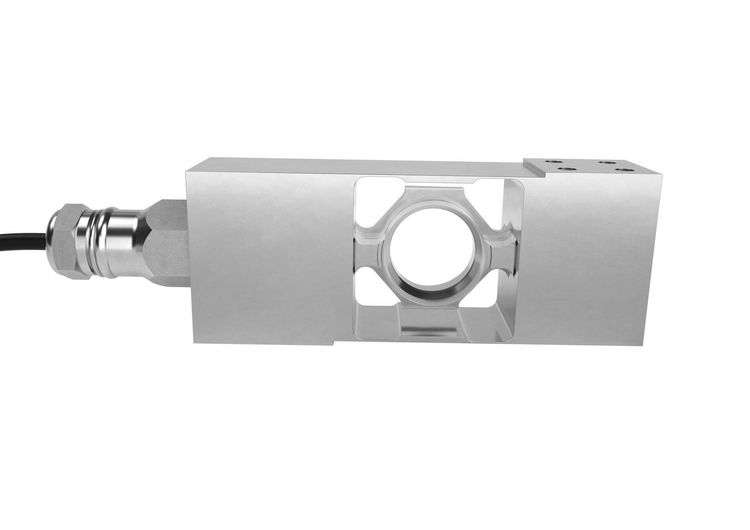

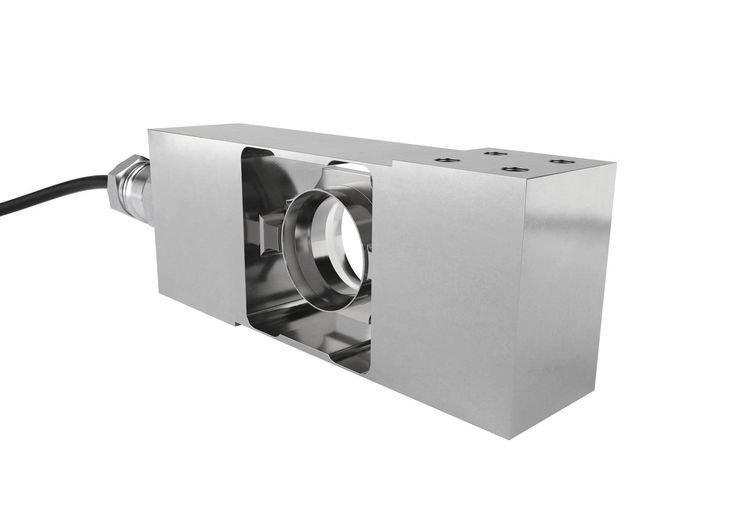

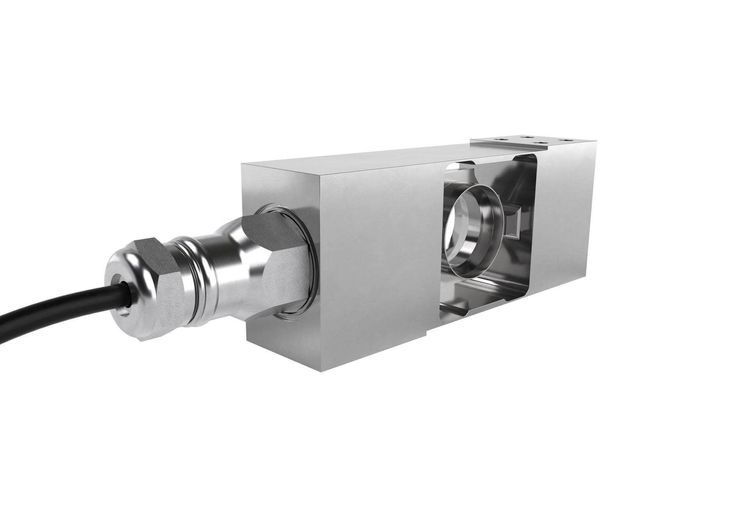

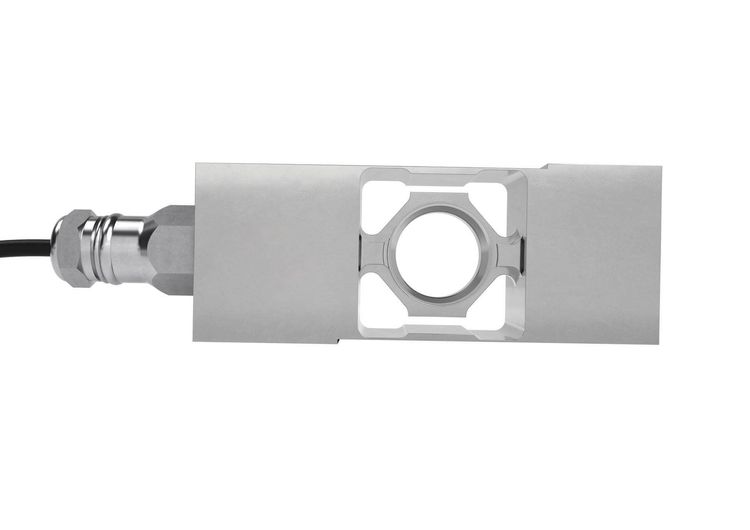

| Product Name | Single-Point Load Cell for Small Platform Scales |
| Product Image |  |
| Product Overview | This single-point load cell is intended for compact platform and bench-scale assemblies. One sensor supports the weighing platform and measures loads placed at different positions within its specified platform area. It can be integrated into livestock equipment for weighing feed ingredients, veterinary supplies, small containers and farm consumables. The load cell, platform, indicator and protective enclosure are selected together according to project requirements. |
| Key Features |
|
| Structural Components | A typical assembly consists of a machined sensing body, bonded strain gauges, a protected gauge area, mounting holes and a shielded signal cable. The fixed end attaches to a rigid scale base; the loading end supports the platform through a suitable mounting plate. An indicator, overload stops and a platform guard may be specified as part of the complete scale. |
| Working Principle | Applied weight produces a small, controlled deflection in the sensing body. Strain gauges convert that deflection into an electrical signal, which a compatible weighing indicator processes into a weight reading. The single-point geometry helps limit measurement differences caused by normal changes in load position across the specified platform area. |
| Technical Specifications |
|
| Applications | Suitable for small bench and platform scales in commercial pig farms, poultry houses, feed preparation rooms, veterinary work areas and agricultural supply facilities. Typical tasks include weighing feed additives, premixes, samples, packaged parts and small containers. It can also be incorporated into compact dosing or check-weighing equipment where the platform and load range are appropriate. |
| Customization Options | Available options may include rated capacity, body material, sealing level, cable length, mounting interface, platform arrangement and indicator compatibility. For pig farm construction projects, the scale housing and support brackets can be designed around the available floor or workbench space, cleaning practices and local climate. Final configurations are confirmed by drawing and quotation. |
| Installation & Maintenance | Mount the fixed end on a level, rigid base and attach the platform to the designated loading end using the approved fasteners and torque for the selected model. Keep the platform clear of adjacent frames, steel structure members and cable tension that could create a parallel load path. Provide mechanical overload protection where required. Route the signal cable away from power wiring, protect connectors from moisture and impact, and verify zero and calibration after installation or service. |
| Product FAQ |
Can one load cell support the entire platform? Can it be used in a washdown area? What information is needed for selection? |
| Product Gallery |
|
