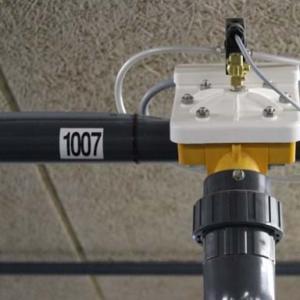

Product Name	Solenoid-Controlled Liquid Feed Valve
Product Image
Product Overview	The Solenoid-Controlled Liquid Feed Valve is designed for automatic distribution of pumpable feed mixtures in commercial pig liquid feeding systems. Installed directly in the feed pipeline, the valve combines a robust feed valve body with electro-pneumatic control, allowing individual feeding points to be opened and closed automatically according to instructions from the central feeding controller. This configuration is suitable for sow, piglet, grower and finishing pig facilities where accurate feed allocation, reliable switching and centralized control are required. The valve can be incorporated into ring-line, branch-line and other project-specific liquid feed distribution layouts. Its flow-oriented internal structure is designed to support reliable feed passage while reducing unnecessary resistance, wear and feed accumulation. Installation dimensions, connection arrangements and system interfaces can be configured according to project requirements.
Key Features	Electro-pneumatic actuation for automatic control of individual liquid feed outlets. Designed for integration with computer-controlled commercial pig feeding systems. Flow-optimized internal passage supports reliable transport of pumpable liquid feed. Suitable for repeated opening and closing during intensive daily feeding cycles. Can be installed at multiple feeding points throughout a centralized pipeline network. T-piece installation concept allows flexible positioning within the feed line. Supports accurate feed distribution when combined with weighing and feeding control systems. Rugged construction helps reduce wear and supports long-term livestock equipment operation. Suitable for new pig farm construction and existing feeding-system renovation projects. Pipeline connection and control configuration can be customized according to project requirements.
Structural Components	Typical valve construction may include: Feed Valve Body: Provides the main flow passage for liquid feed. Valve Closing Element: Opens or closes the feed discharge passage during each feeding cycle. Pneumatic Actuator: Converts compressed-air pressure into valve movement. Solenoid Valve: Electrically switches the compressed-air supply according to control signals. T-Piece Connection: Integrates the feed valve into the main or branch liquid feed pipeline. Feed Outlet: Directs the measured liquid feed toward the trough or feeding point. Sealing Components: Help maintain reliable closure and reduce leakage. Pneumatic Connections: Connect the valve assembly with the farm compressed-air network. Electrical Connection: Interfaces the solenoid valve with the feeding controller. Mounting and Fastening Components: Secure the valve assembly within the pipeline installation.
Working Principle	Liquid and solid feed ingredients are prepared in the mixing system to form a pumpable feed mixture. A feed pump transports the prepared ration through the distribution pipeline. When a programmed feeding point is activated, the central controller sends an electrical signal to the solenoid valve. The solenoid valve switches the compressed-air circuit, causing the pneumatic actuator to open the feed valve. Liquid feed is then discharged through the selected outlet into the corresponding trough. Once the programmed feed quantity or feeding sequence has been completed, the controller changes the signal, the pneumatic actuator returns the valve to the closed position and feed distribution to that outlet stops. This operating principle allows multiple feed valves to be controlled individually within one automatic liquid feeding system.
Technical Specifications	Product Type Solenoid-Controlled Liquid Feed Valve Primary Application Automatic pig liquid feeding systems Actuation Type Electro-pneumatic Control Method Electrical solenoid control with pneumatic valve actuation Installation Method Pipeline T-piece installation or according to project requirements Feed Medium Pumpable liquid feed mixtures Pipeline Diameter Customizable Feed Outlet Configuration According to project requirements Valve Body Material Available upon request Solenoid Voltage According to control-system requirements Operating Pressure According to feeding and pneumatic system design Control Integration Compatible with project-specific automatic feeding controllers
Applications	Commercial finishing pig houses Nursery and weaner feeding systems Sow and breeding farm liquid feeding systems Individual sow liquid feeding Group pig feeding systems Sensor-controlled liquid feeding installations Multi-phase pig feeding systems Ring-line liquid feed distribution systems Branch-line liquid feeding systems Large livestock production units New pig farm construction projects Steel structure pig house projects Existing liquid feeding system upgrades
Customization Options	Feed pipeline diameter: Customizable T-piece and outlet dimensions: According to project requirements Valve body material: Available upon request Solenoid valve voltage: According to control-system requirements Pneumatic connection arrangement: Customizable Feed discharge direction: According to trough layout Feed controller interface: Available upon request Valve numbering and zone arrangement: According to feeding program Mounting accessories: Customizable Complete system layout: Designed according to local climate and farm conditions
Installation & Maintenance	Installation: Confirm the feed pipeline layout and individual trough positions before installation. Install the valve at the specified T-piece connection in the liquid feed line. Keep the feed outlet correctly aligned with the receiving trough or discharge pipe. Connect the pneumatic actuator to the compressed-air distribution system. Connect the solenoid valve to the designated output of the feeding controller. Check all feed, pneumatic and electrical connections before commissioning. Test each valve individually during feeding-system commissioning. Maintenance: Inspect the valve body and feed outlet regularly for feed residue accumulation. Check sealing components for leakage or abnormal wear. Inspect pneumatic hoses and fittings for air leakage. Verify reliable solenoid switching and valve movement during routine system checks. Clean the liquid feed pipeline according to the farm hygiene program. Replace worn sealing or actuation components when necessary.
Project Cases	In commercial pig farm projects, multiple solenoid-controlled feed valves can be installed throughout the feeding network to supply individual pens, troughs or production zones. Each valve is assigned to the feeding controller so that feed recipes, feeding times and distribution sequences can be managed according to the farm's production program. For large-scale pig farm construction, the valve system can be planned together with feed preparation tanks, weighing systems, feed pumps, distribution pipes, compressed-air equipment, sensors and central control equipment. Modular system planning also allows additional feeding points to be incorporated when production capacity is expanded.
Product FAQ	Q: What is the difference between a solenoid-controlled feed valve and a purely pneumatic feed valve? A: A solenoid-controlled valve uses an electrical control signal to switch the pneumatic actuator locally. A purely pneumatic configuration can instead be operated through a centralized pneumatic valve cluster. Q: Can each feed valve be controlled individually? A: Yes. In an automatic liquid feeding installation, individual valves can be assigned to specific troughs, pens or feeding zones through the central feeding controller. Q: Is the valve suitable for liquid feed containing solid feed ingredients? A: It is designed for pumpable liquid feed mixtures commonly used in pig production. Final valve and pipeline configuration should be selected according to feed composition, particle characteristics and system design. Q: Can the valve size be customized? A: Yes. Pipeline connections, feed outlets and related installation components can be configured according to project requirements. Q: Can the valve be integrated into an existing liquid feeding system? A: Integration is possible when the existing pipeline dimensions, pneumatic supply, electrical controls and feeding software are compatible. The existing system should be evaluated before retrofit. Q: Is this valve suitable for large commercial pig farms? A: Yes. Electro-pneumatic feed valves are particularly suitable for centralized automatic feeding systems that require reliable control of many individual feed outlets.
