Layer Cage System with Automatic Manure Removal System

The Layer Cage System with Manure Removal System is developed for intensive commercial layer farming, combining organized bird housing with efficient manure collection and conveying.

Manure belts installed beneath the cage tiers collect poultry manure and transport it toward the designated discharge section. This reduces frequent manual cleaning and helps maintain a cleaner and more manageable poultry-house environment.

The modular system can be integrated with automatic feeding, nipple drinking, egg collection, ventilation and environmental-control equipment according to the farm design.

• Automatic Manure Removal: Manure belts collect and transport poultry waste from beneath the cage tiers.
• Galvanized Steel Structure: Corrosion-resistant components are designed for demanding poultry-house environments.
• Multi-Tier Design: Efficiently utilizes the vertical space of commercial poultry buildings.
• Reduced Manual Labor: Mechanical manure handling reduces repetitive cleaning work.
• Modular Configuration: Cage rows, tiers and conveyor arrangements can be customized.
• Automation Integration: Compatible with automatic feeding, drinking, egg collection and climate-control systems.
• Commercial Farm Application: Suitable for medium and large-scale egg production projects.

• Galvanized Steel Cage Frame: Provides the main structural support for the cage modules.
• Galvanized Wire Mesh: Forms the individual cage compartments.
• Cage Floor: Supports the hens while allowing manure to fall onto the collection belt.
• Feed Trough: Provides organized feed access along the cage row.

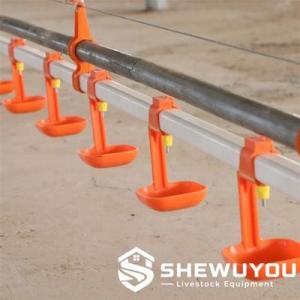

• Nipple Drinking Line: Automatic water supply can be configured according to project requirements.
• Manure Belt: Collects and conveys manure beneath the cage tiers.
• Drive Unit: Motor, reducer and rollers provide mechanical belt movement.
• Belt Scraper: Helps remove residual manure at the discharge section.
• Cross or Inclined Conveyor: Available for transferring manure outside the poultry house.

The manure removal system places collection belts directly beneath the cage floors. Poultry manure falls through the cage floor and is collected by the belt.

Collection: Manure drops onto the belt positioned beneath each cage tier.

Conveying: A motor-driven roller moves the belt along the cage row toward the discharge end.

Cleaning: A scraper can remove residual manure from the belt surface.

Discharge: Collected manure can be transferred outside the poultry house through a cross conveyor or inclined conveyor according to the farm layout.

Final cage dimensions, tier quantity, belt specifications, motor selection and conveyor arrangement are confirmed according to the approved farm layout.

• Commercial Layer Farms for intensive egg production.
• Large Poultry Projects requiring centralized manure management.

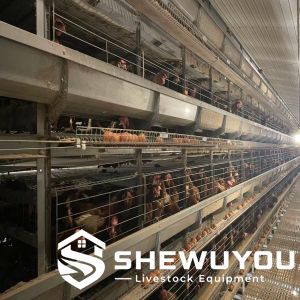

• H-Type Layer Cage Houses with multi-tier automated equipment.
• Steel Structure Poultry Buildings with planned cage rows and service aisles.
• Farm Expansion Projects requiring scalable livestock equipment.
• Farm Modernization Projects replacing manual manure handling systems.

The complete cage and manure removal system can be engineered around the actual poultry-house structure, flock capacity and automation requirements.

• Cage type and dimensions: Customizable
• Tier quantity: According to project requirements
• Manure belt length and configuration: Customizable
• Drive and discharge arrangement: Customizable
• Cross and inclined conveyors: Available upon request
• Automatic feeding and drinking: Available upon request
• Automatic egg collection: Available upon request
• Complete farm layout: Designed according to local climate and farm conditions

Installation: Cage frames, mesh panels, feeding equipment, drinking lines and manure belts are assembled according to the approved farm layout.

Belt Alignment: Manure belts should be correctly aligned and tensioned before commissioning.

Commissioning: Check motor operation, belt tracking, scraper position and manure discharge before normal operation.

Maintenance: Inspect belts, rollers, bearings, drive units, scrapers and fasteners regularly. Remove accumulated manure and replace worn components when necessary.

Q1: What is a layer cage manure removal system?

It combines layer cages with manure belts installed beneath the cage tiers to collect and transport poultry manure.

Q2: Can the system reduce manual manure handling?

Yes. Mechanical belt removal reduces repetitive manual cleaning and improves the efficiency of poultry-house waste management.

Q3: Can it be integrated with H-Type layer cages?

Yes. Manure belts can be arranged beneath the tiers of H-Type layer cage systems according to the project design.

Q4: Can manure be transported outside the poultry house?

Yes. Cross conveyors and inclined conveyors can be added according to the building layout and manure-management plan.

Q5: Can the complete system be customized?

Yes. Cage configuration, tier quantity, manure belt arrangement, feeding, drinking, egg collection and conveyor systems can be configured according to project requirements.
