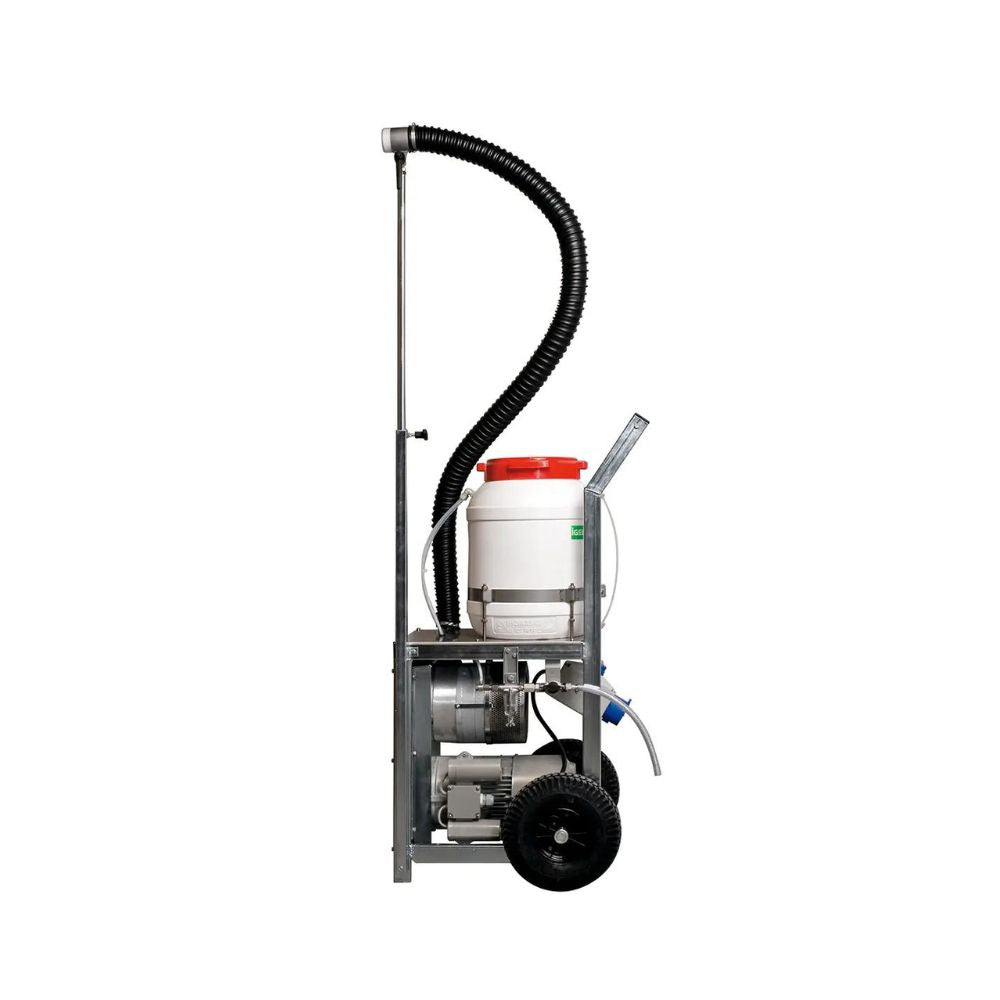

ULV Cold Fog Disinfection Machine

• ULV Cold Fog Technology: Produces fine aerosol droplets for controlled low-volume application in suitable treatment environments.
• Precision Dosing: Interchangeable dosing nozzles provide different liquid output rates according to the selected formulation and application procedure.
• Fine Droplet Distribution: The reference configuration produces a volume median diameter below approximately 25 microns when applying water at 10 L/h.
• High Airflow: An air compressor output of approximately 1 m³/min supports efficient aerosol transport through the target area.
• Adjustable Aerosol Head: The spray head can be positioned through a 360° adjustment range for flexible directional application.
• Mobile Farm Equipment: Two pneumatic tires and a welded metal frame allow the unit to be transported between livestock buildings and treatment areas.
• Durable Solution System: The solution circuit is designed with chemical-resistant components for professional agricultural applications.
• Maintenance-Friendly Motor and Blower: Enclosed drive components help protect the internal mechanism during routine fogging operations.
• Optional Automation: Semi-automatic or timer-based control can be available according to project requirements.

• Electric Asynchronous Motor: Drives the blower and air-compression system.
• Air Compressor: Generates the airflow required to atomize and transport the working solution.
• HD-PE Solution Tank: Standard tank capacity is 20 L, with larger tank configurations available upon request.
• Solution Line: Chemical-resistant tubing transfers the formulation from the tank to the dosing and aerosol system.
• Precision Dosing Nozzle: Controls liquid delivery and supports consistent application rates.
• 360° Adjustable Aerosol Nozzle: Directs the aerosol toward selected areas of the livestock building.
• Welded Metal Frame: Provides structural support for the tank, motor, compressor and fogging assembly.
• Pneumatic Tires: Support mobile movement across suitable farm floors and service areas.
• Air Filtration Assembly: Protects the airflow system from dust and particulate contamination during operation.

• Commercial pig house and swine production facility disinfection
• Livestock-house hygiene and biosecurity programs
• Empty-house treatment before animal placement
• Poultry house sanitation and compatible aerosol applications
• Veterinary and animal breeding facilities
• Greenhouse and controlled-environment agriculture applications
• Food-processing and storage-area hygiene where the formulation is approved
• Mold, mildew and odor-control applications using compatible products
• Application of approved livestock vaccines or veterinary formulations according to manufacturer protocols
• Pest and vector control applications where ULV treatment is permitted
• Livestock farm renovation and biosecurity equipment projects

• Electrical Configuration: 230 V / 50 Hz, 230 V / 60 Hz or 110–120 V / 60 Hz according to destination-market requirements.
• Solution Tank: Standard 20 L tank with optional larger capacity according to project requirements.
• Dosing System: Different dosing nozzle sizes can be selected to match the required application rate.
• Frame Material: Galvanized steel standard configuration with stainless steel construction available upon request.
• Control System: Manual, semi-automatic or timer-based control according to project requirements.
• OEM Configuration: Product labeling, packaging and supply quantities can be customized for distributors and agricultural engineering companies.
• Farm-Specific Configuration: Equipment selection can be designed according to local climate, barn dimensions, ventilation system, electrical standards and sanitation workflow.

Installation: The mobile fogger does not require permanent structural installation. Position the unit on a stable surface, connect it to a compatible electrical supply and place the aerosol nozzle according to the treatment plan and building airflow conditions.

• Check the electrical supply, solution tank, dosing nozzle, tubing and aerosol head before operation.
• Use only compatible and approved formulations at the concentration specified on the product label.
• Select the dosing nozzle according to the required application rate.
• Keep the air filter clean to maintain stable airflow performance.
• Keep the aerosol nozzle and solution line free from blockage or chemical residue.
• Flush appropriate liquid-contact components after use when required by the formulation and operating procedure.
• Disconnect the machine from the power supply before cleaning, maintenance, repair or movement.
• Inspect the frame, pneumatic tires, tubing, fittings and electrical cable periodically.
• Protect the motor, compressor and electrical components from direct water exposure during cleaning.
• Store the equipment in a clean, dry and protected area when not in operation.

Q: What is a ULV cold fogger?
A: A ULV cold fogger uses high-velocity airflow and controlled liquid dosing to produce a fine aerosol without thermal fogging. It is used for suitable disinfection, pest-control, plant-protection and other approved applications.

Q: What is the standard tank capacity?
A: The reference configuration uses a 20 L HD-PE solution tank. A larger 45 L configuration can be available upon request.

Q: What droplet size can the machine produce?
A: Under a reference water application condition of 10 L/h, the VMD is below approximately 25 microns. Actual droplet size varies with formulation, dosing nozzle and operating conditions.

Q: How far can the fog travel?
A: A horizontal range of up to approximately 30 m is specified under optimal conditions with water and a suitable fog additive. Actual range depends on building conditions and the formulation used.

Q: Is the machine suitable for commercial pig farms?
A: Yes. It can be incorporated into livestock-house sanitation and biosecurity programs, particularly where controlled aerosol application is appropriate.

Q: Can the dosing rate be adjusted?
A: Yes. Different dosing nozzles provide different liquid output rates. The appropriate nozzle should be selected according to the approved application procedure and formulation.

Q: Can the electrical configuration be customized?
A: Yes. Configurations can be supplied according to destination-market voltage and frequency requirements, subject to project specifications.

Q: Can it be used with acid-based solutions?
A: A chemical-resistant solution system can be configured for suitable formulations. Chemical compatibility must always be confirmed before use, and the selected formulation must be approved for the intended ULV application.

Q: Can the machine be used while livestock are inside the building?
A: Animal occupancy depends on the specific formulation, its approved label, droplet/application requirements and farm protocol. The disinfectant or treatment manufacturer's instructions and local regulations must be followed before treatment.
