| Product Name |

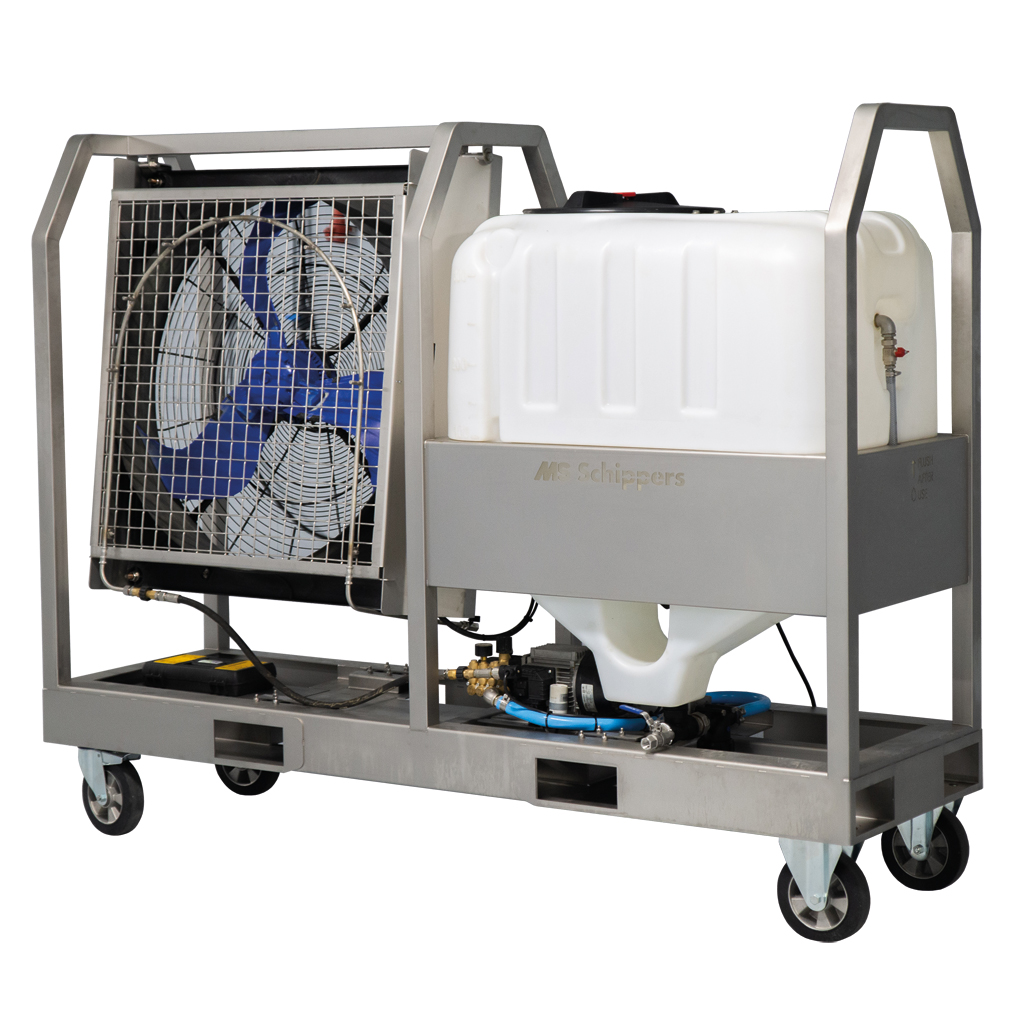

Large Mobile Fine Mist Disinfection Machine |
| Product Image |
 |
| Product Overview |
The Large Mobile Fine Mist Disinfection Machine is a heavy-duty mobile fogging solution designed for efficient treatment of large livestock buildings. It is suitable for commercial pig farms, poultry houses, cattle barns and other agricultural facilities where wide-area fine mist application is required.

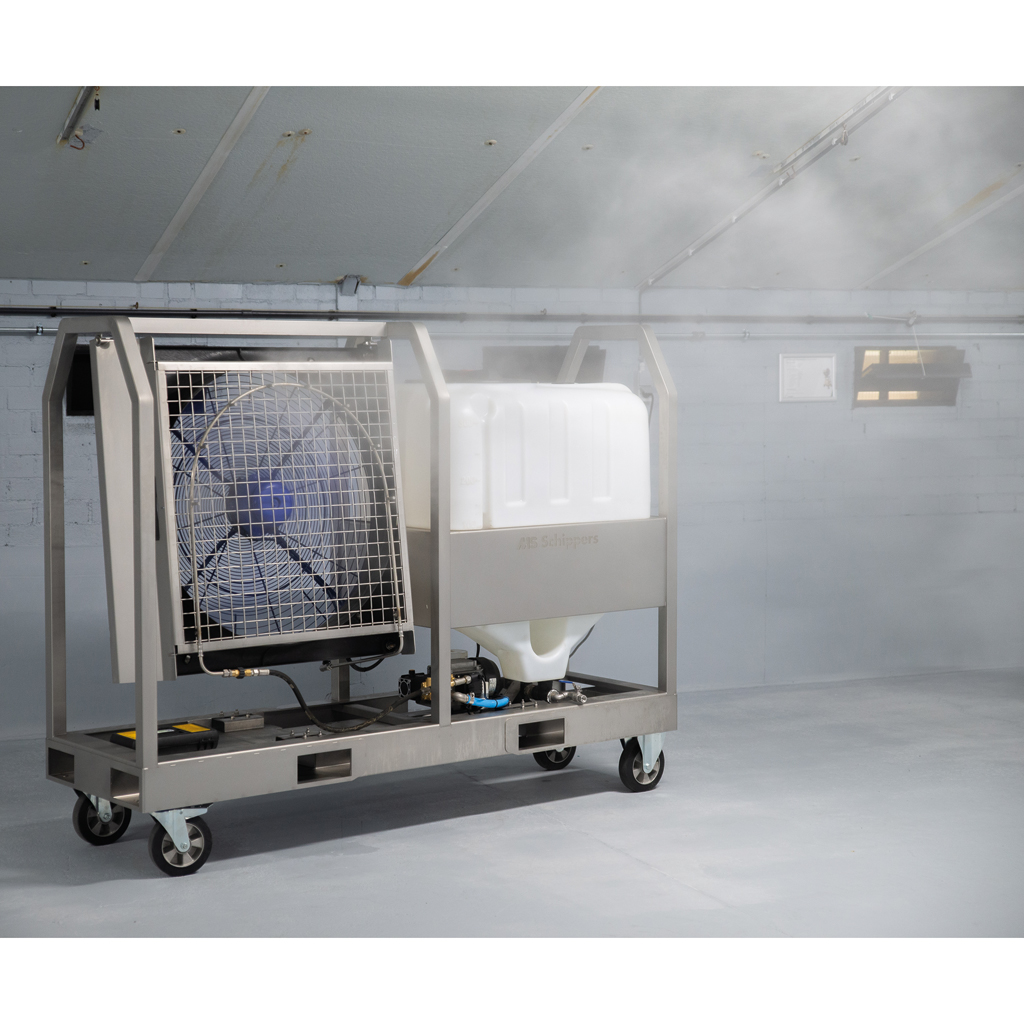

The machine combines a large solution tank, powerful air-moving and atomization assembly, stainless steel mobile frame and caster-wheel system in one integrated unit. Fine droplets in the 5–10 micron range help distribute compatible cleaning, disinfection or humidification solutions through large barn spaces, while the mobile configuration allows the equipment to be repositioned between production rooms and building sections.
For livestock construction and renovation projects, the machine can be incorporated into farm biosecurity equipment packages according to building volume, ventilation design, sanitation procedures and local operating conditions. |
| Key Features |
- Fine Mist Atomization: Produces small droplets of approximately 5–10 microns for broad distribution within suitable livestock-house environments.
- Large Treatment Capacity: The reference configuration can serve areas of up to approximately 15,000 m³, depending on building conditions and application procedures.
- 300 L Solution Tank: Large tank capacity reduces the need for frequent refilling during extended farm treatment operations.
- High Liquid Throughput: Reference water flow is approximately 1.33 L/min for large-area misting applications.
- Heavy-Duty Stainless Steel Construction: Stainless steel structural construction is suitable for demanding agricultural and livestock environments.
- Mobile Trolley Design: Integrated caster wheels allow the unit to be moved between barns, production rooms and service areas.
- Tank-Level Warning: A visual light alarm can indicate an empty solution tank in the reference configuration.
- Large-Barn Application: Developed for large livestock buildings where portable, high-coverage misting equipment is required.
- Simple Operation: Mains-powered operation with an On/Off control provides straightforward equipment management.
|
| Structural Components |

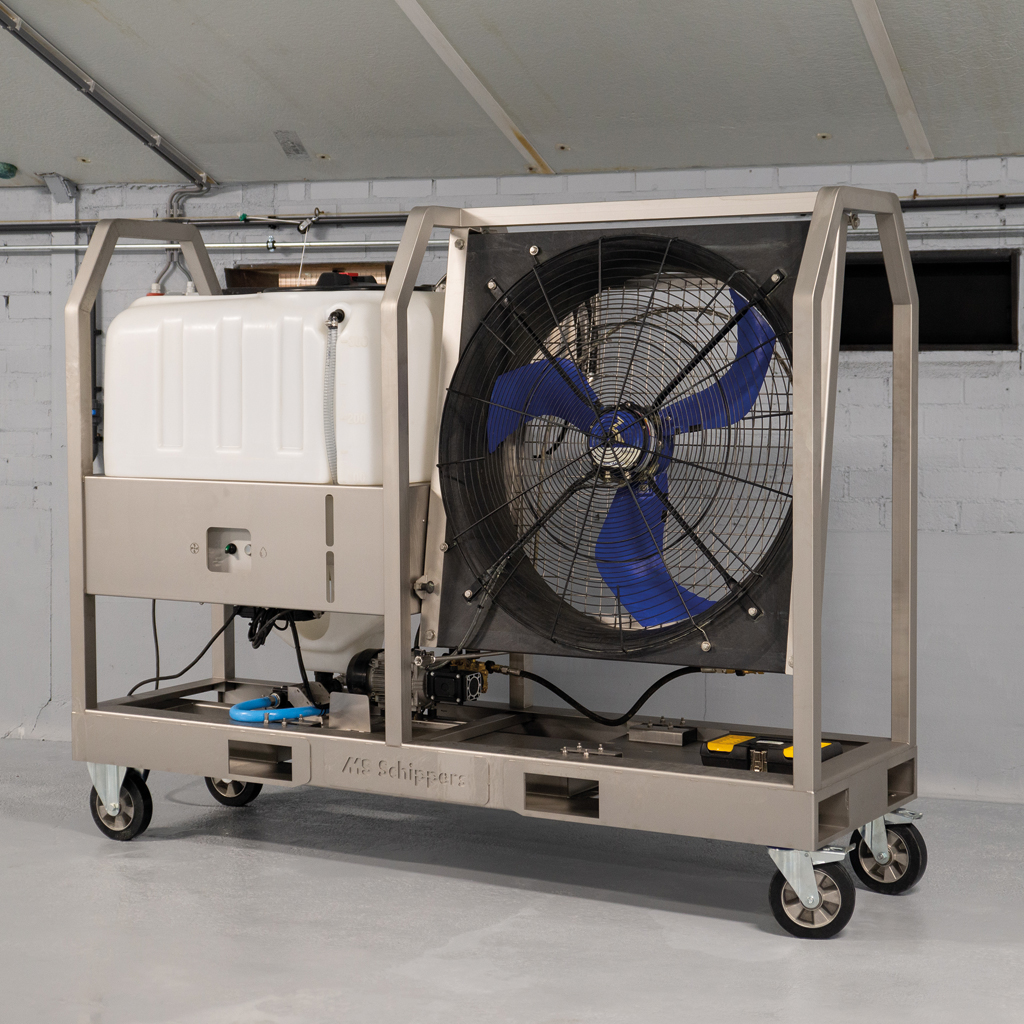

- Stainless Steel Support Frame: Provides the main structural platform for the tank, fan and atomization components.
- Large-Capacity Solution Tank: Stores the prepared working solution for continuous misting operations.
- Large Airflow Fan Assembly: Generates the airflow required to carry fine droplets into the target barn area.
- Atomization System: Converts the supplied liquid into a fine mist for wide-area distribution.
- Liquid Delivery Circuit: Includes the pump, tubing, fittings and control components required for solution transfer.
- Protective Fan Guard: Helps protect the rotating fan assembly during operation.
- Mobile Caster System: Four-wheel configuration supports movement across suitable farm floors.
- Control and Warning Components: On/Off control and tank-level warning functions support daily operation and monitoring.
|
| Working Principle / Structural Principle |

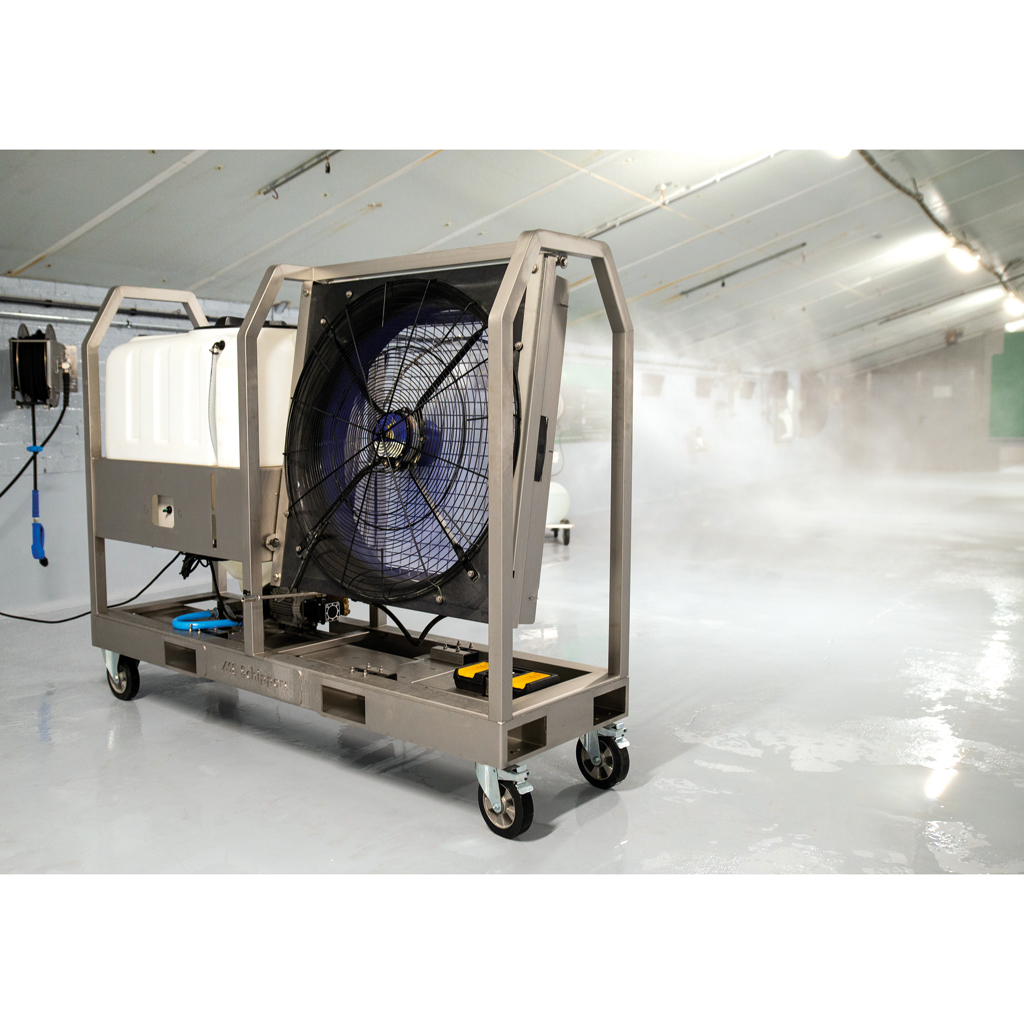

The machine uses a fan-driven airflow and liquid atomization system to distribute a fine mist throughout a target livestock building. The working solution is supplied from the large tank to the atomization assembly, where it is broken into fine droplets and carried forward by the generated airflow.
The combination of fine droplets and strong air movement is intended to provide wide spatial distribution compared with conventional coarse spraying. The operator positions the mobile unit according to the barn layout, airflow pattern and treatment procedure, allowing different sections of a livestock building to be treated without permanent equipment installation.
Actual droplet behavior, coverage and application performance depend on ventilation, temperature, humidity, building geometry, liquid formulation and operating conditions. Disinfectant concentration and contact time must always follow the applicable product label and local regulations. |
| Technical Specifications |
| Product Type |
Large Mobile Fine Mist Disinfection Machine |
| Droplet Size |
Approx. 5–10 microns |
| Water Flow Rate |
Approx. 1.33 L/min |
| Reference Treatment Capacity |
Up to approximately 15,000 m³, subject to building and application conditions |
| Tank Capacity |
300 L reference configuration |
| Material |
Stainless steel |
| Power Supply |
230 V mains power reference configuration; customizable according to project requirements |
| Control |
On/Off control reference configuration |
| Dimensions |
Approx. 2200 × 1500 × 600 mm reference configuration |
| Machine Weight |
Approx. 150 kg reference configuration |
| Operation |
Mobile |
| Configuration |
Customizable according to project requirements |
|
| Applications |
- Commercial pig houses and swine production buildings
- Farrowing, nursery and finishing units during approved empty-house treatment procedures
- Poultry houses and large poultry production facilities
- Cattle barns and dairy or beef livestock buildings
- Sheep and goat housing facilities
- Large livestock-house cleaning and disinfection programs
- Environmental humidification where the application is appropriate
- Farm renovation and biosecurity improvement projects
- Livestock engineering projects requiring mobile large-area misting equipment
- Centralized equipment procurement for livestock groups, distributors and agricultural contractors
Application procedures must be established according to the selected chemical product label, animal status, ventilation conditions, occupational safety requirements and local regulations. |
| Customization Options |
For international livestock projects, the machine can be configured according to farm capacity, barn dimensions, local climate, electrical standards and sanitation workflow.
- Electrical voltage and frequency according to destination-market requirements
- Tank capacity according to required treatment volume
- Atomization and liquid-delivery configuration according to project requirements
- Frame dimensions and mobility configuration according to barn access and floor conditions
- Control and warning functions available according to project requirements
- OEM labeling and packaging available for distributors and agents
- Project-based equipment packages for new pig farm construction and farm renovation
- Custom configuration designed according to local climate and farm conditions
|
| Installation & Maintenance |
Installation: The mobile configuration does not require permanent structural installation. Position the machine on a stable, level floor with adequate clearance around the air intake and discharge area. Confirm the electrical supply before connection and position the unit according to the building ventilation and treatment plan.
- Inspect the tank, tubing, fittings, atomization components and electrical connections before operation.
- Use only cleaning or disinfection solutions confirmed to be compatible with the equipment.
- Prepare chemical solutions strictly according to the applicable product label.
- Keep the fan guard, air intake and discharge area free from dust, debris and obstructions.
- Monitor the solution level during operation and respond to the tank-level warning where equipped.
- Flush appropriate liquid-contact components with clean water after chemical use when required.
- Disconnect the power supply before inspection, cleaning or maintenance.
- Inspect hoses, seals, fittings, wheels and atomization components regularly for wear or blockage.
- Keep electrical components protected from direct water exposure during cleaning.
- Store the machine clean and dry when not in use.
|
| Project Cases |
The Large Mobile Fine Mist Disinfection Machine is suitable for large-scale livestock biosecurity projects where treatment equipment needs to be moved between multiple production buildings.
For commercial pig farm construction, the machine can be planned as part of the farm's cleaning and disinfection equipment package. Project configuration can take into account the number of livestock houses, building volume, internal partitions, ventilation system, access routes and sanitation workflow.
For livestock groups, agricultural engineering companies and distributors, equipment quantities and specifications can be supplied according to project requirements. OEM packaging and market-specific electrical configurations are available upon request. |
| Product FAQ |
Q: What type of livestock buildings is this machine designed for?
A: It is designed for large livestock buildings, including commercial pig houses, poultry houses, cattle barns, sheep and goat facilities, subject to the approved application method.
Q: What droplet size does the reference configuration produce?
A: The reference specification indicates a fine mist droplet size of approximately 5–10 microns.
Q: What is the tank capacity?
A: The reference configuration uses a 300 L solution tank. Other configurations can be available according to project requirements.
Q: How large an area can one machine treat?
A: The reference product specification indicates capacity of up to approximately 15,000 m³. Actual coverage depends on building geometry, ventilation, environmental conditions and application procedure.
Q: Does the machine need permanent installation?
A: No. The unit is designed as mobile equipment and can be repositioned between suitable livestock buildings and treatment zones.
Q: What solutions can be used?
A: Only compatible solutions approved for the equipment and intended application should be used. Chemical dosage, contact time and application conditions must follow the selected product label and applicable local requirements.
Q: Can the machine be customized for international projects?
A: Yes. Electrical configuration, tank capacity, equipment configuration, packaging and other project-related requirements can be discussed according to local standards and farm conditions.
Q: Is it suitable for new pig farm construction projects?
A: Yes. It can be specified as part of a livestock biosecurity and cleaning equipment package for new pig farm construction, farm renovation and multi-site livestock projects.
|
