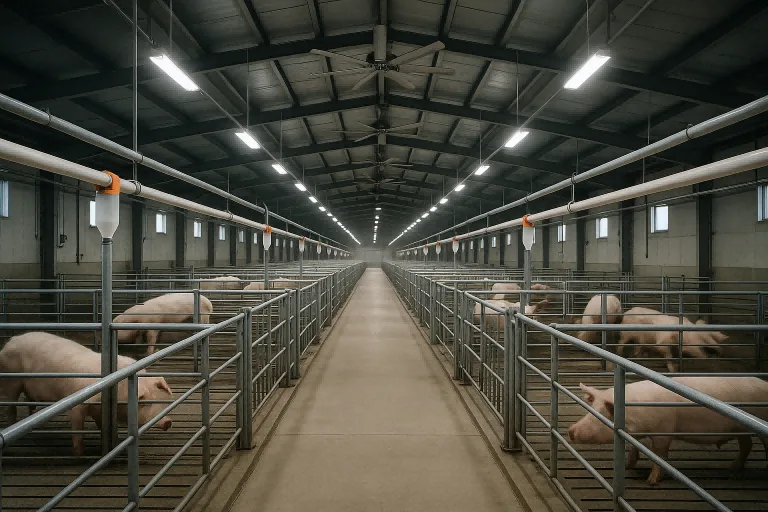

Livestock Farm High-Pressure Odor Control Misting System

This high-pressure misting system distributes a fine spray of water or a suitable diluted odor-control solution through a planned nozzle network. It is designed for localized treatment at pig house exhaust areas, manure collection points, wastewater facilities and other odor-prone zones on commercial livestock farms.

The pump unit, filtration, optional dosing equipment and spray zones can be configured around the farm layout, ventilation direction and operating schedule. System design and odor-control performance depend on the site conditions and the treatment solution selected.

• Fine-mist delivery for targeted treatment near identified odor sources and exhaust discharge points.
• Customizable nozzle positions and independently controlled spray zones for different farm buildings or work areas.
• Optional proportional dosing and timed operation according to the selected treatment program.
• Filtration and accessible service points to support routine nozzle and pump maintenance.
• Piping routes adaptable to existing buildings and new steel structure livestock houses.

A typical arrangement comprises a water inlet and filtration assembly, high-pressure pump unit, control panel, distribution piping, fittings and misting nozzles. Depending on the project, it may also include a solution tank, dosing unit, zone valves, pressure monitoring and protective controls. Material and enclosure selections are made according to the installation environment.

Filtered water is pressurized and delivered through the distribution lines to atomizing nozzles. When an appropriate odor-control solution is specified, the dosing unit introduces it into the water stream at the required dilution. Nozzles create a fine mist in the designated treatment zone so the spray can contact odor-bearing air. Nozzle direction and operating cycles are set to limit unnecessary wetting and coordinate with the farm ventilation system.

• Pig house exhaust outlets and ventilation discharge corridors.
• Manure collection, transfer, separation and composting areas.
• Livestock farm wastewater treatment and sludge handling zones.
• Poultry and cattle facilities where a site assessment supports mist-based odor treatment.

Available options include pump sizing, filtration, dosing method, nozzle type, piping route, zone control, control schedule and cabinet configuration. For commercial pig farm construction projects, the spray layout can be coordinated with exhaust fans, service corridors, manure equipment and the steel structure building plan. Final selections are based on site drawings, water quality, odor sources and local climate.

Install the pump and control equipment in an accessible service location, then route and secure the high-pressure lines along approved building supports. Position nozzles for the intended treatment area while avoiding direct spray onto animals, feed, electrical equipment and sensitive surfaces. Commissioning should include leak checks, pressure adjustment, nozzle inspection and a trial of each control zone.

Routine maintenance includes checking filters, water supply, dosing settings, fittings and nozzle spray patterns. Use only treatment solutions compatible with the equipment and suitable for the intended livestock setting, following the solution supplier's instructions and applicable local requirements.

Can the system be installed on an existing pig farm?
Yes. The piping route, equipment location and nozzle zones can be designed around the existing building and ventilation layout after a site assessment.

Does the system require an odor-control chemical?
The treatment approach depends on the odor source and project objective. If a solution is used, its compatibility, dilution and suitability for the livestock environment must be confirmed.

How is the system sized?
Sizing considers the treatment area, airflow, odor sources, available water and power, operating schedule and required spray zones. Configuration is available upon request.
