Name: Pig House Biological Air Scrubber
Brand: SHEWUYOU

Product Showcase	Content
Product Name	Pig House Biological Air Scrubber
Product Image	Illustrative installation reference image: SKOV BioFlex. Final SHEWUYOU configuration may differ.
Product Overview	The Pig House Biological Air Scrubber is designed for treating exhaust air from mechanically ventilated commercial pig buildings. Air from the house passes through a moist filter bed where a biological film helps break down odor compounds and treat ammonia. Water distribution also helps capture airborne dust. The system can be planned for new pig farm construction or integrated with an existing ventilation layout, subject to site assessment.
Key Features	Large-area biological filter media supports contact between exhaust air, water, and active microorganisms. Modular treatment sections can be sized around barn airflow and the required treatment duty. Water circulation and accessible spray components support routine inspection and cleaning. Corrosion-resistant wetted components can be specified for the humid pig house environment. Integration options include a central exhaust corridor, end-wall installation, or a separate service structure.
Structural Components	A typical configuration comprises an inlet plenum, air distribution section, biological filter media and supports, spray headers and nozzles, recirculation tank, pumps, pipework, drainage and blowdown connections, mist eliminator where required, access openings, and a control panel. Housing materials, supporting frame, and connections are selected according to the pig house design and project conditions.
Working Principle	Ventilation fans direct pig house exhaust into the inlet plenum and distribute it across the wetted filter media. The water film absorbs soluble compounds and maintains conditions for the microorganisms on the media. Treated air then passes toward the outlet, while recirculated water is monitored and periodically discharged or replenished according to the operating plan. Airflow distribution, moisture control, and pressure drop are considered during system design.
Technical Specifications	Design airflow and number of treatment modules: According to project requirements Filter media, housing, and frame materials: Customizable Water supply, recirculation, and drainage arrangement: According to project requirements Electrical supply and control interface: Available upon request Operating layout: Designed according to local climate and farm conditions Removal performance: To be confirmed against the selected design, inlet conditions, and applicable test method
Applications	Suitable for exhaust air treatment projects at sow farms, nurseries, and finishing pig houses. It can be considered where odor management, ammonia control, dust reduction, or nearby sensitive land uses influence the ventilation and environmental design.
Customization Options	The treatment capacity, module arrangement, access orientation, piping connections, control functions, and structural interface can be adapted to the building drawings. For a steel structure pig house, the design should account for available space, service access, structural loads, exhaust fan performance, and the route for water and drainage services.
Installation & Maintenance	The scrubber is connected to the designated exhaust air path and installed on a suitable support or foundation. Commissioning includes checking airflow, spray coverage, water circulation, drainage, and controls. Routine maintenance includes inspecting nozzles and filter media, checking pumps and sensors, managing process water, and keeping access areas clear. Maintenance intervals depend on dust loading, water quality, and operating conditions.
Product FAQ	Can it be installed on an existing pig house? Yes, subject to an assessment of exhaust collection, fan capacity, available space, structural support, and utility connections. Does biological treatment require process water? Yes. The filter media needs controlled wetting, and the system requires a plan for water supply, recirculation, and discharge. What information is needed for a proposal? Provide the pig house layout, design ventilation airflow, number of animals, local climate, water quality, installation location, and any emission requirements.

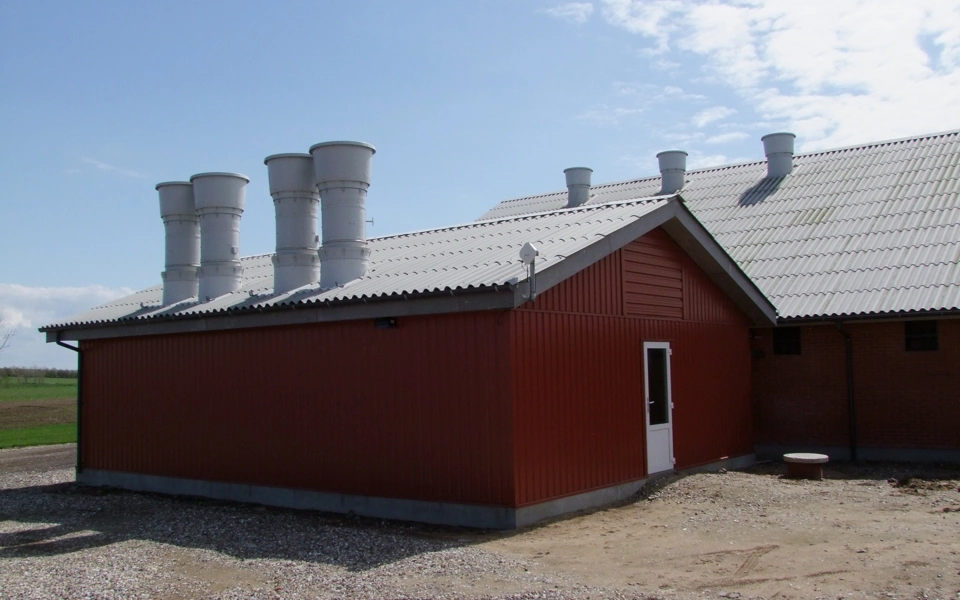

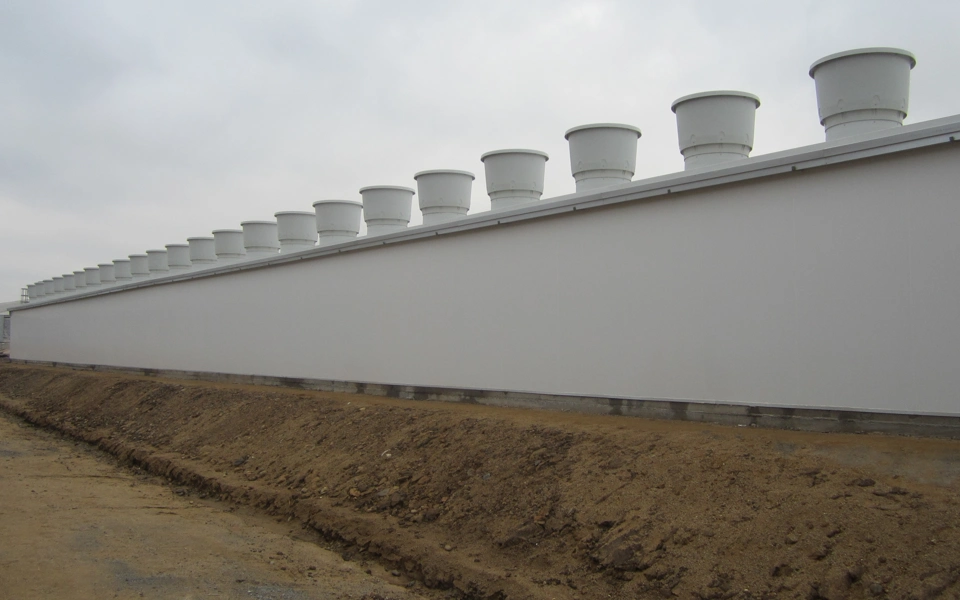

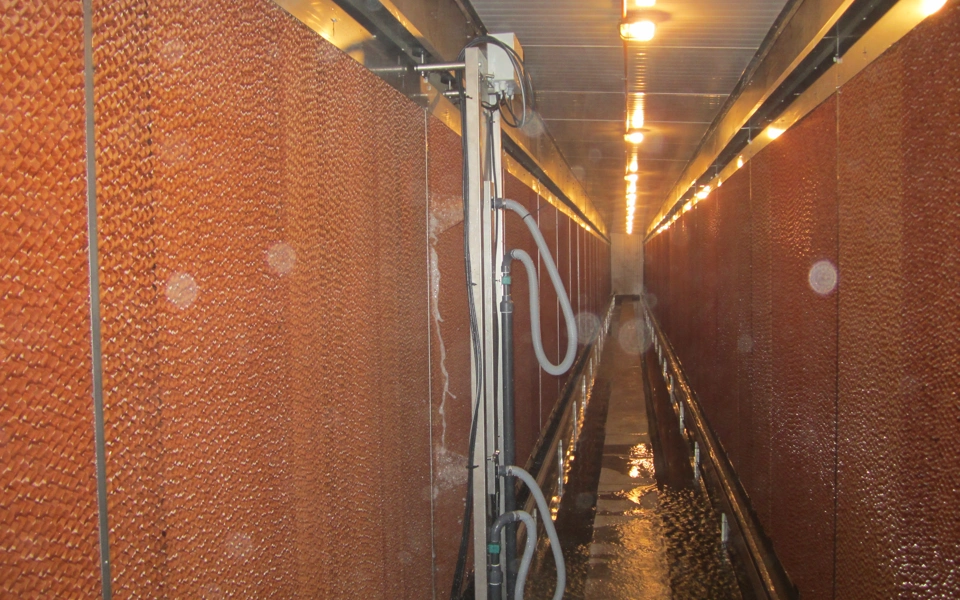

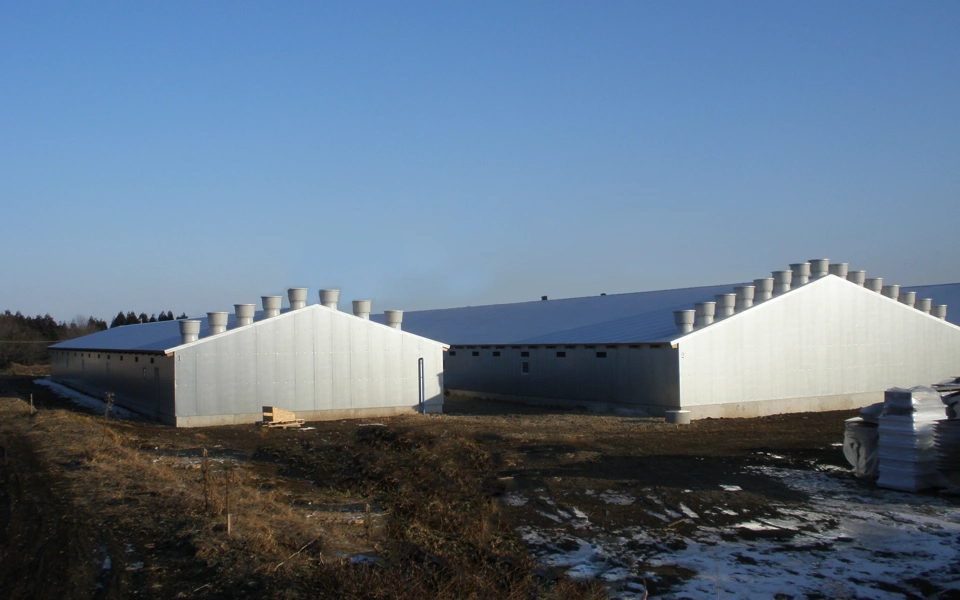

Product Gallery	Illustrative reference images from SKOV installations; these do not represent SHEWUYOU project cases.

Pig House Biological Air Scrubber
