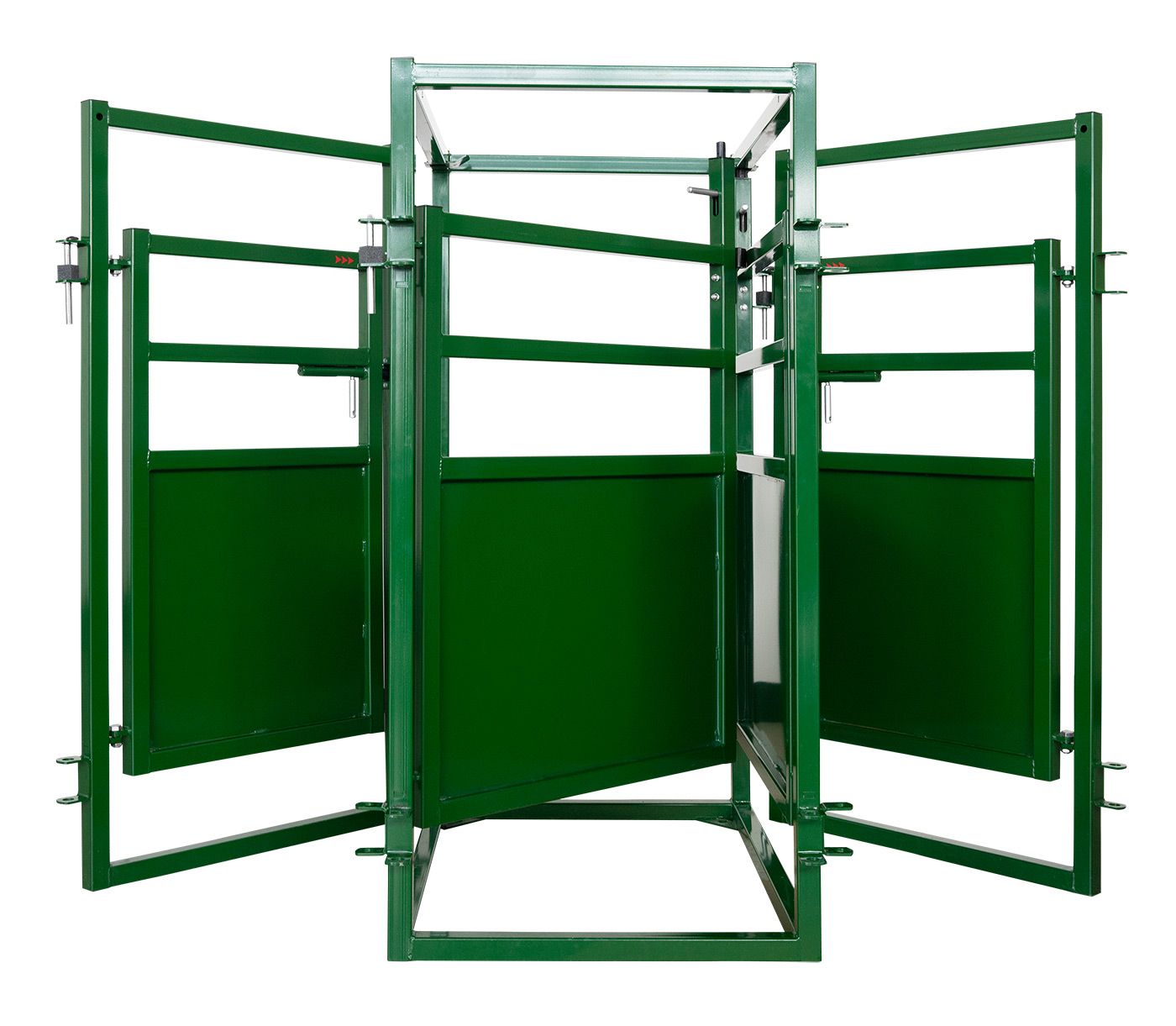

Product Name	Two-Way Cattle Sort Diversion Gate
Product Image

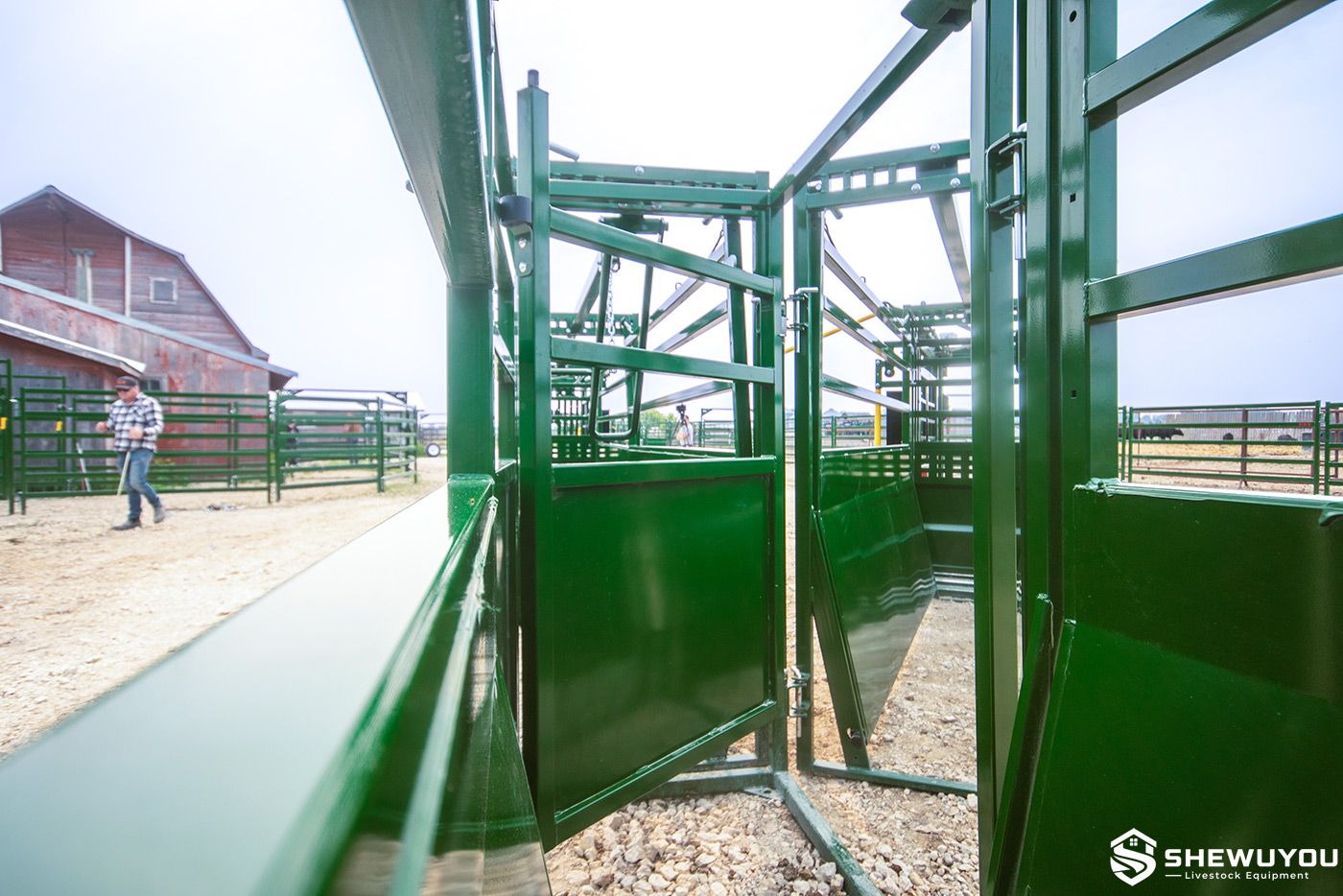

Product Overview	The Two-Way Cattle Sort Diversion Gate is a livestock drafting component designed to direct individual cattle from a handling alley into either a left-hand or right-hand exit. Installed within a cattle race or immediately before another processing station, the diversion gate allows operators to separate animals according to weight, age, sex, health status, breeding group or destination without manually sorting cattle inside an open pen. Sheeted lower gate sections limit the animal's view of the operator, while angled exits support smooth changes in travel direction. Heavy-duty steel framing, mechanical gate controls and modular connections make the unit suitable for commercial cattle yards and high-frequency livestock handling systems.
Key Features	Two-Way Sorting: Directs cattle toward either the left-hand or right-hand exit from a single incoming alley. Pre-Chute Drafting: Suitable for sorting cattle before a squeeze chute, loading ramp, weighing station or separate yard. Angled Animal Flow: Approximately 30-degree directional changes on the reference design help reduce abrupt turns. Sheeted Lower Sides: Approximately 42-inch sheeted areas reduce visual contact between livestock and handlers during sorting. Spring-Loaded Gates: Mechanical gate operation supports quick changes between sorting directions. Slam-Latch Control: Provides simple, positive gate positioning during repetitive livestock processing. Left or Right-Hand Operation: Gate configuration can be arranged to suit the working side of the cattle handling system. Operator Pass-Through Access: Personnel-access provisions allow handlers to move through the system without entering the livestock lane. Noise-Reducing Components: Poly or rubber bumpers can reduce gate impact noise during operation. Heavy-Duty Construction: Designed for repeated use in commercial cattle yards and livestock processing facilities.
Structural Components	Heavy-duty steel main frame Left-hand diversion gate Right-hand diversion gate Sheeted lower livestock barriers Open upper rail sections Spring-loaded gate assemblies Slam-latch mechanisms Operator pass-through gate Noise-reducing gate bumpers Ground anchoring plates Connections for adjoining cattle alley panels
Working Principle	Animal Approach: Individual cattle move through the incoming single-file alley toward the diversion section. Sorting Decision: The operator identifies the required destination according to herd-management criteria such as weight, breeding group, treatment status or sale group. Gate Positioning: The corresponding diversion gate is positioned so the animal is presented with the selected left-hand or right-hand route. Directional Movement: The angled lane guides the animal smoothly toward the selected exit while sheeted sides limit distracting views of handlers. Gate Reset: After the animal clears the diversion section, the gates are repositioned for the next animal.
Technical Specifications	Product Type Two-way cattle sorting and diversion gate Reference Product Code TWDG type Reference Overall Width 99 in / approx. 2515 mm Reference Overall Height 76 in / approx. 1930 mm Reference Overall Length 55 in / approx. 1397 mm Reference Weight Approx. 605 lb / 274 kg Reference Alley Width Approx. 31.5 in Reference Direction Change Approx. 30° Reference Sheeted Height 42 in Reference Frame Posts 2 in × 2 in × 12-gauge steel Gate Operation Manual spring-loaded diversion gates Gate Latching Slam-latch type Operating Side Left-hand or right-hand configuration Frame Material Heavy-duty steel Surface Finish Powder coated, galvanized or according to project requirements Power Requirement None for standard manual configuration
Applications	Beef cattle farms and ranches Dairy cattle handling facilities Feedlots and finishing operations Breeding and replacement-stock sorting Pre-chute cattle drafting Livestock weighing and weight-group sorting Veterinary treatment segregation Loading-ramp diversion systems Sale-yard and livestock collection facilities Commercial cattle handling projects
Customization Options	Left-hand or right-hand operating arrangement Gate and alley dimensions Sheeted side height Exit angle according to project layout Manual gate-control configuration Personnel-access gate Noise-reducing bumper system Connection to adjustable cattle alleys Connection to weighing and EID systems Connection to loading ramps or holding yards Galvanized or coated surface finish Complete sorting-system layout available upon request
Installation & Maintenance	Install the diversion gate on a stable and level livestock-handling surface. Align the incoming alley and both discharge lanes carefully so cattle are presented with smooth, unobstructed routes. Secure the frame using suitable ground anchors or concrete fasteners through the mounting plates. The gate assembly should remain square and rigid during operation. Before processing cattle, operate both diversion gates repeatedly and confirm that spring mechanisms, hinges and slam latches move freely and engage positively. Maintain smooth transitions between adjoining alley panels and remove sharp projections or excessive gaps that could cause injury or interrupt livestock flow. Regularly inspect gate hinges, springs, latches, bumpers, anchoring points and structural welds. Remove manure and debris from the gate area and repair damaged surface coatings as required.
Product FAQ	Q: What does a two-way cattle diversion gate do? A: It allows individual cattle entering from one race to be directed toward either a left-hand or right-hand exit. Q: Can the gate be installed before a cattle crush? A: Yes. It is commonly used for pre-chute sorting and can direct selected cattle toward a crush, loading ramp, alternative yard or other processing area. Q: Why are the lower sides sheeted? A: Sheeting reduces the animal's view of handlers and external activity, helping maintain more consistent forward movement during sorting. Q: What are the reference dimensions? A: The referenced TWDG configuration measures approximately 99 inches wide, 76 inches high and 55 inches long. Q: Does it require electricity or hydraulics? A: No. The standard reference configuration uses manual spring-loaded gate mechanisms. Q: Can the operating side be changed? A: Yes. The sorting system can be configured for left-hand or right-hand operation according to the cattle-yard layout. Q: Can the gate connect to an adjustable cattle alley? A: Yes. It can be integrated with compatible cattle alleys, squeeze chutes, weighing equipment and downstream yard panels. Q: Can dimensions and surface finish be customized? A: Yes. Dimensions, gate arrangement and corrosion-protection options can be customized according to project requirements.
