Product Name	Heavy-Duty Multi-Rail Cattle Pen Gate & Panel

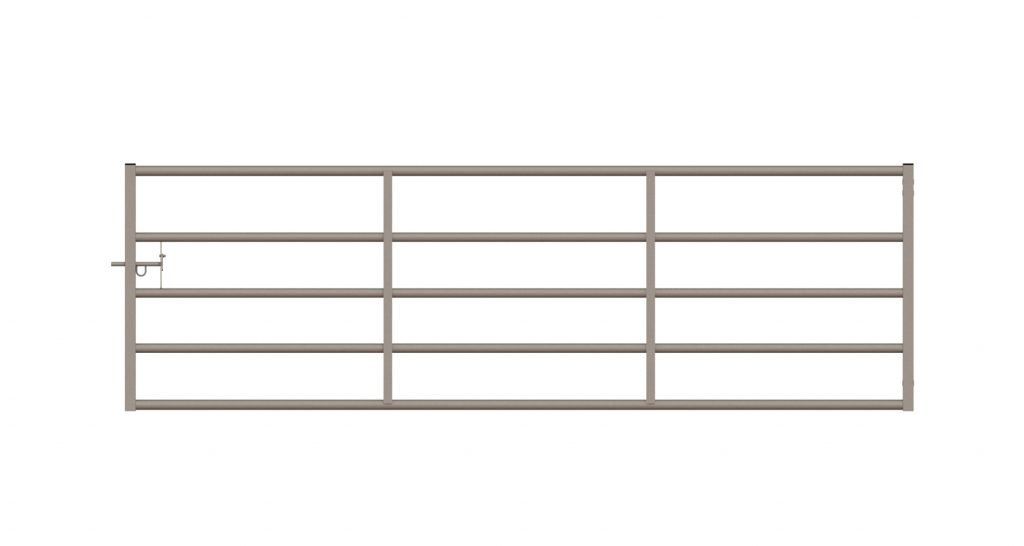

Product Image
Product Overview	The Heavy-Duty Multi-Rail Cattle Pen Gate & Panel is a robust modular livestock barrier system designed for cattle housing, stockyards, holding pens, handling facilities and internal farm partitions. The same structural concept can be supplied as an operable gate or fixed fencing panel, allowing consistent construction throughout a complete cattle facility. Different rail configurations are available to match specific livestock applications. Lower rail-count versions provide greater ground clearance or suit adult dairy cattle, while higher configurations offer additional containment for holding pens, calves or mixed livestock areas. Heavy tubular rails, reinforced hanging components and positive sliding-bolt fastening make the system suitable for repeated use in commercial cattle buildings and intensive livestock handling environments.
Key Features	Gate or Fixed Panel Configuration: The same heavy-duty livestock barrier concept can be used for movable gateways or permanent pen divisions. Multiple Rail Options: 3-, 4-, 5-, 6- and 7-rail arrangements can be selected for different cattle sizes and housing functions. Heavy-Duty Tubular Structure: Robust horizontal rails and reinforced vertical members withstand regular livestock contact. Reinforced Hanging Stile: Sleeved square-section hanging components provide stable gate support. Positive Gate Fastening: Sliding-bolt latch arrangements provide practical and secure closure in cattle pens and stockyards. Application-Specific Heights: Standard and higher hanging configurations are available for general cattle housing or taller holding-pen barriers. Ground-Clearance Options: Selected rail configurations can provide additional clearance for automatic manure scrapers. Calf Management Option: Calf-creep openings can be incorporated according to project requirements. Modular Farm Layout: Gates and panels can be combined with support posts and matching fencing components to form complete livestock pen systems.
Structural Components	Heavy-duty horizontal tubular rails Reinforced vertical frame members Square hollow-section sleeved hanging stile Gate hinge and hanging assemblies Gate slam stile Keyhole or pendulum-type sliding bolt fastening Fixed-panel connection points Optional support posts Optional calf-creep aperture Anchoring and mounting hardware according to project requirements
Structural Principle	The system uses multiple horizontal tubular rails connected by vertical structural members to create a rigid livestock barrier. Loads generated by cattle contact are distributed through the rails into the hanging stile, support posts and structural connection points. When configured as a gate, one side is supported by a heavy-duty hanging assembly while the opposite side closes against a slam post using a sliding-bolt fastening system. When configured as a fixed panel, both ends are secured to suitable livestock fencing posts or structural supports. The number of rails and installation height can be selected according to animal size, required containment level, bedding conditions and equipment clearance.
Technical Specifications	Product Type Heavy-duty cattle pen gate or fixed fencing panel Rail Configurations 3, 4, 5, 6 or 7 rails Standard Hang Height 1525 mm for selected configurations High Holding-Pen Configuration 6-rail version designed to hang at approximately 1830 mm Hanging Stile 50 × 50 mm SHS sleeved hanging stile reference specification Vertical Members 38 mm diameter reference specification Top & Bottom Rails 48.3 mm diameter reference specification Reference Fixed Panel Lengths 2440 mm or 3050 mm Reference Gate Lengths 3050 mm, 3660 mm or 4575 mm Gate Fastening Keyhole / pendulum sliding bolt Main Material Heavy-duty structural steel Surface Treatment Hot-dip galvanized or according to project requirements Calf Creep Opening Available upon request Customized Sizes Available according to project requirements
Applications	Dairy cattle loose housing Beef cattle housing Bull beef penning Commercial cattle holding pens Stockyards and livestock handling facilities Cattle sorting and management pens Calf and mixed-livestock enclosures Feed and resting-area partitions Veterinary and treatment pens Internal livestock building partitions Steel structure cattle barns Cattle housing renovation and expansion projects
Customization Options	3-, 4-, 5-, 6- or 7-rail configuration Gate or fixed-panel version Gate and panel length customizable Installation height according to livestock requirements Tube diameter and steel wall thickness customizable Higher holding-pen versions available Additional ground clearance for automatic manure scrapers Calf-creep aperture available upon request Alternative gate latch and locking arrangements Matching support posts and fencing components Complete cattle pen layouts available upon request Designed according to local climate and farm conditions
Installation & Maintenance	Installation: Confirm the required gate or panel length, rail configuration and installation height before fixing support posts. Install structural posts vertically and securely according to expected livestock loading. Mount gate hanging components at the specified height and check that the gate swings freely. Align the slam post and sliding-bolt receiver so the gate closes without excessive force. For fixed panels, secure both ends firmly to compatible posts or structural supports. Provide suitable bottom clearance where automatic manure scrapers or deep bedding systems are used. Confirm all livestock-facing surfaces are free from hazardous projections before use. Maintenance: Inspect hinges, hanging components and gate bolts regularly for wear. Check horizontal rails and vertical members after heavy cattle impact. Keep manure and bedding clear of hinges, latches and gate swing areas. Check support posts and structural fixings periodically for movement or loosening. Lubricate moving latch and hinge components where required. Repair damaged galvanized surfaces with suitable zinc-rich protective treatment.
Product FAQ	Q: What rail configurations are available? A: Multi-rail versions can include 3, 4, 5, 6 or 7 rails depending on livestock type, pen function and required containment. Q: Can the same design be supplied as a gate and a fixed panel? A: Yes. The system can be configured as an operable livestock gate or as a fixed fencing panel for cattle pen partitions. Q: Which version is suitable for general cattle handling? A: A 5-rail configuration is commonly used for general-purpose stockyard and cattle handling applications. Q: Is a taller version available for holding pens? A: Yes. Higher 6-rail configurations can be used where additional containment height is required. Q: Can the gate provide clearance for an automatic manure scraper? A: Yes. Selected configurations can be installed with increased lower clearance according to scraper dimensions and cattle-housing requirements. Q: Can a calf-creep opening be incorporated? A: Yes. A calf-creep aperture can be supplied according to project requirements. Q: Can complete cattle pen systems be supplied? A: Yes. Gates, fixed panels, support posts, brackets and related cattle-housing components can be supplied as an integrated livestock penning system.
