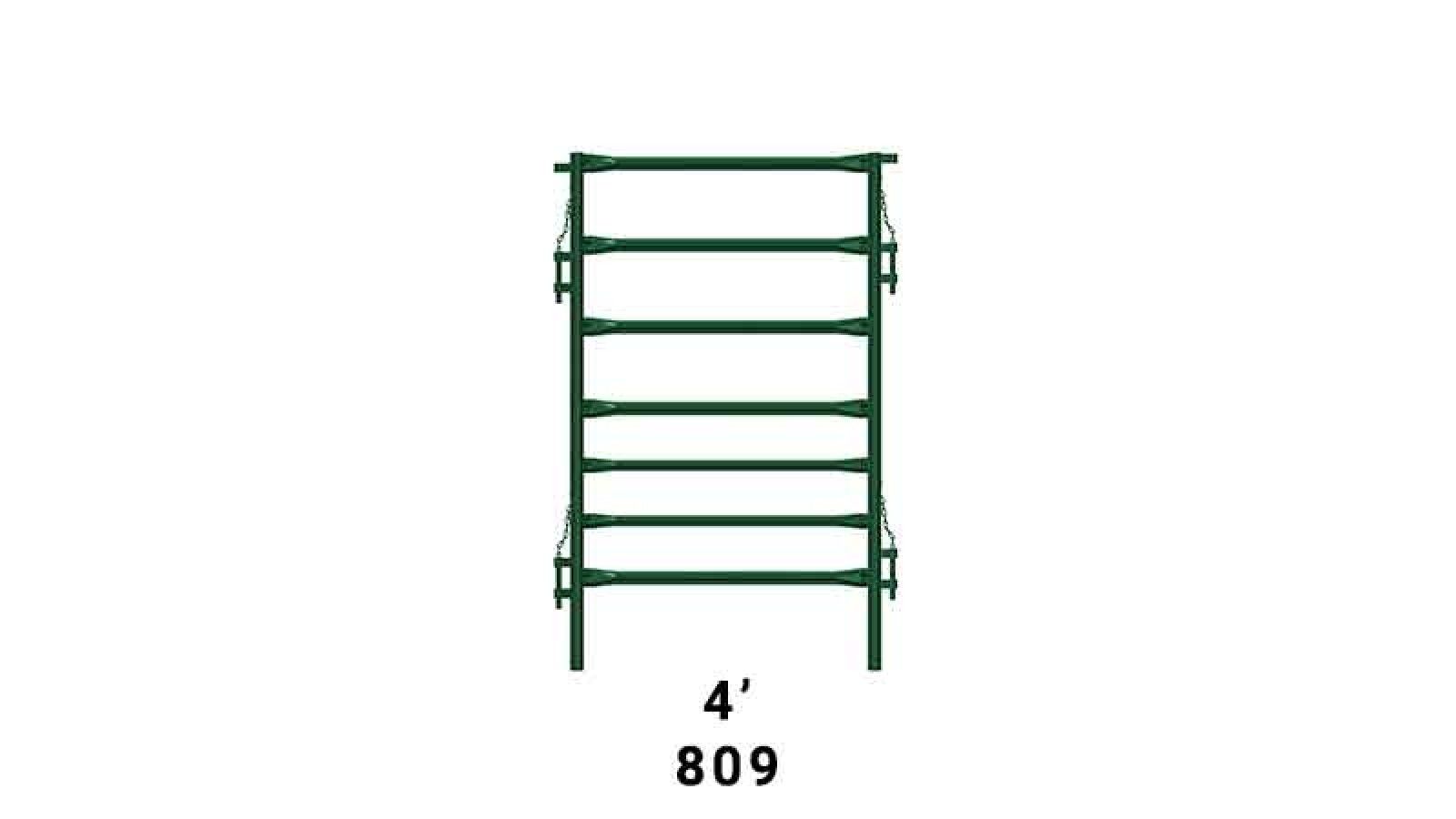

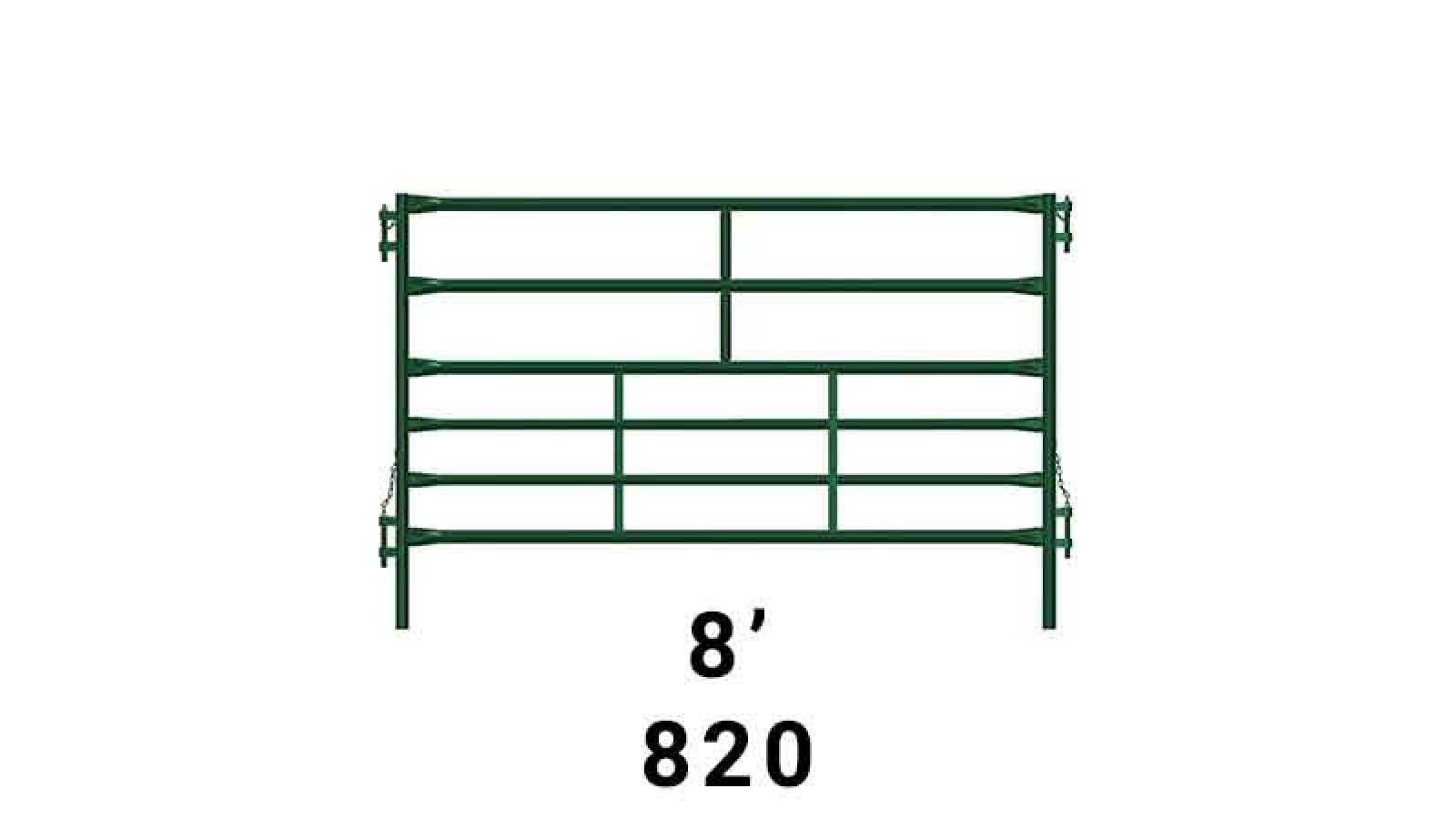

Close-Rail Calf & Young-Stock Fence Panel

The Close-Rail Calf & Young-Stock Fence Panel is a modular livestock barrier designed for calves, young cattle and mixed-age cattle facilities where conventional wide rail spacing may provide insufficient containment.

The panel uses progressively closer or reduced spacing between the lower horizontal rails, helping prevent young animals from passing underneath or pushing their heads and bodies through the lower section. High-tensile tubular steel construction, welded reinforcement and modular connectors make the panel suitable for calf pens, cattle corrals, maternity areas, young-stock housing and commercial livestock-yard projects.

• Reduced lower-rail spacing provides improved containment for calves and young stock.
• Progressive rail spacing combines calf control with good visibility and ventilation.
• Suitable for calf pens, young-stock yards, maternity areas and mixed-age cattle facilities.
• High-tensile tubular steel frame provides strength for commercial livestock applications.
• One or more vertical reinforcement members can be added according to panel length.
• Flush or low-bottom designs help reduce openings beneath the lowest rail.
• Modular connection system allows panels to form pens, runways and temporary enclosures.
• Available with galvanized or other project-specific corrosion-protection finishes.
• Panel height, length, rail quantity and tube specification can be customized.
• Suitable for permanent, semi-permanent and portable cattle-yard layouts.

• Horizontal Steel Rails: Form the livestock barrier, with closer spacing concentrated in the lower section.
• Vertical End Posts: Support the horizontal rails and maintain panel geometry.
• Intermediate Reinforcement: Reduces rail deflection on longer panels.
• Lower Containment Section: Uses reduced rail spacing to improve calf and young-stock security.
• Panel Connectors: Allow adjoining panels to be joined into modular livestock enclosures.
• Connection Pins or Hinges: Support rapid assembly and layout adjustment.
• Welded Joints: Transfer livestock loads between rails, braces and structural posts.
• Protective Finish: Provides corrosion resistance for indoor and outdoor cattle environments.

Young calves require smaller barrier openings than mature cattle. The close-rail design therefore reduces the vertical spacing between the lower horizontal members while maintaining wider spacing toward the upper part of the panel.

This arrangement helps keep smaller animals inside the designated pen without making the complete panel unnecessarily dense or heavy. Livestock pressure is transferred through the horizontal rails into the vertical posts and reinforcement members, while modular connections distribute loads into adjoining panels.

• Calf rearing and group-housing pens.
• Young-stock and replacement-heifer housing.
• Cow-calf maternity and calving areas.
• Commercial beef cattle corrals.
• Dairy young-stock facilities.
• Temporary calf gathering and sorting pens.
• Cattle runways and livestock holding areas.
• Mixed-age livestock enclosures.
• Indoor steel-structure cattle barns.
• Outdoor livestock-yard and farm fencing projects.

• Panel Length: Customizable according to pen dimensions and livestock-yard layout.
• Panel Height: Available according to calf age, cattle size and containment requirements.

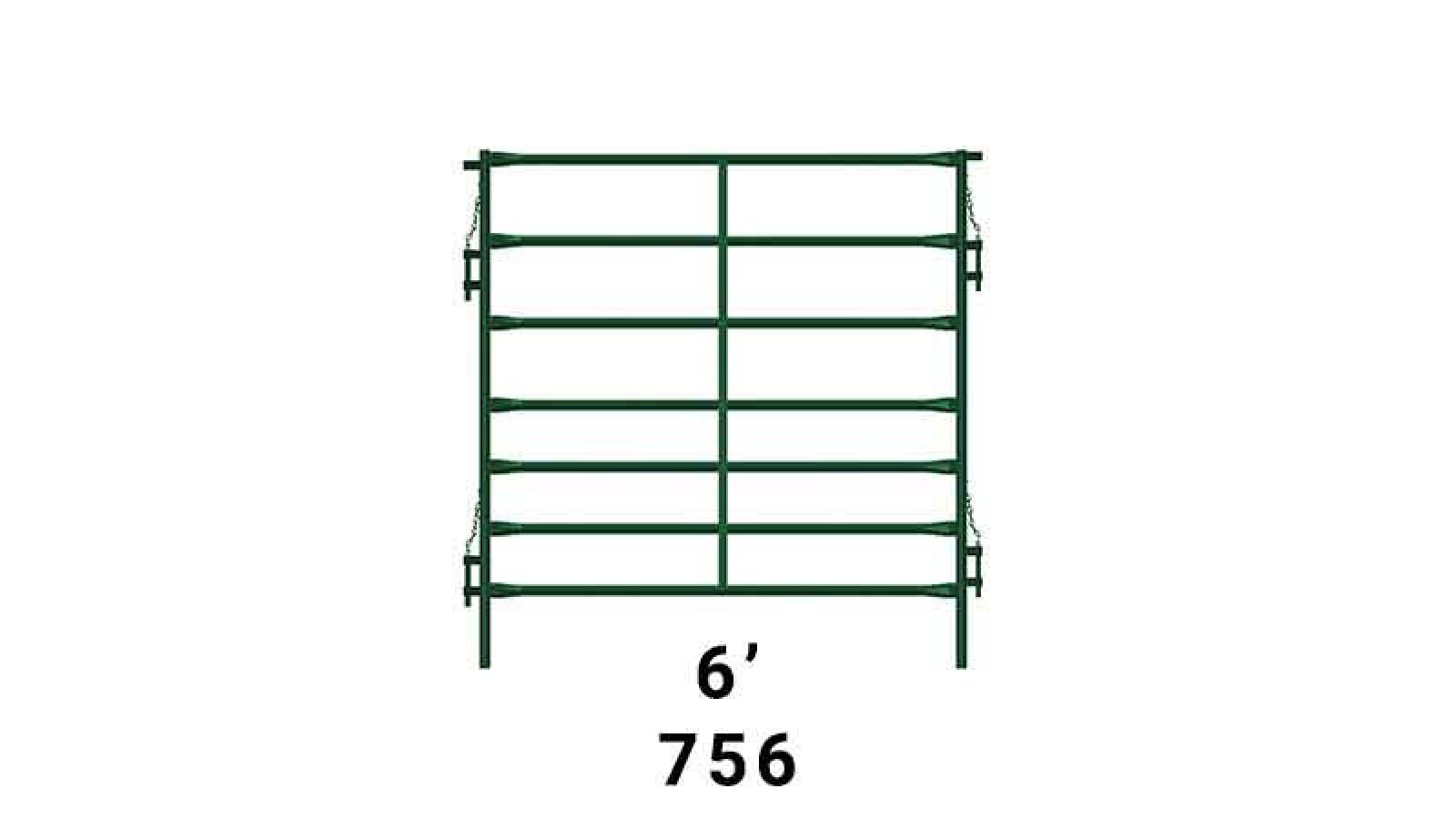

• Rail Quantity: Six-rail, seven-rail or project-specific configurations available.
• Lower Rail Spacing: Adjustable during design according to target animal size.
• Tube Diameter: Available according to required duty level.
• Tube Wall Thickness: Customizable according to livestock pressure and structural requirements.
• Vertical Bracing: Quantity and location selected according to panel length.
• Connection Type: Pin, chain, hinge or compatible yard-system connections available.
• Surface Treatment: Designed according to local climate and farm conditions.

• Confirm the required lower-rail spacing and target livestock size before installation.
• Position panels on stable ground or a suitable concrete livestock-floor system.
• Connect adjoining panels using the specified pins, hinges or fastening hardware.
• Ensure the lowest rail remains sufficiently close to the ground to maintain calf containment.
• Anchor panels where required in permanent or high-pressure livestock areas.
• Check that all panel ends and exposed tubing are smooth and livestock-safe.
• Inspect rails, welds, braces and connection hardware periodically.
• Remove manure, bedding and mud accumulation around lower rails and panel feet.
• Repair damaged galvanized coatings with suitable zinc-rich corrosion protection.
• Replace severely bent or damaged components before further livestock use.

Q: Why are the lower rails spaced closer together?
A: Reduced lower spacing improves containment for calves and young stock that may pass through wider openings designed for mature cattle.

Q: How many horizontal rails are recommended?
A: Six-rail and seven-rail configurations are commonly used, while the final design can be selected according to animal size and required panel height.

Q: Can this panel also be used for adult cattle?
A: Yes. Heavy-duty versions provide suitable containment for cattle while the close lower spacing adds additional control for calves.

Q: Can the panel be installed on uneven ground?
A: Suitable modular connection arrangements can accommodate normal livestock-yard terrain variations, subject to the project design.

Q: Are custom rail spacings available?
A: Yes. Rail quantity and spacing can be designed according to calf age, breed and containment requirements.

Q: Is galvanized steel available?
A: Yes. Galvanized configurations can be supplied for outdoor cattle yards and humid livestock-building environments.

Q: Can SHEWUYOU supply a complete young-stock pen system?
A: Yes. Calf panels, cattle gates, personnel access gates, posts, feeding equipment and related livestock housing components can be configured according to project requirements.
