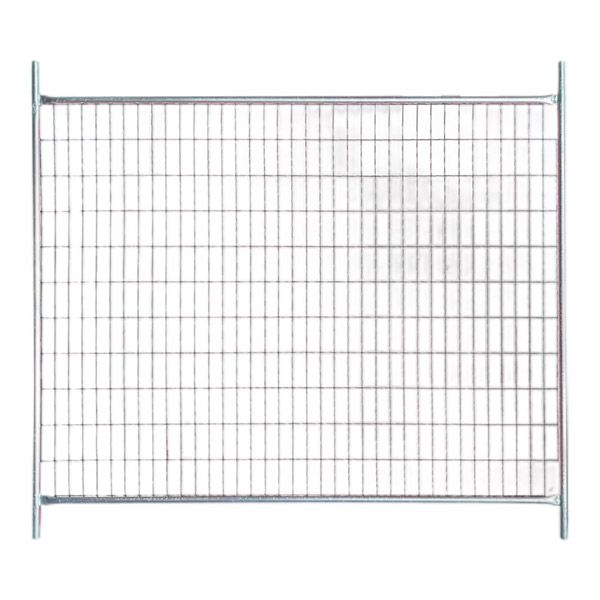

Product Name	Welded-Mesh Livestock Fence Panel for Cattle
Product Image

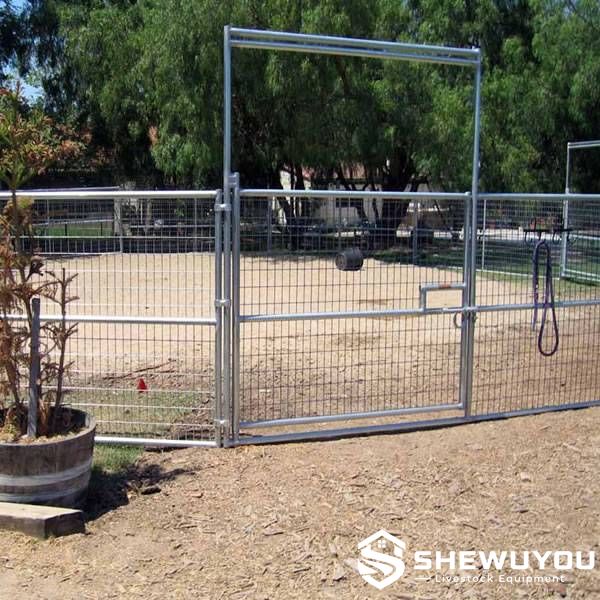

Product Overview	The Welded-Mesh Livestock Fence Panel for Cattle combines a galvanized tubular steel frame with rigid welded wire mesh to create a secure modular barrier for cattle pens, paddocks, holding areas, farm boundaries and livestock handling facilities. Compared with open-rail cattle panels, the closer mesh openings provide additional containment for smaller animals while helping reduce the possibility of livestock pushing their heads or legs through large gaps. Full-height and partial-height mesh configurations can be selected according to cattle size, stocking conditions and project requirements. The modular panel format is suitable for permanent, semi-permanent and relocatable livestock fencing projects and can be combined with matching gates, posts and connection hardware.

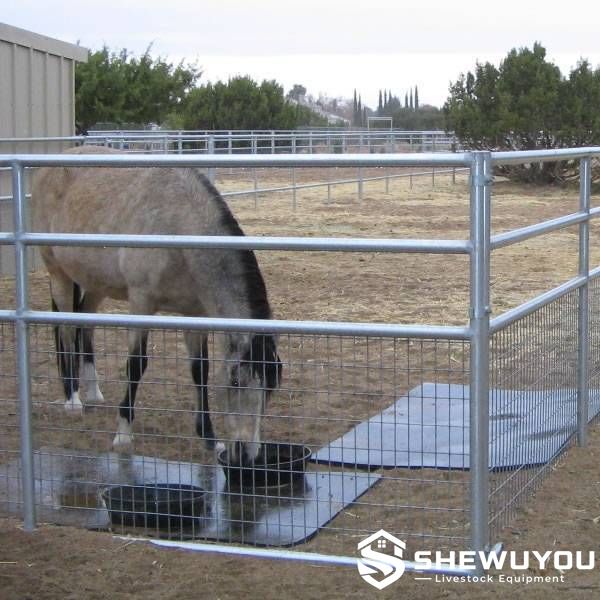

Key Features	Welded Wire Mesh Infill: Rigid horizontal and vertical wires are welded at intersections to provide stable livestock containment. Tubular Steel Frame: Peripheral steel tubing supports the mesh and provides structural rigidity for farm and cattle-yard applications. Full or Partial Mesh Options: Mesh can cover the complete panel or the lower section depending on animal type and enclosure requirements. Galvanized Construction: Corrosion-resistant surface protection is suitable for outdoor weather, humidity and typical livestock environments. Fully Welded Joints: Structural joints can be notched and welded to improve panel strength and durability. Sealed Tube Ends: Welded caps help limit moisture entry into tubular frame members. Reinforced Long Panels: Additional vertical braces can be incorporated where required for longer panel sections. Expandable Fencing System: Additional panels and gates can be installed when livestock areas are expanded or reconfigured. Custom Manufacturing: Panel size, tube section, wire gauge and mesh aperture can be produced according to project requirements.
Structural Components	Galvanized tubular steel perimeter frame Welded wire mesh infill Horizontal frame rails Vertical frame posts Intermediate reinforcing braces where required Fully welded structural joints Welded tube end caps Panel connection brackets, clamps or lugs Optional mounting posts and anchor components Optional matching livestock gates
Structural Principle	The tubular perimeter frame carries the main structural loads while the welded wire mesh creates a continuous containment surface across the panel opening. Because the wires are welded at their intersections, the mesh acts as a rigid grid rather than a flexible woven fence. Livestock pressure applied to the mesh is distributed through the welded grid into the surrounding frame and supporting posts. Longer panels can incorporate additional vertical braces to reduce deflection and improve structural stability. Panels are connected to adjacent sections or support posts to form straight fencing runs, pens, paddocks, perimeter barriers and other modular livestock enclosures.
Technical Specifications	Product Type Tubular livestock fence panel with welded wire mesh Mesh Configuration Full-height or partial-height welded mesh Main Frame Material Galvanized structural steel tubing Mesh Material Galvanized welded steel wire Reference Full-Mesh Height 46 in. Reference Full-Mesh Lengths 8 ft or 16 ft Reference Full-Mesh Tube Diameter 1-5/8 in. Reference Full-Mesh Tubing 15 or 16 gauge galvanized tubing Reference Full-Mesh Aperture 3 × 8 in. Reference Full-Mesh Wire 4 gauge galvanized wire Reference Partial-Mesh Height 48 in. Reference Partial-Mesh Lengths 8 ft or 12 ft Reference Partial-Mesh Aperture 2 × 4 in. Reference Partial-Mesh Wire 6 gauge galvanized wire Customized Dimensions Available according to project requirements
Applications	Beef cattle pens and paddocks Dairy cattle holding areas Calf and young-stock enclosures Cattle farm perimeter fencing Livestock receiving and isolation pens Feeding and resting-area partitions Portable livestock enclosures Farm runs and exercise areas Mixed-livestock containment systems Livestock barn and shed partitions Farm expansion and fencing renovation projects
Customization Options	Panel height and length customizable Full-height or partial-height welded mesh Mesh opening size customizable Wire diameter according to project requirements Round, square or alternative tubular frame sections available Steel tube diameter and wall thickness customizable Additional vertical reinforcement for longer panels Flat, stepped or sloped panel configurations available upon request Matching livestock gates and personnel access gates Post, clamp and connection systems customizable Complete fencing layouts available upon request Designed according to local climate and farm conditions
Installation & Maintenance	Installation: Set out the fence line or livestock pen according to the approved farm layout. Install suitable end, corner and intermediate support posts according to expected livestock pressure. Position each panel vertically and connect it securely with approved clamps, brackets, lugs or fixing hardware. Use additional reinforcement at corners, gateways and other high-load locations. Maintain adequate ground clearance where required to reduce prolonged contact with manure, wet bedding or standing water. Check that welded mesh edges, connection hardware and gate interfaces do not create hazardous projections into livestock areas. Maintenance: Inspect welded wire intersections and frame welds periodically for damage or deformation. Check posts, clamps and connection hardware after heavy livestock impact. Remove manure, soil and wet organic material from the lower panel and support areas. Repair damaged galvanized surfaces with suitable zinc-rich corrosion protection when necessary. Replace severely bent mesh or structurally damaged panels before further livestock use.
Product FAQ	Q: What is the difference between a welded-mesh livestock panel and a standard rail cattle panel? A: A welded-mesh panel has a rigid wire grid inside the tubular frame, creating smaller openings than a conventional open-rail panel. This provides additional containment for calves, smaller livestock and mixed-animal facilities. Q: Can the panel be used for adult cattle? A: Yes. The appropriate tube section, wire diameter, mesh aperture, panel length and support-post arrangement should be selected according to animal size and expected livestock pressure. Q: Are full-height and partial-height mesh panels available? A: Yes. Full-mesh and partial-mesh designs can be supplied according to livestock type and project requirements. Q: Can custom mesh openings be manufactured? A: Yes. Mesh aperture and wire specifications can be customized according to containment requirements. Q: Can matching gates be supplied? A: Yes. Matching livestock gates, access gates, support posts and fencing hardware are available upon request. Q: What information is required for quotation? A: Please provide livestock type, panel dimensions, required quantity, mesh opening, wire specification, frame tube size, installation method and project layout where available.
