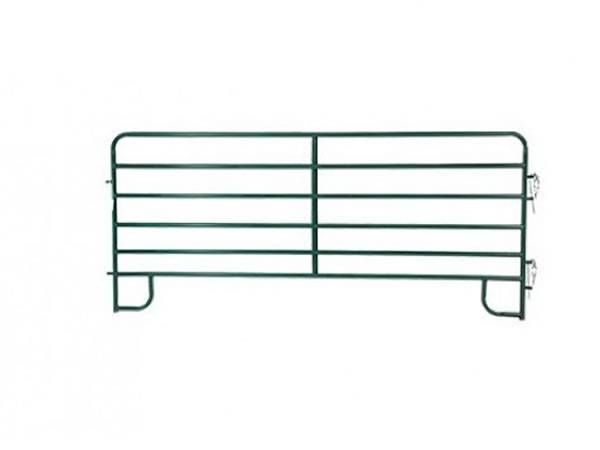

American-Style Powder-Coated Cattle Corral Panel

• American-style portable cattle panel for pens, corrals, paddocks and working yards.
• Powder-coated steel-tube construction provides corrosion resistance and an attractive finished appearance.
• Five- or six-horizontal-rail configurations available according to livestock requirements.
• Common panel heights from 60 in to 72 in, with additional sizes available for selected configurations.
• Rounded-corner and square-corner frame designs available.
• 1-3/4 in and 2 in reference tube sizes for different duty levels.
• Multiple steel gauges available according to required panel strength.
• Chain or pin connection systems provide quick and secure assembly.
• J-leg or mud-leg supports help stabilize panels and reduce sinking on softer ground.
• Modular design allows cattle-yard layouts to be expanded or rearranged.
• Matching gate panels and arch gates can be incorporated into complete corral systems.

• Outer Steel Frame: Welded tubular structure forms the main load-bearing perimeter.
• Horizontal Rails: Five or six rails create the primary livestock containment barrier.
• Vertical Braces: Reinforce longer panel sections and reduce horizontal rail deflection.

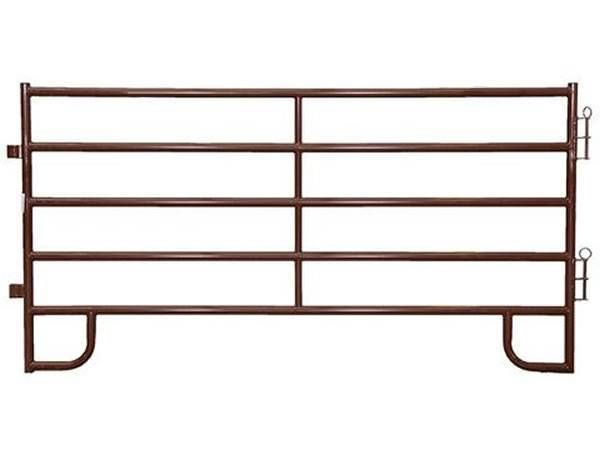

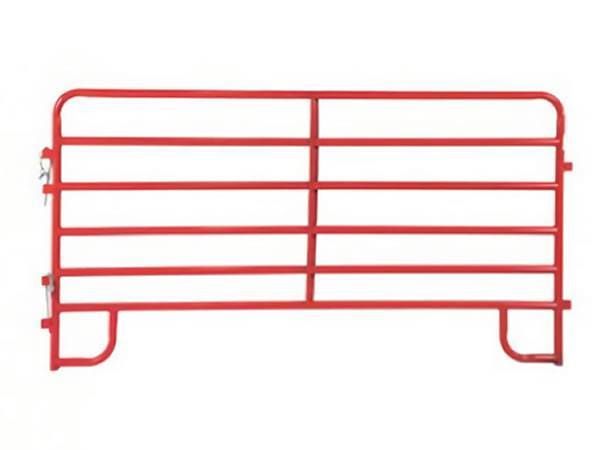

• Rounded or Square Corners: Available to suit regional market and project preferences.
• Connector Lugs: Provide attachment points for adjoining panels and gates.
• Drop Pins or Chains: Secure neighboring sections while allowing rapid dismantling.
• J-Legs or Mud Legs: Increase ground contact and help support the panel on soil or yard surfaces.
• Powder-Coated Finish: Forms a protective exterior layer over the steel structure.

• Commercial beef cattle farms and ranches.
• Dairy cattle holding and management areas.
• Portable cattle corrals and temporary pens.
• Cattle paddocks and pasture holding areas.
• Calf and yearling pens with suitable rail spacing.
• Feedlot pen divisions.
• Cattle gateways and internal farm fencing.
• Livestock markets and auction facilities.
• Agricultural shows and temporary livestock enclosures.
• Farm expansion and modular cattle-yard projects.

• Panel Height: Customizable according to livestock size and confinement requirements.
• Panel Length: Multiple standard sizes or project-specific dimensions available.
• Tube Size: Selected according to required structural strength.
• Steel Gauge: Available according to livestock pressure and duty level.
• Rail Quantity: Five-, six- or project-specific rail arrangement.
• Corner Style: Rounded or square configuration.
• Connection System: Chain, pin or compatible customized connection.
• Support Legs: J-leg, mud-leg or other project-specific design.
• Powder-Coat Color: Customizable according to distributor or project requirements.
• Complete Corral System: Matching cattle gates, arch gates, holding pens and handling lanes available.

• Plan the corral layout and livestock-flow direction before positioning panels.
• Place panels on stable and reasonably level ground wherever possible.
• Connect adjoining sections using the specified chains or drop pins.
• Check that every connector is fully engaged before cattle enter the enclosure.
• Use suitable stabilizers, posts or anchors in corners and high-pressure areas where required.
• Keep mud legs and lower rails free from excessive manure and standing debris.
• Inspect welded joints, rails, vertical braces and connectors periodically.
• Touch up damaged powder coating to maintain corrosion protection.
• Replace bent pins or severely deformed structural members before continued livestock use.
• Recheck all connections after transporting or rearranging the portable panel system.

Q: What makes this an American-style cattle corral panel?
A: The design uses the panel heights, multi-rail construction, rounded or square corners, portable connectors and support-leg configurations commonly used in North American livestock corrals.

Q: What panel heights are available?
A: Common reference heights include 60, 62, 66 and 72 inches, with selected configurations available up to 84 inches.

Q: How many rails can be supplied?
A: Five- and six-rail cattle panels are standard reference configurations, while alternative layouts can be customized.

Q: Why use a powder-coated finish?
A: Powder coating provides an additional protective layer against outdoor corrosion while also providing a clean and consistent finished appearance.

Q: Can the panels be moved and reused?
A: Yes. Chain or pin connections allow the panels to be dismantled, transported and reassembled in another livestock-yard configuration.

Q: What are mud legs used for?
A: Mud legs increase the panel's ground-contact area and help reduce sinking when panels are installed on softer soil.

Q: Can matching cattle gates be supplied?
A: Yes. Gate panels, arch gates and other compatible livestock-access components can be supplied according to project requirements.

Q: Can the dimensions and powder-coat color be customized?
A: Yes. Panel height, length, tube specification, rail arrangement, connector type, support legs and finish color can be produced according to project requirements.
