Sheeted Heavy-Duty Cattle Panel

The Sheeted Heavy-Duty Cattle Panel is designed for livestock areas exposed to high animal pressure, including cattle handling yards, holding pens, crowding areas, working corrals and confinement zones. A high-tensile tubular frame is combined with heavy sheet-metal cladding to create a strong physical and visual barrier between livestock and surrounding activity.

Unlike conventional open-rail cattle panels, the sheeted structure limits external visual distractions and reduces opportunities for legs or heads to extend through the fence line. The modular panel format allows different lengths to be combined with gates, posts and handling equipment for permanent or semi-permanent livestock facilities.

• Designed for high-pressure cattle handling and livestock confinement areas.
• Heavy-duty high-tensile tubular steel frame provides structural rigidity.
• 14-gauge steel sheet cladding on the reference configuration.
• Sheeted surfaces reduce visual distractions around livestock working areas.
• Solid lower sections help reduce potential foot and leg exposure through the panel.
• Reference design incorporates a narrow horizontal handler-access opening.
• Multiple panel lengths allow flexible cattle-yard and pen layouts.
• Common connector architecture supports integration with compatible livestock panels and gates.
• Suitable for permanent, semi-permanent and project-specific livestock fencing systems.
• Dimensions, finish and connection details can be customized according to project requirements.

• Main Tubular Frame: Heavy-duty high-tensile steel tubing forms the primary structural perimeter.
• Sheet-Metal Cladding: Heavy steel sheeting creates a solid livestock barrier across most of the panel surface.
• Horizontal Access Opening: Provides limited handler access while maintaining overall panel containment.
• Vertical Reinforcement Members: Support the sheeted sections on longer panel configurations.
• Panel Connectors: Allow adjacent panels, gates and handling components to be joined into a continuous fence line.
• End Frames: Transfer livestock impact loads into adjoining structures or anchoring points.
• Connection Hardware: Pins, chains or compatible project-specific fasteners secure adjacent modules.

The panel combines a rigid tubular frame with welded sheet-metal surfaces. Livestock impact is transferred from the sheeted face into the surrounding tubular members and then through the panel connections to adjacent fence sections or structural supports.

The solid cladding also functions as a visual barrier. In handling and crowding areas, limiting the animal's view of handlers, vehicles or activity outside the pen can support more controlled livestock movement and improve separation between working personnel and cattle.

• High-pressure cattle handling areas.
• Crowding and forcing pens.
• Commercial cattle corrals and holding yards.
• Livestock confinement and isolation pens.
• Cattle crush approach and exit areas.
• Veterinary and livestock processing facilities.
• Feedlot sorting and working areas.
• Heavy livestock and bison handling facilities.
• Covered livestock buildings and outdoor cattle yards.
• Permanent and semi-permanent farm fencing projects.

• Panel Length: Multiple standard lengths or customized sizes available.
• Panel Height: Customizable according to livestock type and containment requirements.
• Tube Diameter: Available according to required structural duty level.
• Tube Wall Thickness: Customizable according to livestock pressure and project specification.
• Sheet Thickness: Available according to project requirements.
• Sheeting Height: Full or partial sheeted configurations available.
• Handler Opening: Access opening position and dimensions available upon request.
• Connector System: Pin, chain or project-specific connection arrangements available.
• Surface Treatment: Designed according to local climate and farm conditions.

• Confirm the cattle-yard layout, panel lengths and gate positions before installation.
• Install panels on stable and adequately prepared ground or concrete surfaces.
• Use compatible connectors and ensure all pins or fastening hardware are fully secured.
• Anchor panels in high-pressure areas where permanent structural stability is required.
• Ensure sheet-metal edges and welded joints remain free from deformation or sharp damage.
• Inspect tubing, cladding, welds, connectors and anchoring points regularly.
• Remove manure, bedding and accumulated debris around the panel bases.
• Repair damaged protective coatings promptly to maintain corrosion resistance.
• Replace heavily bent or structurally damaged panels before further livestock use.

Q: Where is a sheeted heavy-duty panel normally used?
A: It is most suitable for high-pressure livestock areas such as crowding pens, working corrals, handling systems and confinement zones.

Q: What is the reference panel height?
A: The reference heavy-duty sheeted panel is approximately 7 ft high.

Q: What panel lengths are available?

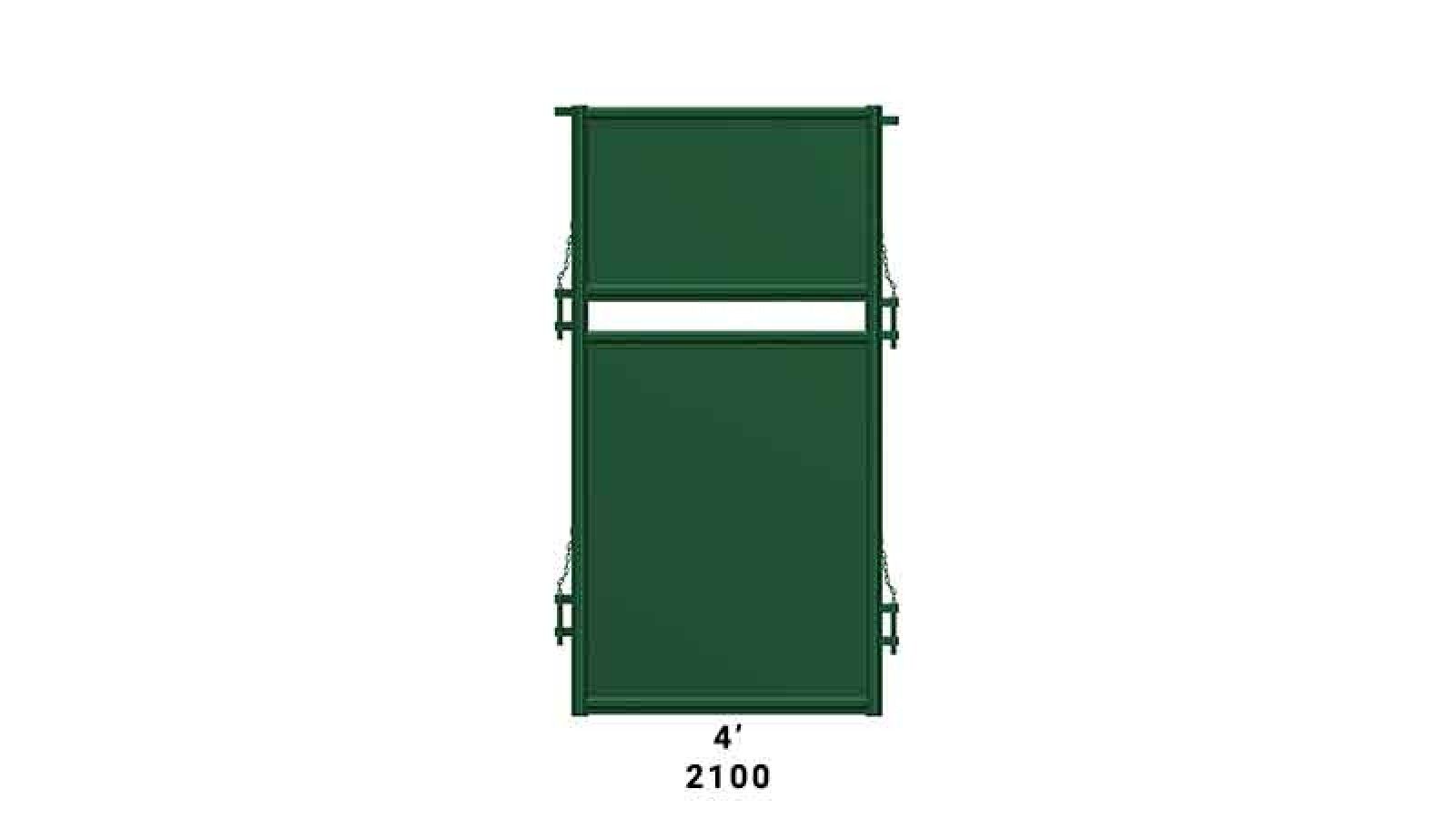

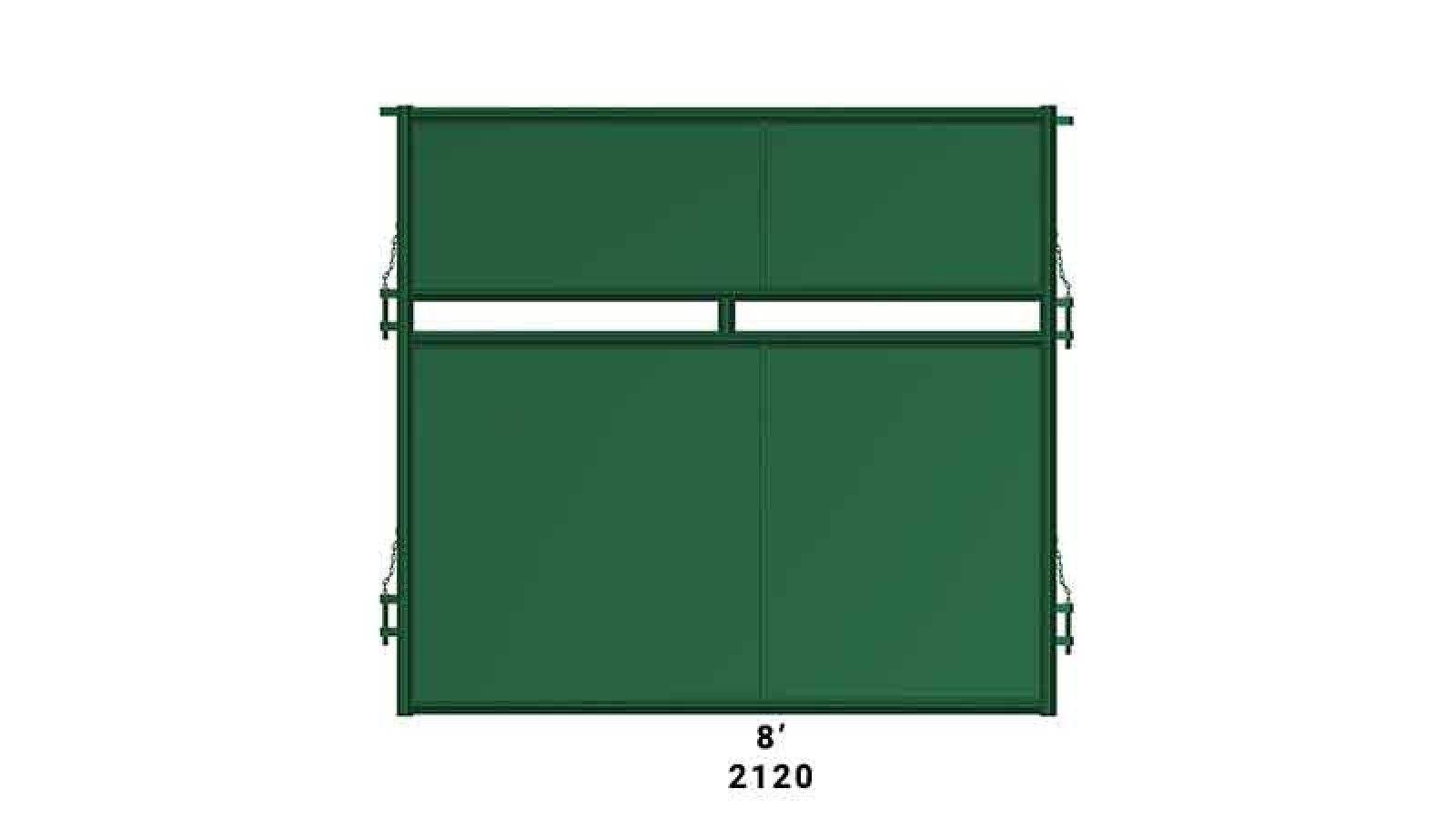

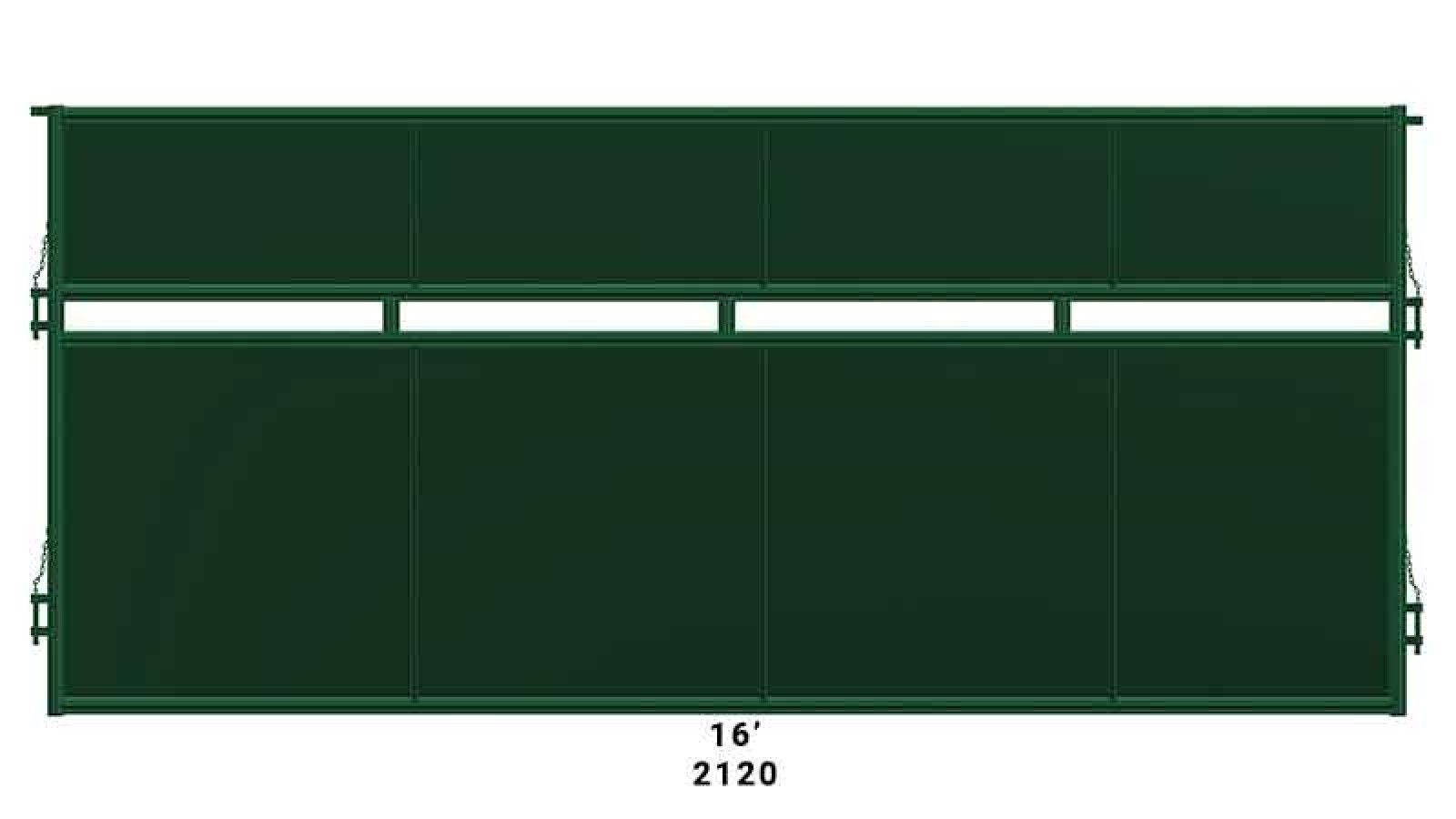

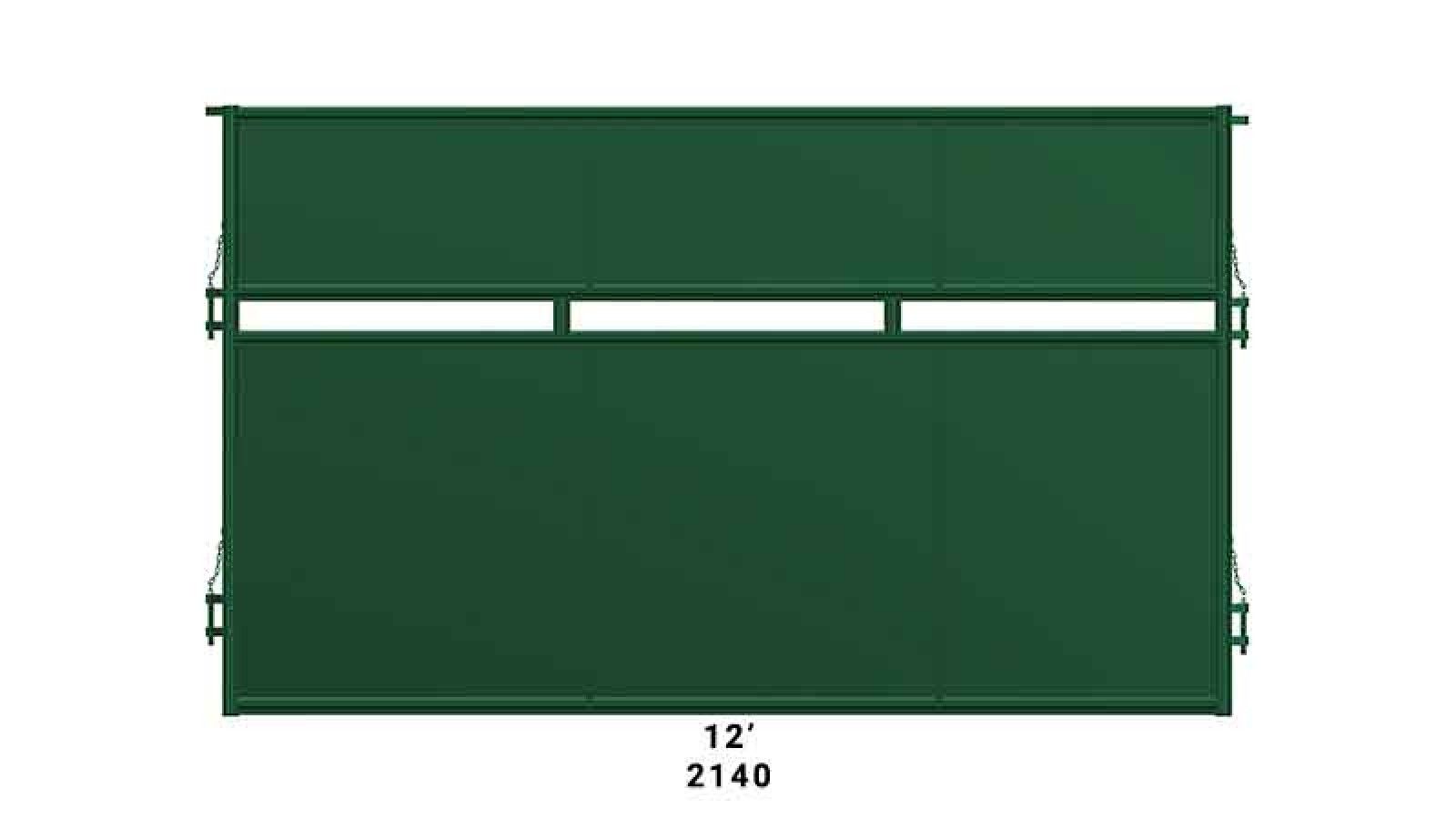

A: Reference lengths range from approximately 4 ft to 16 ft in multiple increments.

Q: What material is used for the sheeted surface?
A: The reference configuration uses 14-gauge sheet steel supported by high-tensile tubular framing.

Q: Why is there a horizontal opening in the panel?
A: The reference panel includes a narrow opening to provide handler access while retaining most of the visual and physical barrier.

Q: Can different panel lengths be connected together?
A: Yes. Modular connector systems allow different panel lengths and compatible gates to be combined into a complete livestock enclosure.

Q: Can SHEWUYOU customize the panel for a cattle-yard project?
A: Yes. Panel length, height, tubing, sheet thickness, access openings, connectors and surface treatment can be configured according to project requirements.
