Product Showcase	Content

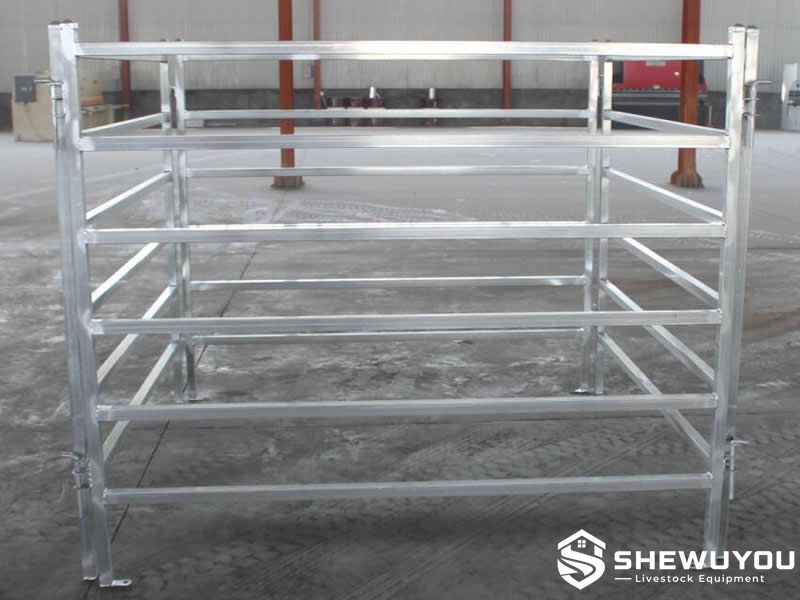

Product Name	Heavy-Duty Square-Tube Cattle Fence Panel
Product Image
Product Overview	The Heavy-Duty Square-Tube Cattle Fence Panel is a modular livestock fencing component designed for cattle yards, holding pens, sorting areas, feeding enclosures and handling facilities. Its welded square-tube construction provides a rigid frame suitable for repeated livestock contact in commercial farm environments. Panels can be connected with welded lugs and removable steel pins, allowing cattle-yard layouts to be assembled, extended, relocated or reconfigured with minimal construction work. Hot-dip galvanized steel provides corrosion resistance for long-term indoor and outdoor livestock applications.
Key Features	Heavy-Duty Square-Tube Construction: Welded square steel rails and uprights provide a rigid structure for cattle containment and handling areas. Hot-Dip Galvanized Finish: Protective zinc coating improves resistance to moisture, manure, rain and outdoor farm conditions. Modular Panel Design: Individual panels can be combined to form cattle pens, holding yards, races, drafting areas and temporary enclosures. Pin-and-Lug Connection: Welded connection lugs and removable pins simplify installation and future yard modifications. Portable or Permanent Use: Suitable for relocatable livestock yards as well as fixed cattle-fencing projects. Smooth Livestock Contact Surfaces: Properly finished welds and tube edges help reduce sharp contact points around cattle. Low Maintenance: Galvanized construction requires limited routine surface maintenance under normal livestock-yard conditions. Project Customization: Panel dimensions, tube sections, rail quantity and connection details can be manufactured according to project requirements.
Structural Components	Square-tube vertical side posts Square-tube horizontal livestock rails Fully welded structural joints Welded upper and lower connection lugs Removable steel connecting pins Steel tube end closures Ground-contact feet or mounting points Optional anchoring components for permanent installations
Structural Principle	The panel uses a welded rectangular frame with multiple horizontal square-tube rails to distribute livestock pressure across the complete structure. Vertical end posts transfer loads from the horizontal rails to the panel connections and ground-contact points. Adjacent panels are joined through overlapping welded lugs and removable steel pins. This modular connection allows straight runs, corners, holding pens and cattle-yard layouts to be assembled without permanently welding each panel together.
Technical Specifications	Product Type Heavy-duty modular cattle fence panel Tube Profile Square hollow section / square steel tube Reference Panel Size Approx. 2.1 m × 1.8 m; customizable Reference Tube Profile 40 × 40 mm SHS; other sections available upon request Rail Quantity According to panel design and project requirements Material Structural carbon steel Surface Treatment Hot-dip galvanized Connection Method Welded lugs with removable steel pins Steel Wall Thickness According to project requirements Installation Type Portable, semi-permanent or permanent Panel Dimensions Customizable
Applications	Commercial beef cattle farms Dairy cattle handling areas Cattle holding and receiving pens Livestock sorting and drafting yards Cattle races and forcing areas Feedlots and finishing facilities Veterinary treatment and inspection pens Loading and unloading yards Temporary livestock enclosures Permanent cattle-yard fencing systems Farm expansion and livestock facility renovation projects
Customization Options	Panel length and height customizable Square-tube section customizable Steel wall thickness according to project requirements Horizontal rail quantity customizable Heavy-duty reinforced versions available upon request Connection lug and pin configuration customizable Ground feet, base plates or permanent fixing options Matching cattle gates and access gates available Custom corner and short panels for cattle-yard layouts Complete cattle-yard layout design available upon request Designed according to local climate and farm conditions
Installation & Maintenance	Installation: Position the panels according to the approved cattle-yard or livestock-pen layout. Align the connection lugs of adjacent panels and insert the steel pins fully. Install additional posts, anchors or concrete foundations where required for permanent or high-load sections. Check corners, gateways and cattle-flow transitions for adequate structural support. Ensure finished surfaces and connection points do not create sharp projections into animal areas. Select permanent anchoring according to ground conditions and expected livestock loading. Maintenance: Inspect welds, rails, connection lugs and pins periodically for deformation or damage. Replace bent or heavily worn connecting pins when required. Keep manure and wet bedding from accumulating around panel feet and anchor points. Repair damaged galvanized areas with a suitable zinc-rich protective coating when necessary. Check permanent anchors and structural supports regularly in high-pressure cattle areas.
Product FAQ	Q: What is the advantage of square-tube cattle panels? A: Square hollow sections provide broad welded contact surfaces and a rigid frame structure, making them suitable for livestock yards where strength and dimensional stability are important. Q: Can the panels be used for portable cattle yards? A: Yes. Pin-and-lug connections allow panels to be assembled, removed and rearranged for temporary or semi-permanent cattle-handling layouts. Q: Can the panels also be installed permanently? A: Yes. Panels can be incorporated into permanent yards using suitable posts, base plates, concrete foundations or customized anchoring systems. Q: Are custom panel dimensions available? A: Yes. Panel height, length, square-tube section, rail quantity and connection details can be customized according to project requirements. Q: Can matching cattle gates be supplied? A: Yes. Matching livestock gates, access gates, race panels and other cattle-yard components are available upon request. Q: What information is required for a quotation? A: Please provide the required panel dimensions, quantity, tube section, yard layout, installation method and destination market. A cattle-yard drawing is helpful for complete project quotations.
Product Gallery
