Automatic Pullet Pan Feeding System

The Automatic Pullet Pan Feeding System is designed for controlled feeding of broiler breeder pullets during the rearing period. The system combines an enclosed feed tube, spiral auger, multiple feeder pans, drive unit and automatic controls to distribute predetermined feed quantities throughout the poultry house.

Rapid and consistent feed presentation is particularly important in breeder pullet management, where flock uniformity and controlled body-weight development are key production objectives. The pan feeding layout provides distributed feeding positions while maintaining open floor space for bird movement.

Loop and straight-line layouts can be engineered according to poultry house dimensions, stocking plans and feeding programs. The system is suitable for commercial breeder rearing farms, livestock equipment projects, steel structure poultry buildings and complete poultry farm construction projects.

• Uniform ration delivery: The auger feeding line distributes feed throughout the poultry house to support consistent access for the pullet flock.
• Controlled breeder feeding: Suitable for restricted, daily or project-specific feeding programs used during breeder pullet rearing.
• Rapid feed presentation: System layout can be designed to make feed available at multiple pans within a short distribution period.

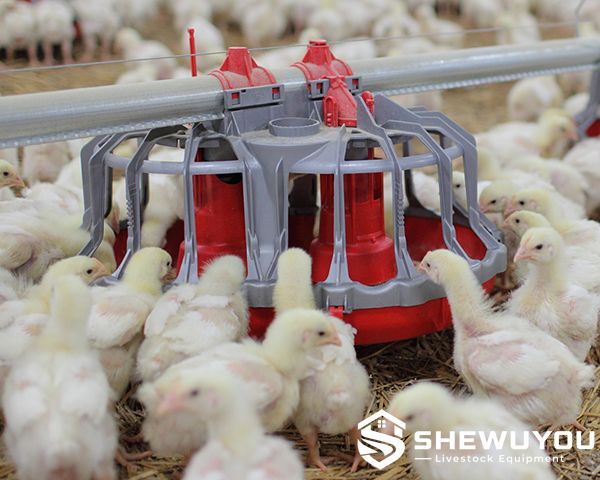

• Easy chick access: Low-access pan and grill configurations are available for young pullets during early rearing.

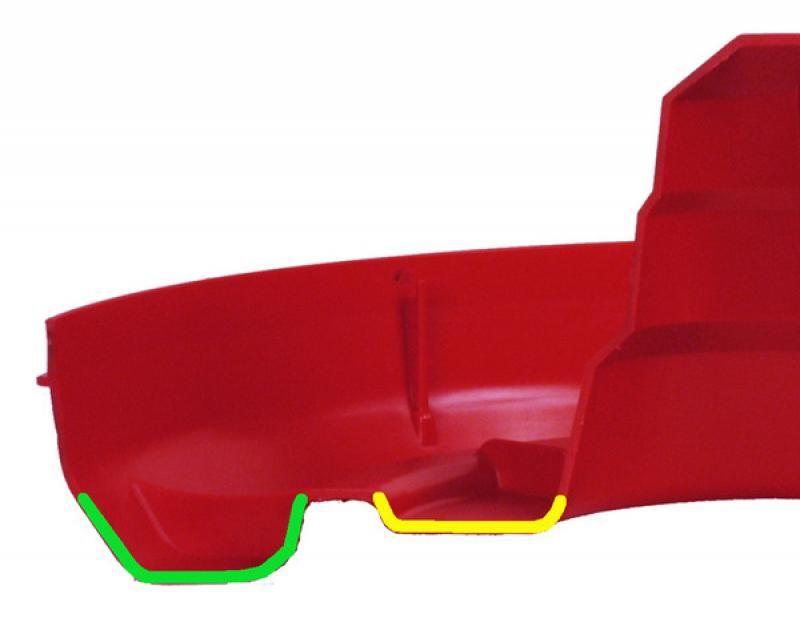

• Reduced feed waste: Pan edges, feed fins and controlled feed-level designs help keep dropped feed within the feeding area.
• Efficient floor-space use: Round pan feeding positions allow birds to gather around each feeder while maintaining clear movement areas between lines.
• Flexible line layouts: Straight-line and loop configurations can be selected according to poultry house design.
• Adjustable suspension: Feeding lines can be raised as birds grow and lifted during cleaning or flock changeover.
• Automatic control options: Feed sensors, control pans, timers and centralized farm controls can be integrated according to project requirements.

• Pullet feeder pan assemblies
• Feeder grills or bird-access components
• Feed cones and feed-level adjustment components
• Galvanized steel feed conveying tubes
• Internal spiral auger
• Feed line hopper or inlet assembly
• Gear motor and drive unit
• Control pan or feed-level sensor
• Suspension cables and pulley assemblies
• Manual or electric lifting winch
• Electrical control components
• Optional feed silo and main feed conveying system

Feed is transferred from a bulk silo, weighing hopper or central feed supply system to the inlet of the pullet feeding line. A geared motor drives the spiral auger inside the enclosed feed tube, moving the ration through the poultry house.

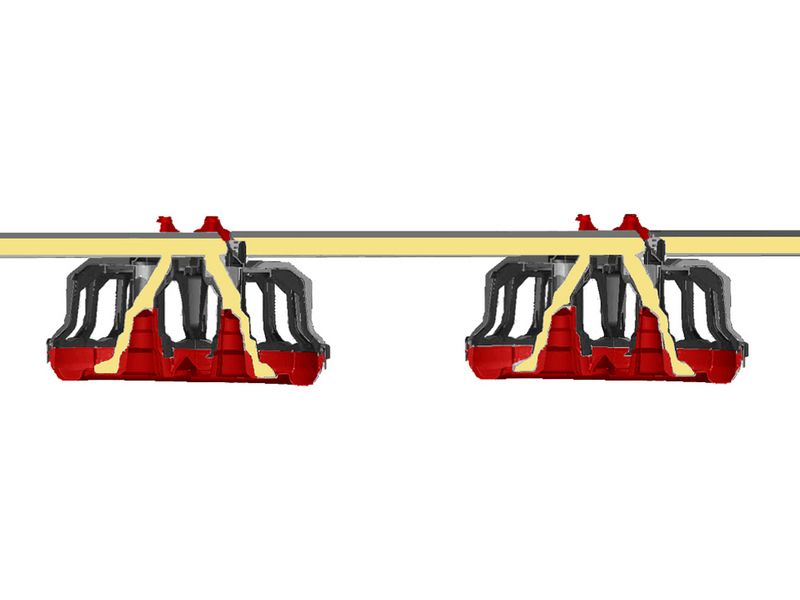

Feed outlets positioned above the feeder pans deliver the ration to individual feeding points. Depending on the selected feeding program, the line can be pre-filled or operated according to timed feed cycles to help make feed available consistently throughout the house.

A control pan or feed-level sensor can manage auger operation automatically. After feeding, the system remains ready for the next scheduled cycle, while line height can be adjusted as the pullets develop.

• Application: Broiler breeder pullet rearing
• Feeding Method: Automatic auger pan feeding
• System Layout: Straight-line or loop configuration
• Feeding Line Length: Customizable
• Number of Feeding Lines: According to project requirements
• Pan Quantity: Designed according to flock size and poultry house layout
• Pan Spacing: Customizable
• Feed Tube: Galvanized steel or project-specified configuration
• Feeder Pan: Durable engineering plastic according to selected model
• Feed Type: Mash, crumble or pellet feed according to system configuration
• Feed Conveying Capacity: Available upon request
• Drive Power: Selected according to line length and conveying requirements
• Voltage / Frequency: Configurable according to local electrical standards
• Line Suspension: Cable suspension with manual or electric lifting options
• Control System: Automatic sensor, timer or centralized control options available
• Project Design: Designed according to local climate and farm conditions

• Broiler breeder pullet rearing farms
• Parent-stock poultry houses
• Controlled-feed breeder rearing programs
• Floor-reared pullet houses
• Closed-environment poultry houses
• Tunnel-ventilated breeder houses
• Steel structure poultry buildings
• Large-scale poultry breeding groups
• Turnkey poultry farm construction projects
• Existing breeder house feeding-system renovation

• Straight-line or loop feeding layout
• Number of feeding lines
• Overall line length
• Feeder pan quantity and spacing
• Pan and grill configuration
• Early-rearing feed-access design
• Feed conveying capacity
• Drive motor configuration
• Voltage and frequency
• Manual or motorized lifting system
• Feed-level sensors and automatic controls
• Feed weighing and batching integration
• Bulk silo and main feed conveying system
• Complete livestock equipment package according to project requirements

Installation: Feeding lines are normally installed longitudinally inside the breeder rearing house and suspended from suitable roof or steel structure building support points. Feed tubes, augers, pans, drive units and suspension components are assembled in modular sections according to the approved layout.

Commissioning: Before flock operation, technicians should check auger rotation, feed distribution, motor loading, sensor function, line alignment, suspension height and electrical protection.

Height Adjustment: The feeding line should be adjusted according to bird age and body size to maintain comfortable access while helping keep litter out of the feeder pans.

Maintenance: Routine inspection should include feeder pans, feed tubes, auger condition, drive units, suspension cables, sensors and electrical components. Lines can be raised for litter removal, washing, drying and disinfection between flocks.

Q: What type of poultry is this feeding system designed for?
It is primarily designed for broiler breeder pullets during the rearing period, where controlled ration delivery and flock uniformity are important management objectives.

Q: Can the system be configured as both a loop and a straight line?
Yes. The feeding-line layout can be selected according to poultry house dimensions, stocking requirements and the farm feeding program.

Q: Can young pullets reach the feed easily?
Yes. Suitable low-access pan and grill configurations can be supplied for early rearing, with the line height adjusted as birds grow.

Q: Can the system support restricted feeding programs?
Yes. Automatic timers, feed weighing systems and project-specific control strategies can be incorporated for breeder pullet feeding programs.

Q: Can the feeding line connect to an external feed silo?
Yes. The system can be integrated with bulk feed silos, weighing equipment and automatic main feed conveying lines.

Q: Can it be installed in an existing poultry house?
Yes. Retrofit solutions can be designed after reviewing the existing building structure, suspension points, feed route, electrical supply and equipment layout.

Q: Are line length and technical specifications fixed?
No. Line length, pan spacing, drive configuration, conveying capacity and electrical specifications can be customized according to project requirements.
