Male Broiler Breeder Pan Feeding System

The Male Broiler Breeder Pan Feeding System is an automatic poultry feeding line developed for separate and controlled feeding of roosters in commercial broiler breeder houses. It helps farm managers deliver male-specific feed rations while reducing interference with the female feeding program.

The system combines durable feeder pans, galvanized feed tubes, auger conveying, suspension equipment and automatic feed supply components. Line length, pan spacing, suspension height and feed delivery configuration can be customized for new poultry house construction or livestock equipment modernization projects.

• Male-Specific Feeding: Supports separate ration management for roosters in mixed broiler breeder houses.
• Rapid Feed Distribution: Designed to deliver feed quickly along the line so males can access their ration with reduced competition.
• Comfortable Feed Access: Wide feeder openings provide suitable access for mature breeder males with developed combs.
• Reduced Feed Waste: Pan geometry and feed-saving edges help limit raking and unnecessary feed spillage.
• Adjustable Feeding Height: Suspended feed lines can be positioned according to rooster size and breeder house management requirements.
• Durable Construction: Engineering plastic pans and galvanized steel feed tubes are suitable for intensive poultry farm environments.
• Automatic Integration: Can be connected with feed silos, weighing systems, feed conveyors and poultry house controllers.

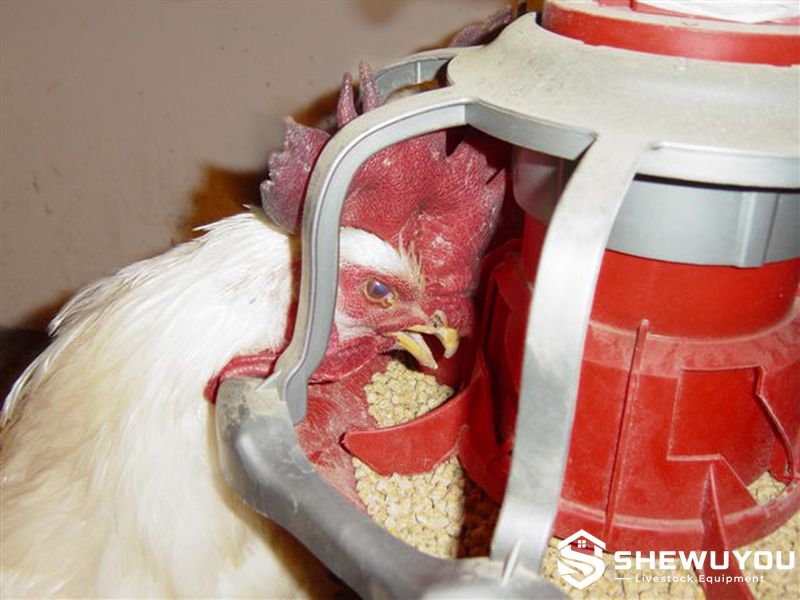

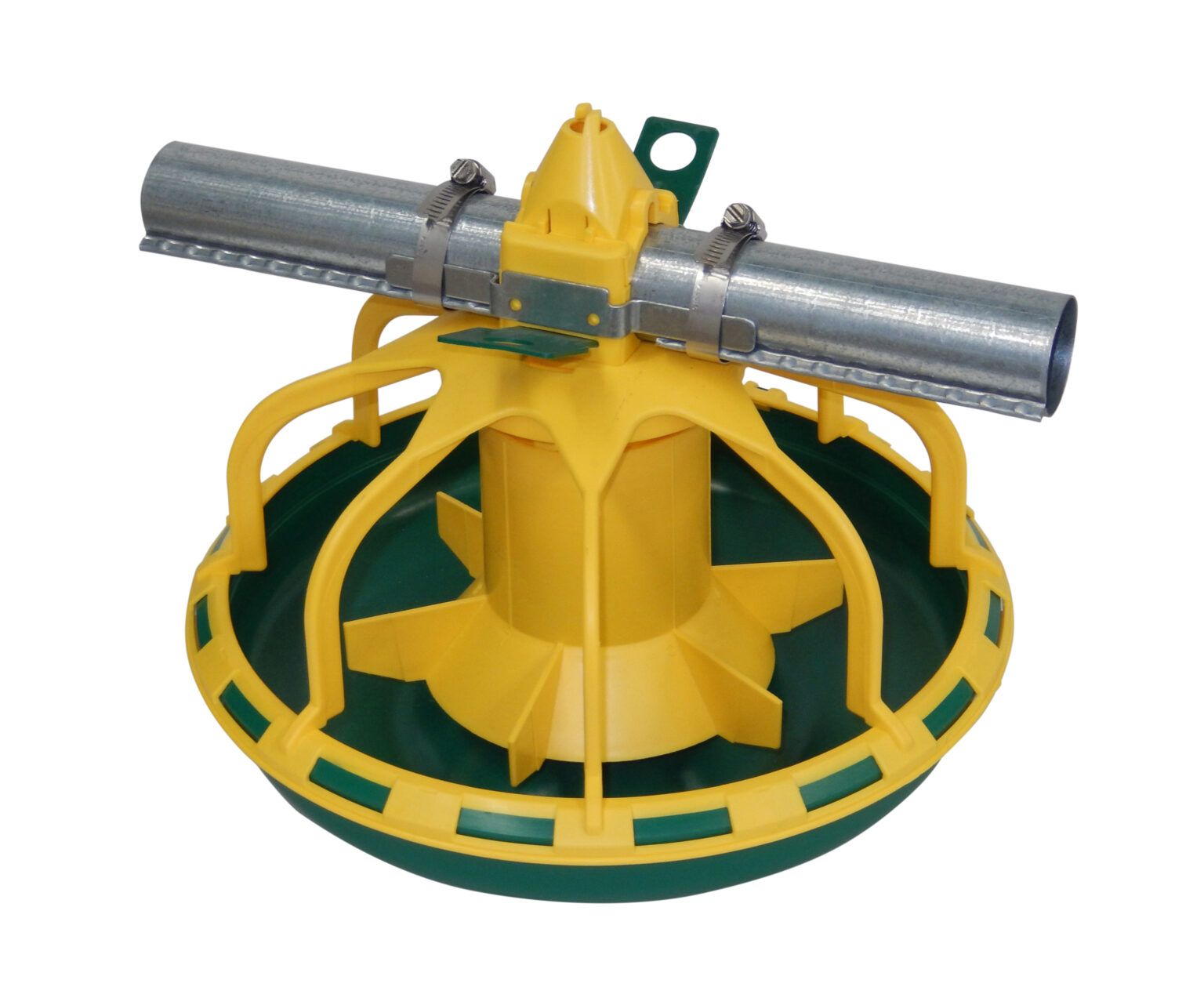

• Male Feeder Pan: Heavy-duty poultry pan with open feeding spaces designed for mature roosters.
• Feed Tube: Galvanized steel tube carrying feed throughout the poultry house.
• Auger: Internal spiral auger conveys feed from the hopper to each feeder pan.
• Feed Hopper or Intake Boot: Receives feed from the farm's central feed delivery system.
• Drive Unit: Motor and gearbox assembly powering the feed conveying system.
• Suspension System: Cables, hangers and winch equipment used for feed-line height adjustment.
• Control Pan or Sensor: Controls automatic feed-line operation according to system configuration.

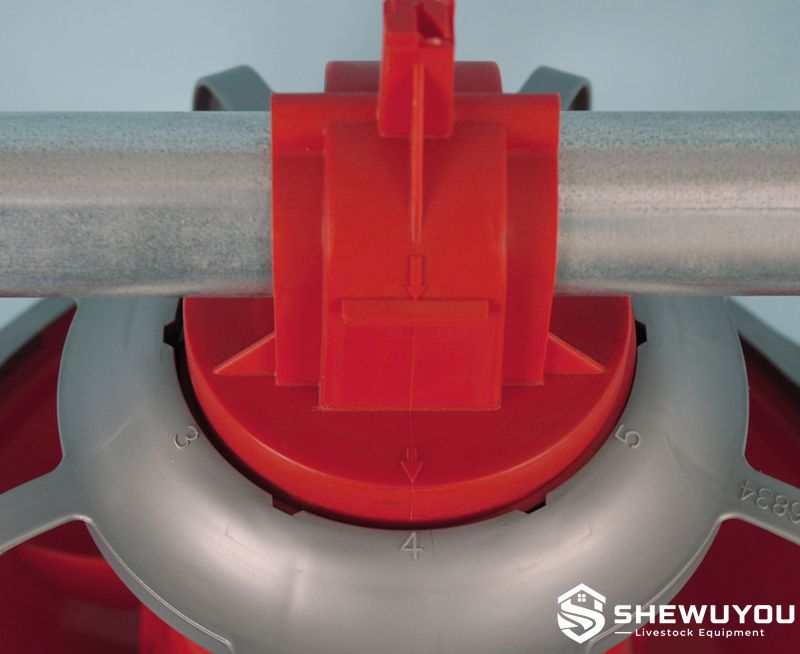

• Feed Level Adjustment: Allows the quantity of feed presented in the pan to be adapted to the feeding program.

Feed is transferred from the storage silo or weighing system to the line hopper. The motor-driven auger then moves feed through the galvanized feed tube and supplies the individual male feeder pans along the poultry house.

The system can be managed so the feed tube is prepared before feeding and feed reaches the pans rapidly when the feeding cycle starts. This supports more uniform access to the male ration and helps reduce excessive competition between breeder roosters.

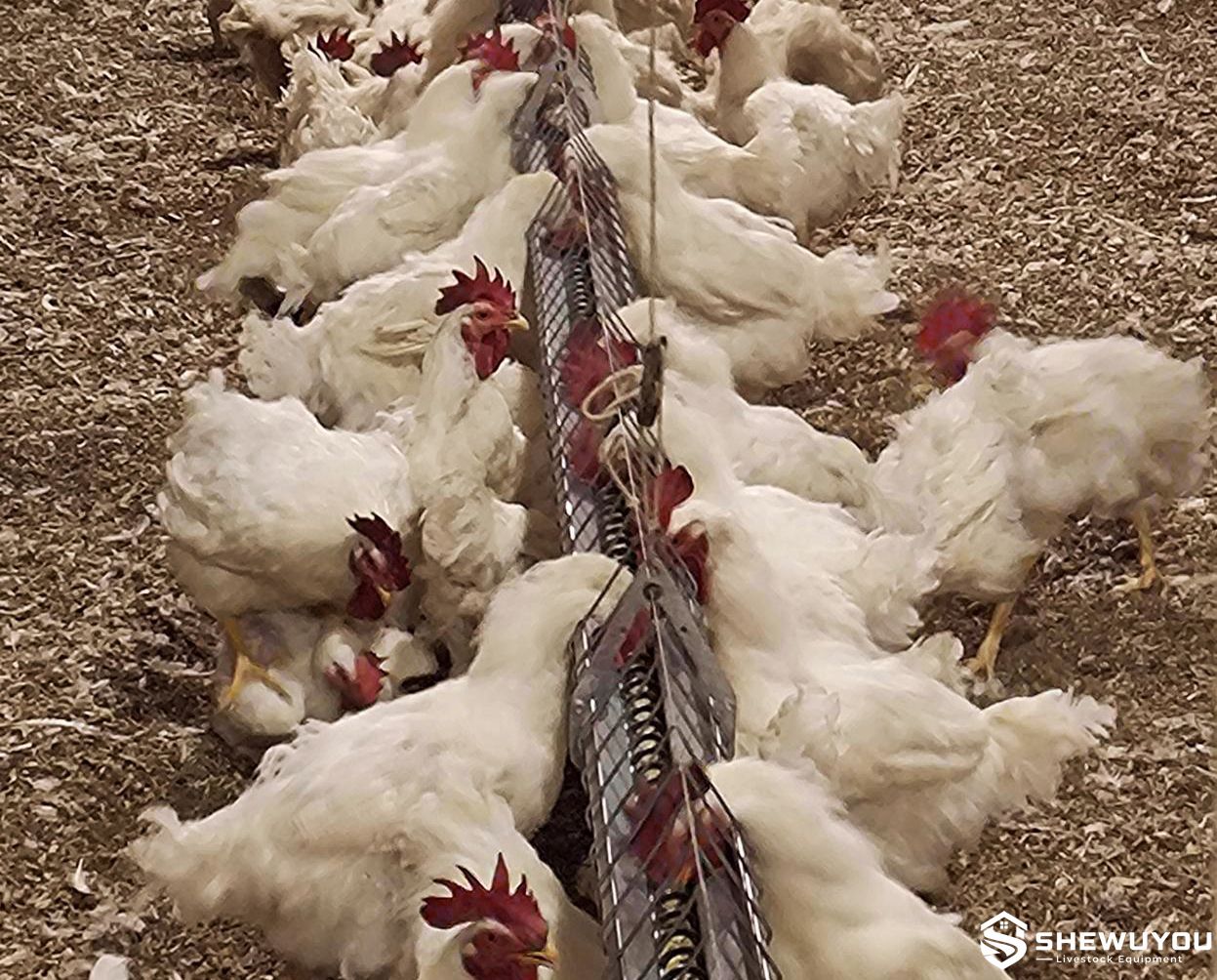

• Commercial broiler breeder production houses
• Separate rooster feeding in mixed male and female breeder flocks
• Broiler breeder integration projects
• Automatic poultry feeding line upgrades
• New steel structure poultry house projects
• Large-scale poultry farms and agricultural engineering projects

• Feed line length and house layout
• Number and spacing of feeder pans
• Pan structure and feeding opening configuration
• Feed hopper and intake arrangement
• Drive motor and electrical configuration
• Manual or electric suspension winch
• Integration with feed weighing and automatic control systems
• Complete system design according to local climate, farm conditions and breeder management requirements

The feed line is normally suspended from the poultry house roof structure using cables and adjustable hangers. Installation height and pan spacing should be determined according to rooster size, flock density, house width and the breeder management program.

Routine maintenance includes inspecting the auger, feed tube joints, drive unit, suspension cables, feeder pans and feed-level components. Pans should be emptied and thoroughly cleaned between flocks, while electrical and drive components should be protected during washing and disinfection.

Q: Why use a separate feeding line for male broiler breeders?
A: Male and female breeders have different nutritional and body-weight management requirements. A dedicated rooster feeding line allows the male ration to be managed independently.

Q: Can the feeder line prevent females from eating the male ration?
A: The suspended line can be adjusted to a suitable feeding height for mature roosters. Correct height management helps restrict access by smaller female breeders.

Q: Can the system connect to an external feed silo?
A: Yes. It can be integrated with feed silos, flexible auger fill systems, weighing equipment and centralized feed delivery systems.

Q: Can SHEWUYOU customize the complete feeding system?
A: Yes. Feed line length, pan quantity, hopper arrangement, suspension system, motors and control configuration can be designed according to project requirements.
