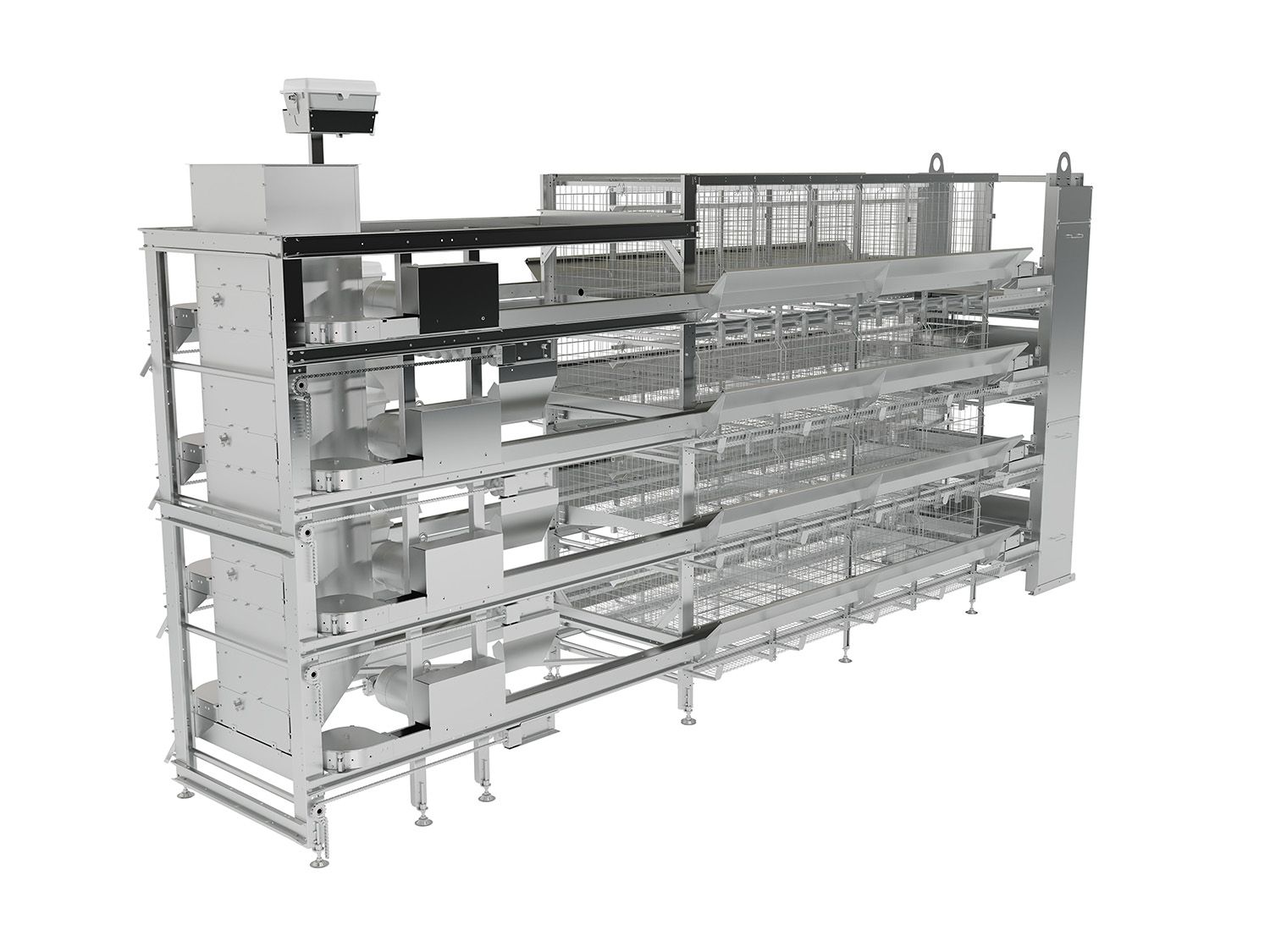

Automatic Layer Chain Feeding System

The Automatic Layer Chain Feeding System is designed for efficient and uniform feed distribution in commercial egg production facilities. A continuous feed chain moves feed through dedicated trough circuits so that laying hens along the feeding line receive consistent access to feed.

The system can be integrated with layer cage batteries, aviary systems and other automated poultry house equipment. Feed circuit layout, hopper arrangement, drive configuration and feeding line length can be engineered according to flock capacity, poultry house dimensions and project requirements.

• Continuous chain circulation supports fast and uniform feed distribution.
• Suitable for meal, crumble and pellet feed depending on system configuration.
• Adjustable feed level helps control the quantity of feed carried in the trough.
• Closed feeding circuits help reduce feed accumulation and uneven distribution.
• Designed for controlled feeding or ad libitum feeding programs.
• Galvanized steel troughs and structural components are suitable for intensive poultry house environments.
• Low routine labor requirements make the system suitable for large-scale automated layer farms.

• Feed Hopper: Receives feed before distribution into the chain circuit.
• Feed Chain: Circulates continuously inside the trough to transport feed along the feeding line.
• Feed Trough: Provides continuous feeding access along the poultry housing system.
• Drive Unit: Powers the feed chain at the selected operating speed.
• Corner Units: Guide the chain smoothly through changes in feeding circuit direction.
• Feed Level Regulator: Controls the feed depth inside the trough.
• Feed Supply Conveyor: Transfers feed from the storage silo or central feed system to the feeding hoppers when required.

• Commercial layer cage houses

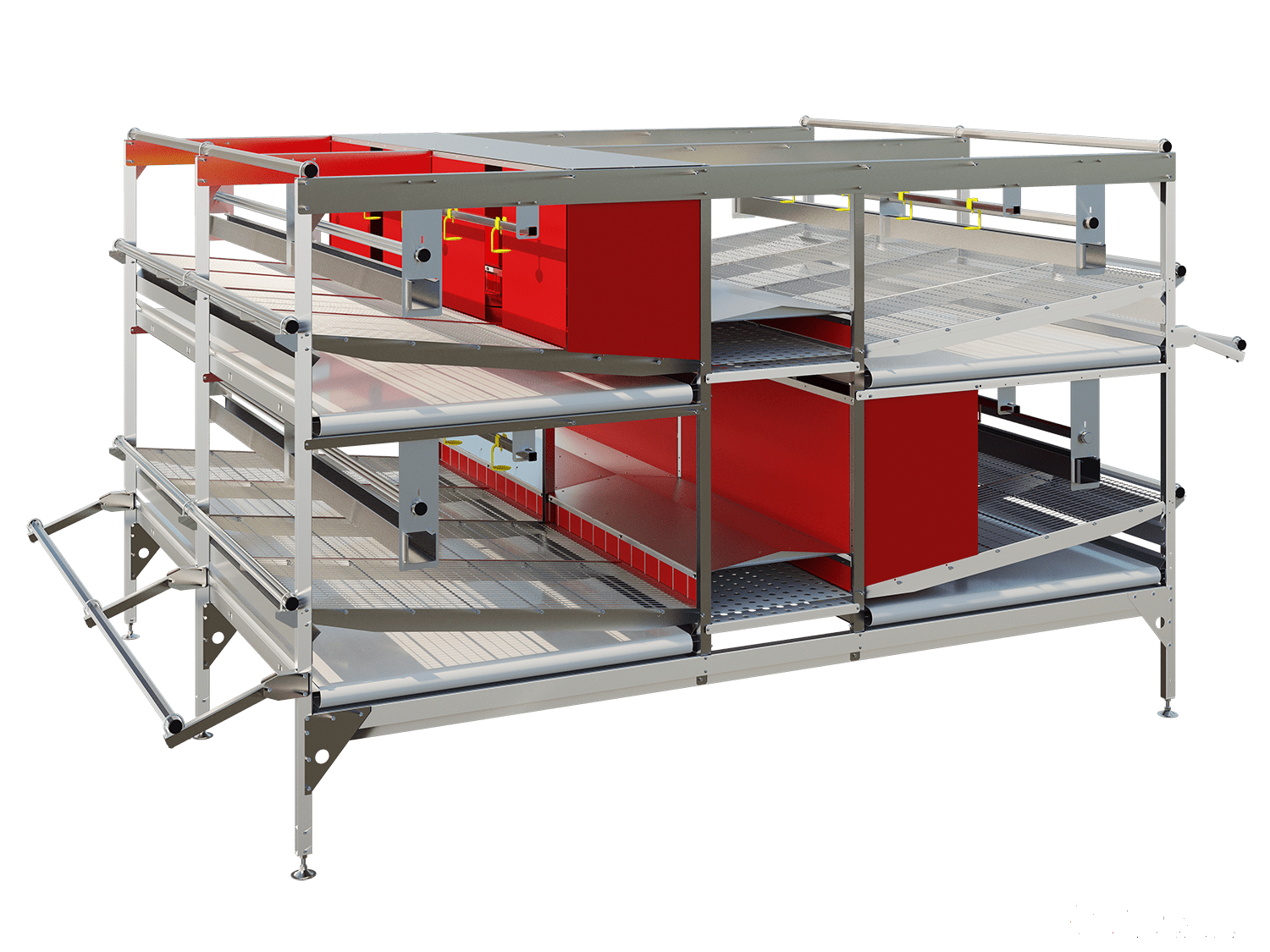

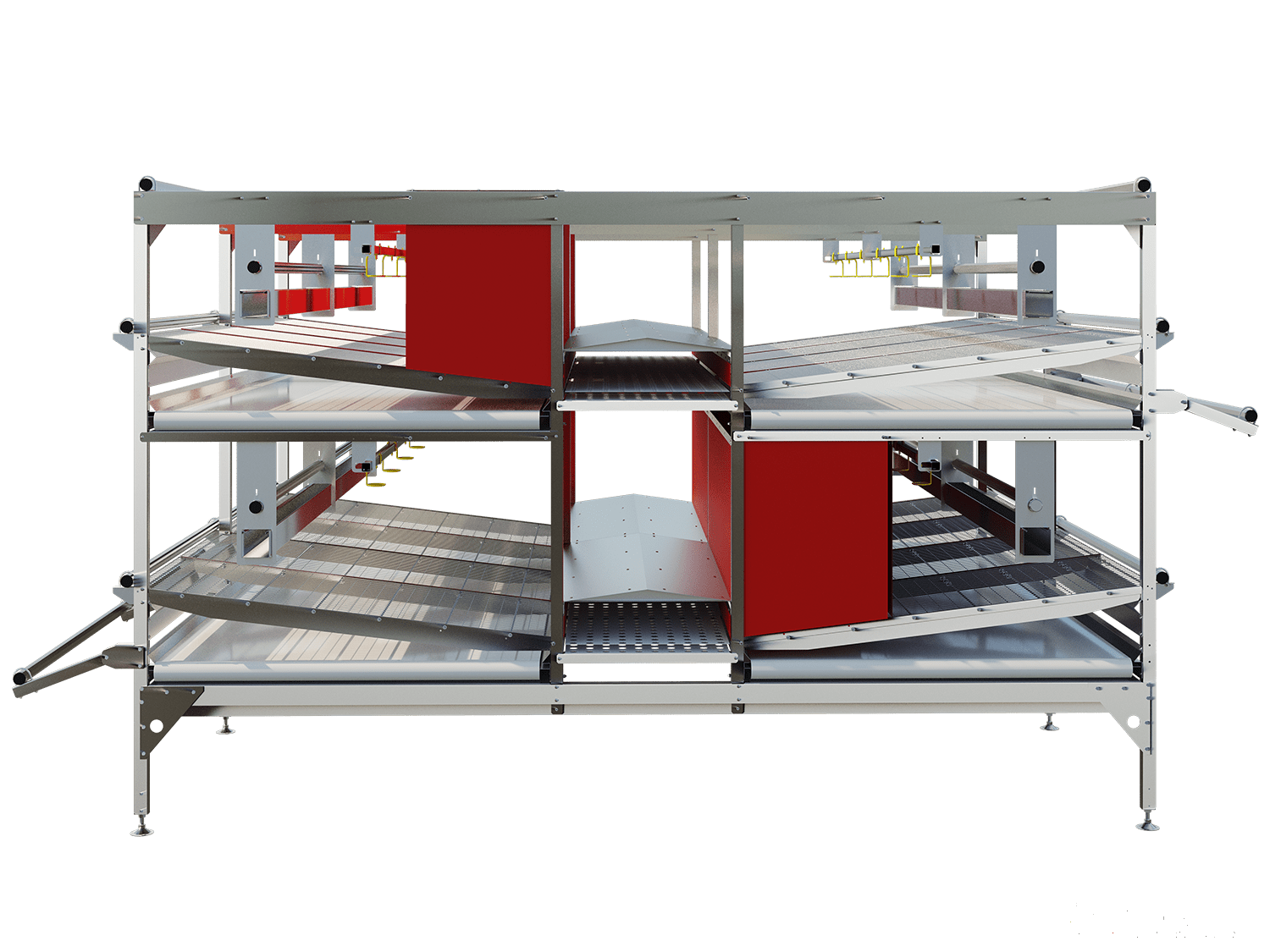

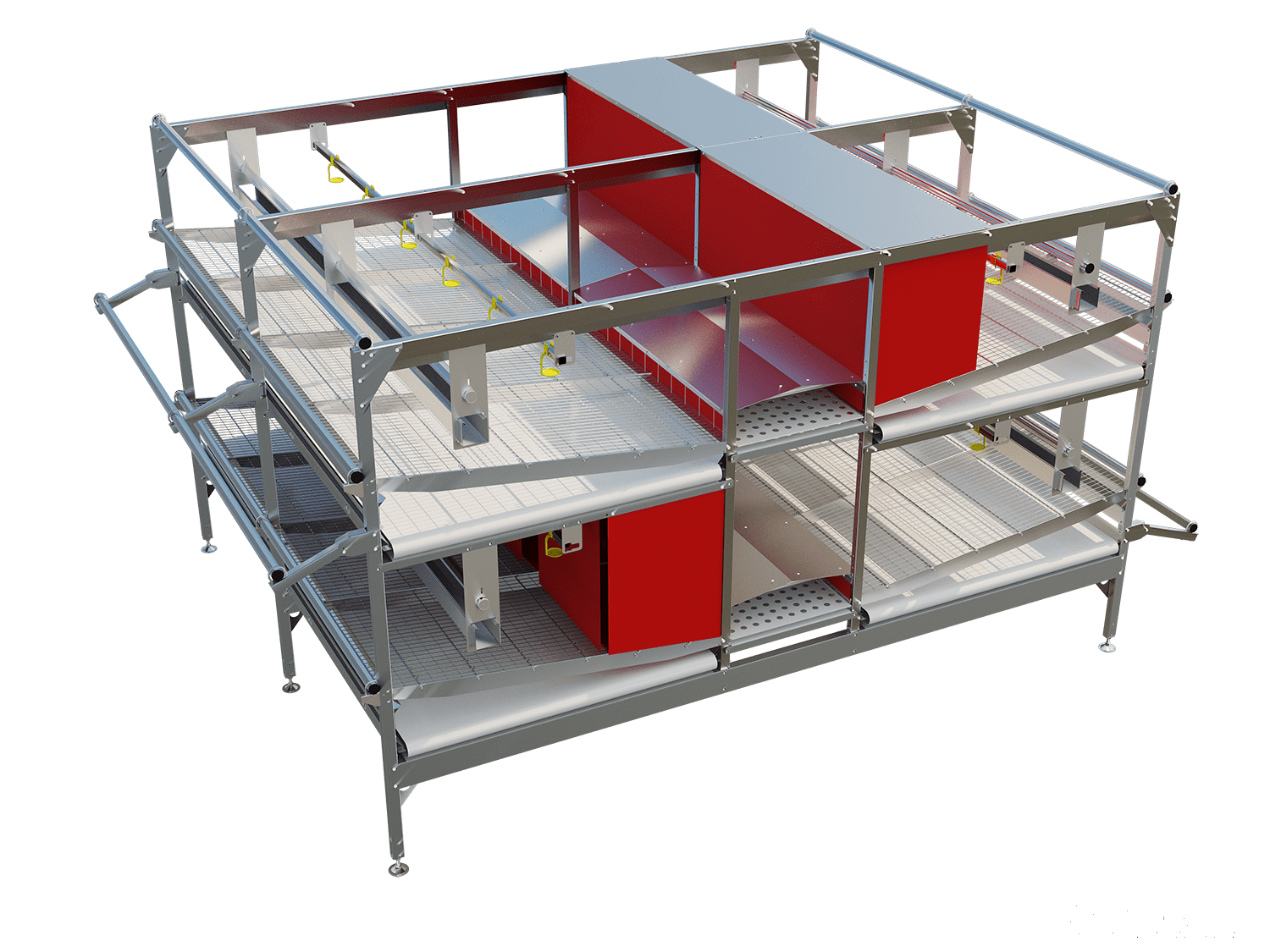

• Layer aviary and cage-free production systems
• Pullet rearing facilities
• Large-scale automated egg production farms
• New poultry house construction projects
• Modernization of existing livestock and poultry feeding systems

• Feeding circuit length and layout
• Number of feeding tiers and circuits
• Feed hopper capacity and arrangement
• Chain conveying speed and drive configuration
• Integration with silos, feed conveyors and automatic controllers
• Electrical voltage and control specifications
• System design according to poultry house dimensions, flock capacity, local climate and farm operating conditions

The feeding line should be installed according to the poultry house layout, equipment tier arrangement and required feed circuit configuration. Drive units, corners, trough sections and feed hoppers are assembled into a continuous circuit and connected to the upstream feed supply system.

Routine maintenance mainly includes checking chain tension, drive alignment, corner units, trough cleanliness and motor operation. Regular removal of accumulated feed and dust helps maintain reliable feed flow and long-term system performance.

Q: Can the chain feeding system be used in multi-tier layer cages?
A: Yes. Feeding circuits can be configured for multiple cage or aviary tiers according to the poultry housing design.

Q: What types of feed can the system handle?
A: Chain feeding systems are commonly designed for meal, crumble and pellet feeds. Final configuration should match the feed characteristics used by the farm.

Q: Can the system connect directly to an external feed silo?
A: Yes. The feeding line can be integrated with external silos, auger conveyors, chain-disc conveyors or other centralized feed delivery equipment.

Q: Can SHEWUYOU customize the feeding system?
A: Yes. Feeding circuit length, hopper capacity, drive units, electrical configuration and control options can be designed according to project requirements.
