Product Showcase	Content
Product Name	A-Type Chick Brooding Cage
Product Image
Product Overview	The A-Type Chick Brooding Cage is a multi-tier poultry rearing system developed for the controlled management of day-old chicks and growing pullets. Its open A-frame structure provides convenient access to each cage tier while creating sufficient space between the cage rows for ventilation, inspection, feeding and routine flock management. The system can be configured with feeding troughs, nipple drinking lines, chick feeding and drinking accessories, manure removal equipment and environmental control systems. It is suitable for commercial poultry farms, layer replacement pullet projects, poultry breeding facilities and complete steel structure poultry house projects.
Key Features	A-Frame Multi-Tier Structure: The inclined cage arrangement provides practical access to each level while improving space utilization in commercial poultry houses. Designed for Chick and Pullet Rearing: Suitable for early-stage rearing where stable feeding, watering and observation are important for flock uniformity. Corrosion-Resistant Cage Construction: Galvanized steel components are commonly used to improve durability in humid poultry house environments. Adjustable Drinking System: Nipple drinking lines can be adjusted to accommodate changes in chick height during the growing period. Flexible Feeding Configuration: Independent chick feeders can be used during the early brooding stage, with external trough feeding introduced as birds grow. Efficient Manure Separation: The cage structure allows manure to fall below the birds, helping reduce direct contact between chicks and waste. Project-Based Design: Cage tiers, row length, feeding method, drinking system and auxiliary equipment can be customized according to project requirements.
Structural Components	Main Cage Frame: A-shaped galvanized steel support structure providing mechanical stability for multiple cage tiers. Cage Mesh Panels: Front, side and partition mesh designed for chick containment, ventilation and convenient flock observation. Brooding Floor: Chick-friendly floor surface selected to provide stable footing during the early rearing stage. Feed Troughs: Continuous feeding troughs installed along the cage front for efficient feed distribution. Chick Feeders: Temporary or removable feeding accessories can be used during the first stage of brooding. Nipple Drinking Lines: Water pipes with nipple drinkers and pressure regulation components provide hygienic drinking water. Drinking Line Adjustment: Height-adjustable drinking equipment supports different growth stages. Manure Handling Area: Open space or manure removal equipment beneath the cage rows can be configured according to the poultry house design.
Structural Principle	The A-Type Chick Brooding Cage uses an inclined multi-tier frame with cage compartments arranged on both sides of the central supporting structure. This geometry creates open spaces between the tiers, making it easier to access the birds and helping airflow circulate throughout the cage system. During the initial brooding stage, chicks can use dedicated feeding and drinking accessories positioned close to the cage floor. As they grow, the external feeding trough and adjustable nipple drinking system can be used for routine feeding and watering. Manure passes through the cage floor and is separated from the birds, while optional manure removal equipment can transfer waste away from the poultry house according to the selected farm management system.

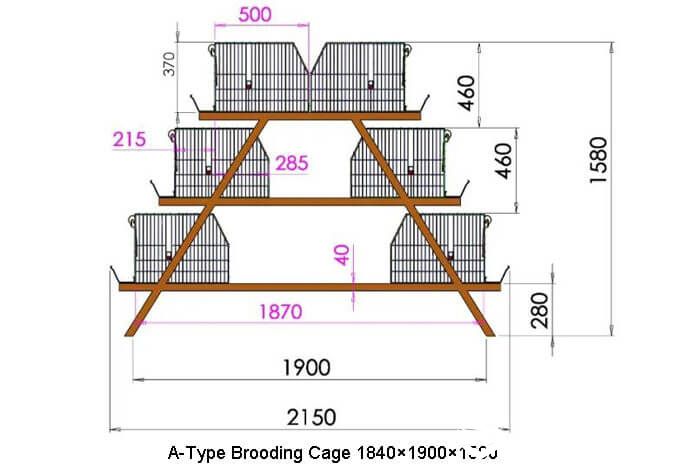

Technical Specifications	Cage Type A-Type Chick Brooding Cage Application Chicks and growing pullets Typical Rearing Stage Day-old chicks through pullet growing stage Structure A-frame multi-tier cage system Tier Options 3 tiers, 4 tiers or customizable Reference 3-Tier Size Approximately 1840 × 1900 × 1580 mm per set Reference 4-Tier Size Approximately 1840 × 2210 × 1865 mm per set Main Material Galvanized steel / according to project requirements Feeding System Manual, semi-automatic or automatic configuration available Drinking System Adjustable nipple drinking system Manure Removal Available according to project requirements Bird Capacity According to cage dimensions, bird age and project requirements
Applications	The A-Type Chick Brooding Cage is suitable for commercial chick rearing farms, layer replacement pullet farms, poultry breeding enterprises, medium and large poultry production projects, poultry equipment distributors and turnkey agricultural engineering projects. It can be installed in open-sided, semi-enclosed or mechanically ventilated poultry houses, with the final configuration designed according to local climate, bird capacity, building dimensions and farm management requirements.
Customization Options	Cage tier configuration: Customizable Cage row length: According to project requirements Bird capacity: According to project requirements Cage compartment dimensions: Available upon request Feeding system: Manual, semi-automatic or automatic Drinking system layout: Customizable Drinking line height adjustment: Available upon request Manure removal system: According to project requirements Poultry house ventilation and cooling: Designed according to local climate and farm conditions Steel structure poultry house integration: Available upon request
Installation & Maintenance	Installation begins with poultry house layout verification, cage row positioning and floor level inspection. The A-frame supports are assembled and aligned before cage panels, feed troughs, drinking lines and manure handling components are installed. Water pressure and nipple drinker operation should be checked before chicks are introduced. Drinking line height should be adjusted periodically as the birds grow. Routine maintenance includes inspection of cage fasteners, galvanized surfaces, feeders, nipple drinkers, water pipes, regulators, suspension components and manure removal equipment. Regular cleaning and inspection help maintain stable brooding conditions and long-term operating reliability.
Project Cases	A-Type chick brooding cage systems can be used in new poultry farm construction, pullet rearing facility expansion and modernization of existing chick houses. For large projects, the cage layout can be coordinated with prefabricated steel structure poultry houses, automatic feeding systems, water supply systems, ventilation fans, cooling equipment, lighting and environmental control systems according to the required production capacity.
Product FAQ	Q: What birds can be raised in an A-Type Chick Brooding Cage? A: The system is mainly designed for chicks and growing pullets during the brooding and rearing stages. Q: Can the drinking line be adjusted as the chicks grow? A: Yes. Adjustable nipple drinking lines can be configured to match different bird heights during the rearing period. Q: Can automatic feeding be added? A: Yes. Automatic or semi-automatic feeding equipment can be supplied according to project requirements. Q: Can cage size and tier quantity be customized? A: Yes. Tier quantity, cage dimensions, row length and bird capacity can be engineered according to the poultry house layout and farm capacity. Q: Can the cage system be supplied together with a steel structure poultry house? A: Yes. The cage system can be integrated with steel structure poultry house construction, ventilation, cooling, feeding, drinking and manure management equipment.

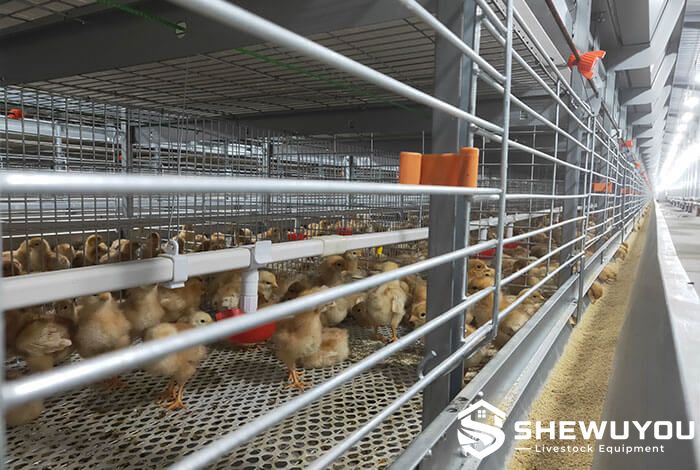

Product Gallery
