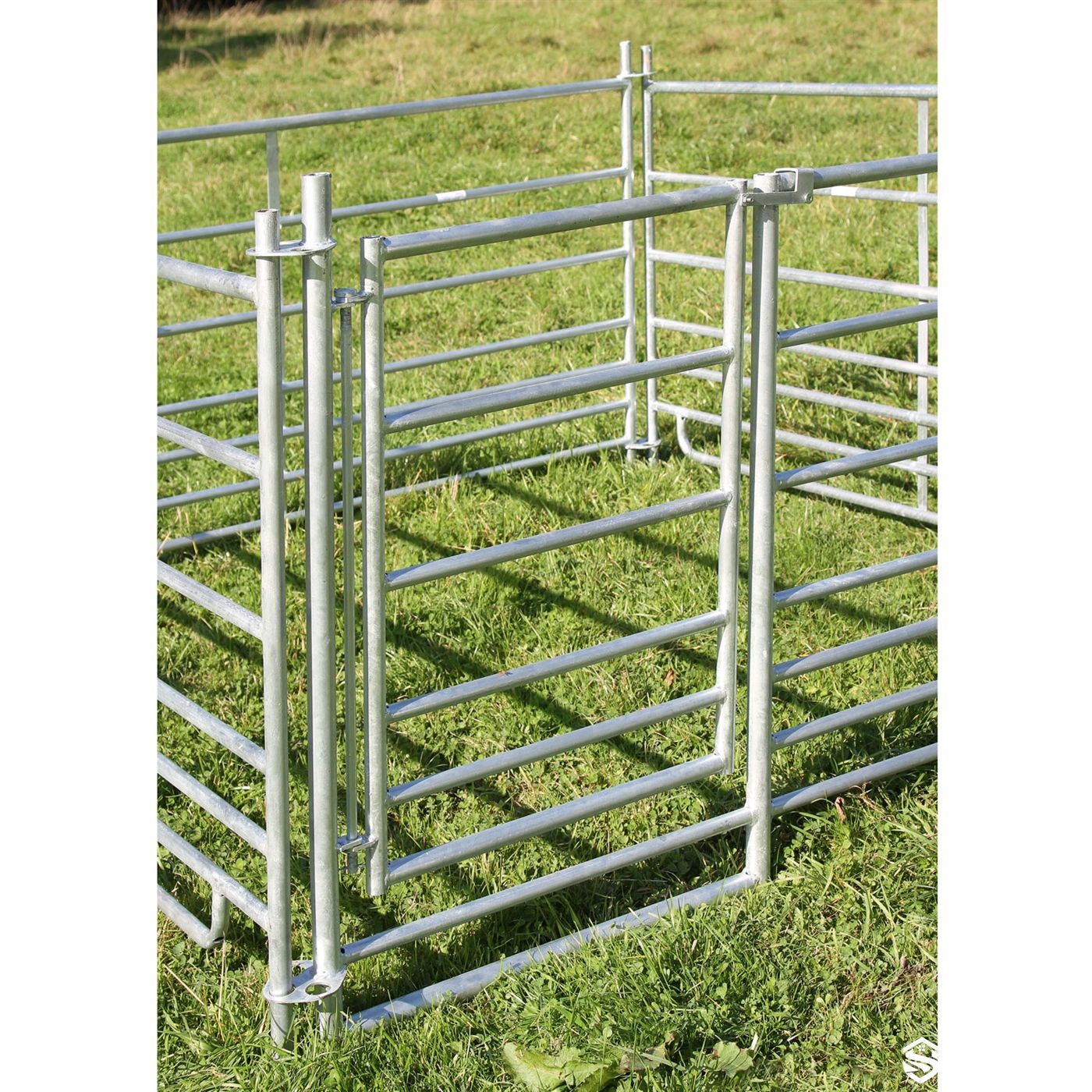

Sheep Panel with Access Gate

The Sheep Panel with Access Gate combines a portable six-rail livestock hurdle with an integrated hinged pedestrian gate, providing both goat-farming-equipment/" target="_blank" class="keylink">sheep containment and convenient personnel access within one modular panel.

The integrated gate allows farm workers to move between pens without opening a full-width sheep hurdle or dismantling the enclosure. This makes the panel particularly useful in lambing sheds, holding pens, handling yards, veterinary areas and other livestock facilities where regular operator access is required.

The galvanized steel construction is designed for demanding agricultural environments, while drilled connection lugs allow the panel to be incorporated into modular sheep pen layouts, handling races and steel-structure livestock buildings.

• Integrated Access Gate: Built-in hinged gate provides convenient personnel entry without opening the complete sheep panel.
• Six-Rail Panel Structure: Horizontal steel rails provide effective sheep containment while maintaining good airflow and visibility.
• Galvanized Steel Construction: Protective zinc coating improves corrosion resistance for indoor and outdoor livestock environments.
• Top-Operated Latch: Spring-loaded slide-bolt configuration allows the gate to be opened and secured conveniently from standing height.
• Wide Personnel Opening: Reference gate opening is approximately 835 mm wide for practical farm access.
• Modular Connections: Drilled lugs at both ends allow connection to compatible sheep hurdles using coupling rods.
• Portable Pen Layout: Suitable for temporary, seasonal or reconfigurable livestock enclosures.
• Reduced Pen Disruption: Workers can enter the enclosure without moving a complete hurdle or allowing a larger opening for livestock escape.
• Commercial Farm Application: Suitable for sheep farms, lambing systems, veterinary pens and complete livestock handling projects.

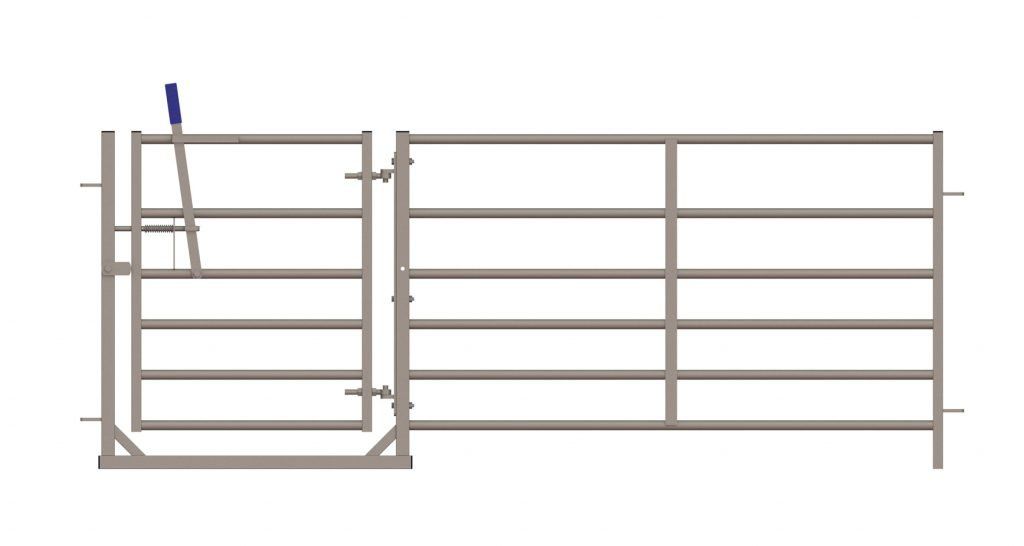

The main six-rail hurdle provides livestock containment, while a smaller hinged gate is incorporated into one end of the frame. This creates an independent personnel opening without reducing the overall function of the sheep barrier.

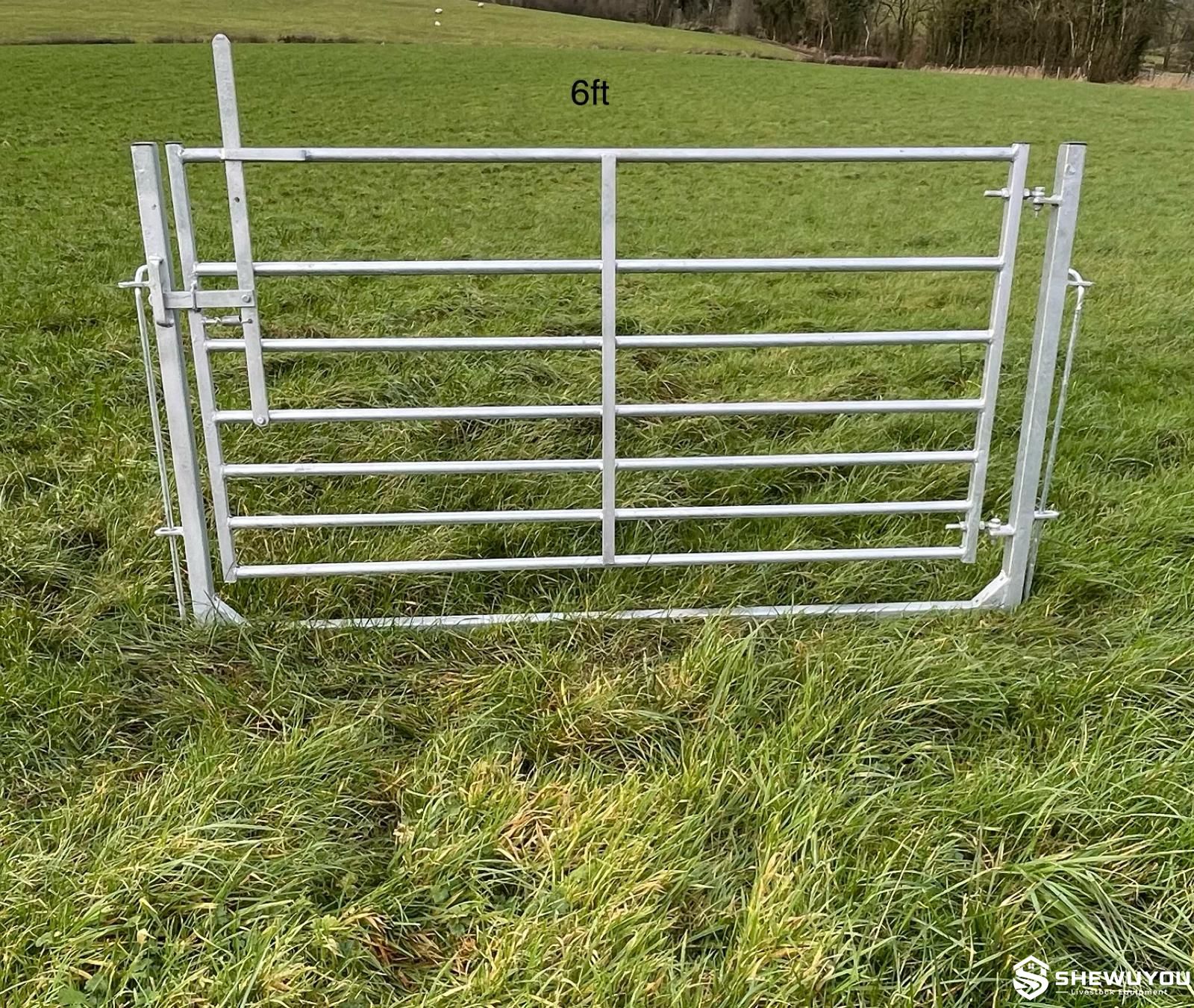

The gate pivots on its hinge assembly and is secured using a spring-loaded slide bolt. Because the latch is operated from the upper part of the gate, personnel can open and close the access point without bending down.

Multiple panels can be connected through the drilled end lugs to create straight runs, corners, holding pens or complete handling systems. The integrated gate can then be positioned wherever regular personnel access is required.

Reference dimensions are based on a comparable commercial 6-rail sheep hurdle with an integrated hinged gate. Final dimensions and connection details can be customized for specific projects.

• Commercial sheep holding pens
• Lambing and maternity pens
• Sheep handling yards
• Veterinary treatment areas
• Sorting and drafting pens
• Temporary pasture enclosures
• Livestock exhibition pens
• Sheep breeding facilities
• Indoor modular livestock housing
• Personnel access points within sheep races and holding systems
• Steel-structure livestock buildings and agricultural construction projects

• Overall panel length according to project requirements
• Panel height available upon request
• Gate opening width customizable
• Left-hand or right-hand gate position according to layout requirements
• Latch configuration available upon request
• Steel tube section and wall thickness customizable
• Connection lug and coupling-rod arrangement
• Sheeted or mesh lower sections available for specialized applications
• OEM and private-label supply
• Complete sheep pen layouts designed according to farm conditions and livestock-flow requirements

Installation:

1. Position the panel on firm and reasonably level ground.
2. Orient the hinged access gate toward the preferred personnel traffic route.
3. Align the drilled lugs with the adjoining sheep panel.
4. Insert the appropriate coupling rod through the aligned connection points.
5. Continue connecting panels to create the required pen or handling layout.
6. Open and close the access gate to verify free hinge movement and positive latch engagement.
7. Provide additional anchoring where livestock pressure, uneven terrain or project conditions require it.
8. Inspect the completed enclosure before introducing animals.

Maintenance:

• Inspect rails, welds, hinges and connection lugs regularly.
• Check the spring-loaded latch for smooth operation.
• Remove manure, bedding and accumulated dirt from the lower frame and hinge area.
• Inspect galvanized surfaces for excessive abrasion or corrosion.
• Check coupling rods for bending or wear.
• Repair or replace damaged structural components before further livestock use.
• Store portable panels securely when they are not required.

Q1: What is the advantage of a sheep panel with an access gate?

It allows personnel to enter or leave a sheep enclosure without opening or removing the entire livestock hurdle.

Q2: What is the reference height?

The reference commercial panel is approximately 1000 mm high.

Q3: How wide is the personnel gate?

The reference design provides an approximately 835 mm clear gate opening.

Q4: How is the access gate secured?

A top-operated spring-loaded slide bolt provides convenient gate locking and release.

Q5: How are multiple panels connected?

Drilled lugs at the ends can be aligned with adjoining hurdles and secured using compatible coupling rods.

Q6: Can the gate be positioned on either side?

Customized configurations can be manufactured with the gate position selected according to the livestock building or pen layout.

Q7: Can the panel be used outdoors?

Yes. Galvanized construction is suitable for outdoor handling areas as well as covered livestock housing.

Q8: Is it suitable for lambing pens?

Yes. The integrated access gate is particularly useful where workers require frequent entry for feeding, inspection and newborn lamb care.

Q9: Can it be combined with other sheep panels?

Yes. It can be integrated with standard hurdles, sheeted panels, gates and other compatible sheep handling components.

Q10: Can SHEWUYOU customize complete sheep pen systems?

Yes. Panel dimensions, access gates, connection arrangements, handling races and complete livestock pen layouts can be supplied according to project requirements.
