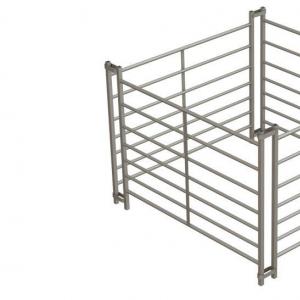

7-Rail Interlocking Sheep Panel

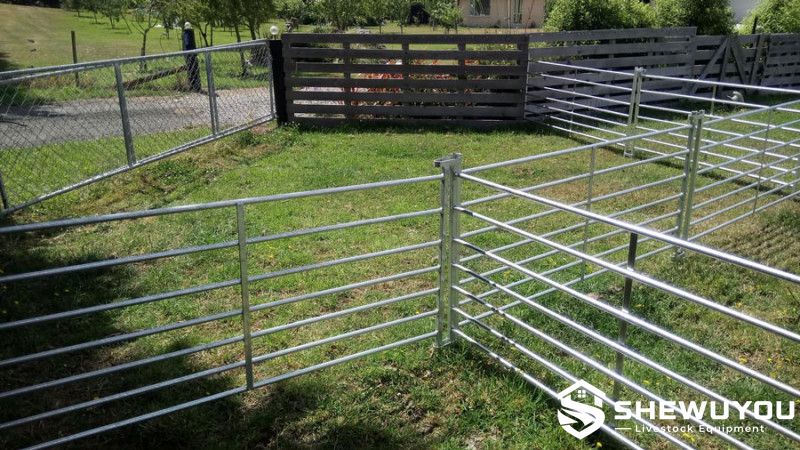

The 7-Rail Interlocking Sheep Panel is a portable galvanized livestock hurdle designed for fast construction of lambing pens, goat-farming-equipment/" target="_blank" class="keylink">sheep holding areas, temporary enclosures and modular handling layouts. Seven horizontal rails provide effective containment while maintaining an open structure for visibility and ventilation.

The reference IAE hurdle is 970 mm high and features an interlocking loop-type coupling arrangement. Unlike conventional panels that require a separate coupling rod at every joint, adjoining interlocking hurdles engage directly with each other, making temporary pen assembly and dismantling quick and convenient.

Hot-dip galvanized steel construction provides long-term corrosion resistance for demanding agricultural environments. The portable panels can be stacked when not required, reducing storage space during periods outside the lambing season.

The system is suitable for commercial sheep farms, breeding operations, livestock contractors, agricultural distributors and steel-structure sheep housing projects requiring flexible pen layouts that can be altered according to flock size and seasonal management requirements.

• Seven-Rail Design: Seven horizontal rails form a practical barrier for sheep and lamb penning.
• Interlocking Connection: Adjacent panels connect directly through loop-type end arrangements for fast pen construction.
• Improved Pen Stability: Interlocking joints help stabilize connected hurdles when forming individual or group pens.
• Hot-Dip Galvanized Finish: Zinc-coated steel provides corrosion resistance for indoor and outdoor livestock environments.
• Portable Construction: Panels can be moved and repositioned as lambing and flock-management requirements change.
• Stackable Storage: Interlocking hurdles can be stacked efficiently when not in use.
• Quick Installation: The loop connection reduces the number of loose components required during routine pen assembly.
• Modular Farm Layout: Suitable for individual lambing pens, group holding pens and temporary livestock divisions.
• Weather-Resistant Construction: Galvanized steel is suitable for exposed agricultural working conditions.
• Project Adaptability: Panel dimensions and compatible livestock equipment can be configured according to project requirements.

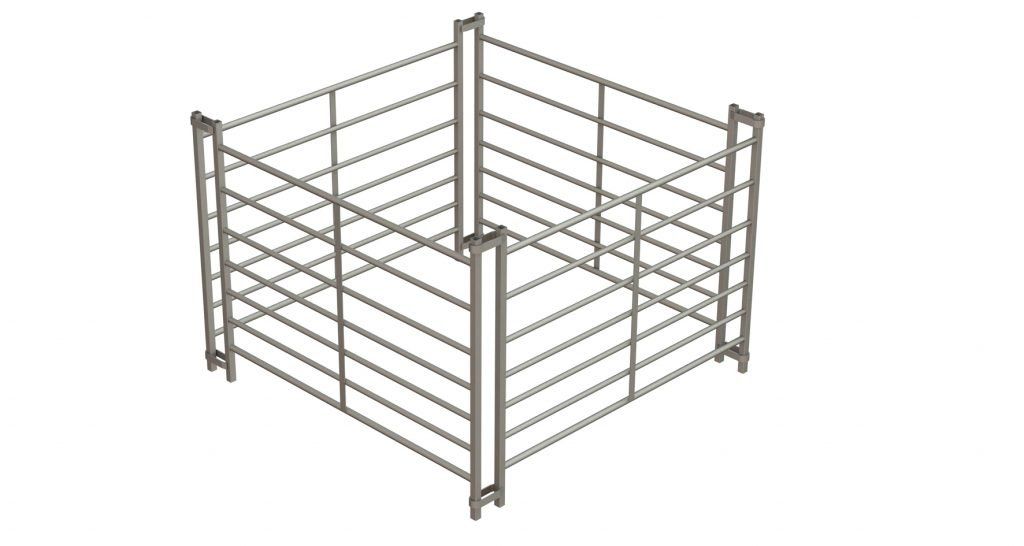

Each hurdle consists of seven horizontal steel rails welded between structural vertical members. The panel ends incorporate a loop-type coupling geometry designed so that adjoining hurdles physically interlock.

During installation, one panel is positioned beside another and the compatible end loops are engaged. Connecting several panels creates a stable enclosure without requiring a permanent foundation or fixed building connection.

Panels can be connected at different angles to form square, rectangular or irregular livestock enclosures. This flexibility is especially useful for temporary lambing pens where pen numbers and dimensions may need to change throughout the season.

For long single rows or back-to-back lambing-pen layouts, additional joint restraint may be required depending on the configuration and livestock pressure.

Reference IAE specifications include a 970 mm panel height and current 1220 mm and 1830 mm length options. Final SHEWUYOU dimensions and steel specifications can be configured according to project requirements.

• Individual lambing pens
• Back-to-back lambing pen layouts
• Large sheep holding pens
• Temporary lamb and ewe enclosures
• Sheep maternity and observation areas
• Commercial sheep breeding farms
• Temporary livestock divisions
• Veterinary treatment holding areas
• Livestock exhibition and show pens
• Indoor and outdoor sheep housing
• Steel-structure livestock buildings and modular agricultural projects

• Panel length according to project requirements
• Panel height according to livestock management requirements
• Steel tube diameter and wall thickness available upon request
• Interlocking end configuration according to compatible panel system
• Compatible lamb creep panels
• Lambing gates and access panels
• Mesh or partially meshed panels available for specialized applications
• Bundled or palletized export packaging
• OEM and private-label supply available upon request
• Complete sheep-pen layouts designed according to local climate and farm conditions

Installation:

1. Position the first hurdle on firm, reasonably level ground.
2. Bring the second panel into position beside the first panel.
3. Engage the loop-type end sections so the two hurdles interlock securely.
4. Continue connecting additional panels until the required pen layout is complete.
5. Check all joints and confirm that the panels are stable before introducing livestock.
6. Where long single rows or back-to-back pens are installed, provide additional joint restraint where required.
7. Integrate compatible gates, feeders or other sheep equipment according to the farm layout.

Maintenance:

• Inspect horizontal rails, uprights and welded joints periodically.
• Check interlocking loops for bending, deformation or excessive wear.
• Remove manure, bedding and accumulated dirt after intensive lambing use.
• Inspect galvanized surfaces for mechanical damage or localized corrosion.
• Repair or remove structurally damaged panels before further livestock use.
• Stack panels carefully when dismantled to reduce storage space and accidental damage.
• Avoid prolonged contact with aggressive chemicals that may damage the galvanized finish.

Q1: What is the difference between an interlocking sheep panel and a coupling-rod panel?

An interlocking panel uses formed loop connections at the ends so adjoining hurdles can engage directly. A conventional lugged panel normally uses a separate coupling rod through aligned lugs.

Q2: How many horizontal rails does this panel have?

The panel has seven horizontal rails.

Q3: What is the reference panel height?

The reference IAE interlocking sheep hurdle is 970 mm high.

Q4: What standard lengths are available?

The current reference IAE range lists 1220 mm and 1830 mm lengths. Custom SHEWUYOU dimensions can be supplied according to project requirements.

Q5: Is the panel hot-dip galvanized?

Yes. Hot-dip galvanizing provides corrosion resistance for demanding livestock housing and outdoor farm environments.

Q6: Can the panels be used for individual lambing pens?

Yes. Interlocking hurdles are particularly suitable for rapidly creating individual lambing pens as well as larger group holding areas.

Q7: Can the panels be used in long straight runs?

Yes, but additional joint restraint may be advisable for long single rows or back-to-back lambing layouts depending on livestock pressure and installation conditions.

Q8: Are the panels easy to store?

Yes. Their portable construction allows the hurdles to be dismantled and stacked when they are not required.

Q9: Can this system be used inside a steel-structure sheep house?

Yes. The modular system is suitable for temporary or seasonal pen divisions inside agricultural and steel-structure livestock buildings.

Q10: Can SHEWUYOU supply a complete lambing-pen system?

Yes. Interlocking sheep panels, lamb creep hurdles, gates, feeding equipment and related livestock components can be configured according to farm capacity and project requirements.
