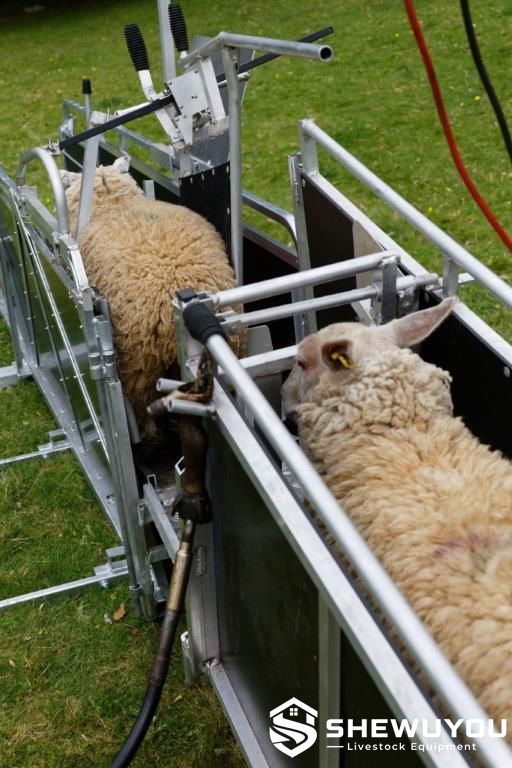

Sheep Drenching Race

The Sheep Drenching Race is a practical livestock handling system designed to hold groups of goat-farming-equipment/" target="_blank" class="keylink">sheep in a controlled working lane for drenching, vaccination, mouthing, ear tagging, dagging, inspection and other routine flock-management procedures.

Unlike narrow drafting races that usually move animals in single file, a drenching or working race can accommodate several sheep together, allowing the operator to move efficiently along the group and carry out repeated treatment procedures. This configuration is particularly useful during high-volume flock health programs.

Reference commercial systems use lightweight aluminium frames combined with durable panel materials to provide an effective balance between strength, portability and easy assembly. The race width can be reduced by pivoting one side, allowing the working space to be adapted to different sheep sizes and operating methods. :contentReference[oaicite:0]{index=0}

Suitable for commercial sheep farms, breeding enterprises, livestock contractors and agricultural projects, the system can be supplied as a single-lane or multi-section race and integrated with portable yards, gates and other sheep handling equipment.

• Designed for Drenching Operations: Provides controlled access to sheep for oral drenching, vaccination, mouthing, tagging and other husbandry work.
• Group Handling Configuration: Allows several animals to remain together in the race during treatment rather than requiring strict single-file movement.
• Adjustable Working Width: Compatible designs can reduce race width by pivoting one side to suit different animal sizes and handling procedures. :contentReference[oaicite:1]{index=1}
• Lightweight Construction: Aluminium-based structures reduce system weight while providing sufficient strength for repeated livestock handling.
• Quick Assembly: Modular sections allow the race to be assembled, dismantled and relocated efficiently.
• Portable Farm Use: Suitable for integration with mobile sheep yards and temporary livestock handling facilities.
• Multiple Race Configurations: Single or double lane arrangements and multi-section systems can be supplied according to operating requirements.
• Side Drafting Option: Side-release gates can be incorporated where selected animals need to leave the working race. :contentReference[oaicite:2]{index=2}
• Commercial Project Flexibility: Dimensions, panel height, gate arrangement and race layout can be customized according to farm requirements.

• Lightweight aluminium or galvanized steel race frame
• Durable side panels
• Adjustable or pivoting side section
• Race joining brackets
• Connecting pins and fasteners
• Entry and exit gate connections
• Optional side-release drafting gates
• Optional multi-section race extensions
• Optional double-lane configuration
• Optional portable yard interface

Sheep are moved from a holding or forcing pen into the working race until the lane contains a manageable group. The entrance gate is then closed so the animals remain contained while the operator performs routine health or management procedures.

The race width is selected so sheep remain close enough for easy access without unnecessary compression. Depending on the installation, the operator may work from outside the race or walk within the race. Industry guidance commonly recommends approximately 520-640 mm width when working from outside and 700-800 mm when working from inside. Adjustable-sided races may cover a wider range depending on design. :contentReference[oaicite:3]{index=3}

After the animals have been treated, the exit gate is opened and the group moves forward into a release or collection pen while the next group enters the race.

• Oral drenching and parasite-control programs
• Sheep vaccination operations
• Ear tagging and identification
• Mouthing and age inspection
• Dagging and routine husbandry
• Health inspection and veterinary treatment
• Flock selection and visual assessment
• Commercial sheep breeding farms
• Portable livestock contractor systems
• Temporary pasture-based sheep yards
• Permanent sheep handling facilities
• Complete livestock farm and agricultural engineering projects

• Race length: Customizable
• Race width: According to project requirements
• Adjustable or pivoting side configuration: Available upon request
• Panel height: Customizable
• Single or double lane: Available upon request
• Number of race sections: According to flock capacity
• Side-release drafting gate: Available upon request
• Portable yard integration: Customizable
• Material and surface treatment: According to project requirements
• Complete handling layouts can be designed according to local climate and farm conditions.

The drenching race should be installed between a forcing or holding pen and a clear release area so sheep can enter and leave without sharp turns or obvious dead ends. A level, firm and non-slip working surface is recommended for both animal safety and operator efficiency. :contentReference[oaicite:4]{index=4}

For portable configurations, modular panels and connecting sections can be assembled at the treatment location and dismantled after use. The system may also be incorporated directly into a portable sheep yard.

Inspect frame joints, panel connections, adjustable side mechanisms and gates regularly. Remove manure and dirt after use, keep walking surfaces clean and check protective finishes for damage before the next handling operation.

A typical sheep drenching facility combines a forcing pen, working race, entry gate and release pen. During flock health procedures, batches of sheep are moved into the race, treated sequentially and released before the next group enters.

For larger commercial farms, double-lane or extended multi-section races can be configured to increase capacity and reduce time spent refilling the handling area. Portable designs can also be used across multiple grazing blocks or remote livestock locations.

Q: What is a sheep drenching race used for?

A: It provides a controlled area for drenching, vaccination, tagging, mouthing, dagging and other routine flock-management procedures.

Q: Is a drenching race different from a drafting race?

A: Yes. A working or drenching race generally holds several sheep together for treatment, while a drafting race normally moves animals individually toward sorting gates. :contentReference[oaicite:5]{index=5}

Q: Can the race width be adjusted?

A: Yes. Adjustable or pivoting-side configurations can be supplied to suit different livestock sizes and handling procedures.

Q: Can one person assemble the system?

A: Lightweight portable reference systems are specifically designed for quick assembly and can be handled by one operator under suitable site conditions. :contentReference[oaicite:6]{index=6}

Q: Can the race be used with a portable sheep yard?

A: Yes. Portable handling races can be integrated into mobile sheep yards for on-farm treatment at different locations.

Q: Can SHEWUYOU customize the system?

A: Yes. Race length, width, panel height, lane quantity and gate configuration can be supplied according to project requirements.
