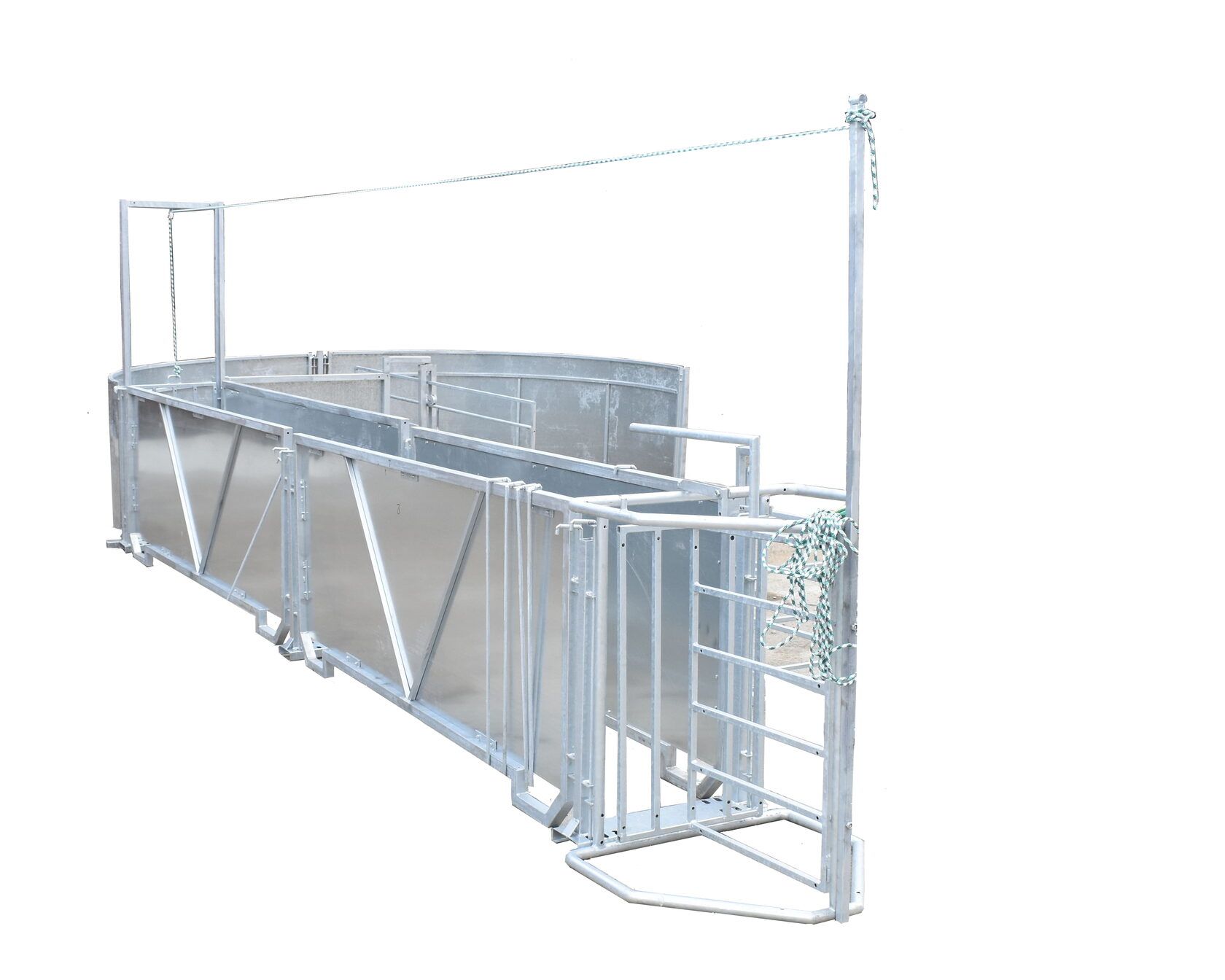

Heavy-Duty Fixed Sheep Handling Race

The Heavy-Duty Fixed Sheep Handling Race is a permanent livestock handling solution designed for commercial goat-farming-equipment/" target="_blank" class="keylink">sheep farms, breeding units, large flock operations and integrated agricultural projects. It provides a strong and stable raceway for routine sheep movement, restraint, drafting, treatment and identification work.

The system is based on heavy-duty galvanized steel panels and gates arranged into a fixed handling line. Adjustable race sides can be used to suit different sheep sizes, while solid sheet-metal sections help reduce visual distractions and improve forward animal movement.

A fixed handling race is particularly suitable for farms that process livestock frequently and require higher structural stability than a temporary portable system. It can be integrated with sheep clamps, weighing equipment, drafting gates, guillotine gates, foot baths and RFID identification systems.

The modular steel structure allows the race to be incorporated into new sheep yards, existing livestock buildings and steel structure farm projects according to site layout and flock-management requirements.

• Heavy-Duty Fixed Structure: Designed for permanent or semi-permanent livestock handling installations with frequent daily or seasonal use.
• Adjustable Race Width: Raceway sides can be configured to accommodate different sheep sizes and wool conditions.
• Safe-Edged Sheet Metal: Formed sheet sections help reduce the risk of cuts and abrasions during handling.
• Hot-Dip Galvanized Finish: Provides durable corrosion protection for demanding livestock environments.
• Integrated Restraint Capability: Compatible with sheep clamp systems for drenching, tagging, vaccination and inspection.
• Efficient Animal Flow: Sheeted side panels help reduce visual distractions and encourage forward movement.
• Multiple Gate Options: Can incorporate guillotine, swing, stop or drafting gates according to handling requirements.
• Stable Fixed Installation: Permanent posts or engineered anchoring can improve stability in high-throughput yards.
• Modular Expansion: Additional holding pens, gates and treatment areas can be added as farm capacity increases.
• Project Customization: Race length, width, gates and accessories can be supplied according to project requirements.

• Heavy-duty galvanized steel race frame
• Sheeted race hurdles
• Open rail livestock hurdles
• Adjustable raceway side panels
• Fixed support posts or anchoring components
• Entrance guillotine gate
• Swing or hinged access gates
• Sheep restraint or clamp unit
• Two-way or three-way drafting gate
• Joining pins and frame connectors
• Optional weighing, RFID and treatment accessories

Sheep move from the holding or forcing pen into the narrow raceway. The race sides restrict lateral movement and guide animals toward the working station in a controlled single-file flow.

Where a restraint unit is installed, the operator can secure the animal temporarily for procedures such as drenching, vaccination, dagging, ear tagging or examination. Mechanical restraint can reduce the need for manual holding and improve operator ergonomics.

After treatment or inspection, sheep can be released forward into a drafting gate or exit pen. The fixed steel structure maintains consistent alignment and stability during repeated livestock processing.

• Commercial sheep farms
• Permanent sheep handling yards
• Breeding flock management
• Sheep vaccination and drenching
• Ear tagging and RFID identification
• Livestock weighing and recording
• Dagging and routine animal care
• Drafting and flock separation
• Veterinary inspection areas
• Pre-sale livestock preparation
• Agricultural engineering projects
• Steel structure livestock building projects

• Overall race length: Customizable
• Raceway width: According to project requirements
• Panel height: Customizable
• Sheeted and open-rail panel combination: Available upon request
• Entrance gate type: Customizable
• Restraint or sheep clamp integration: Available upon request
• Two-way or three-way drafting gate: According to project requirements
• Weighing frame integration: Available upon request
• RFID identification integration: Available upon request
• Foot bath integration: Available upon request
• Permanent post and foundation layout: Designed according to site conditions
• Complete sheep handling layouts can be designed according to local climate and farm conditions.

For fixed installations, the race should be positioned on a level, stable working surface and aligned with the holding, forcing and exit pens. Permanent posts or engineered anchoring systems are recommended where long-term stability and frequent livestock use are required.

Race width should be adjusted before operation according to animal size and flock conditions. Gates and restraint equipment should be checked for free movement before animals enter the system.

Routine maintenance should include cleaning manure and debris, checking gate hinges, joining pins, locking points, restraint mechanisms and galvanized surfaces. Damaged components should be repaired or replaced before further use.

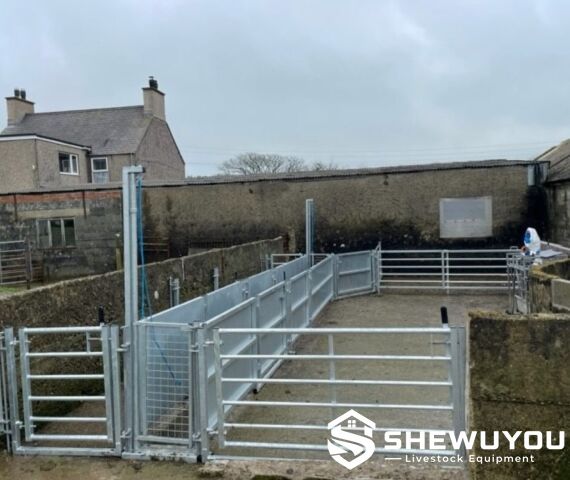

A typical fixed sheep handling installation combines sheeted race panels, open-rail holding sections, an entrance guillotine gate, a sheep restraint unit and a drafting gate at the discharge end.

For higher-capacity farms, the fixed race can be integrated with electronic weighing, RFID identification, foot-treatment equipment and multiple exit pens to create a complete livestock processing line.

Q: What is the advantage of a fixed sheep handling race?

A: A fixed system provides greater structural stability and is suitable for farms that handle large numbers of sheep frequently.

Q: Can the race width be adjusted?

A: Yes. Adjustable raceway sides can be configured according to sheep size and operating requirements.

Q: Can a sheep restraint unit be integrated?

A: Yes. Compatible clamp or restraint equipment can be incorporated for vaccination, drenching, tagging and inspection work.

Q: Can the system include drafting equipment?

A: Yes. Two-way, three-way and other drafting configurations can be supplied according to project requirements.

Q: Is the race suitable for permanent outdoor installation?

A: Yes. Hot-dip galvanized steel construction is suitable for demanding agricultural environments when installed and maintained correctly.

Q: Can SHEWUYOU design the complete handling yard?

A: Yes. Race dimensions, holding pens, gates, restraint equipment, weighing systems and exit pens can be configured according to farm capacity and site conditions.
