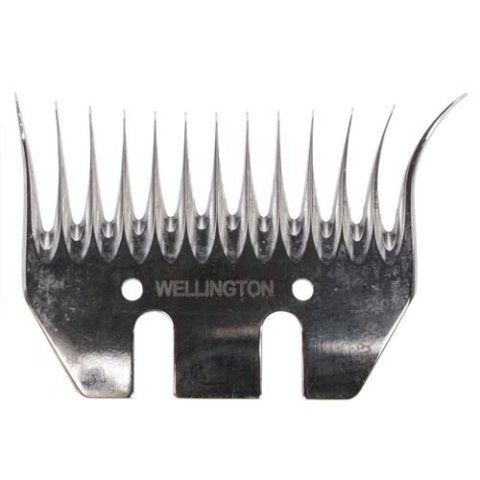

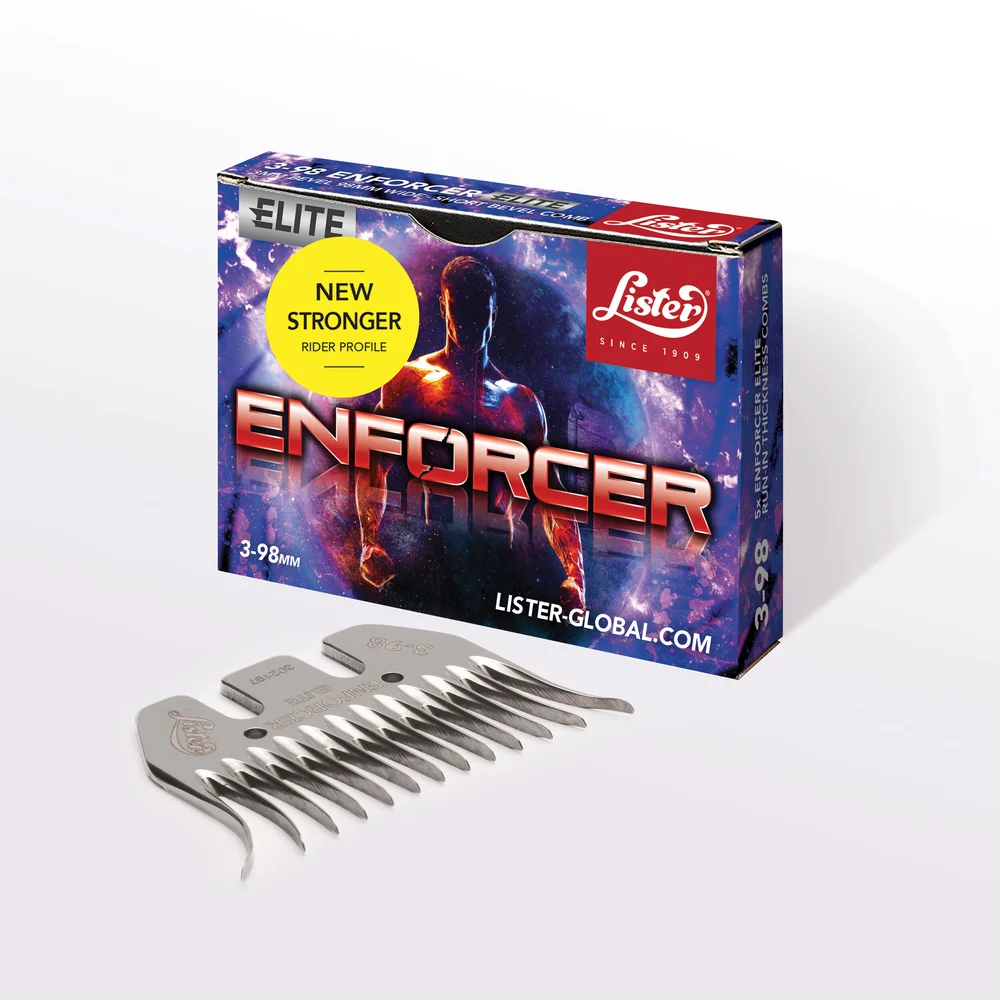

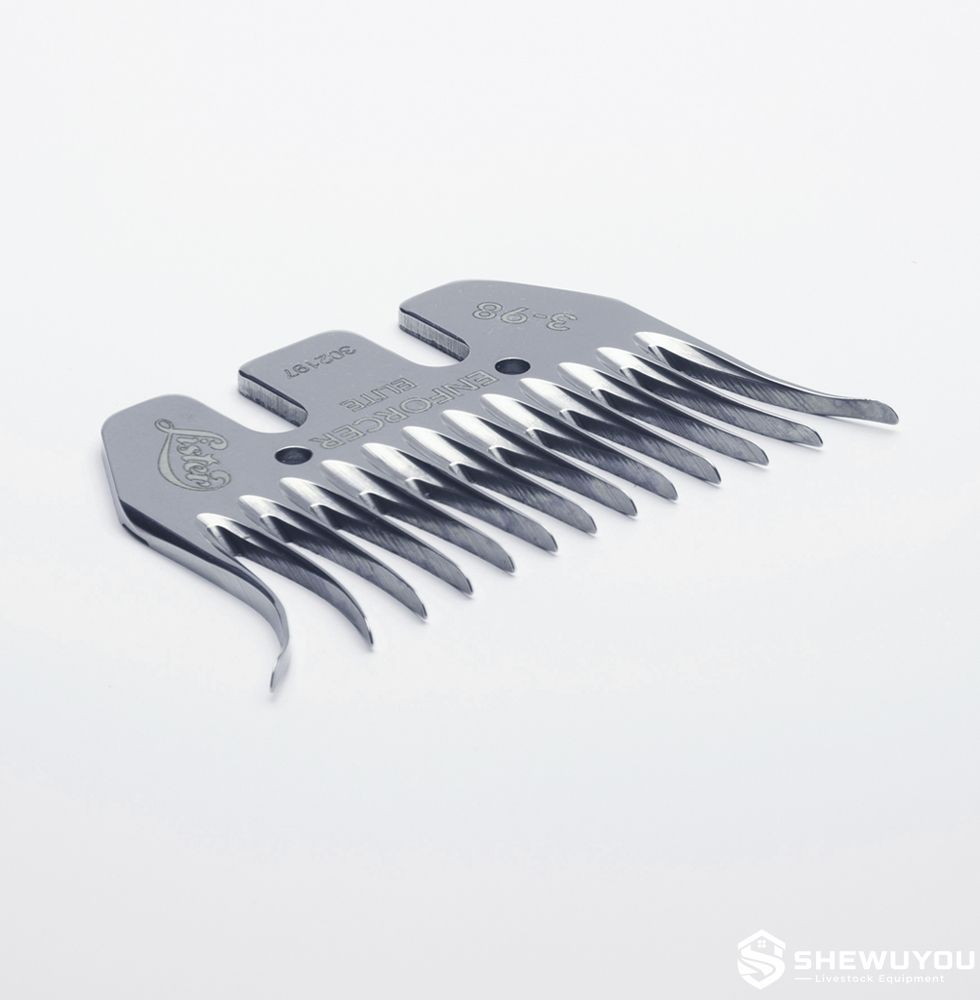

Product Name	Short Bevel Sheep Shearing Comb
Product Image
Product Overview	The Short Bevel Sheep Shearing Comb is a professional cutting component developed for goat-farming-equipment/" target="_blank" class="keylink">sheep with open wool and favorable shearing conditions. A short bevel allows the comb teeth to enter suitable fleece efficiently while maintaining good control over the cutting path. The reference professional configuration uses a 3 mm bevel and a wide working profile. Its slender tooth geometry and slim rider teeth are designed to promote smoother entry through the fleece and support efficient wool flow during continuous shearing. The comb is installed on a compatible sheep shearing handpiece and operates together with a reciprocating cutter. It is suitable for professional shearers, commercial sheep farms, wool production operations, breeding farms and livestock equipment distributors.
Key Features	3 mm Short Bevel: Designed primarily for open wool and favorable shearing conditions. Wide Cutting Profile: Provides efficient fleece coverage during each shearing pass. Run-In Thickness: Professional configurations are prepared for efficient entry without extensive initial grinding. Slender Tooth Design: Helps the comb move smoothly through wool and supports faster shearing. Slim Rider Teeth: Improve entry at the outer edges of the comb. Refined Heel Geometry: Supports flexible cutter positioning and professional handpiece setup. Durable Steel Construction: Suitable for repeated sharpening and commercial livestock use. Replaceable Component: Can be removed independently for cleaning, grinding or replacement. Professional Shearing Compatibility: Suitable for compatible mechanical and electric sheep shearing handpieces.
Structural Components	Comb Body: Hardened steel base providing structural rigidity. Comb Teeth: Tapered teeth separate and guide fleece into the cutting zone. Short Bevel: Ground front section controlling fleece entry characteristics. Rider Teeth: Outer teeth help stabilize the comb during movement across the animal. Heel Section: Rear profile supports correct cutter relationship and positioning. Mounting Slots: Allow secure fixing to compatible shearing handpieces. Ground Working Surface: Precision surface over which the cutter reciprocates.
Working Principle	The comb is secured to the front of a compatible sheep shearing handpiece. During operation, the cutter moves rapidly from side to side over the flat working surface of the comb. As the shearer moves the handpiece through the fleece, the comb teeth separate and lift wool fibers into the cutting area. The reciprocating cutter then shears the fibers against the comb surface. Short-bevel geometry is particularly suited to sheep with open wool and good shearing conditions. Correct cutter position, blade tension, lubrication and sharpening condition are essential for efficient operation and animal safety.
Technical Specifications	Product Type Professional sheep shearing comb Bevel Type Short bevel Reference Bevel 3 mm Reference Width 94 mm Comb Thickness Run-in thickness reference configuration Tooth Profile Slender professional shearing profile Rider Teeth Slim profile for smooth entry Material Hardened shearing steel Recommended Wool Condition Open wool and good shearing conditions Cutter Compatibility According to handpiece and shearing system Handpiece Compatibility Available according to selected shearing machine Sharpening Suitable for professional comb grinding Packaging Individual or multi-pack available upon request
Applications	Commercial sheep shearing Open-wool sheep shearing Seasonal wool harvesting Crossbred sheep operations Shearing sheds Professional shearing contractors Sheep breeding farms Wool production farms Livestock grooming operations Shearing equipment distributors
Customization Options	SHEWUYOU can provide short-bevel shearing combs according to sheep breed, wool characteristics, shearing handpiece and commercial project requirements. Available options can include comb width, tooth geometry, blade thickness, compatible cutters, replacement blade combinations, packaging quantity and distributor packaging. Matching cutters, handpieces and complete sheep shearing equipment sets are available upon request.
Installation & Maintenance	Disconnect the shearing machine from its power source before installing or adjusting the comb. Position the comb squarely on the handpiece and tighten the retaining screws evenly. The cutter should be positioned correctly behind the bevel according to the handpiece manufacturer's setup instructions. Incorrect lead or excessive blade tension may increase heat, drag and wear. Apply suitable shearing oil regularly during operation. After use, remove wool fibers and dirt from the comb, dry the steel surfaces and apply a light protective oil before storage. When cutting efficiency declines, the comb should be professionally reground using suitable sheep shearing comb grinding equipment.
Project Cases	Short Bevel Sheep Shearing Combs can be supplied as replacement consumables for commercial shearing sheds, wool farms and mobile shearing teams. They can also be included in complete livestock shearing packages together with cutters, handpieces, electric shearing machines, grinding equipment and maintenance accessories.
Product FAQ	Q: What type of wool is a short-bevel comb designed for? A: A short-bevel comb is principally suited to open wool and favorable shearing conditions. Q: What is the typical bevel length? A: Professional short-bevel sheep combs commonly use a bevel of approximately 3 mm. Q: Why is comb width important? A: A wider comb can cover more fleece during each pass, while correct operator technique and fleece condition remain important for safe and efficient shearing. Q: Can this comb be sharpened? A: Yes. Professional sheep shearing combs are designed to be reground when the working surface becomes dull. Q: Does the comb require a cutter? A: Yes. The comb and reciprocating cutter work together as the cutting assembly of the shearing handpiece. Q: Can matching cutters be supplied? A: Yes. Compatible cutters and complete comb-and-cutter sets are available upon request. Q: Can different widths or bevels be supplied? A: Yes. Short-, medium- and long-bevel configurations and different working widths can be selected according to wool type and project requirements.
