Spreader Loading Manure Auger

Published: 2026-09-27 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Spreader Loading Manure Auger
Product Image

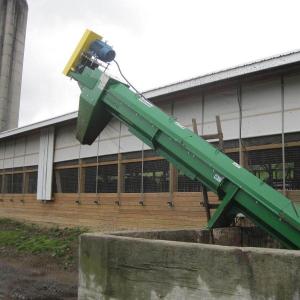

spreader loading manure auger installed at reception pit
Product Overview The Spreader Loading Manure Auger is an inclined screw conveyor for lifting thick manure from a reception pit to a manure spreader or other designated loading point. It is particularly relevant where sand-laden manure is difficult to handle with a conventional centrifugal pump. The intake position, discharge height and drive arrangement are selected to match the farm's pit and vehicle layout.
Key Features
  • Rotating screw flighting lifts manure directly from the reception pit to the spreader loading position.
  • Heavy-duty flighting and replaceable wear protection can be specified for abrasive material.
  • An enclosed support housing guides the material and shields the rotating screw.
  • Electric, hydraulic or PTO drive arrangements may be considered according to site power availability.
  • The layout can reduce repeated loader movements between the pit and spreader.
Structural Components A typical assembly includes a screw shaft with welded flighting, support housing, lower and upper bearing assemblies, drive unit, wear liners, mounting supports and discharge outlet. Bearing protection and liner materials should be selected for the manure's moisture, sand content and expected duty cycle.
Working Principle The lower end of the auger receives manure in the reception pit. As the drive rotates the screw shaft, its flighting advances material up the inclined housing. Manure exits above the parked spreader for loading. The feed condition, screw speed and discharge arrangement influence the actual loading rate.
Technical Specifications
  • Auger diameter and length: According to project requirements.
  • Inclination and discharge height: Customizable for the pit and spreader position.
  • Drive type: Electric, hydraulic or PTO configuration available upon request.
  • Flighting and liner specification: Selected for material abrasiveness and operating conditions.
  • Loading capacity and motor rating: Confirmed after material and layout assessment.
Applications Used for loading thick, sand-laden dairy manure and suitable dewatered manure solids into spreaders. It may also be considered for commercial pig farm manure after confirming moisture content, solids characteristics and the receiving vehicle. The auger can form part of a wider livestock manure conveying and land application system.
Customization Options The intake arrangement, auger length, support structure, drive position, wear components and outlet can be designed according to local climate and farm conditions. For new steel structure livestock buildings, coordinate pit construction and vehicle access with the overall site plan. Existing pits require dimensional and structural assessment.
Installation & Maintenance Check that the intake reaches the intended pit level and that the outlet clears the highest planned spreader. Confirm foundation and wall supports, access for bearing service, guarding and safe vehicle positioning before commissioning. Inspect flighting and liners for wear, maintain bearing lubrication and service the drive according to its operating instructions.
Product FAQ

Can it handle sand-laden manure?
Yes, a spreader loading auger can be configured for abrasive, sand-laden material. Flighting, liners and bearing protection should be specified for that duty.

Can it load different spreader sizes?
The discharge height and vehicle position can be planned around the intended spreaders, subject to the site's available clearance.

What information is needed for a quotation?
Provide pit dimensions, manure characteristics, required loading height, spreader dimensions, available power and expected operating schedule.
Product Gallery
inclined manure auger loading a farm spreader
spreader loading manure auger and reception pit installation

Comments & Inquiries

Leave your questions or requirements below. We will reply as soon as possible.

Related Products

Spreader Loading Manure Auger - SHEWUYOU Livestock Equipment

Spreader Loading Manure Auger

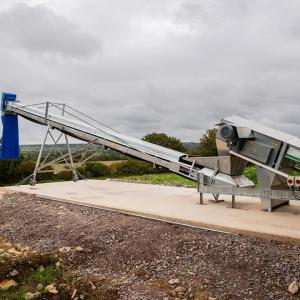

Inclined Manure Booster Conveyor - SHEWUYOU Livestock Equipment
