Manure Solids Stacking Auger

Published: 2026-09-27 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Manure Solids Stacking Auger
Product Image Manure solids stacking auger screw conveyor
Product Overview The Manure Solids Stacking Auger transfers separated, dewatered manure away from a solid-liquid separator and deposits it at a planned stockpiling point. Its rotating screw moves material through a supported trough, allowing the discharge to be positioned beyond the separator for easier collection and storage. The layout can be incorporated into dairy manure systems and suitable commercial pig farm waste treatment projects.
Key Features
  • Continuous transfer of separated manure solids from the processing outlet to a stockpile.
  • Inclined or extended layout to place solids away from the separator and its service area.
  • U-trough construction provides a defined material path and access for inspection.
  • Drive, flighting, bearings and wear components can be specified for the material handled.
  • Multiple auger sections or transfer stages can be planned where the site requires a longer route or change in direction.
Structural Components A typical stacking auger consists of a screw shaft with helical flighting, U-shaped trough, drive and gear reducer, end supports, bearings, inlet, discharge outlet and support legs or structural mounts. Covers or safety grates and service access are specified according to the installation. Material and wear-part choices depend on moisture, abrasiveness and expected operating duty.
Working Principle Dewatered solids enter the trough beneath or after the separator discharge. The drive rotates the screw, and its flighting advances the material along the trough to the outlet. Material falls onto a designated concrete storage pad, into a container or onto another compatible conveying stage. The auger should be matched to the separator output to avoid material buildup at the inlet.
Technical Specifications
  • Equipment type: trough-mounted screw conveyor for stackable solids
  • Typical feed: separated or dewatered manure solids
  • Auger diameter, length and inclination: according to project requirements
  • Trough and flighting materials: selected for operating conditions; available upon request
  • Drive rating, conveying capacity and electrical supply: confirmed after material and layout review
  • Supports, covers and discharge arrangement: customizable
Applications Dairy manure fiber separation, commercial pig farm solid-liquid separation, compost feedstock handling and transfer of other suitably dewatered livestock waste. Suitability for sand-laden or highly abrasive material requires appropriate wear-component selection. This equipment is intended to stack conveyable solids; raw dilute slurry requires a different handling system.
Customization Options Screw size, trough length, incline, discharge position, support height, drive configuration and construction materials can be designed according to project requirements. For steel structure farm buildings, confirm wall openings, column locations, maintenance clearances and the outside stockpile area when setting the equipment route.
Installation & Maintenance Install the inlet beneath the separator's solids outlet and secure the trough to engineered supports. Check alignment, rotation direction, clearances, guarding and discharge position before loading. During service, isolate the drive before opening covers, remove accumulated material, and inspect flighting, bearings, seals and trough surfaces for wear. Keep the stockpile from obstructing the discharge.
Product FAQ

Does this auger separate solids from liquid?
No. It receives solids from a separate dewatering or separation process and moves them to a stacking point.

Can it handle pig manure solids?
Yes, when the separated material is sufficiently conveyable and the auger is selected for its moisture content, particle size and output rate.

What information is needed for selection?
Provide the separator model and solids output, material condition, required route, discharge height, stockpile layout and site electrical supply.
Product Gallery

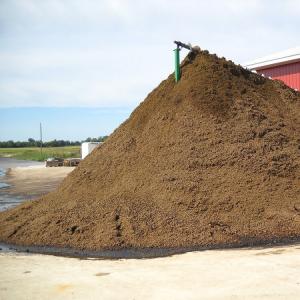

Installed manure solids stacking auger at a farm

Manure screw conveyors for farm solids handling
``` :chatgpt-content-reference{index="0"}

Comments & Inquiries

Leave your questions or requirements below. We will reply as soon as possible.

Related Products

Spreader Loading Manure Auger - SHEWUYOU Livestock Equipment

Spreader Loading Manure Auger

Inclined Manure Booster Conveyor - SHEWUYOU Livestock Equipment

Inclined Manure Booster Conveyor

Manure Solids Stacking Auger - SHEWUYOU Livestock Equipment

Manure Solids Stacking Auger

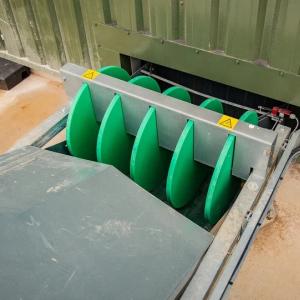

Floor-Mounted Cross Manure Conveyor - SHEWUYOU Livestock Equipment

Floor-Mounted Cross Manure Conveyor

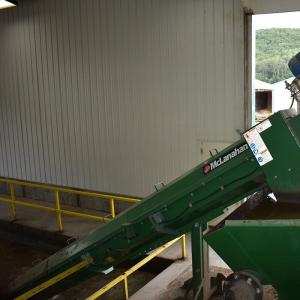

Inclined Manure Auger Conveyor - SHEWUYOU Livestock Equipment
