| Product Showcase | Content |
|---|---|
| Product Name | Digital Shear Beam Load Cell |
| Product Image |

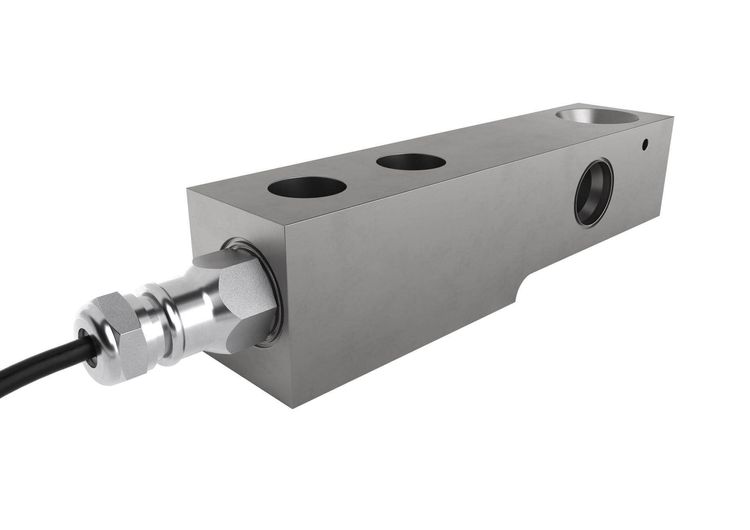

Reference image of a beam-type load cell. The supplied digital model and its interface must be confirmed. |
| Product Overview | The Digital Shear Beam Load Cell is designed for integration into electronic weighing equipment used on livestock farms and in agricultural facilities. Its beam sensing element measures the applied load, while digital electronics process the signal for transmission to a compatible controller. With properly selected mounts, it can support animal weighing platforms, feed hoppers, and multi-point silo weighing systems. The capacity and digital interface are specified for the complete project. |
| Key Features |
|
| Structural Components | A typical digital beam load cell includes a machined metal sensing body, bonded strain gauges, internal signal-processing electronics, mounting holes, a defined load introduction point, and a protected output cable or connector. The weighing assembly may also require a mounting base, load button or adapter, mechanical restraints, and a compatible controller. Exact construction depends on the selected model. |
| Working Principle | The applied weight causes a small, controlled deformation in the beam. Strain gauges convert this deformation into an electrical signal. In a digital version, embedded electronics convert and process the measurement before transmitting data through the specified digital interface. The connected weighing controller combines sensor readings where necessary and displays the calibrated weight. |
| Technical Specifications |
Final accuracy, capacity, communication functions, and approvals must be verified against the supplied model's datasheet. |
| Applications | Pig weighing platforms, livestock handling scales, feed hoppers, and feed storage weighing systems. In pig farm construction projects, sensors can be integrated beneath a correctly engineered scale deck or storage support within a steel structure building. Outdoor installations require suitable environmental protection and structural mounting. |
| Customization Options | Capacity, mounting hardware, cable or connector arrangement, controller compatibility, and data interface can be specified according to project requirements. The complete weighing assembly can be designed according to local climate and farm conditions, including moisture, dust, cleaning procedures, and installation space. |
| Installation & Maintenance | Install the sensor on a flat, rigid support and introduce the load at the specified point. Check that the scale frame does not bind against adjacent steelwork or transfer weight around the sensor. Protect the cable from animals, cleaning equipment, sharp edges, and power wiring. Connect it only to a controller compatible with the selected digital protocol, then configure and calibrate the complete system. Inspect mounts, restraints, cable seals, and weighing performance during routine maintenance. |
| Product FAQ |
Can it connect directly to any weighing indicator? Can several sensors be used under one livestock platform? Is it suitable for outdoor feed silos? What information is needed for selection? |
| Product Gallery |

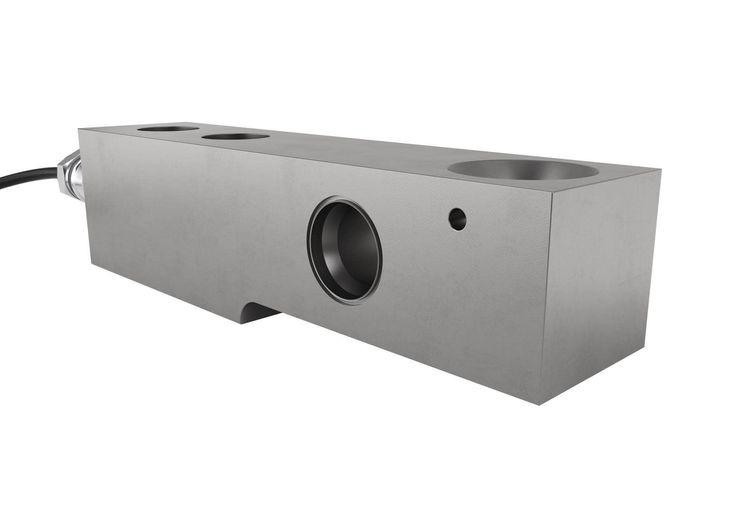

Images illustrate the referenced beam load cell design; they do not identify a confirmed SHEWUYOU model or installation. |
