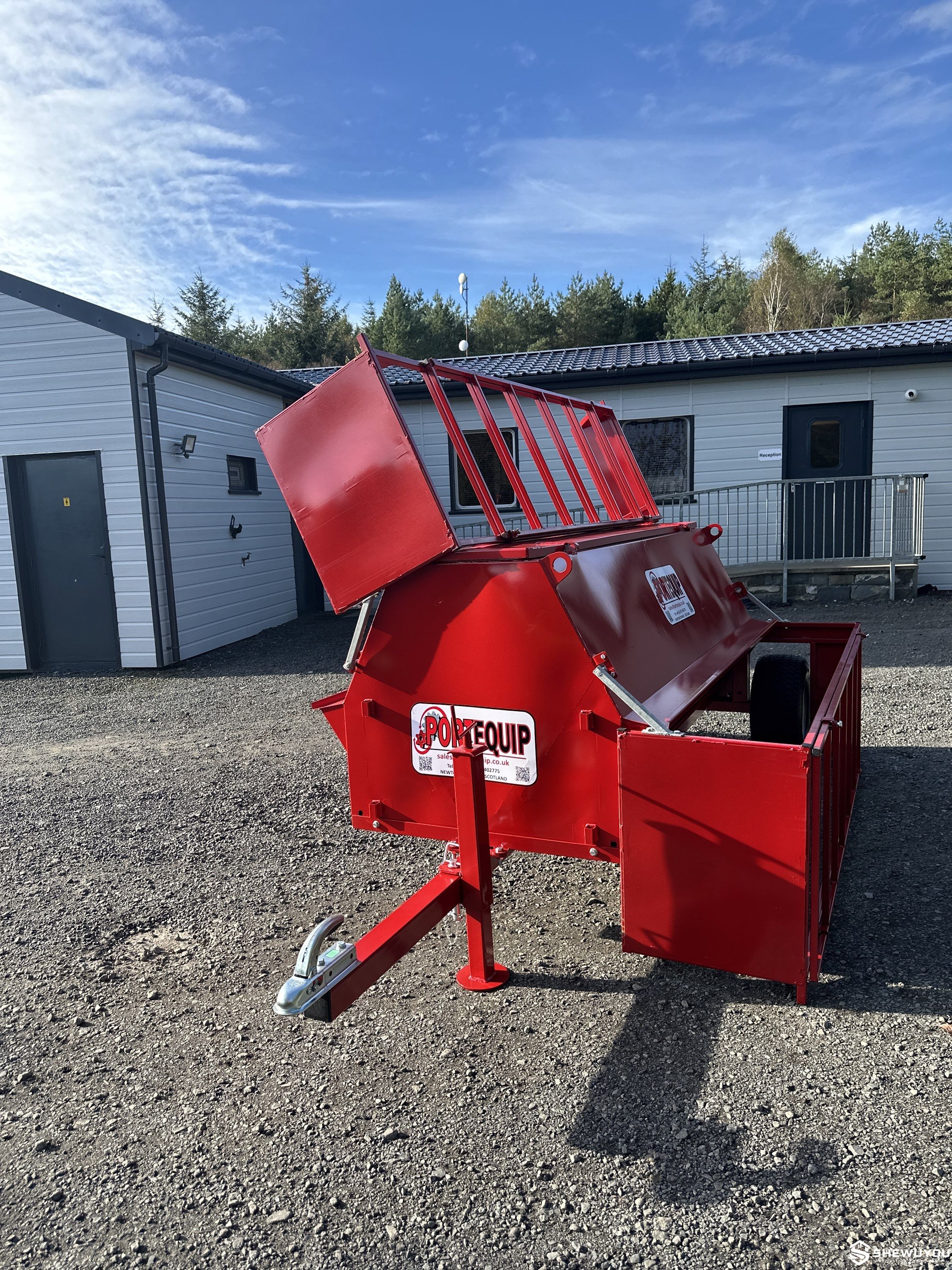

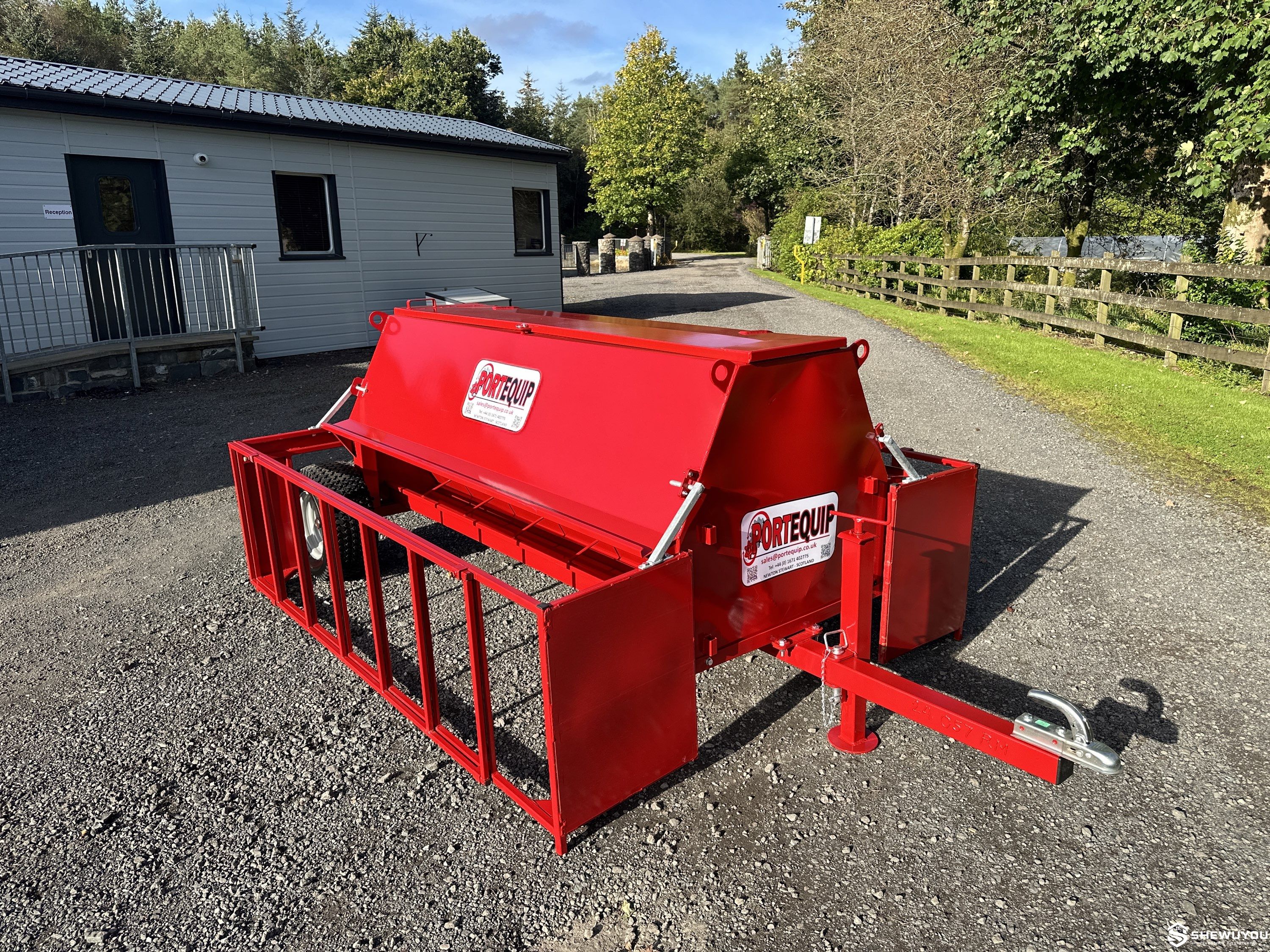

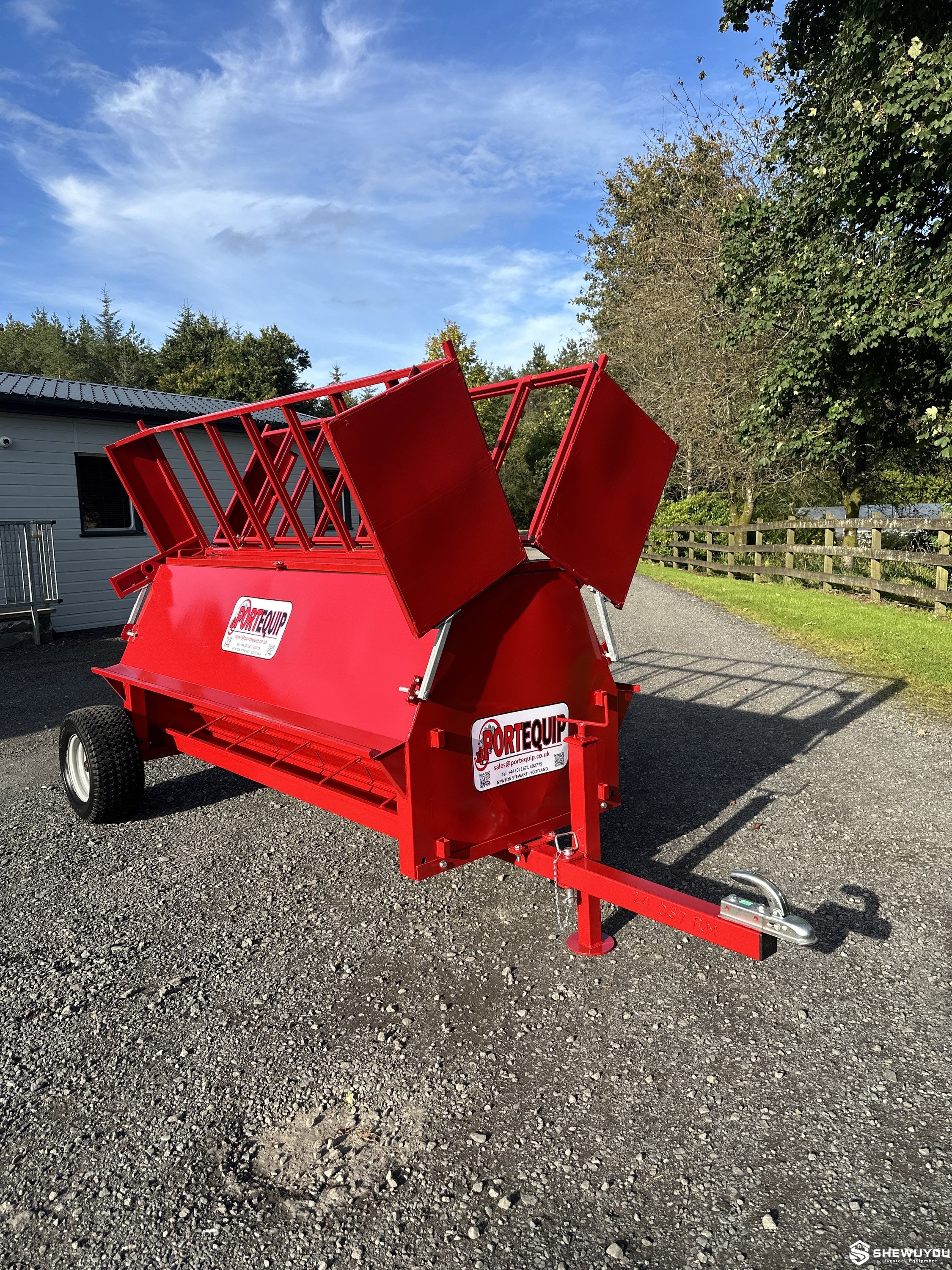

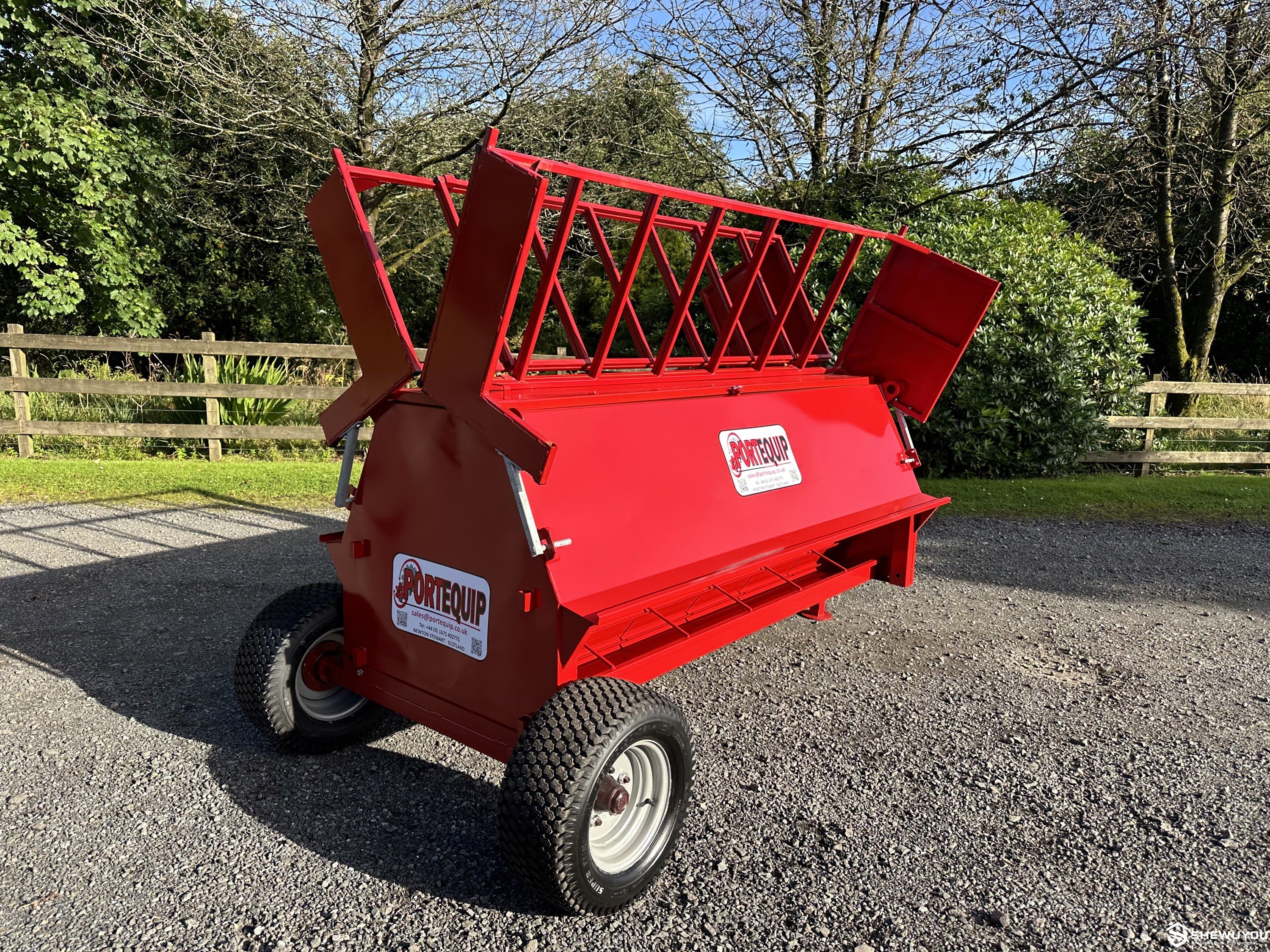

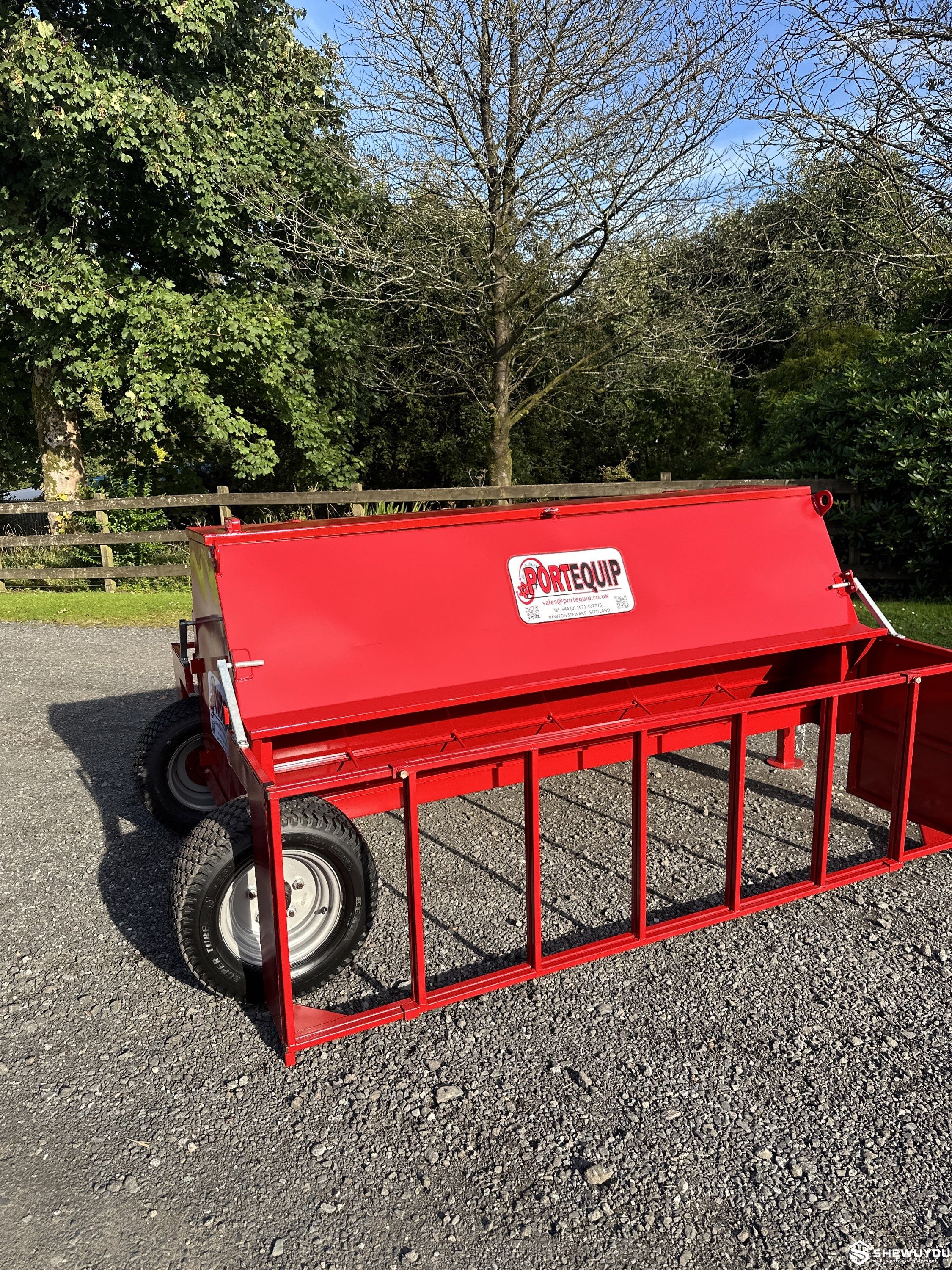

600kg Mobile Lamb Creep Feeder

The 600kg Mobile Lamb Creep Feeder is a high-capacity livestock feeding unit developed for commercial goat-farming-equipment/" target="_blank" class="keylink">sheep farms, pasture-based lamb production, breeding operations and agricultural projects requiring efficient mobile feed distribution.

The feeder combines a robust steel hopper, protected feeding area, adjustable feed-flow mechanism and mobile chassis in one integrated structure. Its creep-gate arrangement helps provide lambs with controlled access to concentrate feed, while the gates can also be configured for more open feeding applications when required. The mobile design allows the feeder to be repositioned between paddocks, pens and livestock management areas according to feeding plans and grazing rotation.

• Approx. 600 kg Hopper Capacity: Suitable for medium and large lamb groups where reduced refilling frequency is desirable.
• Mobile Configuration: Equipped for relocation between feeding areas, helping improve labor efficiency on pasture-based and commercial livestock farms.
• Top-Fill Hopper: Large upper access makes routine filling straightforward with appropriate farm feed-handling equipment.
• Adjustable Feed Flow: Internal slide mechanism allows the discharge rate to be regulated according to feed type and consumption requirements.

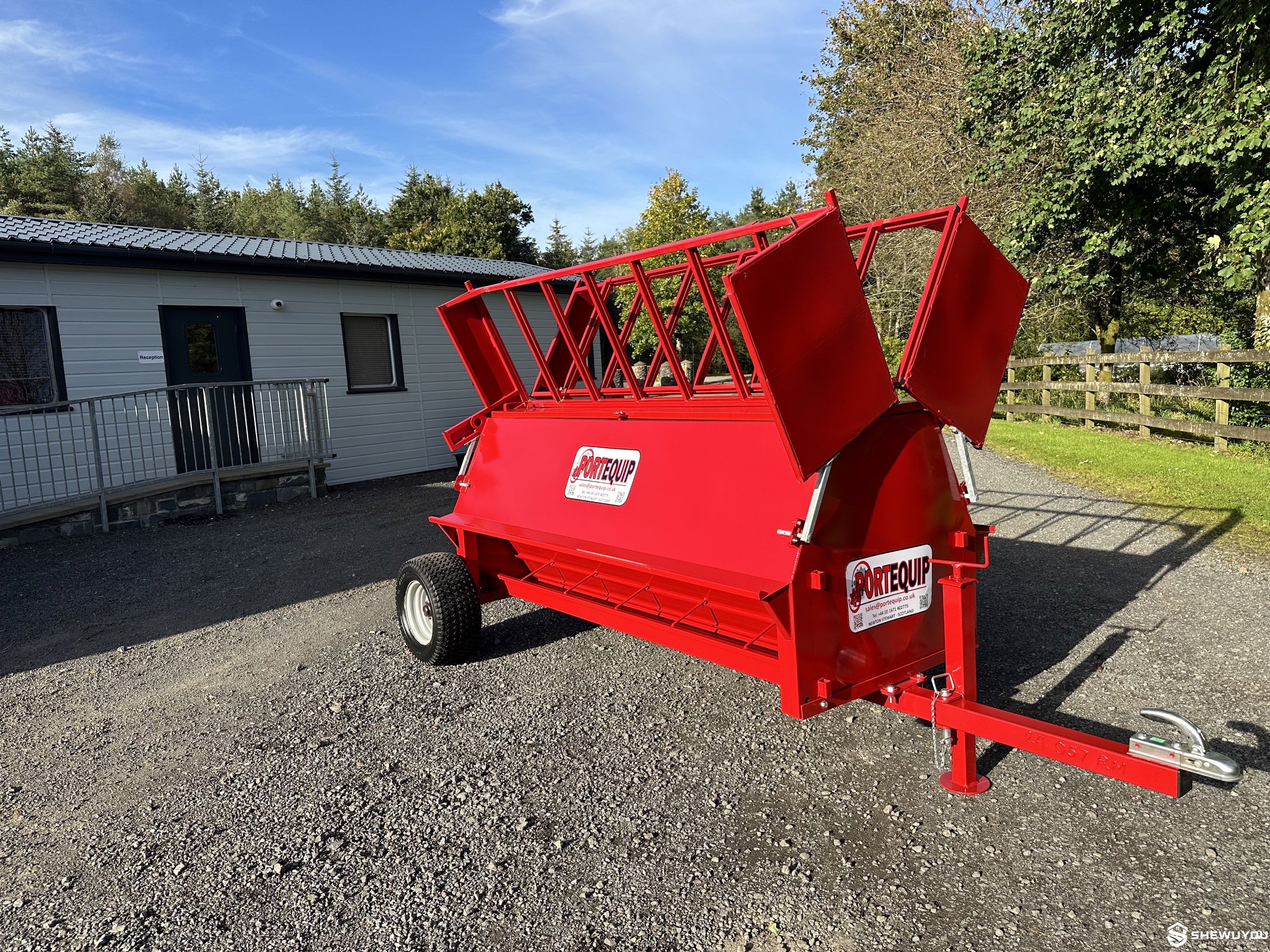

• Creep Feeding Access: Protective creep gates help restrict larger animals and create a dedicated feeding area for lambs.
• Convertible Feeding Arrangement: Creep-gate sections can be folded or configured according to feeding and transport requirements.
• Heavy-Duty Construction: Structural steel fabrication is suitable for demanding livestock environments and repeated seasonal use.
• Weather Protection: Covered hopper construction helps protect concentrate feed from direct exposure to rain and contamination.
• Project Customization: Dimensions, steel thickness, surface treatment, hitch arrangement and feeding configuration can be designed according to project requirements.

• Feed Hopper: High-capacity steel storage body for pellets, concentrates or other suitable dry livestock feed.
• Top Filling Lid: Hinged or opening cover providing convenient hopper access while helping protect stored feed.
• Feed Trough: Long feeding section designed to distribute feed along the accessible feeding edge.
• Internal Flow Slide: Adjustable mechanism used to regulate feed movement from the hopper into the trough.

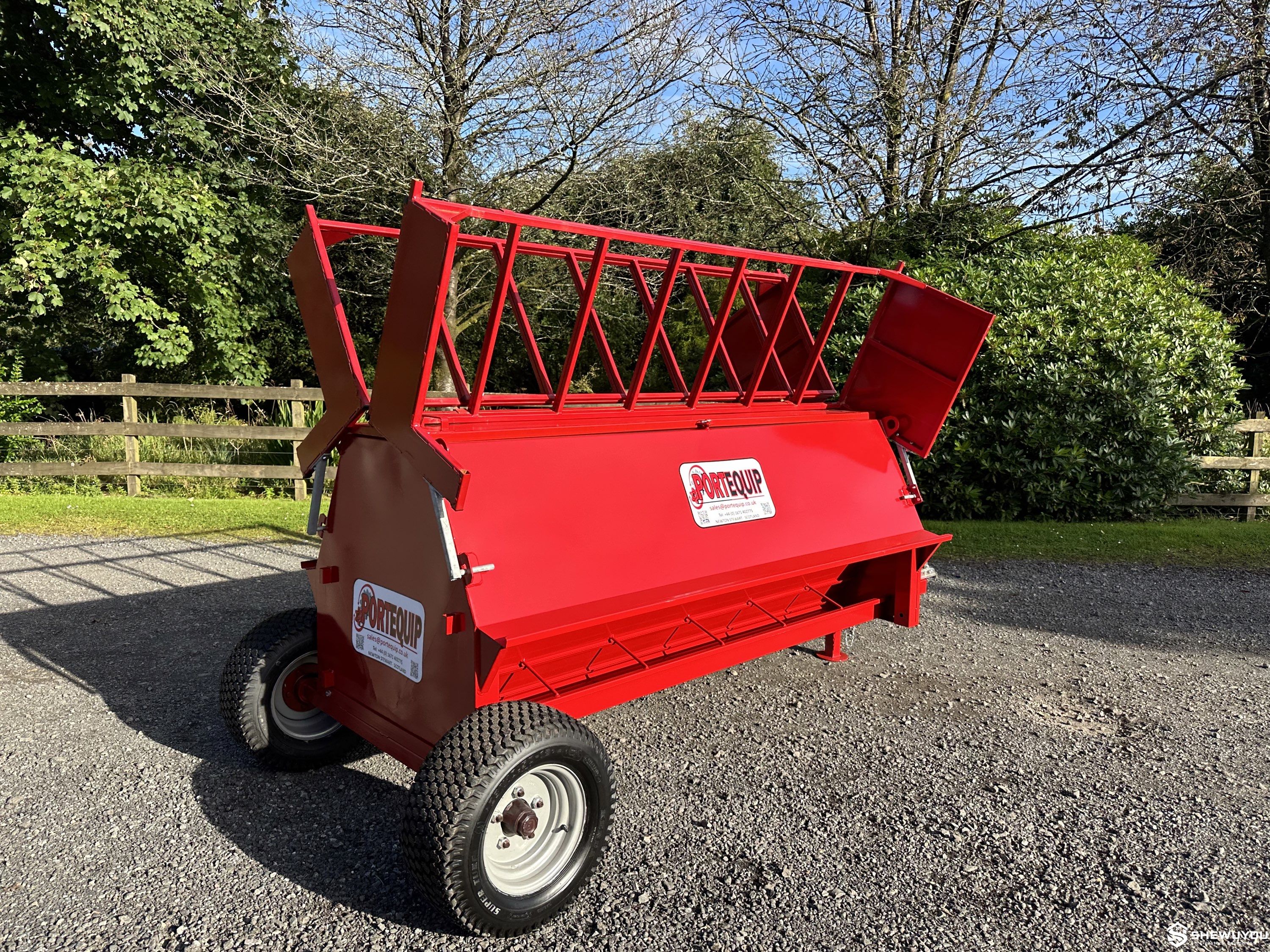

• Creep Gate Assembly: Steel access barrier designed to allow smaller lambs into the feeding zone while limiting access by larger animals.
• Mobile Chassis: Reinforced frame supporting the hopper, feeding assembly and running gear.
• Wheel Assembly: Agricultural wheels provide mobility across suitable farm tracks and field surfaces.
• Towing Connection: Hitch configuration can be supplied according to the farm vehicle and project requirements.
• Support and Reinforcement Members: Structural steel sections improve rigidity under feed loads and routine field operation.

Dry concentrate feed is loaded through the upper hopper opening and stored inside the main steel body. Gravity transfers the feed toward the lower feeding outlet, where an internal adjustable slide controls the quantity entering the trough.

During creep feeding, the gate assembly creates a restricted-access feeding area. The opening arrangement can be selected according to lamb size and farm management requirements, helping reduce unwanted access by larger sheep.

For relocation, the feeding assembly is secured in its transport configuration and the unit is moved using an appropriate farm vehicle. Towing speed, vehicle selection and operating procedures should always comply with the finished feeder configuration, site conditions and local farm safety requirements.

• Commercial lamb production farms
• Sheep breeding and finishing operations
• Pasture-based creep feeding systems
• Rotational grazing projects
• Livestock houses and outdoor holding areas
• Steel structure livestock buildings with integrated feeding zones
• Agricultural engineering and livestock equipment projects
• Large farms requiring movable feeding points
• Dealer and distributor livestock equipment programs

SHEWUYOU can adapt the mobile creep feeder to individual farm layouts, livestock management systems and agricultural engineering projects. Available customization options may include:

• Hopper dimensions and feed capacity
• Overall feeder length and feeding space
• Creep-gate spacing and access configuration
• Steel plate and structural section specifications
• Corrosion-resistant surface treatment
• Wheel and axle configuration
• Towing hitch configuration
• Feed-flow adjustment mechanism
• Protective hopper cover and rain shielding
• Farm branding, identification plates and OEM requirements
• Export packing and container-loading configuration

Final specifications can be designed according to local climate, farm conditions, feeding practices and project requirements.

Installation: Position the feeder on firm, reasonably level ground with sufficient clearance for livestock access, filling equipment and towing operations. Confirm that the wheel, axle, hitch, gate and feed-control assemblies are properly secured before use.

Feed Adjustment: Set the internal slide according to the concentrate type, desired feed availability and livestock consumption. Adjust gradually to minimize excessive discharge and feed waste.

Routine Cleaning: Remove old or damp feed from the trough and hopper as required. Keep feed-contact areas clean and dry to maintain feed quality.

Structural Inspection: Regularly check hinges, fasteners, welds, gates, wheels, bearings, hitch components and structural members, particularly after transport or prolonged outdoor use.

Seasonal Storage: Clean and dry the feeder before extended storage. Where possible, park it on a drained surface and protect exposed moving components according to the maintenance plan.

Q: What is the hopper capacity of this mobile lamb creep feeder?
A: The standard product configuration is designed around an approximately 600 kg hopper capacity. Other capacities can be supplied according to project requirements.

Q: How is feed flow controlled?
A: Feed moves from the hopper toward the trough by gravity, while an internal adjustable slide allows the operator to regulate the discharge rate.

Q: Can the feeder be moved between paddocks?
A: Yes. The unit is designed as a mobile feeder with wheels and a towing arrangement. The suitable towing vehicle and operating procedure should be selected according to feeder loading, field conditions and the final product configuration.

Q: What is the purpose of the creep gates?
A: The creep-gate system creates a protected feeding zone intended to give lambs access to concentrate feed while helping limit access by larger animals.

Q: Can the creep gates be configured for transport?
A: Yes. A folding gate arrangement can be used to make the feeder more practical for transport and repositioning.

Q: Can the feeder be customized for different countries or farm projects?
A: Yes. Structural dimensions, material specifications, surface treatment, gate spacing, wheel configuration and hitch arrangement can be customized according to project requirements.

Q: Is this feeder suitable for permanent outdoor use?
A: It is designed for demanding livestock environments. Material grade, corrosion protection and weather-resistant details can be selected according to local climate and farm conditions.
