Adjustable Lamb Creep Feeder

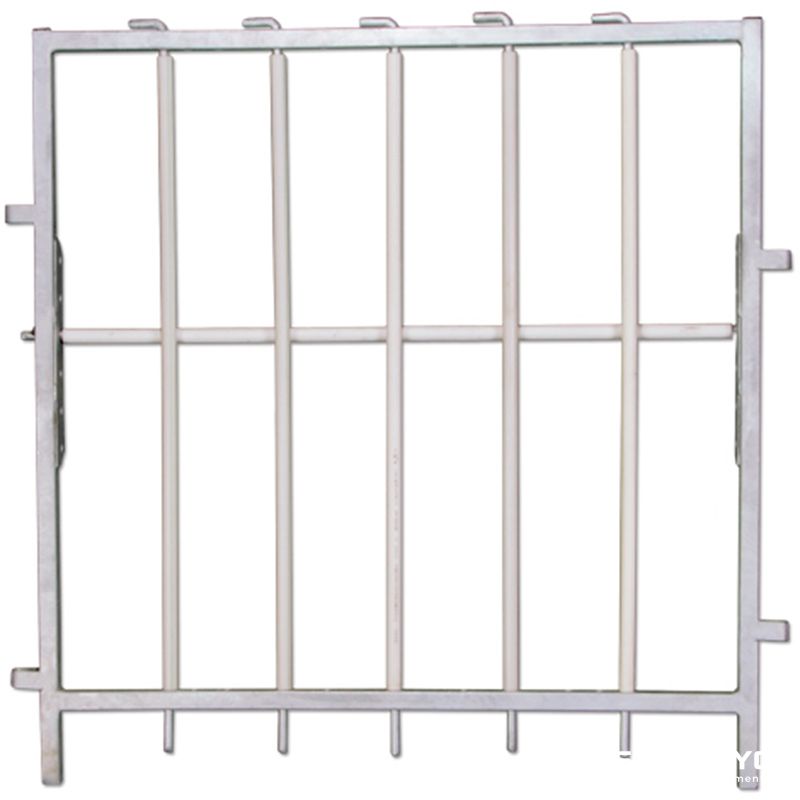

The Adjustable Lamb Creep Feeder is a selective-access livestock feeding gate designed to create a dedicated creep feeding area for lambs and goat kids. It allows young animals to reach supplemental feed while helping restrict larger sheep or goats from entering the feeding zone.

The system uses adjustable internal vertical rods and a horizontal bar to change the effective passage opening. This configuration can accommodate different livestock sizes and can be readjusted as lambs grow. Commercial creep feeder gates use multiple adjustment positions for both vertical and horizontal members. PPremier1Supplies

A rigid steel perimeter frame, modular connection points, and corrosion-resistant surface treatment make the feeder suitable for integration with livestock panels, fencing, lambing pens, creep feeding areas, and agricultural steel structures.

• Adjustable access opening accommodates lambs and kids at different growth stages.
• Both vertical and horizontal internal members can be repositioned according to livestock size.
• Selective access helps reduce competition from mature sheep and goats during supplemental feeding.
• Smooth plastic rollers can be fitted around selected rods to facilitate animal movement through the opening.
• Hot-dip galvanized or specified corrosion-resistant construction is suitable for demanding livestock environments.
• Rigid steel perimeter frame provides structural stability during routine livestock movement.
• Modular eye-loop or lug connections simplify integration with compatible livestock panels and gates.
• Suitable for permanent barn installations as well as temporary or pasture-based creep feeding systems.
• Dimensions, rail spacing, opening configuration, steel specification, and connection details are customizable according to project requirements.

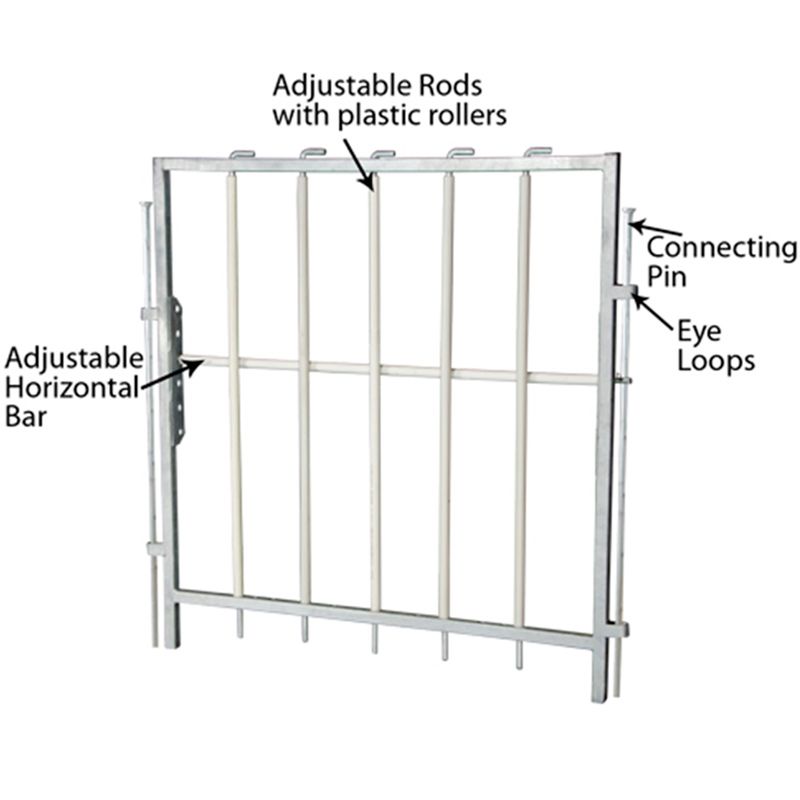

• Perimeter Steel Frame: Forms the main structural body and maintains rigidity under normal livestock handling conditions.
• Adjustable Vertical Rods: Create the selective passage openings and can be repositioned to suit different lamb or kid sizes.
• Adjustable Horizontal Bar: Provides additional control over the vertical clearance of the creep opening.
• Plastic Rollers: Optional rollers around rods can provide smoother passage for young animals.
• Adjustment Holes or Brackets: Provide multiple positioning points for gradual changes to the access opening.
• Eye Loops / Connection Lugs: Provide attachment points for connecting the creep feeder to livestock panels, gates, or fencing systems.
• Connecting Pins: Enable modular assembly and convenient removal or relocation of the feeder gate.
• Protective Surface Treatment: Hot-dip galvanizing or another specified finish can be selected according to local climate and farm conditions.

The feeder functions as an adjustable livestock access barrier. Vertical rods and a horizontal bar form a controlled passage through which smaller lambs or goat kids can enter the creep feeding area, while the reduced opening discourages mature animals from entering.

The vertical rods can be repositioned in different mounting holes, while the horizontal bar can be moved between preset height positions. This allows the access geometry to be changed as the animals develop. The reference commercial design provides multiple vertical rod positions and several horizontal bar height settings. PPremier1Supplies

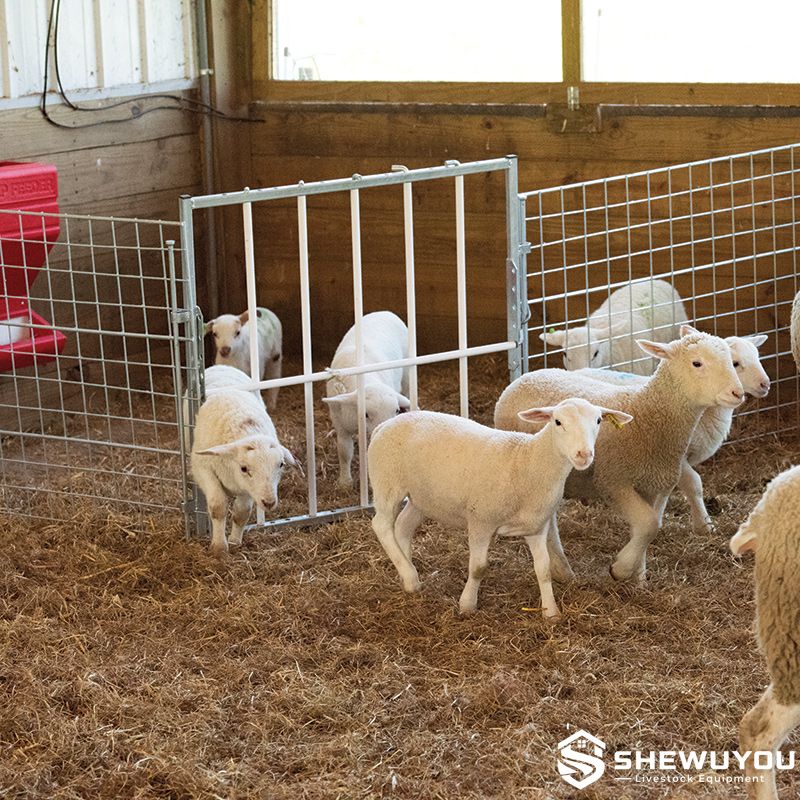

When connected to livestock panels surrounding a creep area and combined with a self-feeder or grain feeder, the unit creates a dedicated young-stock feeding station that supports controlled supplemental feeding and more efficient feed management.

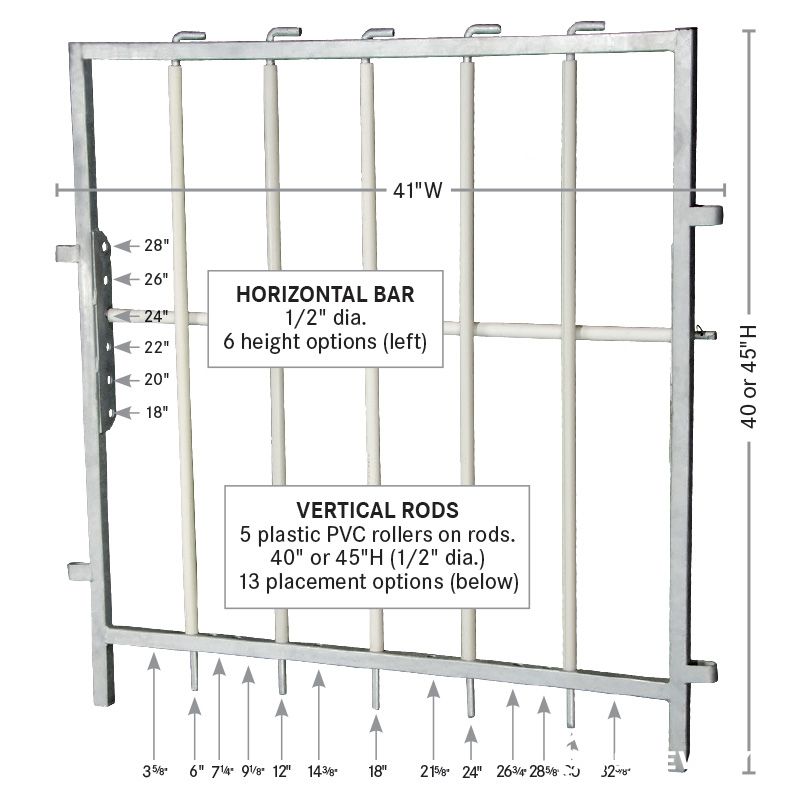

Reference commercial designs include 40-inch and 45-inch height versions, a 41-inch overall width, five adjustable vertical rods, and multiple adjustment positions. These figures are provided as industry reference only; final dimensions and structural specifications should be confirmed according to the actual project requirements. PPremier1Supplies

• Commercial sheep and lamb production facilities.
• Lambing barns, nursery pens, and young-stock housing areas.
• Dedicated creep feeding zones for lambs and goat kids.
• Sheep and goat breeding farms requiring selective supplemental feeding.

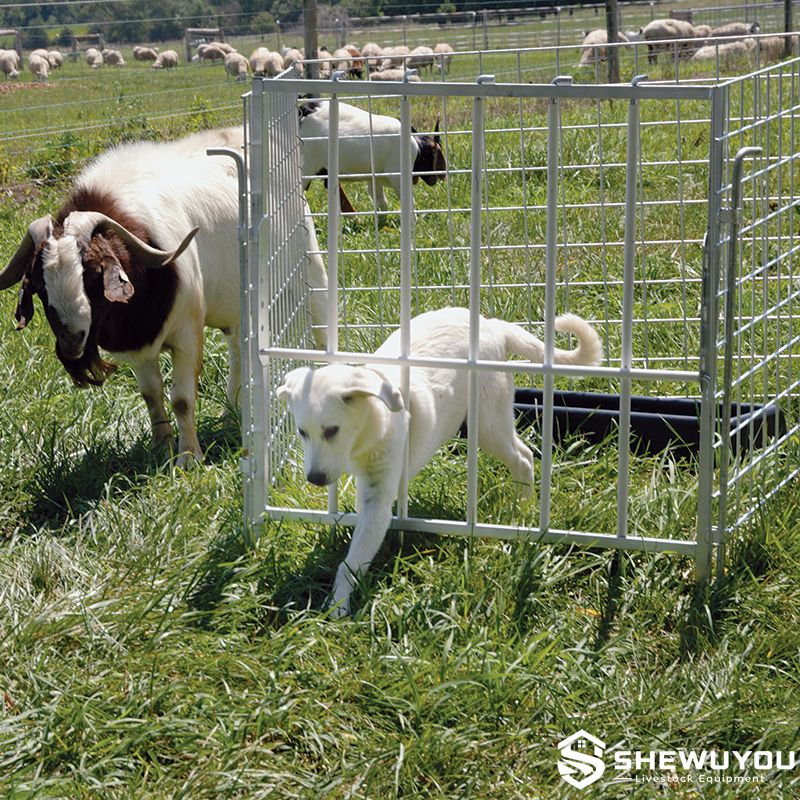

• Pasture-based creep feeding systems and outdoor livestock enclosures.
• Livestock corrals, handling systems, sorting areas, and holding pens.
• Integration with self-feeders, grain feeders, feed troughs, livestock panels, and fencing systems.
• New agricultural building construction and existing livestock facility upgrades.
• Modular livestock equipment systems for farms, ranches, research facilities, and agricultural projects.
• OEM, distributor, dealer, and engineering procurement programs.

The Adjustable Lamb Creep Feeder can be engineered to match the livestock housing layout, animal size, feeding strategy, and supporting panel system of a specific project.

• Overall panel width and height: Customizable.
• Creep opening width and height: According to livestock size and management requirements.
• Vertical rod quantity and spacing: Customizable.
• Horizontal bar adjustment positions: Available upon request.
• Roller quantity, material, and configuration: Customizable.
• Steel tube diameter and material thickness: According to structural requirements.
• Connection lugs, eye loops, pins, and hinge details: Designed to match compatible livestock panels.
• Surface treatment: Designed according to local climate and farm conditions.
• Custom interfaces for feeders, gates, fencing, and livestock building structures: Available upon request.
• Export packaging and assembly configuration: According to project requirements.

Installation: Position the creep feeder gate between the main livestock area and the dedicated creep feeding zone. Align the connection points with compatible livestock panels, gates, posts, or structural supports.

Connection: Secure the gate using suitable connecting pins, bolts, hinges, or project-specific hardware. Commercial designs commonly use eye loops and connecting pins for attachment to livestock panels. PPremier1Supplies

Opening Adjustment: Set the vertical rods and horizontal bar according to the size of the lambs or kids. Recheck the opening as the young animals grow and adjust progressively when required.

Safety Check: Confirm that all rods, adjustment clips, pins, rollers, and frame connections are properly secured before allowing livestock to use the creep area.

Cleaning: Remove bedding, manure, feed residue, and accumulated debris around the feeder gate as part of routine livestock hygiene management.

Inspection: Periodically inspect welds, adjustment holes, rollers, connection points, fasteners, and galvanized surfaces. Repair or replace damaged components before continued operation.

Q: What is an Adjustable Lamb Creep Feeder?
A: It is an adjustable access gate or panel used to create a controlled entrance to a creep feeding area for lambs and goat kids while helping keep mature livestock outside.

Q: Why is the opening adjustable?
A: Lambs grow rapidly, so adjustable vertical and horizontal members allow the passage to be changed for different animal sizes and growth stages. PPremier1Supplies+1

Q: Can the feeder be used for goat kids?
A: Yes. Adjustable creep feeding systems are commonly used for both lambs and goat kids. The final opening configuration should be selected according to the size of the animals being managed. SSydell, Inc+1

Q: Can rollers be included?
A: Yes. Plastic rollers can be incorporated around selected vertical rods or horizontal members to provide smoother passage for young livestock. PPremier1Supplies

Q: How is the creep feeder connected to a livestock pen?
A: It can be connected to compatible livestock panels or gates using connecting pins, eye loops, lugs, hinges, or other specified hardware. PPremier1Supplies

Q: Is galvanized steel suitable for livestock environments?
A: Hot-dip galvanized steel is a common corrosion-protection option for livestock equipment and can be specified where humid or corrosive farm conditions require enhanced durability. PPremier1Supplies

Q: Can the feeder be customized for commercial livestock projects?
A: Yes. Panel dimensions, rail spacing, opening geometry, roller configuration, material specifications, surface treatment, and connection details can be customized according to project requirements.

Q: Can it be integrated with a complete livestock building system?
A: Yes. The unit can be integrated with creep feeding panels, sheep fencing, gates, feeders, lambing pens, and steel support structures according to the project layout.
