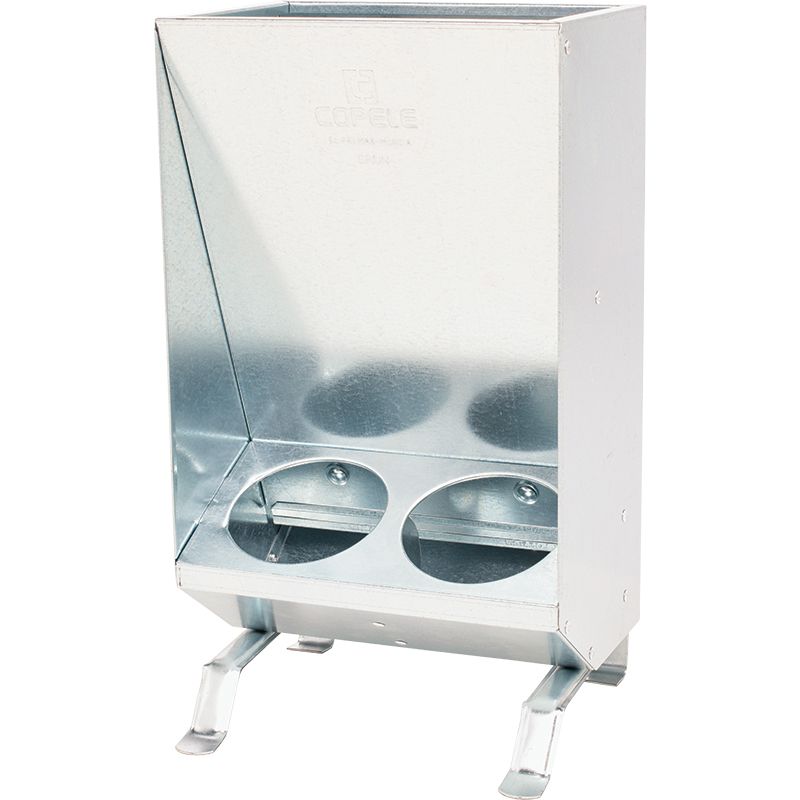

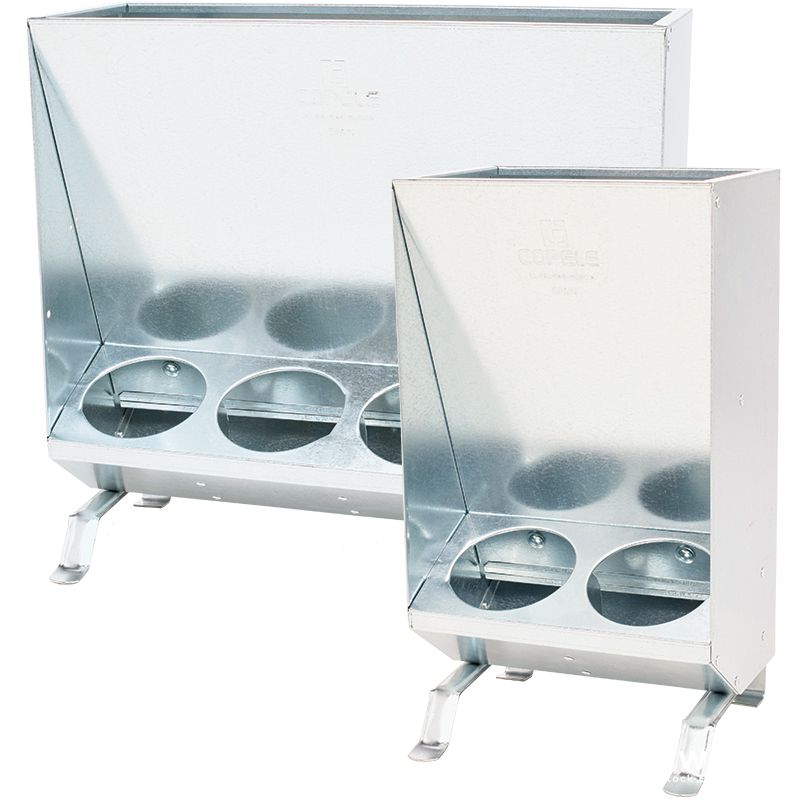

Wall Mounted Lamb Creep Feeder

The Wall Mounted Lamb Creep Feeder is a compact feeding solution for controlled delivery of dry feed to lambs and other young small ruminants. It is suitable for grain, pellets, starter rations, creep feed, loose minerals, and other appropriate dry supplements.

The wall-mounted configuration keeps the feeder off the floor, helping save pen space and providing a stable feeding station. A controlled feed outlet can be adjusted to regulate feed flow and support more consistent feed presentation. Comparable commercial grain feeders use adjustable internal baffles and pre-formed rear slots for wall installation. PPremier1Supplies

The feeder can be integrated with creep feeding panels, livestock fencing, lambing pens, gates, and steel support structures. It is suitable for new livestock building projects as well as retrofit and feeding-system upgrade applications.

• Wall-mounted design saves valuable floor space inside lambing and creep feeding pens.
• Adjustable feed-flow control helps regulate feed discharge according to feed type and management requirements.
• Durable metal construction is suitable for demanding livestock environments.
• Elevated feeding position helps keep feed away from bedding and floor contamination.
• Compact structure is suitable for confined feeding areas and modular livestock housing.
• Easy-access construction simplifies routine filling, inspection, and cleaning.
• Suitable for integration with creep panels and controlled-access livestock systems.
• Galvanized or specified protective treatment can be selected according to local climate and farm conditions.
• Dimensions, capacity, feed opening, mounting arrangement, and material specifications can be customized according to project requirements.

• Feed Hopper: Stores dry feed before it moves toward the controlled discharge area.
• Feeding Outlet: Provides the access point through which lambs obtain grain or supplemental feed.
• Adjustable Baffle: Controls the effective feed-flow opening and can be adjusted to suit different feed characteristics.
• Side Panels: Form the main feeder body and provide structural protection around the feed storage area.
• Lower Feed Tray: Supports controlled feed presentation and facilitates access by young livestock.
• Rear Mounting Slots or Brackets: Provide attachment points for secure wall installation. Comparable commercial feeders use pre-formed rear slots for this purpose. PPremier1Supplies
• Mounting Hardware: Machine screws, bolts, brackets, or project-specific fasteners can be selected according to the supporting structure.
• Protective Finish: Galvanized steel or another specified corrosion-resistant finish can be provided according to the operating environment.

Dry feed is loaded into the hopper and moves downward toward the feeding outlet by gravity. The adjustable internal baffle controls the opening through which feed is released, allowing the operator to regulate the feed flow.

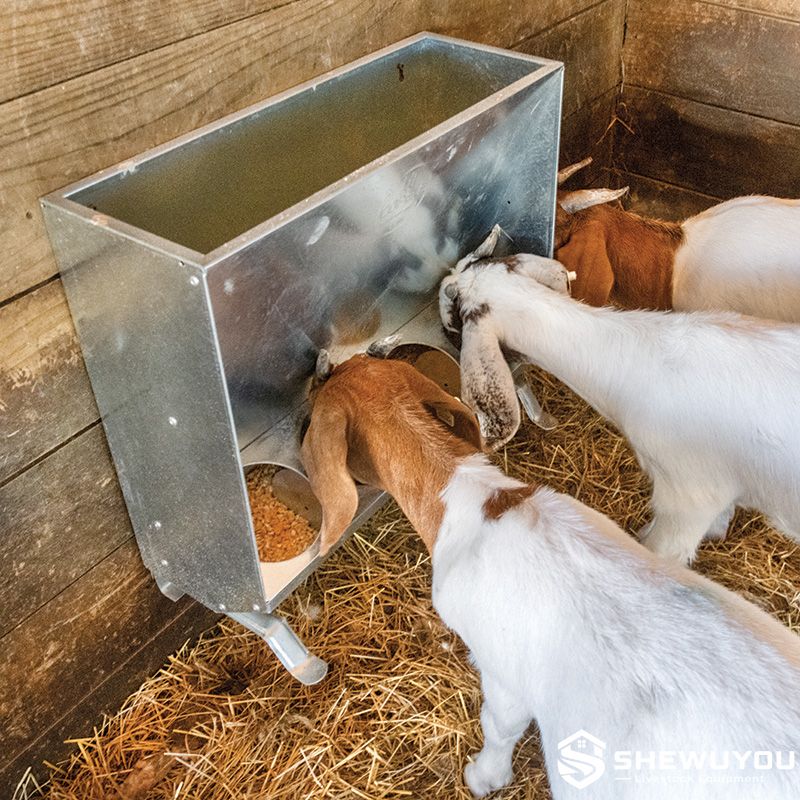

The feeder is fixed to a suitable wall, livestock panel, steel frame, or other load-bearing support. This elevated arrangement reduces the need for a separate floor support structure and keeps the feeding station organized within the pen.

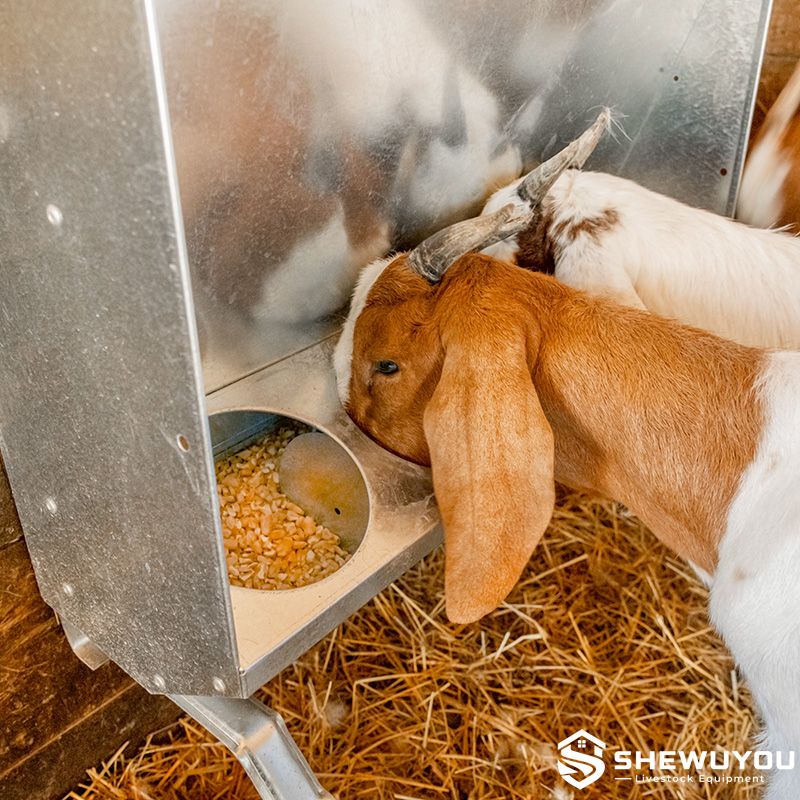

When combined with a lamb creep feeding panel or selective-access gate, the feeder can form part of a dedicated young-stock feeding station where lambs receive supplemental feed with reduced competition from mature animals.

Comparable commercial wall-mount grain feeders are available in different capacities and use adjustable feed-flow control together with rear mounting slots. Final dimensions, capacity, steel thickness, feed opening, and mounting details should be confirmed according to the actual project specification. PPremier1Supplies

• Commercial sheep and lamb production facilities.
• Lambing barns and nursery pens.
• Dedicated lamb creep feeding areas.
• Breeding farms and replacement-stock management systems.
• Sheep and goat housing facilities with limited floor space.
• Indoor livestock barns and covered agricultural structures.
• Integration with creep feeding gates, livestock panels, fencing, and feeding stations.
• Livestock facility renovation and feeding-system upgrade projects.
• Agricultural engineering projects and modular livestock building systems.
• OEM, distributor, dealer, and agricultural project procurement programs.

SHEWUYOU can customize the feeder to match the livestock housing layout, feeding capacity, mounting structure, animal size, and environmental conditions of the project.

• Overall length, width, and height: Customizable.
• Feed storage capacity: According to project requirements.
• Feed outlet size and geometry: Customizable according to livestock size and feed type.
• Internal baffle and feed-flow adjustment range: Customizable.
• Wall mounting brackets, slots, and connection points: Designed to match the supporting structure.
• Steel grade and material thickness: Available upon request.
• Galvanized or alternative protective treatment: Designed according to local climate and farm conditions.
• Interface with livestock panels, creep gates, and steel structures: Customizable.
• Packaging and assembly configuration for export projects: Available upon request.

Wall Preparation: Select a structurally sound wall, livestock panel, steel frame, or other suitable support capable of carrying the feeder and its maximum operating load.

Mounting: Align the rear mounting slots or brackets with the prepared support points and secure the feeder using the specified screws, bolts, brackets, or project-specific hardware. Comparable commercial feeders use pre-drilled rear slots for wall mounting. PPremier1Supplies

Feeding Height: Set the installation height according to lamb size and feeding behavior so young livestock can reach the feeding opening comfortably.

Feed Adjustment: Adjust the internal baffle according to feed type and required discharge rate. Verify the feed flow after initial loading.

Cleaning: Remove feed residue, dust, bedding, and other contamination from the hopper and feeding area as part of routine livestock hygiene management.

Inspection: Regularly check mounting fasteners, welds, brackets, baffle components, feed openings, and protective coating. Damaged or loose components should be repaired or replaced before continued use.

Q: What is a Wall Mounted Lamb Creep Feeder used for?
A: It provides a fixed feeding station for lambs and young livestock, allowing controlled delivery of grain, pellets, starter feed, creep feed, or mineral supplements.

Q: Why choose a wall-mounted feeder?
A: Wall mounting saves floor space, keeps the feeding station organized, and can reduce direct contact between the feeder and bedding or floor material.

Q: Can the feed flow be adjusted?
A: Yes. An adjustable internal baffle can be used to regulate the feed-flow opening according to the feed type and management requirements. PPremier1Supplies

Q: Can it be installed on a livestock panel instead of a wall?
A: Yes. A panel-mounted configuration can be designed when the existing livestock fencing or steel support structure is suitable for the feeder load.

Q: What types of feed can be used?
A: The feeder can be configured for suitable dry materials such as starter grain, pellets, creep feed, loose minerals, and other supplemental feed.

Q: Is it suitable for commercial sheep farms?
A: Yes. Its compact mounting arrangement makes it suitable for lambing barns, creep pens, breeding farms, and larger livestock housing projects.

Q: Can the feeder be customized?
A: Yes. Dimensions, capacity, feed opening, baffle configuration, mounting details, steel specifications, and surface treatment can be customized according to project requirements.

Q: Can it be integrated into a complete livestock building system?
A: Yes. The feeder can be incorporated into livestock panels, creep feeding gates, steel support structures, lambing pens, and other farm equipment according to the project layout.
