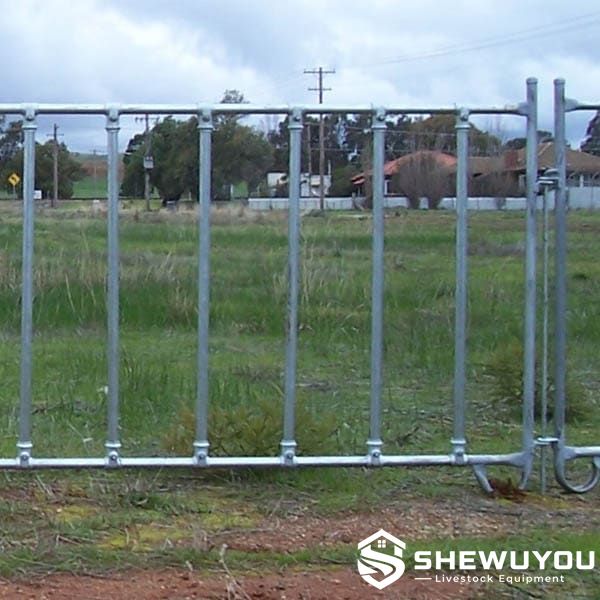

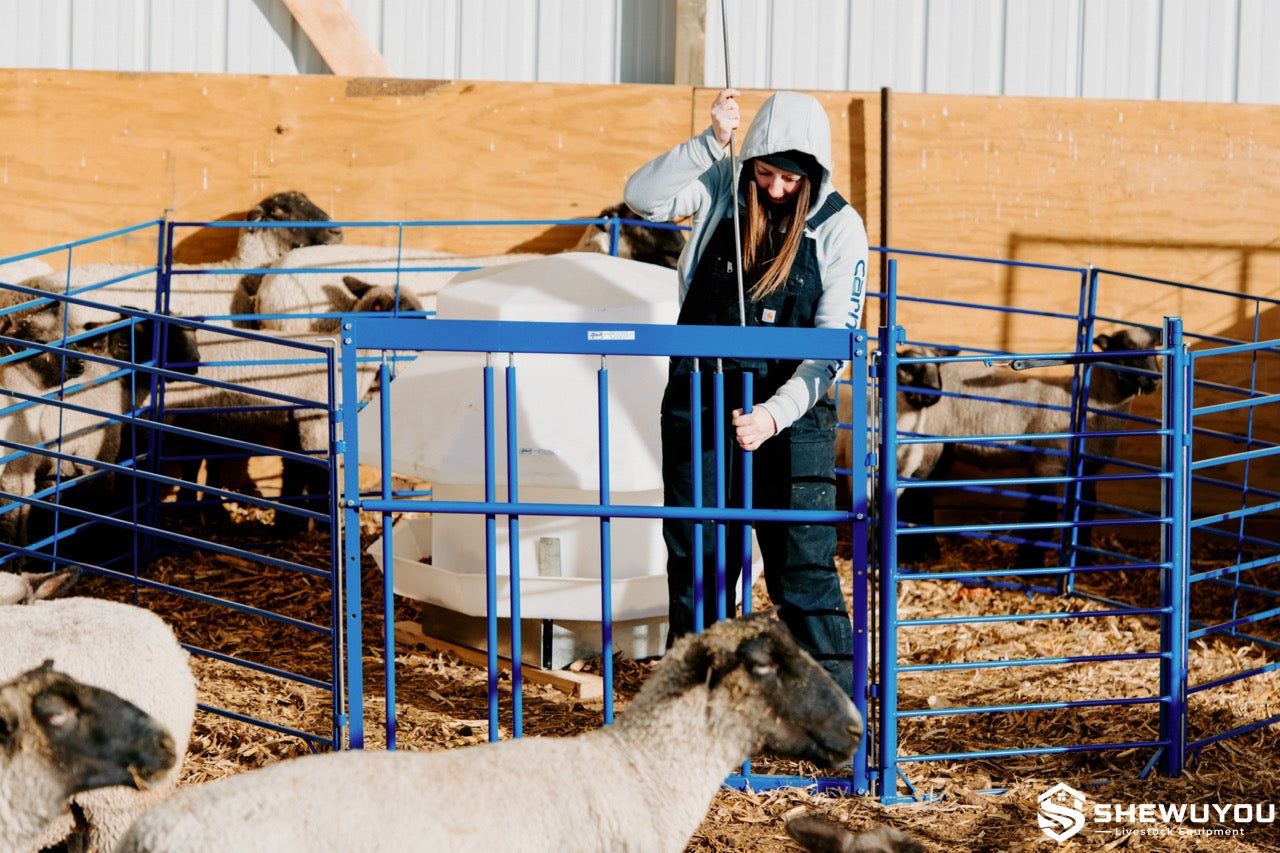

Lamb Creep Feeding Panel

The Lamb Creep Feeding Panel is a specialized livestock panel designed to separate a young-stock feeding area from the main goat-farming-equipment/" target="_blank" class="keylink">sheep or goat group. The controlled access opening allows lambs or kids to enter the creep area while helping prevent larger animals from reaching the supplemental feed.

The panel combines a rigid steel perimeter frame with adjustable internal rails. By changing the rail position and effective opening, producers can adapt the access configuration to different animal sizes and growth stages. Similar commercial creep panels use adjustable vertical rails or adjustable vertical and horizontal members for this purpose.

Designed as a modular livestock equipment component, the panel can be installed between suitable sheep panels, fencing, lambing pens, creep feeders, and other farm structures. It is suitable for both new livestock facility construction and retrofit applications.

• Creates a dedicated creep feeding entrance for lambs and young small ruminants.
• Adjustable rail spacing helps accommodate different lamb sizes and growth stages.
• Helps reduce competition between young lambs and mature sheep during supplemental feeding.
• Heavy-duty steel frame is designed for routine livestock handling and daily farm use.
• Galvanized or specified protective treatment can improve corrosion resistance in humid livestock environments.
• Modular connection points allow integration with compatible livestock panels and fencing systems.
• Quick connection and modular installation reduce labor requirements during pen setup or modification.
• Suitable for permanent barn installations, temporary enclosures, and pasture-based feeding systems.
• Panel length, height, rail spacing, connection details, and finish can be customized according to project requirements.

• Perimeter Steel Frame: Provides the primary structural support and maintains panel rigidity during livestock movement.
• Vertical Creep Rails: Form the restricted passage openings and can be repositioned to suit different livestock sizes.
• Horizontal Adjustment Member: Can be incorporated where additional control of the creep opening is required.
• Lower Support Rail: Maintains the structural shape of the panel and defines the lower boundary of the feeding access area.
• Connection Lugs or Loops: Provide attachment points for compatible livestock panels, posts, gates, or fencing systems.

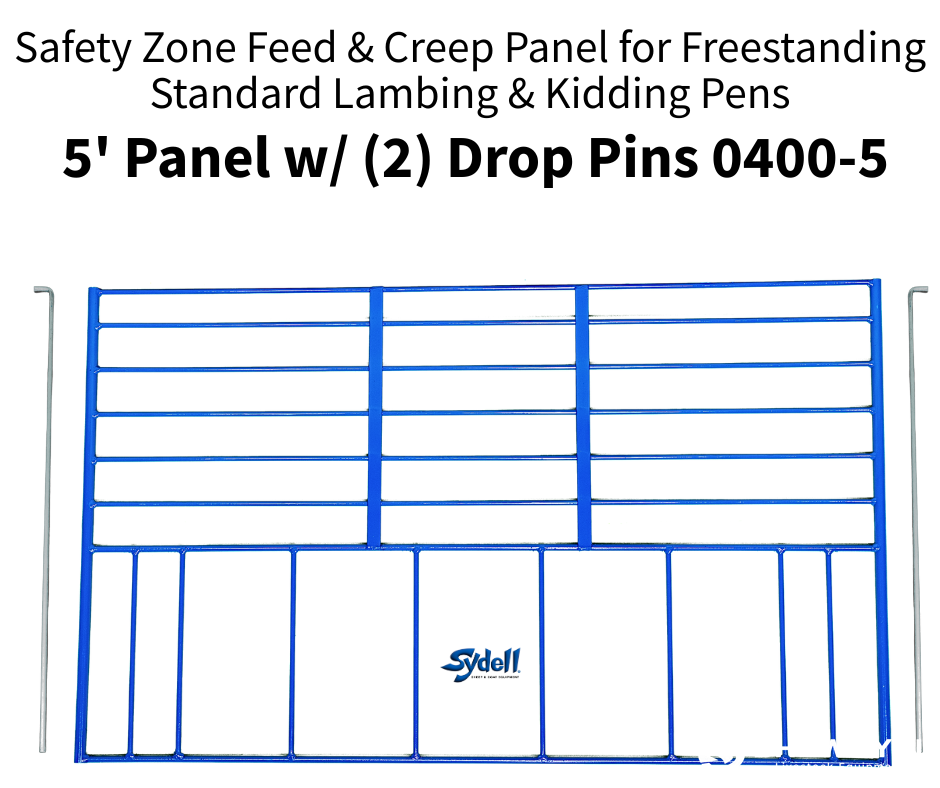

• Drop Pins or Connecting Hardware: Enable practical assembly and removal where a modular livestock handling system is required.
• Protective Finish: Galvanized steel or another specified corrosion-protection treatment can be selected for the operating environment.

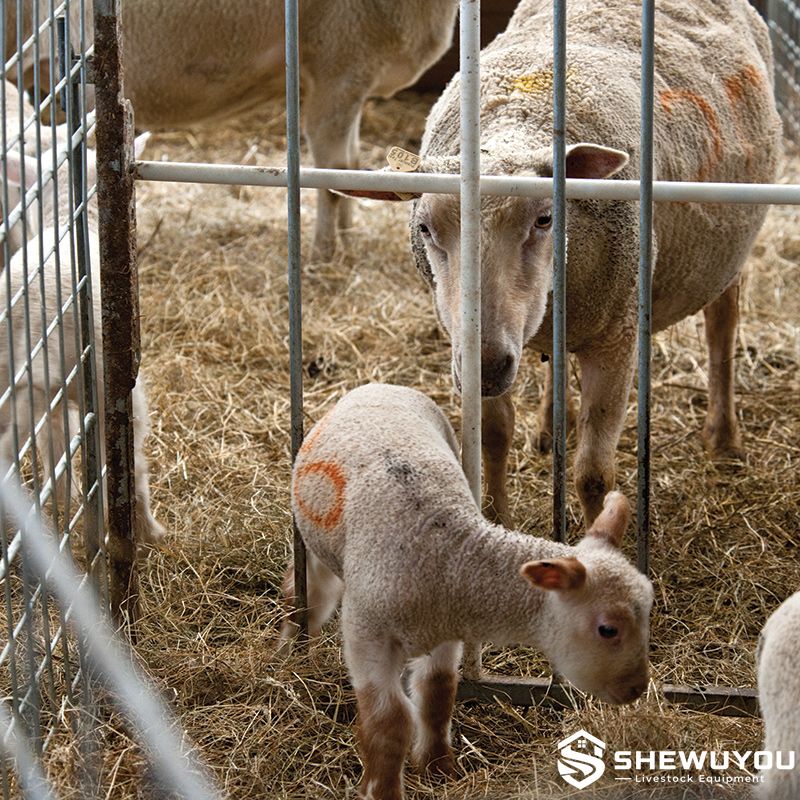

The panel works as a selective livestock access barrier. A restricted opening is created within the steel frame so that smaller lambs can pass into the creep feeding area while larger adult sheep or goats are discouraged from entering.

The internal rails can be adjusted to change the effective passage size as the lambs grow. Commercial creep feeding panels use adjustable rail spacing for different-sized stock, while roller-type designs can add smooth passage for young animals.

When combined with a self-feeder, trough, or other supplemental feeding equipment, the panel establishes a dedicated creep area where young livestock can obtain additional feed with less direct competition from mature animals.

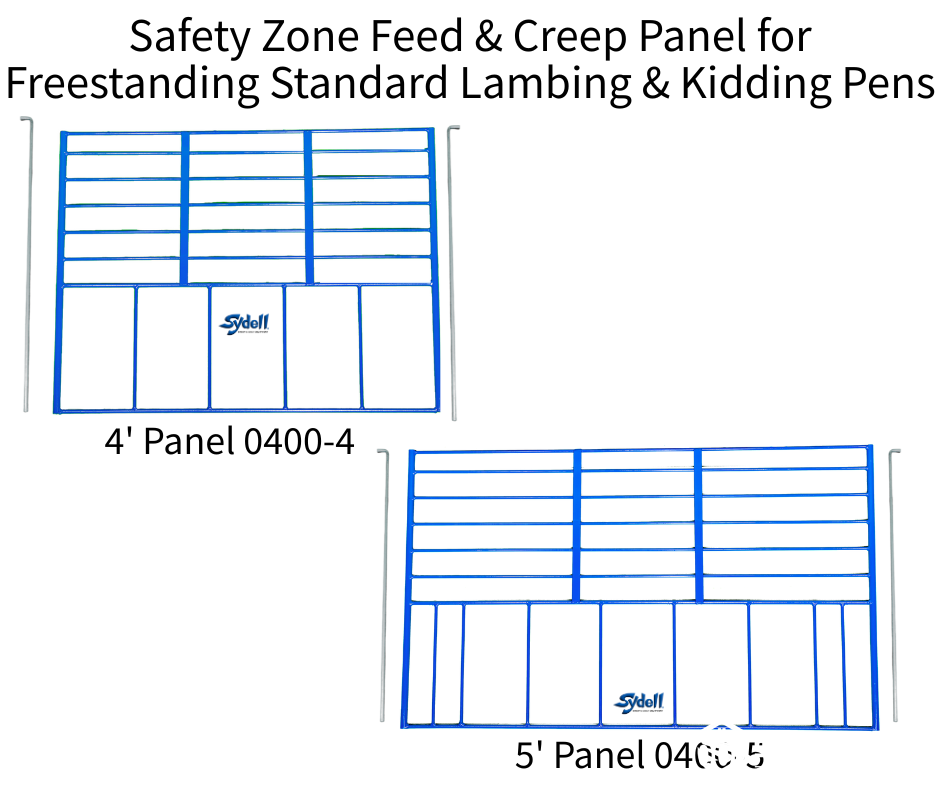

Reference commercial designs demonstrate multiple panel lengths and adjustable rail configurations, including systems with universal connection points. Final dimensions, tube diameter, steel thickness, rail spacing, opening range, and connection hardware should be confirmed according to the actual project specification.

• Commercial sheep and lamb production facilities.
• Lambing barns, nursery pens, and young-stock management areas.
• Dedicated creep feeding zones within sheep and goat housing systems.
• Pasture-based sheep operations and temporary outdoor creep areas.
• Breeding farms requiring selective access to supplemental feed.
• Sheep and goat corrals, sorting areas, and modular livestock handling systems.
• Agricultural engineering projects and livestock facility renovation programs.
• Integration with livestock gates, fencing, creep feeders, self-feeders, and feeding troughs.
• OEM, distributor, dealer, and project procurement programs for livestock equipment.

The Lamb Creep Feeding Panel can be engineered to match the customer's livestock housing system, creep feeding layout, panel dimensions, and local operating conditions.

• Panel length and overall height: Customizable.
• Creep opening width and height: According to livestock size and project requirements.
• Vertical rail quantity and spacing: Customizable.
• Horizontal adjustment positions: Available upon request.
• Roller-equipped access rails: Available upon request.
• Steel tube diameter and material thickness: According to structural requirements.
• Connection lugs, drop-pin locations, and mounting details: Designed according to the existing panel system.
• Surface treatment: Designed according to local climate and farm conditions.
• Custom interfaces for feeders, troughs, gates, and livestock building structures: Available upon request.
• Export packaging and assembly configuration: According to project requirements.

Installation: Position the creep panel between the main livestock area and the dedicated lamb feeding zone. Connect both ends securely to compatible livestock panels, posts, gates, or other structural supports.

Access Adjustment: Set the opening according to the current size of the lambs or kids. Recheck the opening regularly and adjust the rails as young animals grow. Adjustable creep systems are specifically designed to accommodate different livestock sizes.

Feeder Position: Locate the creep feeder inside the protected young-stock area and arrange the feeding equipment so adult sheep cannot easily reach the feed from outside the creep zone.

Cleaning: Remove accumulated bedding, feed residues, and debris around the access opening and feeding area as part of normal livestock hygiene procedures.

Inspection: Periodically inspect the frame, welds, adjustment points, connection hardware, pins, rails, rollers, and protective coating. Replace damaged or excessively worn components promptly.

Q: What is a Lamb Creep Feeding Panel used for?
A: It creates a controlled entrance to a dedicated creep feeding area so lambs can access supplemental feed while larger adult sheep are restricted from entering.

Q: Can the opening be adjusted as lambs grow?
A: Yes. Adjustable internal rails allow the effective opening to be changed according to livestock size and growth stage.

Q: Can the panel be used for goat kids?
A: Yes. Similar creep panels are designed for both lambs and goat kids. The opening dimensions should be selected according to the animal size and farm management requirements.

Q: Can the panel connect to existing livestock fencing?
A: Yes. Connection lugs, drop pins, connecting pins, hinges, or other compatible connection systems can be specified to suit the existing livestock panel layout.

Q: Is a roller design available?
A: A roller-equipped creep panel configuration is available as a project option. Rollers can provide smoother passage through the restricted opening for young animals.

Q: Can the panel be customized for commercial livestock projects?
A: Yes. Panel dimensions, rail spacing, opening configuration, steel specifications, surface treatment, and connection details can be customized according to project requirements.

Q: Is the panel suitable for new livestock buildings?
A: Yes. It can be incorporated into new livestock housing layouts or installed as part of an existing pen and feeding-system upgrade.
