: Robotic Milking Hoof Bath System

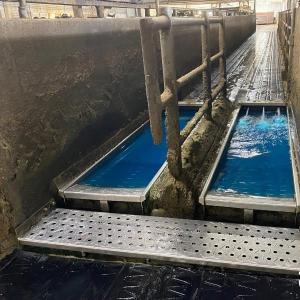

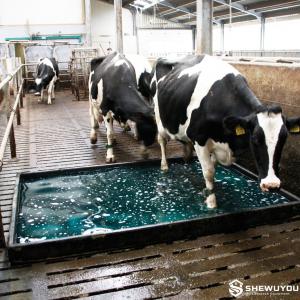

The Robotic Milking Hoof Bath System is an automated cattle hoof-care solution designed for modern dairy farms using robotic milking and controlled cow traffic. It provides a dedicated walk-through treatment zone where cattle can receive routine hoof washing and care with minimal manual intervention.

The system can be positioned after a robotic milking station or at another controlled location within the barn. Automatic filling, solution management, cleaning and bath renewal functions can be configured to support consistent hoof-care routines and efficient herd movement.

• Designed for integration with robotic milking and free-flow cattle traffic.
• Automatic filling and hoof-care solution preparation.
• Automatic emptying, flushing and cleaning functions.
• Cow-count or programmed-cycle control can be incorporated according to system configuration.
• Stainless steel construction provides durability in wet livestock environments.
• Non-slip walking surface supports stable cattle movement through the treatment area.
• Raised or retractable bath configuration can keep the traffic lane clear when the bath is not in use.
• Suitable for new dairy construction, barn renovation and robotic milking upgrade projects.

Hoof Bath Tank: Stainless steel treatment vessel designed to retain the required hoof-care solution during the treatment cycle.

Support Frame: Reinforced steel structure supports the bath assembly and can be adapted to the barn floor and traffic layout.

Non-Slip Base: Textured or chequered stainless steel flooring provides traction for cattle walking through the bath.

Water Supply System: Inlet piping, valves and filling components provide controlled water delivery.

Cleaning System: Spray nozzles or washing components flush the bath after the programmed treatment cycle.

Control Unit: Control components manage filling, cleaning, drainage and cycle operation according to the selected configuration.

Optional Dosing System: Chemical or hoof-care product dosing can be incorporated according to the approved farm treatment program.

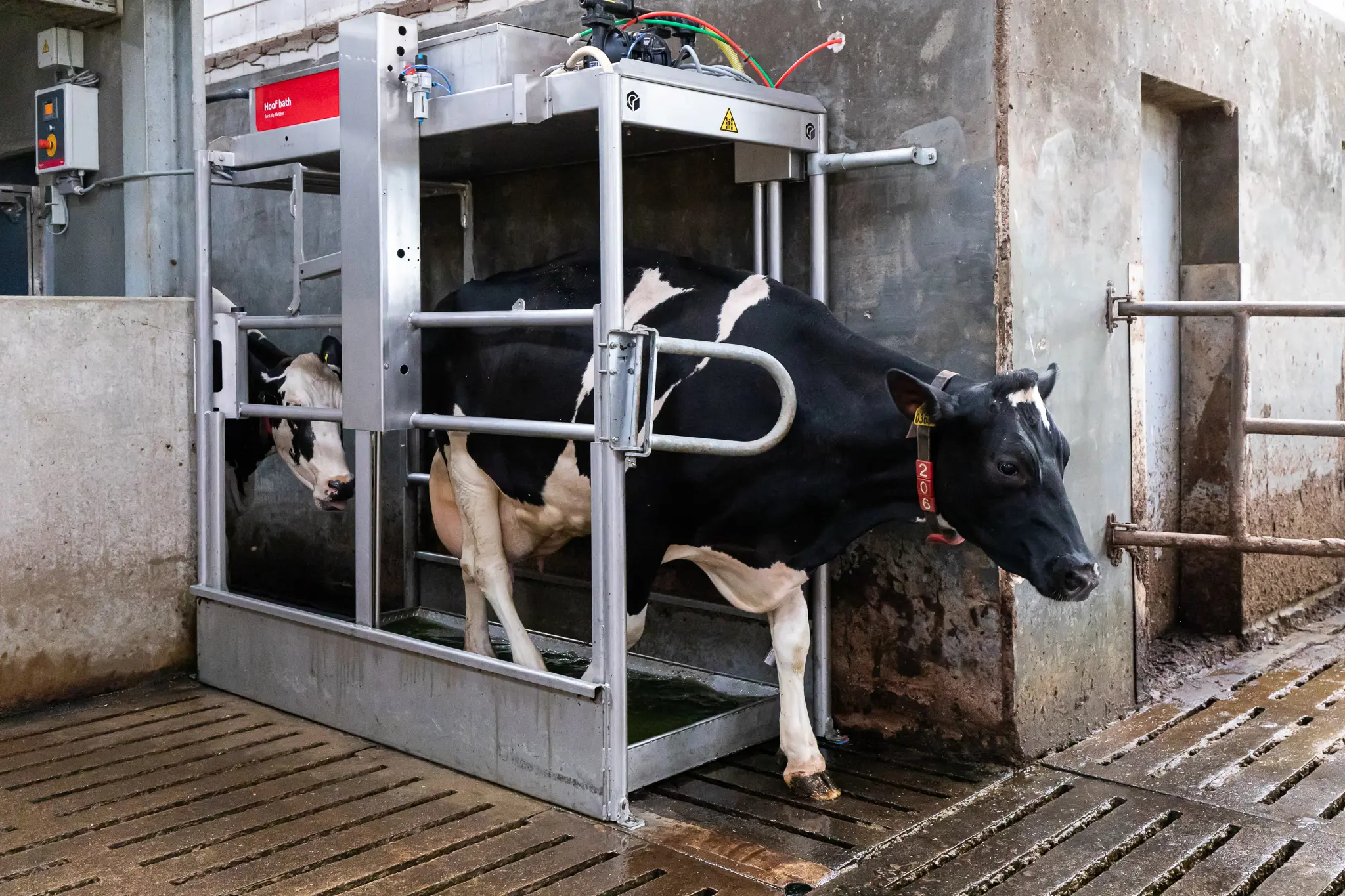

Cows are guided through the hoof bath as part of their normal traffic pattern, typically following a robotic milking session or at another planned location in the barn. The bath is filled with water and the specified hoof-care solution according to the programmed operating sequence.

After a defined number of cattle passages or an assigned operating cycle, the used solution can be discharged. The bath is then automatically cleaned by flushing and spraying before being refilled for the next cycle.

This automated sequence helps reduce manual bath handling while maintaining a more consistent treatment environment for repeated commercial dairy operation.

• Dairy farms equipped with robotic milking systems.
• Large-scale commercial dairy operations with free cow traffic.
• Hoof-care stations positioned near robotic milking exits.
• New dairy barn construction and livestock housing projects.
• Robotic milking system retrofit and barn modernization projects.
• Agricultural engineering and turnkey dairy farm projects.
• Livestock equipment distributors and farm automation integrators.

The system can be engineered around the robotic milking layout, cattle traffic pattern, available utilities and hoof-care management strategy.

• Bath length, width and depth: Customizable.
• Frame height and mounting arrangement: According to project requirements.
• Stainless steel material grade and fabrication details: Available upon request.
• Non-slip floor configuration: Customizable.
• Water inlet, drainage and pipe routing: Designed according to site conditions.
• Cow counter, timer and control logic: Customizable.
• Chemical dosing pumps and storage arrangement: Available upon request.
• Integration with robotic milking traffic and barn gates: According to project requirements.
• Complete system can be designed according to local climate and farm conditions.

Installation should be coordinated with the dairy barn layout, robotic milking traffic and site utilities. The bath and support frame should be positioned on a stable, level surface with suitable drainage and service access.

• Install the bath in the planned cattle traffic route with adequate approach and exit clearance.
• Connect water supply and drainage according to the approved engineering layout.
• Connect electrical and control components where applicable.
• Test filling, dosing, drainage and cleaning cycles before commissioning.
• Inspect spray nozzles, valves, pumps, sensors and pipe connections regularly.
• Clean the bath and remove manure or debris that may affect drainage or spray performance.
• Keep electrical components protected from direct water and high-pressure wash-down.
• Schedule periodic inspection of moving components and structural connections.

Q: What is a robotic milking hoof bath system?
A: It is an automated hoof-care station designed to provide routine cattle hoof treatment within a controlled dairy barn traffic system, particularly around robotic milking operations.

Q: Can it be installed after a milking robot?
A: Yes. The system can be positioned after a robotic milking station or at another suitable location where cattle can be routed through the bath as part of their normal movement.

Q: How is the bath refreshed?
A: The system can automatically discharge the used solution, clean the bath and refill it with fresh water and the specified hoof-care solution according to the programmed cycle.

Q: Can the cleaning cycle be controlled by cow numbers?
A: Yes. A cow counter can be incorporated where required, allowing the bath renewal cycle to be based on the number of cattle passages.

Q: Is stainless steel construction available?
A: Yes. Stainless steel is suitable for wet livestock environments and frequent cleaning operations. Material grade and fabrication details can be specified according to the project.

Q: Can the system be customized for a new dairy construction project?
A: Yes. Bath dimensions, support structure, drainage, water supply, controls, dosing equipment and traffic integration can be designed according to project requirements.
