Stainless Steel Cattle Footbath

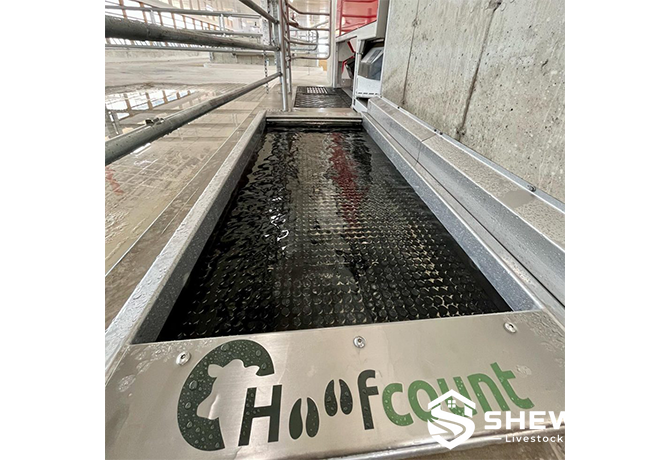

The Stainless Steel Cattle Footbath is a durable walk-through hoof-care unit designed for routine hoof cleaning, hygiene management and footbath treatment in commercial cattle facilities. Its stainless steel construction provides a practical solution for wet, demanding livestock environments where frequent washing and exposure to treatment solutions are expected.

The footbath can be positioned in a cattle race, milking parlour exit, handling lane or other high-traffic livestock passage. Dimensions, drainage arrangements and supporting structures can be designed according to the farm layout, herd size and project requirements.

• Stainless steel construction for demanding livestock environments.
• Walk-through design supports efficient cattle movement through the treatment area.
• Smooth internal surfaces facilitate routine washing and cleaning.
• Optional non-slip flooring can improve hoof traction and animal stability.
• Side panels can help retain treatment solution and guide cattle through the bath.
• Suitable for integration into existing cattle races and livestock handling layouts.
• Custom dimensions and structural configurations available for commercial farm projects.
• Suitable for manual operation or integration with optional filling, dosing and drainage equipment.

Stainless Steel Bath Tank: Main liquid-retaining structure fabricated for repeated exposure to water, cleaning agents and hoof-care solutions.

Side Panels: Raised structural panels help guide cattle and reduce solution splash-out during passage.

Non-Slip Floor: Optional rubber or textured flooring can provide additional traction for cattle walking through the bath.

Drainage Outlet: Drain connection can be incorporated for controlled emptying and routine cleaning.

Support Structure: Legs, frames or mounting arrangements can be configured according to the installation location and site conditions.

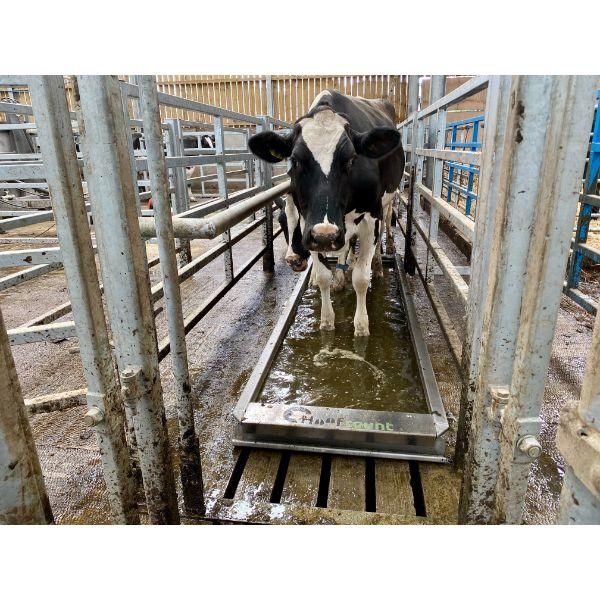

The footbath creates a controlled liquid treatment zone across the cattle passage. As animals walk through the bath, their hooves enter the prepared solution, allowing the hoof and lower foot area to receive the required contact with the treatment liquid.

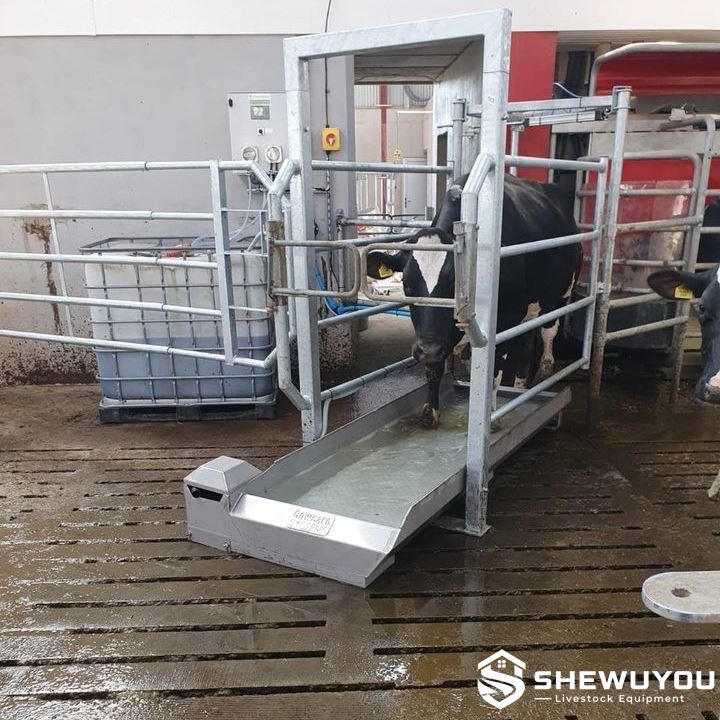

For larger commercial operations, the unit can be incorporated into a planned hoof-care station with cattle flow control, water supply, drainage and optional chemical dosing equipment. The exact treatment solution and operating procedure should be determined according to veterinary and farm management requirements.

• Commercial dairy farms and beef cattle operations.
• Large-scale livestock breeding groups and agricultural enterprises.
• Milking parlour exits and post-milking cattle traffic lanes.
• Cattle handling facilities and dedicated hoof-care stations.
• Veterinary and professional livestock hoof-care service facilities.
• Agricultural engineering and turnkey livestock farm projects.
• Farm renovation projects requiring durable stainless steel livestock equipment.

The footbath can be engineered around the existing livestock housing layout, cattle traffic pattern and project specifications.

• Overall length and width: Customizable.
• Bath depth and liquid capacity: According to project requirements.
• Stainless steel grade and sheet configuration: Available upon request.
• Side wall height and structural reinforcement: Customizable.
• Non-slip floor configuration: Available upon request.
• Drainage, water inlet and connection positions: Designed according to site conditions.
• Optional dosing, filling and cleaning systems: Available upon request.
• The complete installation can be designed according to local climate and farm conditions.

The stainless steel footbath can be installed as a freestanding unit or integrated into a purpose-designed cattle race. The installation surface should be level, stable and capable of supporting the operating load.

• Position the footbath in a suitable cattle traffic route with adequate approach and exit space.
• Connect drainage and water supply according to the approved site layout.
• Ensure the bath remains stable and properly aligned with the cattle race.
• Empty and clean the bath regularly to remove manure and accumulated contaminants.
• Inspect welds, drainage points, floor surfaces and structural connections periodically.
• Use treatment chemicals compatible with the selected stainless steel and follow the applicable farm or veterinary procedure.

Q: What is a cattle footbath used for?
A: It provides a controlled liquid treatment area where cattle hooves can be cleaned or exposed to an appropriate hoof-care solution during normal animal movement.

Q: Why use stainless steel for a cattle footbath?
A: Stainless steel provides a durable, cleanable surface suited to wet livestock environments and repeated cleaning operations.

Q: Can the footbath be made to fit an existing cattle race?
A: Yes. Dimensions and structural details can be customized according to the existing race, farm layout and project requirements.

Q: Can a non-slip floor be supplied?
A: Yes. A suitable non-slip flooring configuration can be specified according to animal handling requirements.

Q: Can the footbath be integrated with an automatic system?
A: Yes. Water filling, drainage, chemical dosing and other control functions can be incorporated according to the project specification.
