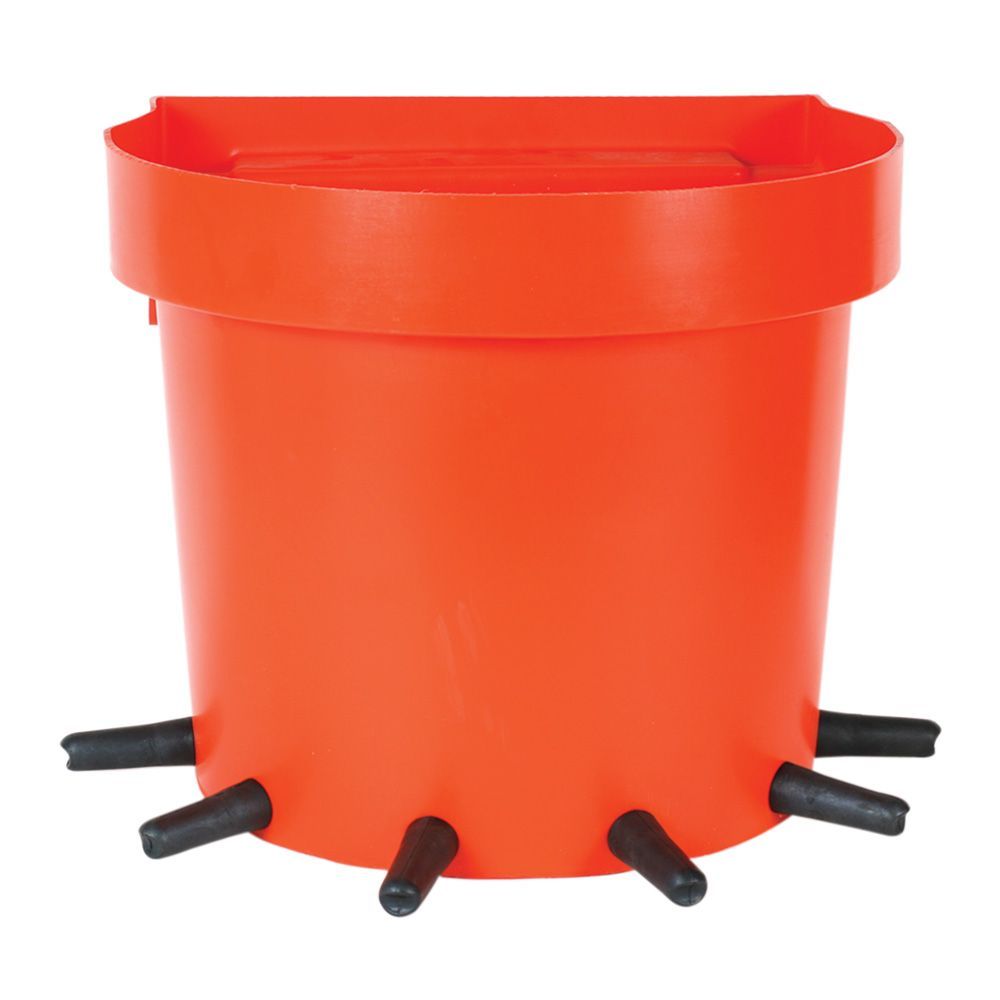

Product Name	20L Six-Teat Rail-Mount Calf Feeder
Product Image
Product Overview	The 20L Six-Teat Rail-Mount Calf Feeder is designed for efficient group milk feeding in dairy farms, calf-rearing units and livestock breeding facilities. One 20-liter reservoir supplies six teat positions, allowing up to six calves to drink simultaneously. The molded rail-hanging structure installs directly over suitable pen rails without complicated brackets. Combined with controlled-flow calf teats and intake elbow valves, the feeder provides a simple, reliable solution for daily whole-milk or prepared milk-replacer feeding.
Key Features	20L reservoir designed for small-group calf feeding. Six teat positions allow simultaneous feeding of up to six calves. Rail-mount design provides quick installation and removal. Suitable for rails up to approximately 32 mm thick. Controlled-flow calf teats support consistent milk delivery. Intake elbow and non-return valve system helps minimize leakage and residual milk. Durable molded plastic body for intensive livestock-farm use. Open-top reservoir provides convenient filling, inspection and cleaning. No electricity, pump or automatic control system required.
Structural Components	20L Reservoir: Single molded plastic tank supplying all six feeding positions. Integrated Rail Hooks: Molded mounting section designed to hang directly over compatible rails or pen partitions. Six Calf Teats: Individual teat positions arranged along the lower section of the feeder. Intake Elbows: Connect the internal milk supply to each teat position. Non-Return Valves: Help maintain milk flow while reducing backflow and leakage. Open Filling Area: Wide upper opening simplifies filling, rinsing and sanitation.
Working Principle	Fresh milk or properly prepared milk replacer is poured into the 20L reservoir. Each feeding position draws milk through an intake elbow and valve to its individual teat. When calves suckle, milk flows through the teats without requiring electrical power or a mechanical pump. The valve arrangement helps maintain reliable milk delivery and reduces unnecessary leakage when calves stop drinking.
Technical Specifications	Product Type Rail-Mount Group Calf Feeder Nominal Capacity 20 L Number of Reservoirs 1 Number of Teats 6 Feeding Capacity Up to 6 calves simultaneously Compatible Teat Type SMB / Compatible Calf Teat Milk Supply Gravity Fed Valve System Intake Elbow with Non-Return Valve Mounting Method Integrated Rail-Hanging Structure Maximum Rail Thickness Approximately 32 mm Standard Color Orange Replacement Teats & Valves Available upon request
Applications	Group calf pens in commercial dairy farms. Calf-rearing and replacement-heifer facilities. Indoor livestock buildings and outdoor calf housing areas. Steel-rail, tubular-rail and suitable wooden-rail calf pens. Whole-milk and prepared milk-replacer feeding programs. Livestock breeding centers and agricultural projects. Livestock equipment distributors, dealers and farm-supply companies.
Customization Options	Feeder configurations can be supplied according to commercial farm, distributor and livestock project requirements. Options may include compatible teat specifications, replacement valve sets, packaging, labeling and private-brand requirements. Additional configurations are customizable and available upon request.
Installation & Maintenance	Hang the integrated mounting section securely over a compatible rail. Confirm that the rail thickness and structure provide adequate support for a filled feeder. Set the feeder at an appropriate suckling height for the calf group. Check all teats, elbows and valves before filling. Remove remaining milk promptly after each feeding cycle. Rinse the reservoir with lukewarm water before applying an appropriate cleaning product. Remove and clean teats, intake elbows and valves regularly. Rinse thoroughly and allow components to dry before reassembly. Store clean feeders in a shaded and protected location when not in use.
Product FAQ	Q: How many calves can use this feeder simultaneously? A: Six teat positions allow up to six calves to drink at the same time. Q: What is the reservoir capacity? A: The feeder has one 20-liter milk reservoir. Q: How is the feeder installed? A: The molded mounting section hangs directly over a suitable pen rail, eliminating the need for a complicated mounting frame. Q: What rail thickness is suitable? A: The reference configuration is designed for rails up to approximately 32 mm thick. Q: Does the feeder require electricity? A: No. It uses a simple gravity-fed milk supply system. Q: Can it be used with milk replacer? A: Yes. It is suitable for whole milk or correctly prepared calf milk replacer. Q: Are replacement teats and valves available? A: Yes. Compatible replacement feeding components can be supplied upon request.
