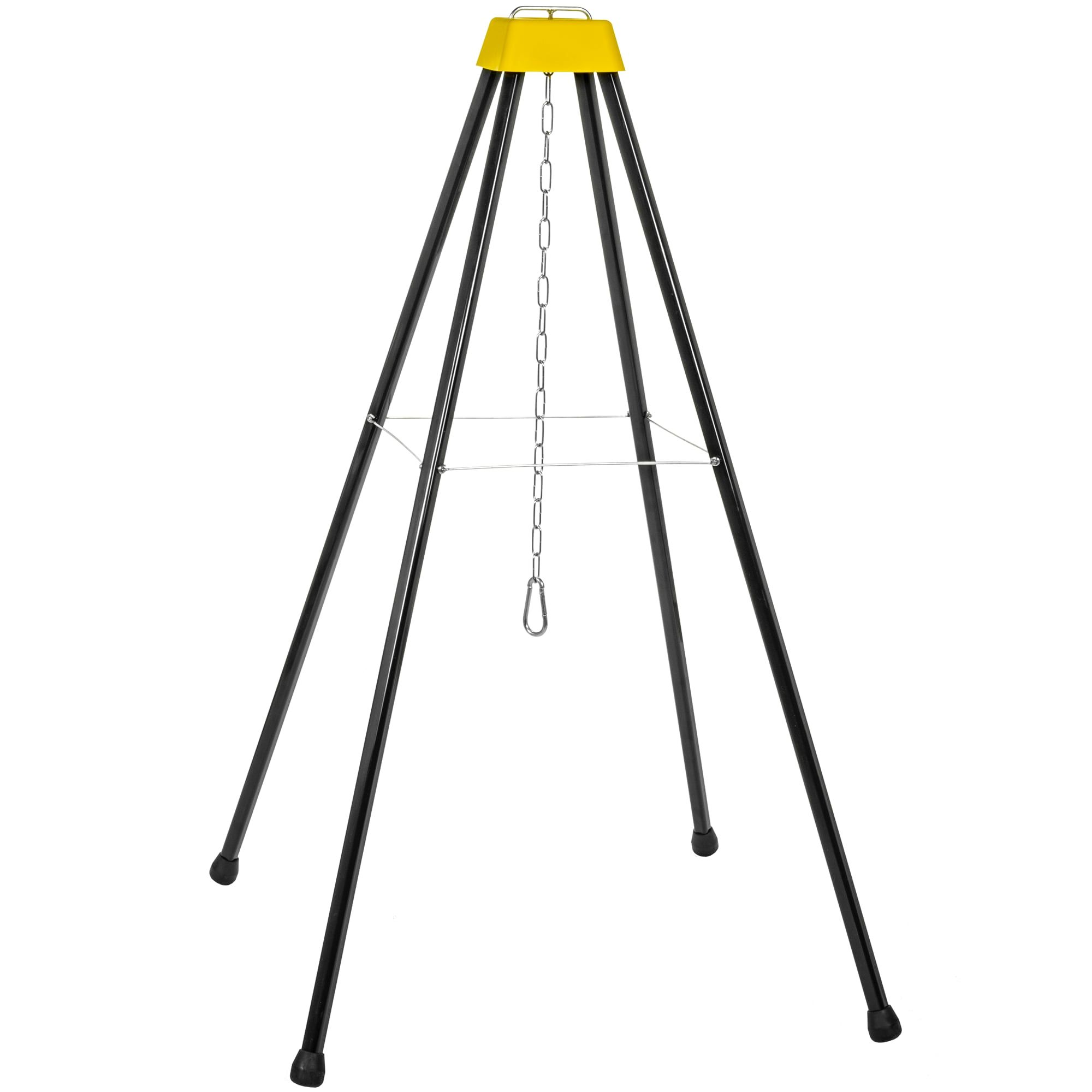

Adjustable Brooder Heat Lamp Stand

The Adjustable Brooder Heat Lamp Stand is a freestanding support system designed to suspend poultry heat lamps above chick brooders, nursery pens and localized livestock heating areas. Its tripod-style frame provides a stable overhead suspension point without requiring the lamp to be attached directly to a wall, brooder panel or poultry-house structure.

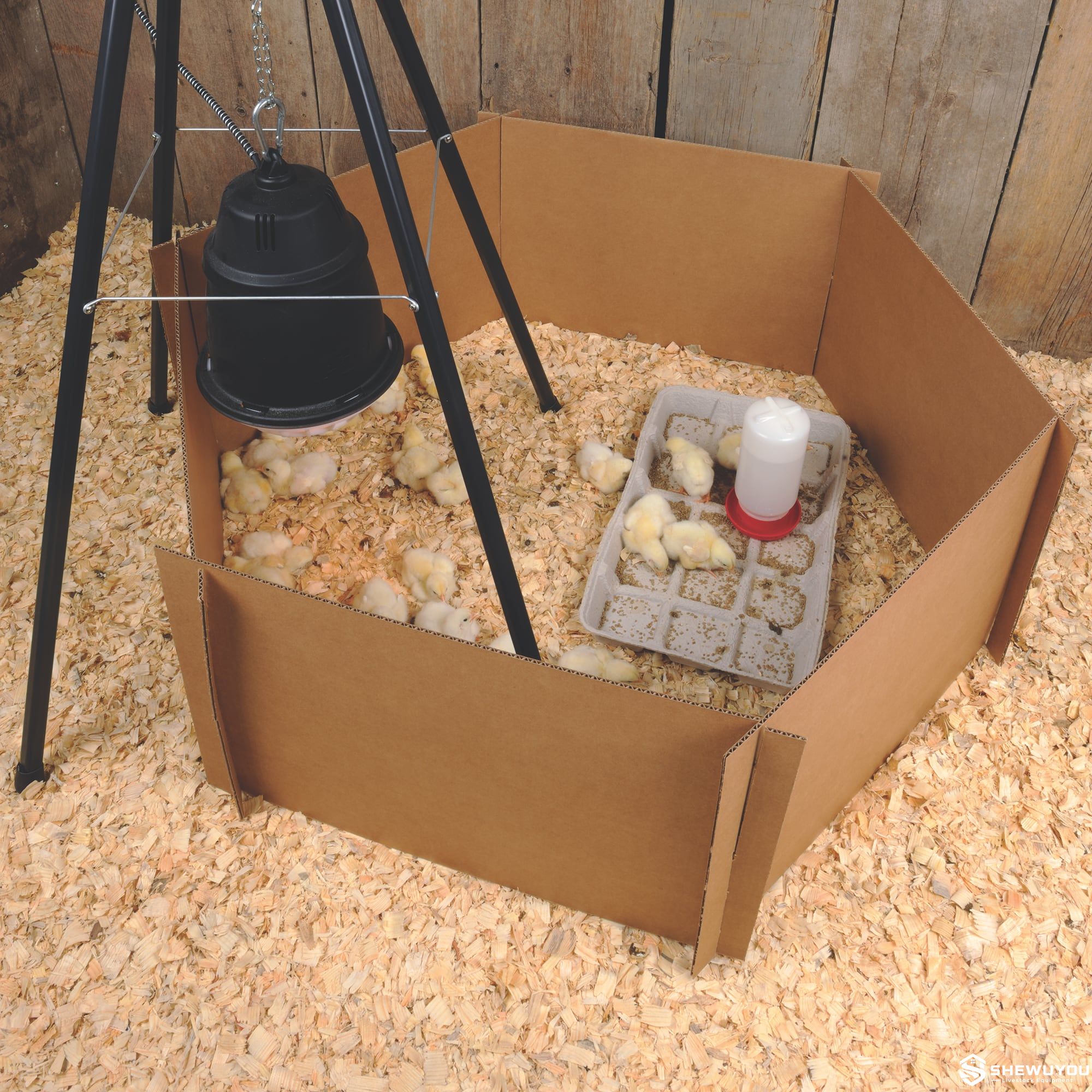

The hanging chain allows the lamp position to be raised or lowered so operators can adjust the distance between the heat source and brooder floor. This provides a practical method of modifying heat intensity and coverage as birds grow or ambient temperature changes.

The stand is suitable for chick brooders, hatcheries, breeder farms, poultry equipment projects and young-livestock nursery areas. Frame dimensions, chain length, hanger configuration and structural materials can be supplied according to project requirements.

• Adjustable Lamp Height: Hanging chain allows the heat source to be positioned at different distances above the brooder floor.
• Stable Tripod Structure: Wide leg spacing provides a secure freestanding support platform.
• Independent Installation: No permanent fixing to poultry-house walls or roof structures is required for basic use.
• Brooder Temperature Adjustment: Raising or lowering the lamp helps change surface heat intensity in the chick zone.
• Quick Assembly: Simple legs, braces and top hanger structure allow convenient installation.
• Portable Design: Stand can be relocated between brooders or nursery pens when required.
• Heat Lamp Compatibility: Suitable for compatible infrared bulbs, ceramic emitters and guarded brooder lamp fixtures.
• Hanging Chain System: Provides multiple suspension positions without modifying the lamp fixture.
• Wide Footprint: Helps improve stability around active chicks and routine farm operations.
• Replaceable Components: Legs, braces, chain, hanger and feet can be supplied separately according to configuration.
• Commercial Farm Application: Suitable for poultry farms, livestock groups, hatcheries and equipment distributors.

• Tripod support legs
• Upper connection cap
• Metal stabilizing braces
• Central lamp hanger
• Height adjustment chain
• Heat lamp suspension clip
• Rubber or plastic anti-slip feet
• Machine screws and nuts
• Optional lamp fixture
• Optional protective lamp guard

The stand uses multiple outward-spreading legs connected by stabilizing braces to create a broad support footprint. A central hanger at the top of the frame carries the suspension chain and lamp fixture.

The heat lamp hangs from the chain rather than resting directly on the brooder enclosure. By selecting a different chain link, the operator can increase or decrease the distance between the lamp and the floor surface.

This height adjustment changes the heating pattern: a lower lamp generally produces a smaller, warmer zone, while a higher position provides wider coverage with reduced surface intensity.

Final stand dimensions, chain length, frame material and lamp compatibility should be confirmed according to brooder size, heater weight, installation layout and project requirements.

• Day-old chick brooders
• Broiler chick rearing
• Layer chick rearing
• Turkey poult brooders
• Duckling and gosling brooders
• Quail and game-bird rearing
• Hatchery chick holding areas
• Small poultry brooder pens
• Piglet creep heating areas
• Lamb and kid warming pens
• Livestock nursery facilities
• Temporary supplementary heating areas

SHEWUYOU can configure brooder heat lamp stands according to brooder dimensions, lamp type, livestock application and project installation requirements.

• Overall stand height
• Footprint dimensions
• Leg length
• Frame material
• Brace configuration
• Chain length
• Hanging clip type
• Top hanger configuration
• Anti-slip foot design
• Frame color
• Compatible infrared lamp fixture
• Protective lamp guard
• Complete chick brooder heating kit
• Bulk project packaging
• OEM / ODM supply

Assemble the frame on a stable, level floor and confirm that all braces, fasteners and support legs are securely installed before hanging a heat lamp.

• Insert the support legs securely into the upper connection section.
• Install the stabilizing braces using the specified fasteners.
• Fit the central lamp hanger and suspension chain.
• Confirm the stand is stable before attaching the heat lamp.
• Use only a lamp fixture suitable for the selected heater wattage.
• Secure the lamp to the chain using a suitable locking clip.
• Maintain safe clearance between the heater, birds, litter and combustible materials.
• Adjust the chain rather than improvising additional supports.
• Keep electrical cables away from drinkers and wet areas.
• Inspect chain links, clips and braces before each flock.
• Check support feet for damage or excessive wear.
• Clean dust and litter from the stand between production cycles.
• Replace bent, cracked or damaged structural components before reuse.

Q1: Why use a dedicated heat lamp stand?

A freestanding support provides a dedicated suspension point and avoids relying on improvised attachments to brooder walls, cages or nearby equipment.

Q2: How is lamp height adjusted?

The lamp is suspended from a chain, allowing the operator to select different links to raise or lower the heating fixture.

Q3: Why does lamp height matter?

Changing the distance from the heat source to the brooder floor alters the heat intensity and size of the warmed area.

Q4: Can the stand be moved between brooders?

Yes. Freestanding construction allows the unit to be repositioned after the lamp is safely switched off and disconnected.

Q5: Does the stand include the heat lamp?

The stand can be supplied alone or configured with compatible lamp fixtures, bulbs and protective accessories according to project requirements.

Q6: Can it be used with infrared and ceramic heaters?

Yes, provided the selected fixture, suspension system and stand capacity are suitable for the heater type and operating temperature.

Q7: Is the stand suitable for livestock other than poultry?

Suitable configurations can also support localized heating in lamb, kid and piglet nursery areas.

Q8: Can SHEWUYOU customize the stand dimensions?

Yes. Frame height, footprint, chain length, hanger structure and accessory package can be produced according to project requirements.
