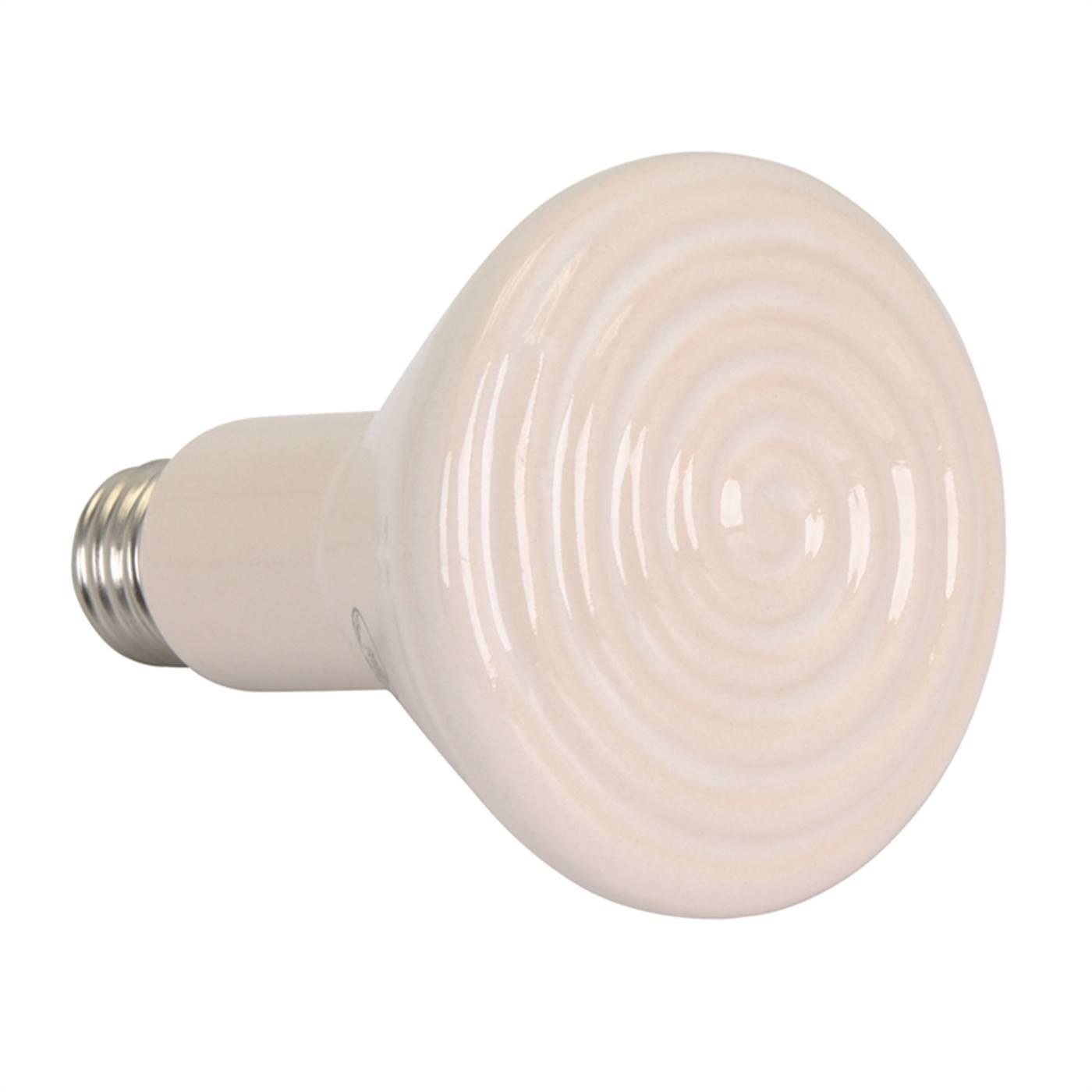

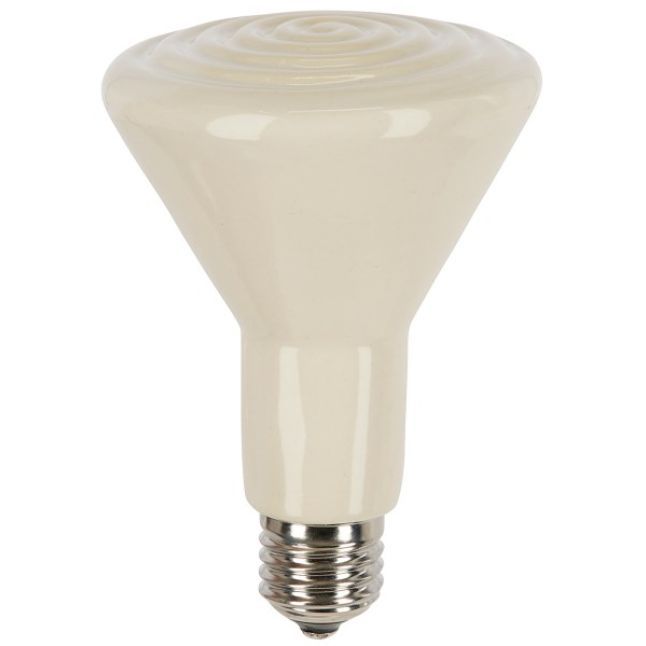

Ceramic Infrared Brooder Heater for Poultry

The Ceramic Infrared Brooder Heater is an electric radiant heating element designed to provide localized warmth for chicks, poults, ducklings and other young livestock. Unlike conventional illuminated heat lamps, the ceramic emitter converts electrical energy into infrared heat without producing visible light.

The ceramic body incorporates a resistance heating element and transfers long-wave infrared energy toward birds, bedding and surrounding surfaces. Light-free operation makes the heater suitable for continuous day-and-night brooding programs where heating is required without adding unwanted illumination.

The screw-in configuration simplifies installation in compatible heat-resistant ceramic lamp holders. Different wattages, voltages and emitter configurations can be supplied for commercial poultry houses, hatcheries, brooder pens, piglet creep areas and livestock nursery projects.

• Light-Free Infrared Heating: Produces radiant heat without continuous visible illumination.
• Suitable for Day and Night: Heating can operate independently from the poultry-house lighting program.
• Localized Radiant Warmth: Directs thermal energy toward birds, litter and nearby surfaces instead of relying only on air heating.
• Ceramic Heating Body: Durable ceramic construction provides stable thermal emission under normal operating conditions.
• Broad Radiating Surface: The shaped ceramic face helps distribute infrared energy over the brooding zone.

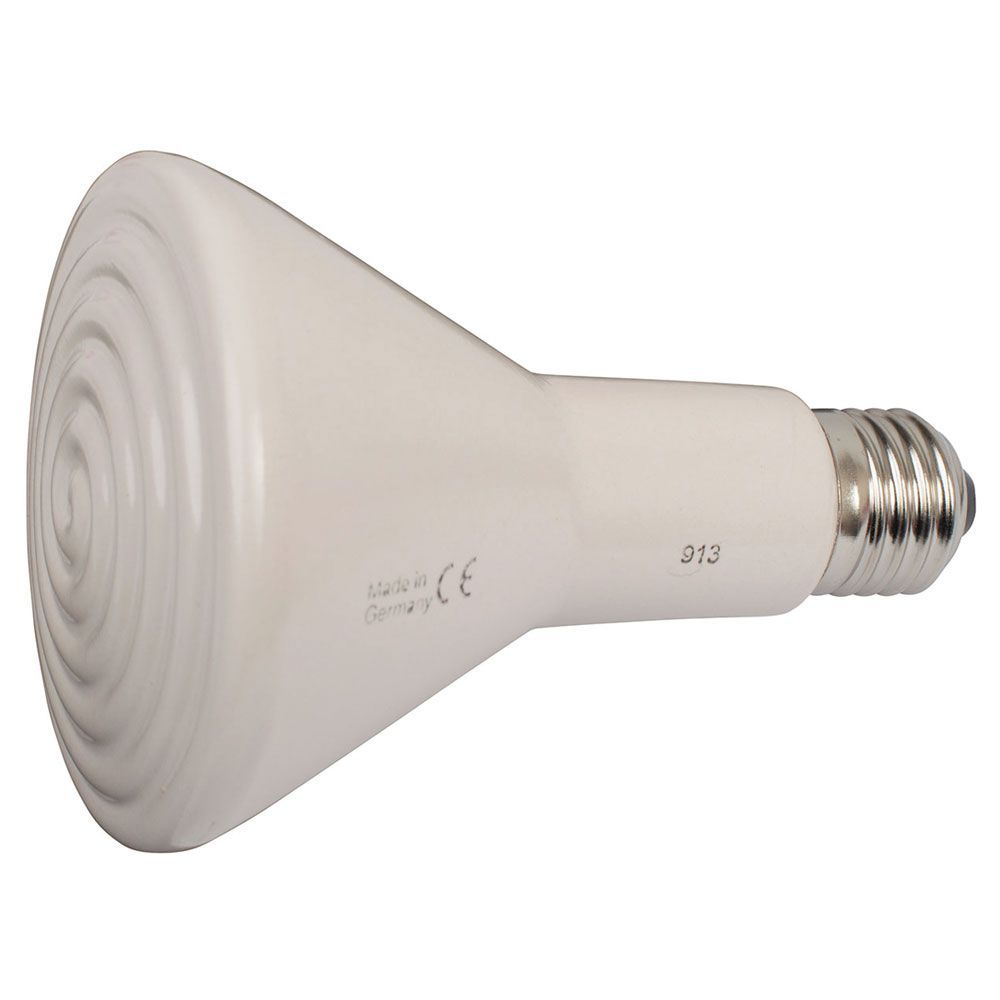

• Standard Screw Installation: E27 and other compatible configurations are available according to destination-market requirements.
• Multiple Power Options: Heating output can be selected according to brooder dimensions, bird age and ambient conditions.
• No Open Flame: Electric operation avoids fuel combustion at the brooding point.
• Quiet Operation: No fan or moving mechanism is required for basic radiant heating.
• Low Routine Maintenance: Simple emitter construction minimizes mechanical maintenance requirements.
• Flexible Installation: Suitable for individual brooders, poultry pens and supplementary livestock heating zones.
• Commercial Supply: Available for poultry farms, livestock groups, equipment distributors and agricultural engineering projects.

• Infrared-emitting ceramic body
• Internal resistance heating element
• Heat-radiating ceramic surface
• Insulated ceramic neck
• Metal screw base
• Internal electrical contacts
• High-temperature connection structure
• Optional compatible reflector
• Optional protective guard
• Optional ceramic lamp holder

Electrical current passes through the resistance element embedded within the ceramic body. The electrical resistance generates heat, which is transferred through the ceramic material to the emitter surface.

The heated ceramic surface releases primarily long-wave infrared radiation. Birds, litter, flooring and other surfaces within the radiation field absorb this energy and convert it into sensible heat.

Because the emitter does not depend on visible light for heat production, the poultry-house lighting schedule can be managed separately from the brooding temperature program.

Heating intensity at bird level is influenced by emitter wattage, mounting height, ambient temperature, reflector configuration and the distance between the heater and the brooding zone.

Final wattage, voltage, dimensions, screw base and installation height should be confirmed according to poultry species, brooder dimensions, ambient temperature, local electrical standards and project requirements.

• Day-old chick brooders
• Broiler chick rearing areas
• Layer chick brooding
• Breeder chick facilities
• Turkey poult brooders
• Duckling and gosling brooders
• Quail and game-bird rearing
• Hatchery chick holding areas
• Small poultry brooding pens
• Piglet creep heating areas
• Livestock nursery pens
• Steel structure poultry houses
• Supplementary cold-weather farm heating

SHEWUYOU can configure ceramic infrared brooder heaters and compatible accessories according to poultry species, electrical standards and livestock project requirements.

• Heating wattage
• Operating voltage
• E27 or compatible screw base
• White or black ceramic body
• Emitter dimensions
• Heating surface configuration
• Heat-resistant ceramic lamp holder
• Metal reflector shade
• Protective safety guard
• Suspension chain
• Power cable configuration
• Temperature controller
• Individual product packaging
• Bulk project packaging
• OEM / ODM supply

Ceramic infrared emitters operate at high surface temperatures and should be installed only in fixtures designed for high-temperature heating applications. A heat-resistant ceramic socket and secure suspension system are recommended.

• Disconnect electrical power before installation or replacement.
• Confirm that heater voltage and screw base match the electrical fixture.
• Use a high-temperature ceramic lamp holder.
• Confirm that the fixture is rated for the selected heater wattage.
• Install a protective guard where birds or farm personnel could contact the hot emitter.
• Secure the heater so it cannot fall into litter or bedding.
• Maintain safe clearance from combustible building materials and farm equipment.
• Keep electrical connections protected from drinker leakage and wash water.
• Do not touch the ceramic surface during operation.
• Allow the emitter to cool completely before handling.
• Remove accumulated dust from the heater and reflector during routine maintenance.
• Inspect the ceramic body for cracks before reuse.
• Observe chick distribution and adjust heater height or output when necessary.
• Replace damaged sockets, cables or emitters before operation.

Q1: Does a ceramic infrared brooder heater produce light?

No. Ceramic heat emitters are designed to produce infrared heat without continuous visible illumination, allowing poultry lighting and heating programs to be controlled separately.

Q2: Can it operate during both day and night?

Yes. Light-free operation makes ceramic emitters suitable for continuous heating where required without adding artificial light at night.

Q3: Which wattage should be selected?

The required wattage depends on bird age, brooder dimensions, ambient temperature, mounting height, building insulation and desired heating coverage.

Q4: What type of socket should be used?

A high-temperature ceramic lamp holder with the correct electrical and wattage rating should be used.

Q5: Can the heater replace a conventional red heat lamp?

It can provide localized brooding heat in suitable applications while eliminating the visible light produced by conventional red infrared bulbs. Heating capacity should be correctly sized for the application.

Q6: Can a thermostat or temperature controller be used?

Yes. A compatible controller can be incorporated when its electrical rating and control method are suitable for the heater load.

Q7: Can ceramic infrared heaters be used for piglets?

Yes. Properly sized and safely guarded ceramic infrared heaters can also provide localized warmth in piglet creep areas and other livestock nursery applications.

Q8: Can SHEWUYOU supply a complete brooder heating assembly?

Yes. Ceramic emitters, ceramic lamp holders, reflectors, protective guards, suspension components, power cables and compatible controllers can be supplied according to project requirements.
