Product Name	Automatic Pig Backfat and Lean Percentage Scanner

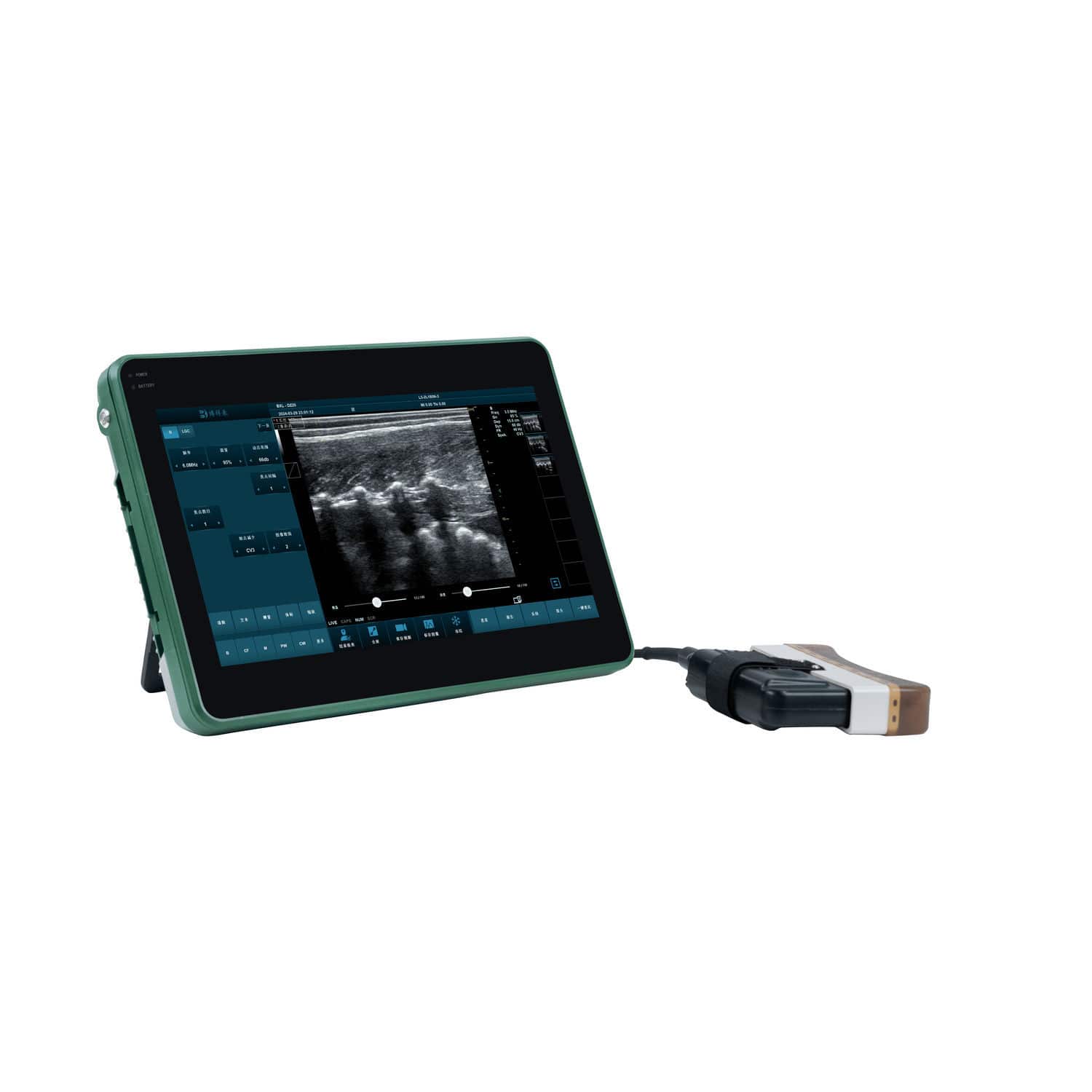

Product Image
Product Overview	The Automatic Pig Backfat and Lean Percentage Scanner is a portable veterinary ultrasound system developed for live-animal body composition evaluation in swine production. It supports automatic backfat thickness measurement, lean percentage assessment and intramuscular fat analysis, helping breeding farms and commercial pig operations collect objective production data without slaughtering the animal. The system combines real-time B-mode ultrasound imaging with dedicated measurement functions for pig breeding and performance testing. It is suitable for nucleus farms, breeding companies, genetic improvement programs, commercial pig farms, livestock research institutes and agricultural service organizations. Its compact construction, rechargeable battery and outdoor-oriented display design make it suitable for routine barn and field use.
Key Features	Automatic Backfat Measurement: Integrated measurement functions help determine pig backfat thickness quickly and consistently from ultrasound images. Lean Percentage Assessment: Supports lean percentage measurement or calculation according to the configured swine measurement program and scanning protocol. Intramuscular Fat Analysis: Dedicated IMF measurement functions provide additional body composition data for breeding and performance evaluation. Real-Time B-Mode Imaging: Enables operators to identify tissue boundaries and confirm scanning position before recording measurements. Portable Farm Design: Lightweight body, integrated handle and rechargeable battery support mobile use in pig houses and breeding facilities. Outdoor Visibility: High-brightness display and sunshade configuration help maintain screen readability under farm and outdoor lighting conditions. Image Storage and Review: Stored images and cine-loop functions support measurement review, documentation and herd management.
Structural Components	Main Ultrasound Unit: Houses the signal processing system, display, control interface and measurement software. Veterinary Ultrasound Probe: Electronic convex array transducer used for pig scanning and tissue visualization. LCD Display: Provides real-time grayscale ultrasound images and measurement information. Control Panel: Allows adjustment of gain, depth, focus, image orientation, measurement functions and image storage. Rechargeable Battery: Supports portable operation for routine livestock examinations. Protective Accessories: Carrying strap, protective case, transport box and sunshade may be supplied according to configuration.
Working Principle	During measurement, an appropriate acoustic coupling medium is applied between the ultrasound probe and the pig's skin. The transducer sends ultrasound waves through the skin, subcutaneous fat and underlying muscle tissue. Differences between tissue layers generate reflected echoes. These echoes are processed by the scanner to create a real-time grayscale image. After the correct anatomical scanning position is obtained, the system identifies or assists the operator in identifying tissue interfaces for backfat measurement. Dedicated calculation functions can then be used for backfat thickness, lean percentage and intramuscular fat evaluation according to the selected measurement program and operating protocol.
Technical Specifications	Product Type Portable veterinary ultrasound scanner for swine measurement Primary Application Backfat, lean percentage and intramuscular fat evaluation Animal Application Primarily pigs; additional veterinary applications depend on probe and software configuration Scanning Modes B, 2B, 4B, B/M, M Probe Type Electronic convex array Standard Probe 3.5 MHz convex probe Maximum Scanning Depth 200 mm Dynamic Range 27–90 dB Gain Adjustment Overall gain 0–127 dB TGC Adjustment Near field 0–31 dB; far field 0–31 dB Zoom 8 levels Pseudo-Color Modes 8 modes Automatic Measurement Automatic backfat measurement Body Marks 38 body marks with probe positions Image Storage Up to 420 images Cine Loop Up to 246 images Water Resistance IPX4 Battery 5200 mAh lithium battery Operating Time Up to approximately 5 hours depending on operating conditions Main Unit Dimensions 285 × 143 × 35 mm Weight Approximately 1.1 kg Customization Available according to project requirements
Applications	Breeding Pig Selection: Provides objective body composition data for evaluating boars, gilts and other breeding candidates. Genetic Improvement Programs: Supports recording of backfat, lean percentage and IMF-related traits for swine breeding and selection programs. Commercial Pig Farms: Suitable for routine monitoring of body composition and production characteristics in commercial pig operations. Performance Testing Stations: Can be used for standardized live-animal evaluation in breeding centers and livestock testing facilities. Nutrition and Feeding Evaluation: Body composition measurements can support assessment of feeding programs and changes in fat deposition. Livestock Research: Suitable for universities, research institutes and agricultural projects studying swine growth, carcass traits and production efficiency.
Customization Options	System configuration can be adjusted according to breeding program requirements, farm operating conditions and procurement specifications. Available options may include: • Veterinary probe configuration according to application • Backfat and body composition measurement software • Language configuration according to project requirements • Rechargeable battery and charging accessories • Protective carrying case and transport box • Sunshade for outdoor farm operation • OEM packaging and distributor configuration • Bulk supply for livestock breeding and agricultural projects
Installation & Maintenance	Before use, connect the compatible ultrasound probe securely and verify that the battery is adequately charged. Select the appropriate swine examination or measurement function before scanning. Identify the required anatomical measurement location according to the breeding or testing protocol. Apply sufficient ultrasound coupling medium to remove air between the probe and skin. Position the probe steadily and adjust gain, depth and focus until the skin, fat layers and muscle boundaries can be clearly identified. Use the automatic or manual measurement tools only after obtaining a stable and repeatable image. After scanning, remove residual coupling gel and clean the transducer according to the equipment cleaning instructions. Avoid sharp bending of the probe cable, impact to the transducer surface and unnecessary exposure of connectors to moisture. Store the system in a clean, dry protective case and inspect the battery, probe, cable and connectors regularly.
Project Cases	Automatic pig backfat and lean percentage scanners can be integrated into breeding programs for nucleus farms, multiplication farms, pig breeding companies, commercial farms and livestock performance testing centers. For large-scale swine operations, the scanner can be used as part of a standardized measurement workflow in which selected animals are scanned at defined production stages and the resulting body composition data are added to breeding, nutrition or herd management records. Equipment configurations for distributors, agricultural projects and livestock groups are available according to project requirements.
Product FAQ	Q: What measurements can this scanner perform on pigs? A: The system is designed for functions including automatic backfat thickness measurement, lean percentage evaluation and intramuscular fat measurement, depending on the configured software and measurement protocol. Q: Is slaughter required for measurement? A: No. Ultrasound allows body composition characteristics to be evaluated non-invasively on live animals. Q: Can it automatically measure backfat? A: Yes. The system includes an automatic backfat measurement function with a visual backfat scale. Q: Can it measure lean percentage? A: Yes. Compatible swine measurement functions can support backfat thickness and lean percentage measurement according to the configured program and operating procedure. Q: Does it support intramuscular fat measurement? A: Yes. IMF measurement is supported for swine body composition evaluation. Q: Is the scanner suitable for outdoor pig farms? A: Yes. Its portable construction, rechargeable battery and sunshade configuration are designed for farm and field operation. Q: How long can the battery operate? A: The 5200 mAh lithium battery can provide up to approximately five hours of operation depending on operating conditions. Q: Can images be stored for later review? A: Yes. The system supports image storage and cine-loop review for documentation and measurement verification.
