Product Name	Pig Backfat and Loin Muscle Thickness Scanner

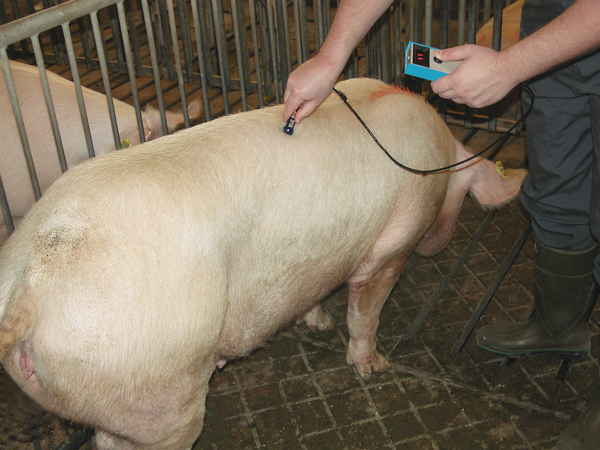

Product Image
Product Overview	The Pig Backfat and Loin Muscle Thickness Scanner is a veterinary ultrasound system designed for non-invasive evaluation of fat depth and loin muscle development in live pigs. It provides real-time B-mode ultrasound images that allow trained operators to identify the skin, subcutaneous fat layers and underlying longissimus muscle for quantitative production measurements. The system is suitable for breeding farms, nucleus herds, genetic selection programs, commercial pig farms, livestock research organizations and agricultural service companies. Backfat and loin measurements can support breeding selection, growth monitoring, feeding management and carcass trait evaluation without slaughtering the animal. Actual measurement functions depend on the scanner configuration, probe type and software package selected for the project. :contentReference[oaicite:1]{index=1}
Key Features	Non-Invasive Live-Animal Measurement: Uses ultrasound imaging to evaluate backfat and loin muscle characteristics without invasive procedures. Backfat Thickness Evaluation: Allows visualization of subcutaneous fat layers for measurement at selected anatomical scanning points. Loin Muscle Assessment: Supports evaluation of longissimus muscle depth and related muscle characteristics when used with appropriate scanning procedures and software. Real-Time B-Mode Imaging: Provides live ultrasound images to help operators identify tissue boundaries before taking measurements. Portable Farm Application: Suitable for use in breeding barns, commercial pig units, livestock testing stations and mobile veterinary or breeding services. Data-Based Herd Management: Measurement results can support genetic selection, nutritional management and production performance evaluation. Configurable System: Probe frequency, measurement software, display format and accessory package can be selected according to project requirements.
Structural Components	Ultrasound Main Unit: Generates ultrasound signals, processes returning echoes and displays real-time tissue images. Backfat / Loin Measurement Probe: Specialized transducer designed to obtain cross-sectional or longitudinal ultrasound images of pig backfat and loin muscle regions. Display and Control Interface: Used for image adjustment, depth setting, gain control, image freezing and measurement operations. Measurement Software: Depending on configuration, software tools may support distance measurement, backfat assessment, muscle depth measurement and image storage. Probe Cable or Wireless Connection: Configuration depends on the selected scanner model. Power Supply / Battery System: Portable versions may support rechargeable battery operation for farm and field applications.
Working Principle	Ultrasound gel or another suitable acoustic coupling medium is applied between the transducer and the animal's skin. The probe transmits high-frequency sound waves through the skin, subcutaneous fat and underlying muscle tissues. Each tissue boundary reflects part of the ultrasound energy back to the probe. The scanner converts these returning echoes into a real-time B-mode image. The operator identifies anatomical interfaces such as the skin, individual backfat layers and the surface of the loin muscle, then uses the system's measurement tools to determine tissue thickness. Correct probe placement, anatomical location and image quality are important for repeatable measurements. Real-time ultrasound is widely used to estimate backfat depth and loin characteristics in live swine. :contentReference[oaicite:2]{index=2}
Technical Specifications	Product Type Veterinary ultrasound backfat and loin muscle scanner Primary Animal Pigs / swine Primary Measurements Backfat thickness and loin muscle thickness according to system configuration Imaging Mode B-mode ultrasound; additional modes available depending on configuration Probe Type Backfat / linear-array or dedicated livestock measurement probe according to system configuration Probe Frequency According to project requirements and selected transducer Display Portable integrated display or external display according to model Image Storage Available upon request according to system configuration Measurement Software Backfat and muscle measurement functions available according to configuration Power Supply AC power and/or rechargeable battery according to model Customization Customizable according to project requirements
Applications	Breeding Pig Selection: Backfat and loin measurements can provide objective data for evaluating breeding stock and supporting genetic improvement programs. Boar and Gilt Evaluation: Suitable for assessing body composition and muscle development during breeding candidate selection. Commercial Pig Production: Can be used to monitor body condition and growth characteristics in commercial swine operations. Nutrition Management: Backfat data can support evaluation of feeding programs and body reserve changes in breeding pigs. Carcass Trait Research: Ultrasound measurements of backfat and loin depth are commonly used in live-animal studies related to carcass composition and lean yield. :contentReference[oaicite:3]{index=3} Livestock Testing Stations: Suitable for breeding companies, universities, agricultural research institutes and animal performance testing programs.
Customization Options	System configurations can be selected according to breeding program requirements, farm operating conditions and measurement objectives. Available options may include: • Dedicated pig backfat measurement probe • Loin muscle measurement probe configuration • Different probe frequency options • Portable or tablet-style ultrasound platform • Measurement and image storage software • Rechargeable battery configuration • Protective carrying case • Farm-use accessories and coupling materials • OEM and distributor package options Final configuration is available according to project requirements.
Installation & Maintenance	Before scanning, confirm that the probe is correctly connected and that the selected examination preset is suitable for pig backfat or muscle evaluation. Identify the required anatomical measurement location according to the farm's breeding or testing protocol. Prepare the skin if necessary and apply sufficient ultrasound coupling gel to eliminate air between the probe and skin. Position the transducer steadily and adjust scanning depth and gain until the skin, fat layers and muscle boundary can be clearly identified. Freeze the image before performing measurement. After each use, remove coupling gel from the probe and cable. Clean and disinfect the transducer using methods compatible with the probe material. Avoid dropping the probe, sharply bending the cable or exposing connectors to water unless the equipment documentation specifically permits it. Periodic inspection of the probe surface, cable, connector and battery is recommended for reliable farm operation.
Project Cases	Pig backfat and loin muscle scanners can be integrated into breeding and production management programs for nucleus farms, multiplication farms, commercial pig operations, livestock breeding companies and agricultural research projects. For large commercial farms, scanners can be configured for routine animal testing at selected production stages. Measurement results can be incorporated into breeding records, nutritional evaluations and herd performance databases according to the customer's management system.
Product FAQ	Q: What can this pig ultrasound scanner measure? A: Depending on the selected probe and software configuration, it can be used to evaluate pig backfat thickness and loin muscle thickness from real-time ultrasound images. Q: Does the measurement require slaughtering the pig? A: No. Ultrasound provides a non-invasive method for evaluating fat and muscle characteristics in live pigs. Q: Can it be used for breeding pig selection? A: Yes. Backfat depth and loin muscle characteristics are commonly used as objective production traits in swine breeding and genetic selection programs. :contentReference[oaicite:4]{index=4} Q: Where is the probe placed on the pig? A: The exact anatomical scanning position depends on the measurement standard being followed. Common swine ultrasound protocols use defined rib and loin locations to improve measurement consistency. :contentReference[oaicite:5]{index=5} Q: Is ultrasound gel required? A: Yes. A suitable acoustic coupling medium is normally required to eliminate air between the probe and skin and obtain a clear ultrasound image. Q: Can the scanner automatically calculate backfat thickness? A: Automatic or semi-automatic measurement functions depend on the software package and scanner configuration selected. Q: Can the system be customized for large pig farms? A: Yes. Probe configuration, software functions, accessories and packaging can be selected according to project requirements.
