Product Showcase	Content
Product Name	Compact Smart Automatic Calf Feeder

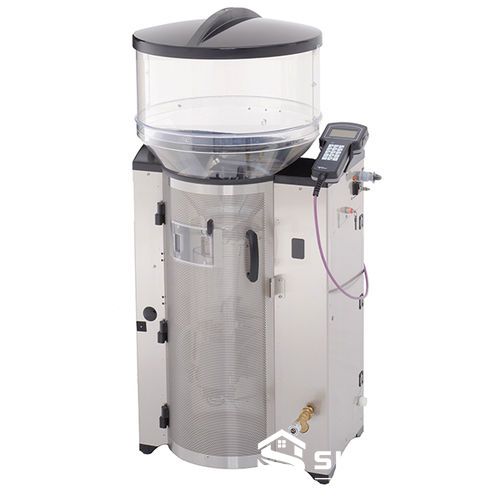

Product Image
Product Overview	The Compact Smart Automatic Calf Feeder is designed for automated milk feeding in small and medium-sized dairy calf operations. The system can manage up to 50 calves and supply up to two feeding stations with freshly prepared milk portions throughout the day. Individual animals are identified by compatible collar transponders or electronic ear tags. The control system then delivers age- and requirement-based portions while recording individual drinking activity for efficient calf management.
Key Features	Automatic feeding management for up to 50 calves. Supports up to two automatic feeding stations. Fresh milk portions prepared in precisely controlled quantities. Controlled drinking temperature for consistent feeding conditions. Individual calf identification by transponder or electronic ear tag. Programmable age- and requirement-based feeding plans. Individual milk intake and drinking behavior documentation. Fully automatic cleaning reduces daily manual labor. Internet-enabled calf management and remote data access. Available as milk-replacer or fresh-milk plus milk-replacer combination configuration.
Structural Components	Powder Hopper: Stores milk replacer for automatic portion preparation. Intensive Mixing Unit: Mixes water and milk replacer into a uniform calf milk ration. Heating System: Maintains the programmed drinking temperature. Feeding Pump: Transfers prepared milk to the connected feeding station. Animal Identification Unit: Recognizes compatible electronic calf identification devices. Control Terminal: Provides access to feeding parameters, calf records and operating settings. Cleaning Circuit: Performs programmed automatic cleaning of milk-contact components. Network Interface: Supports internet-based calf management and system monitoring.
Working Principle	When a calf enters the feeding station, the electronic identification system recognizes the animal and checks its individual feeding plan, previous consumption and current milk allowance. When the calf is entitled to feed, the machine automatically prepares the required milk portion at the programmed concentration and temperature and delivers it to the teat. Each feeding visit and milk intake is recorded for individual animal management. Automatic cleaning cycles help maintain hygiene throughout the milk preparation and delivery system.
Technical Specifications	Product Type Smart Automatic Calf Milk Feeder Calf Capacity Up to 50 Calves at a Time Feeding Stations Up to 2 Calves per Station Approximately 20–30 Powder Hopper Capacity Approx. 35 kg Feed Preparation Rate Up to 1.5 L/min Heating Output 2.5 kW at 400 V Reference Configuration Reference Power Supply 230 V / 400 V / 3 / N / PE, 50 Hz, 16 A Overall Dimensions Approx. 126 × 57 × 52 cm Reference Weight Approx. 80 kg Animal Identification Collar Transponder or Electronic Ear Tag Feed Configuration Milk Replacer or Combi Fresh Milk + Milk Replacer Cleaning Fully Automatic Connectivity Internet-Enabled
Applications	Small and medium-sized commercial dairy farms. Group-housed calf-rearing facilities. Replacement-heifer development programs. Milk replacer and combined fresh-milk feeding programs. Modern calf barns with galvanized steel penning systems. Automated livestock building and dairy farm projects. Livestock equipment distributors and agricultural contractors.
Customization Options	System configuration can be selected according to herd size, calf housing layout and feeding strategy. Available options may include one or two feeding stations, milk replacer or combination feeding, compatible electronic identification equipment, touch-screen operation and hygiene accessories. Electrical supply, feeding-station layout, milk-line arrangement and installation accessories can be supplied according to project requirements and are available upon request.
Installation & Maintenance	Install the main feeder on a stable and level floor in a protected equipment area. Provide suitable electrical power, fresh-water supply and drainage. Arrange milk hoses and feeding stations according to the calf-pen layout. Protect hoses, electrical cables and utility connections from animal contact. Verify dosing accuracy and drinking temperature during commissioning. Follow programmed automatic cleaning cycles and maintain the cleaning-agent supply. Inspect teats, hoses, pumps, seals and identification components regularly. Keep the powder hopper and equipment area clean and dry. Calibrate dosing components according to the operating and maintenance schedule.
Product FAQ	Q: How many calves can the feeder manage? A: The reference configuration can manage up to 50 calves and supply up to two feeding stations. Q: How are individual calves identified? A: Compatible collar transponders or electronic ear tags can be used for automatic individual identification. Q: Can different calves receive different milk quantities? A: Yes. Individual feeding plans can be programmed according to age, feeding stage and farm management requirements. Q: Can the feeder use fresh milk? A: A combination configuration is available for fresh milk together with milk replacer. Q: Does the feeder clean automatically? A: Yes. The system provides fully automatic cleaning functions to reduce routine sanitation work. Q: Can feeding performance be monitored remotely? A: Yes. Internet-enabled management supports digital monitoring of calf feeding data. Q: Can it be installed in an existing calf barn? A: Yes. Feeding stations, utility connections and installation accessories can be configured according to existing livestock-building conditions.
Product Gallery
