Product Name	Positive Pressure Air Distribution Duct System
Product Image

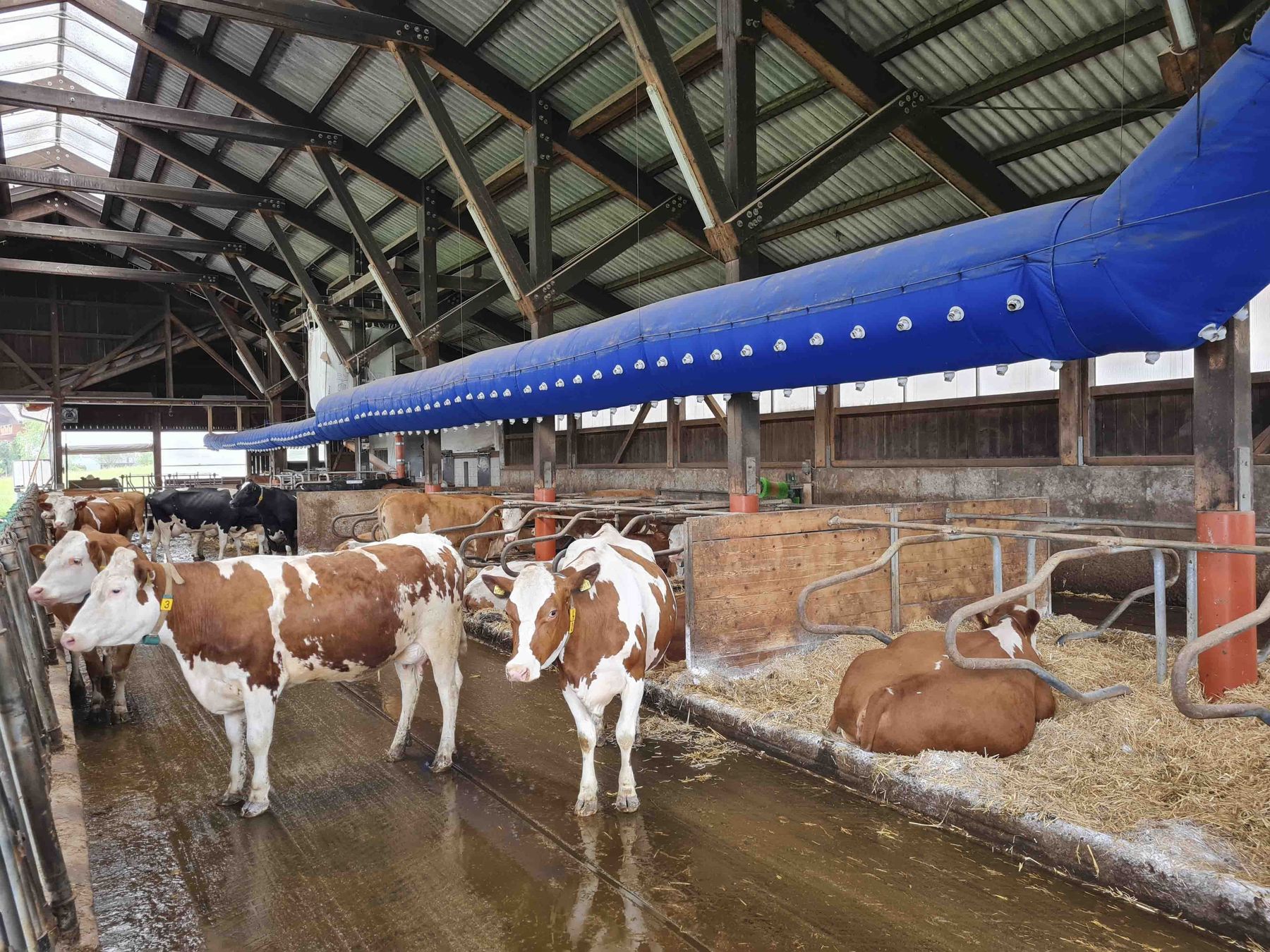

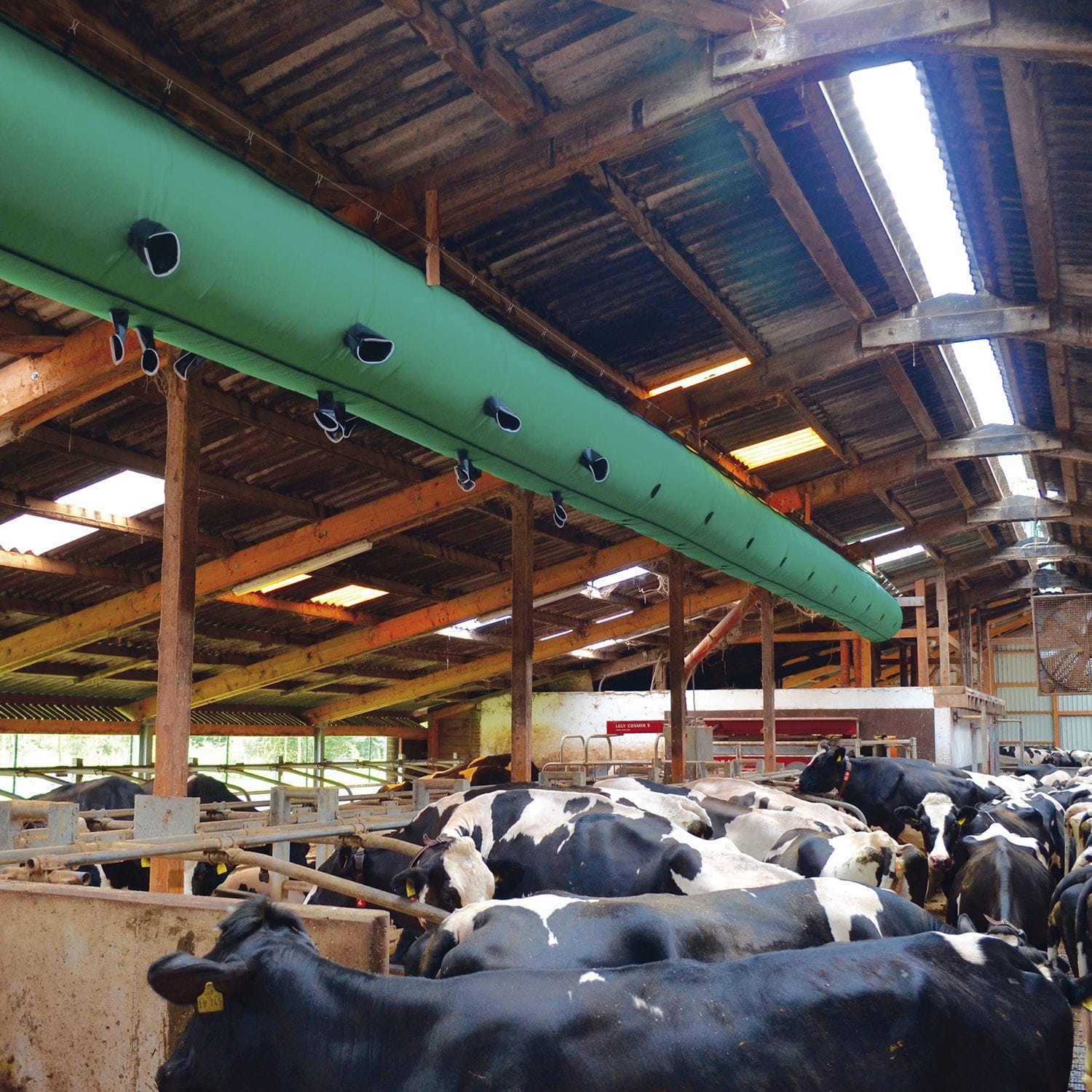

Product Overview	The Positive Pressure Air Distribution Duct System is designed to deliver and distribute fresh or conditioned air throughout commercial livestock buildings. A supply fan introduces air into the duct, while engineered openings distribute the airflow along the required animal zone. The system can be configured for pig houses, poultry houses, calf barns, dairy facilities, and other agricultural buildings where controlled supplemental air distribution is required. Positive-pressure duct systems can be used to provide fresh-air delivery, support heating or cooling air distribution, and improve air movement in areas that require additional ventilation. Duct diameter, length, outlet size, outlet spacing, installation height, and suspension arrangement can be designed according to building dimensions, fan capacity, livestock type, local climate, and project-specific ventilation requirements.
Key Features	Positive-pressure air distribution for controlled fresh-air delivery. Designed for uniform air distribution along the required livestock area. Custom-engineered outlet openings for specific airflow requirements. Suitable for fresh, heated, cooled, or conditioned supply air according to system design. Flexible layout for steel structure buildings and conventional livestock houses. Lightweight duct construction can simplify transportation and installation. Customizable duct diameter, length, outlet pattern, and suspension arrangement. Can supplement natural or negative-pressure ventilation systems. Suitable for new construction, farm expansion, and ventilation retrofit projects. Designed according to livestock type, building geometry, and local climate conditions.
Structural Components	A typical positive-pressure air distribution duct system may include: Flexible textile, polyethylene, or other suitable air distribution duct. Supply fan or blower connection. Fan adapter, transition, collar, or rigid air straightener. Engineered air outlet holes, perforations, nozzles, or diffuser sections. Suspension cables, support rails, straps, hooks, or mounting hardware. End closure, end cap, or tensioning components. Optional airflow control or variable-speed fan controller. Optional filter, heater, cooler, or other air-treatment equipment. The final component configuration is selected according to the ventilation layout and project requirements.
Working Principle / Structural Principle	The supply fan draws fresh outside air or receives conditioned air from an air-treatment system and forces it into the distribution duct. Internal duct pressure then drives air toward the engineered outlet openings. Air is discharged through calibrated holes, perforations, nozzles, or diffuser sections positioned along the duct. Outlet diameter, quantity, spacing, and direction are selected to achieve the required airflow pattern at the animal level. The duct system can operate as a supplemental ventilation system or as part of a larger mechanical ventilation strategy. For livestock applications, the design should consider fan capacity, static pressure, duct dimensions, installation height, building geometry, animal location, and required ventilation rate.
Technical Specifications	Product Type: Positive-pressure air distribution duct system. Application: Fresh-air and conditioned-air distribution in livestock buildings. Operating Mode: Positive-pressure supply ventilation. Duct Material: Fabric, polyethylene, or other suitable material according to project requirements. Duct Diameter: Customizable according to airflow and static-pressure requirements. Duct Length: Customizable according to building dimensions. Outlet Type: Perforated, circular-hole, nozzle, directional, or engineered outlet configuration. Outlet Pattern: Customizable according to airflow calculation and installation conditions. Suspension: Cable, rail, strap, hook, or other suitable support system. Fan Connection: Adapter, transition, collar, sleeve, or other suitable connection. Control: Manual or automatic fan-speed control according to project requirements. Detailed dimensions, airflow, static-pressure, and material data: Available upon request.
Applications	The Positive Pressure Air Distribution Duct System can be applied in: Commercial pig houses and swine production facilities. Farrowing, nursery, gestation, breeding, and finishing buildings. Calf and youngstock housing. Dairy and beef cattle barns. Poultry houses and other livestock production buildings. Fresh-air distribution during cold and mild weather conditions. Supplemental ventilation for naturally ventilated buildings. Conditioned-air distribution from heating or cooling equipment. Steel structure livestock buildings and agricultural workshops. Ventilation renovation, expansion, and retrofit projects.
Customization Options	The system can be engineered as a complete project-specific air distribution solution: Customized duct diameter and total length. Customized outlet diameter, quantity, spacing, position, and direction. Different outlet patterns for different ventilation stages. Single-line or multiple-line duct arrangements. Customized fan capacity and connection configuration. Variable-speed fan control according to project requirements. Suspension design matched to steel structure, timber, concrete, or other suitable building construction. Fabric or polyethylene duct material selected according to application and environmental conditions. Optional filtration, heating, cooling, or air-treatment integration. System layout designed according to livestock type, stocking density, building dimensions, and local climate.
Installation & Maintenance	Installation should begin with confirmation of the ventilation layout, fan location, duct route, suspension points, outlet orientation, and installation height. For steel structure livestock buildings, the suspension system should be coordinated with roof purlins and other structural members. The duct should be installed with sufficient support and without excessive twisting or deformation. The fan connection should be securely fixed and sealed. Outlet openings should remain unobstructed and correctly aligned with the designed airflow direction. Routine maintenance should include inspection of the duct material, seams, outlet openings, fan connection, suspension hardware, and end closure. Washable duct materials can be cleaned according to the material manufacturer's recommendations. Damaged components should be repaired or replaced as required.
Project Cases	Positive-pressure air tube systems are widely used as supplemental ventilation in livestock buildings, particularly where natural ventilation does not provide sufficient fresh-air distribution during cold or mild weather. The system concept uses a fan to pressurize a distribution tube and deliver air through openings along its length. For commercial farm projects, the duct system should be designed together with the supply fan, building envelope, livestock capacity, installation height, outlet configuration, and existing ventilation system. The final design is determined according to project-specific airflow requirements.
Product FAQ	Q: What is a positive pressure air distribution duct system? A: It is a fan-assisted duct system that supplies air under positive pressure and distributes it through engineered openings along the duct to provide controlled airflow within a livestock building. Q: Can it be used in commercial pig houses? A: Yes. The system can be designed for farrowing, nursery, gestation, breeding, finishing, and other commercial swine facilities. Q: Can it replace the main ventilation system? A: It can be used as a supplemental or integrated ventilation solution. The appropriate configuration depends on the building, climate, livestock type, and complete ventilation strategy. Q: Can the outlet holes be customized? A: Yes. Outlet size, quantity, spacing, location, and direction can be customized according to airflow calculations and the required air distribution pattern. Q: Can the system supply heated or cooled air? A: Yes. The duct can distribute conditioned air when properly integrated with suitable heating, cooling, or air-treatment equipment. Q: Can the duct length and diameter be customized? A: Yes. Duct dimensions are customizable according to building dimensions, fan capacity, airflow requirements, and installation conditions. Q: Is automatic control available? A: Automatic or variable-speed fan control can be incorporated according to project requirements and the overall farm climate-control strategy. Q: What information is required for project design? A: Typical design information includes building dimensions, livestock type and capacity, ventilation requirements, climate conditions, fan location, installation height, existing ventilation equipment, and the required airflow distribution pattern.
Product Gallery
